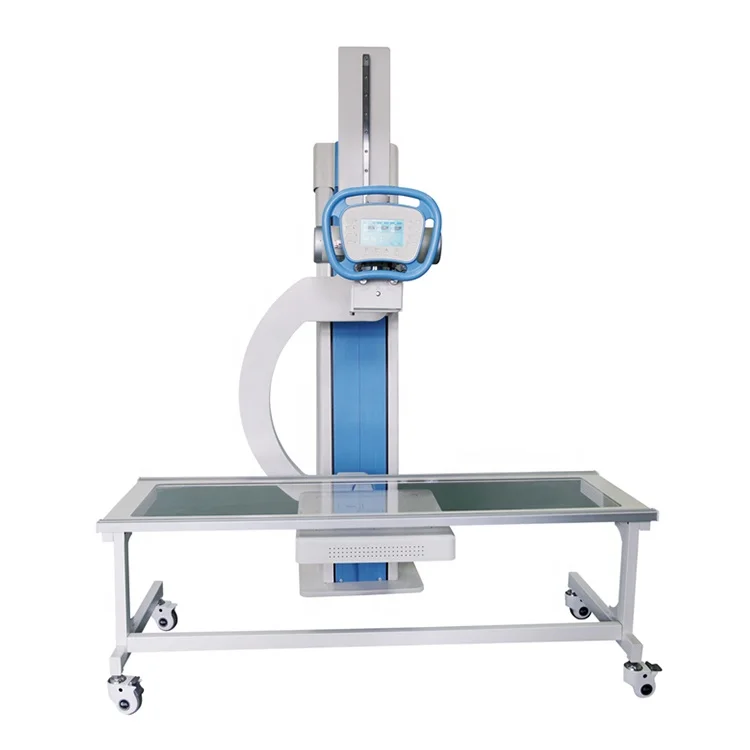

China Manufacturer Hospital Clinic Equipment HDC6000 X Ray Digital System
China Manufacturer Hospital Clinic Equipment HDC6000 X Ray Digital System

China Manufacturer Hospital Clinic Equipment HDC6000 X Ray Digital System

Share on (1600149846313):


Price:RUB 779,152.00 - RUB 1,558,304.00

Quantity:


Product Overview

Description

HDC6000 Features
1.It can meet the design requirements of the hospital room function in different periods. 2.The most humanized aesthetic design process. 3.Seven inch color screen touch type operation and button type dual control system 4.One click to reach the preset projection position 5.greatly reducing the workload of hospital staff 6.With the full electric intelligent UC arm support frame 7.full body projection without dead angle operation is more flexible 8.improve the use efficiency of the equipment
Technical Specification
High voltage generator
Self developed 50KW high frequency and high frequency generator
Tube voltage range: 40kv-150kv
Tube current range: 10ma-630ma
Loading time: 1ms-6300ms
Current time product: 0.1mas-630mas
Bulb tube
Tube voltage: 150kV
Focus: 0.6/1.2mm
Target angle: 12 degrees
Heat capacity: 150khu
Flat panel detector
Amorphous silicon cesium iodide non splicing whole plate
Effective acceptance area: 430mm * 430mm
Pixel size: 3027 * 3027
Pixel size: 143 μ MA / D conversion: 16bit
Resolution: 3.6lp
