Японский MPR3000GB сканер для документов Настольный копировальный аппарат для оптовой продажи
- Category: Scanners >>>
- Supplier: Micro Edge Process Co. Ltd.
Share on (1600152309124):
Product Overview
Description

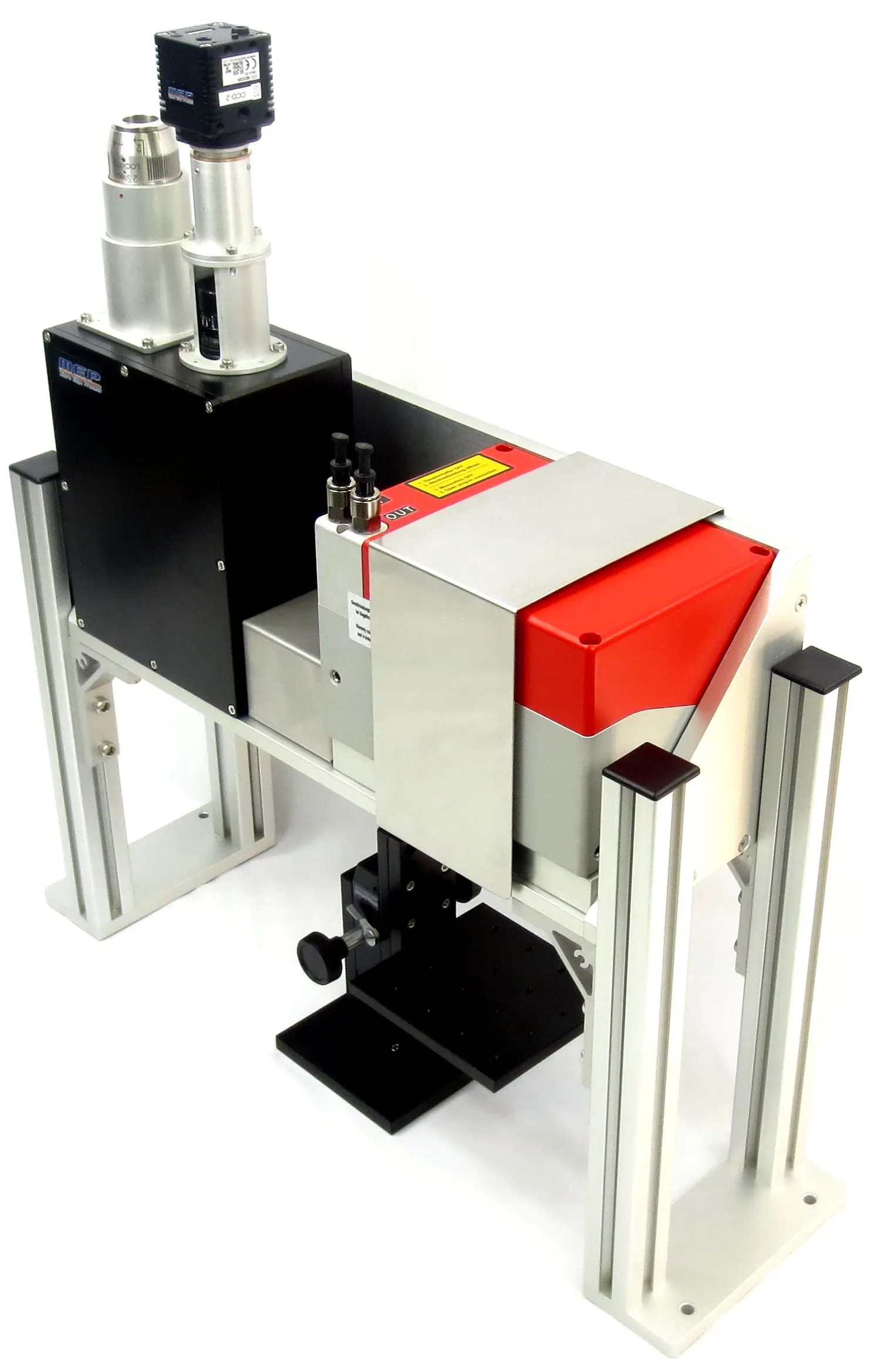

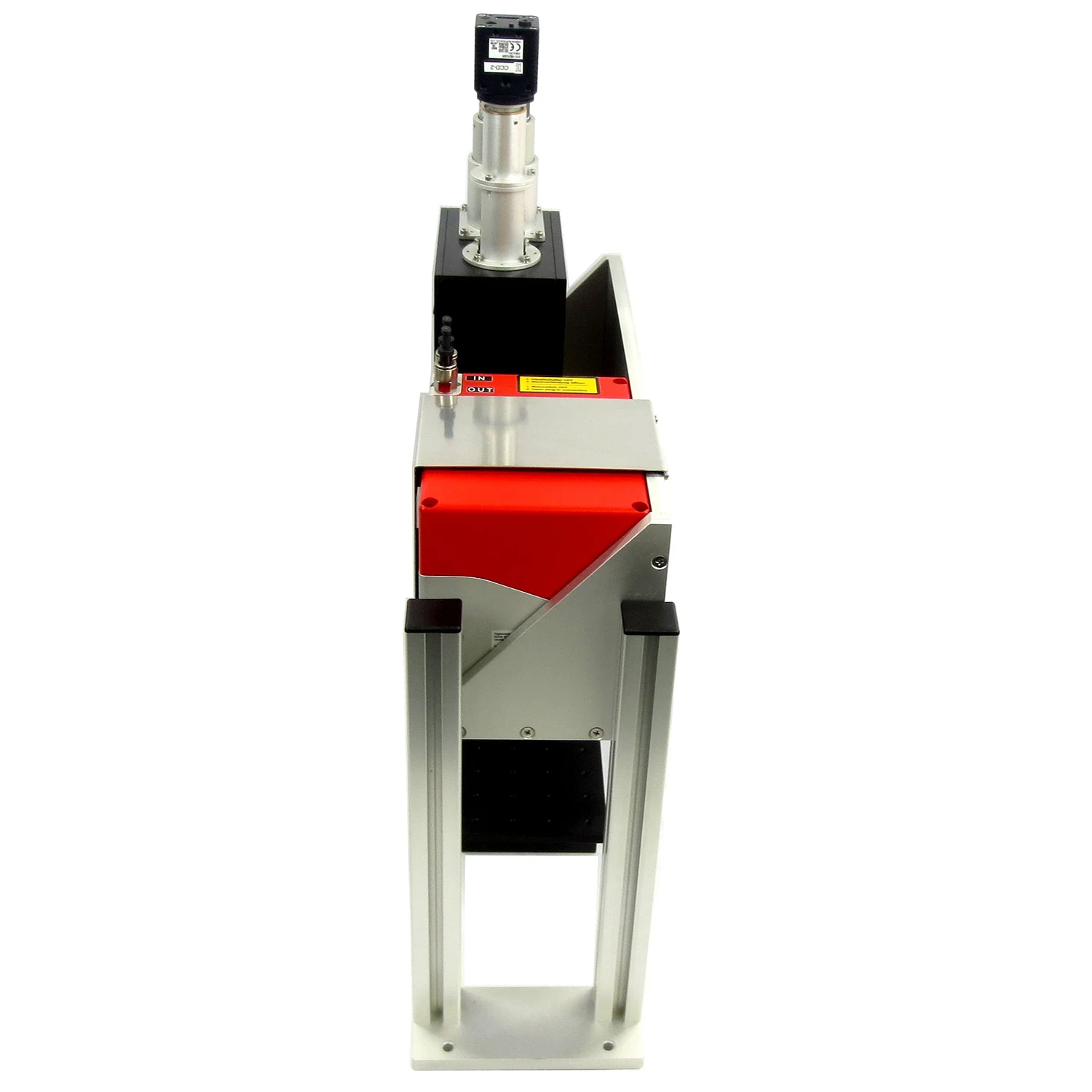

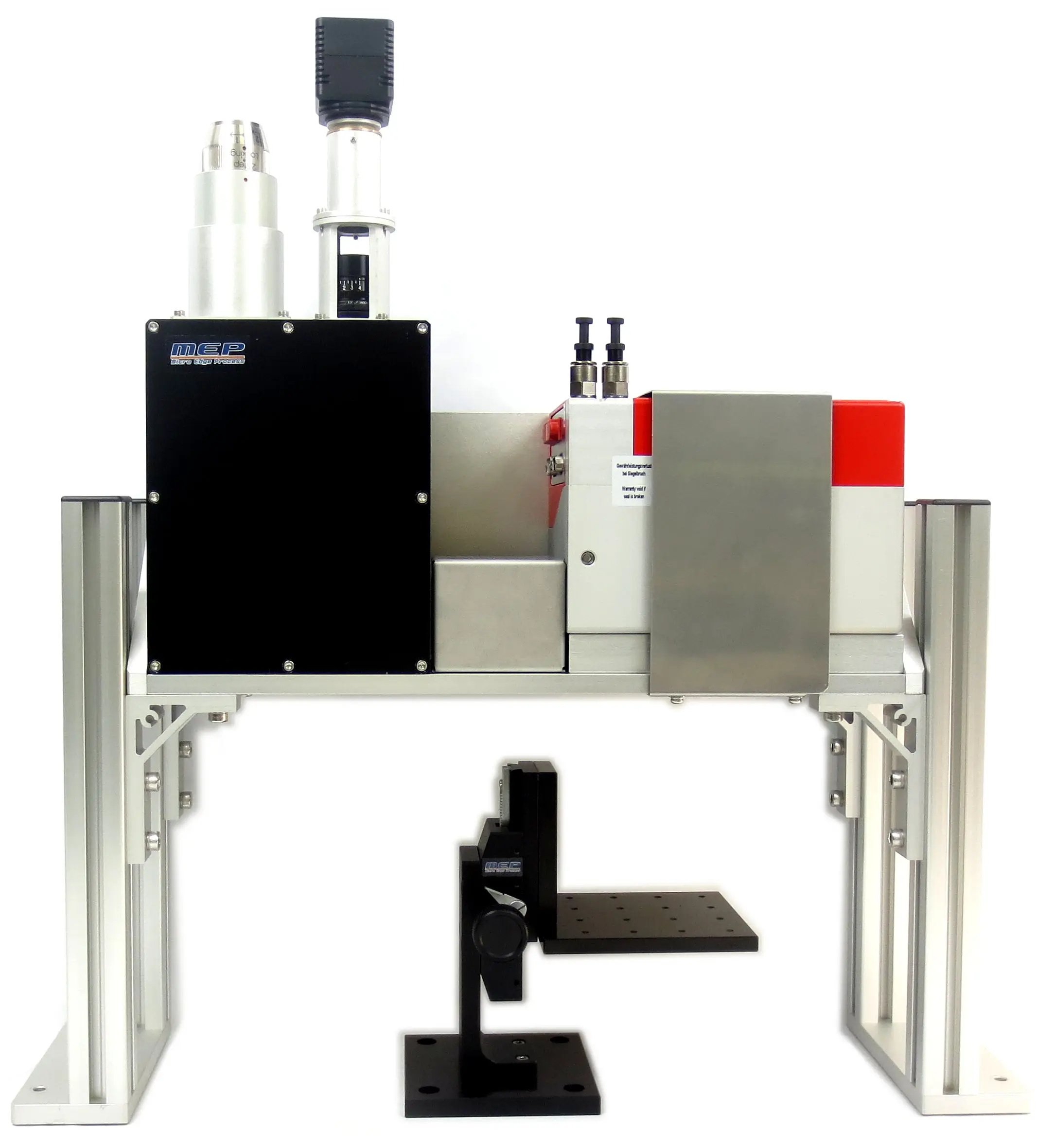

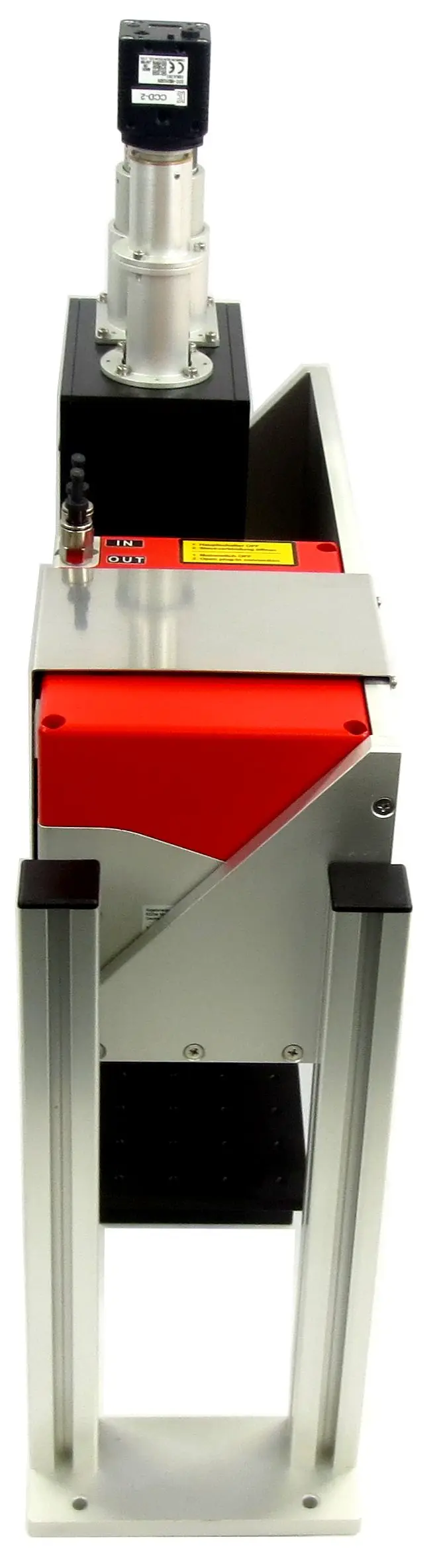

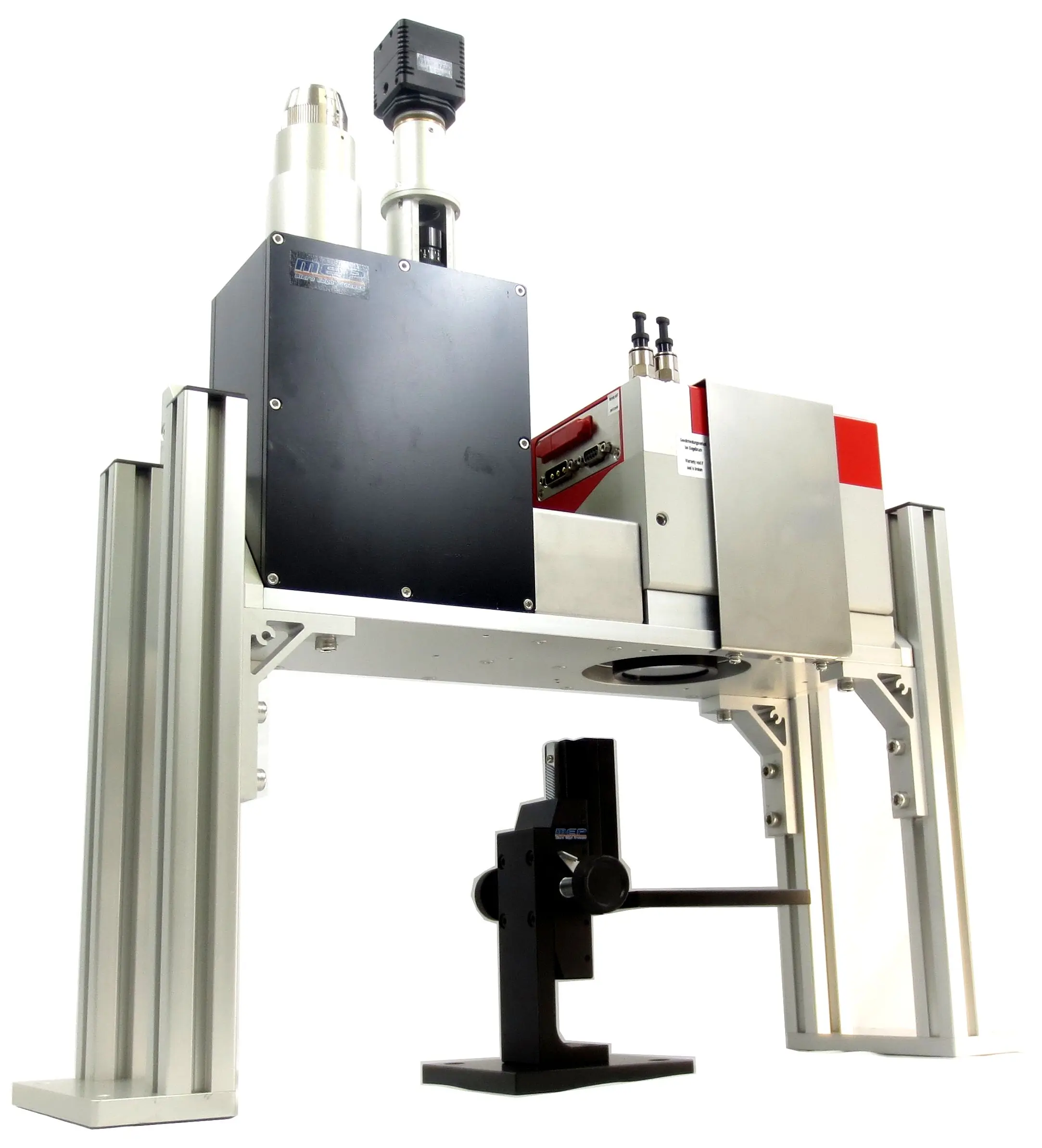

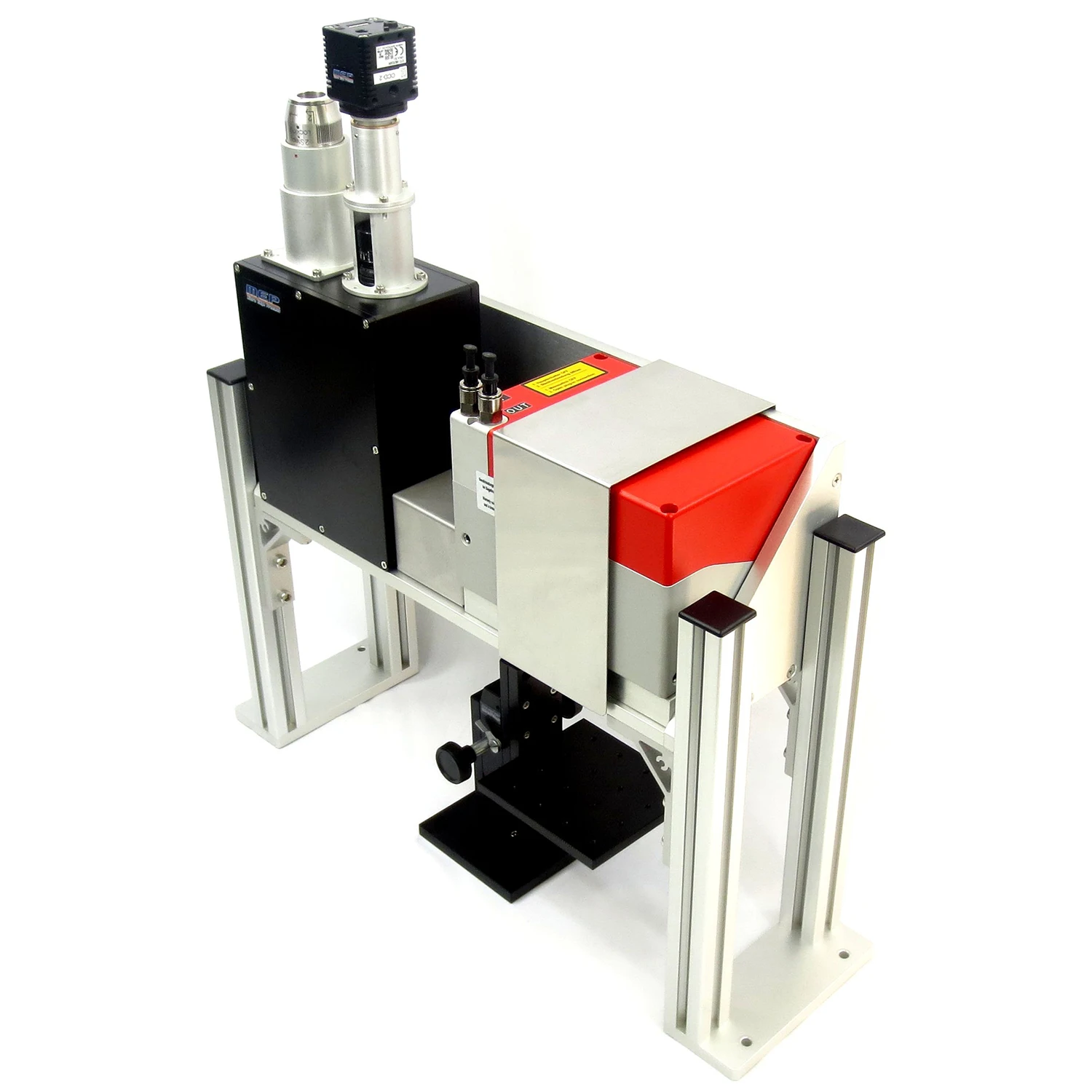

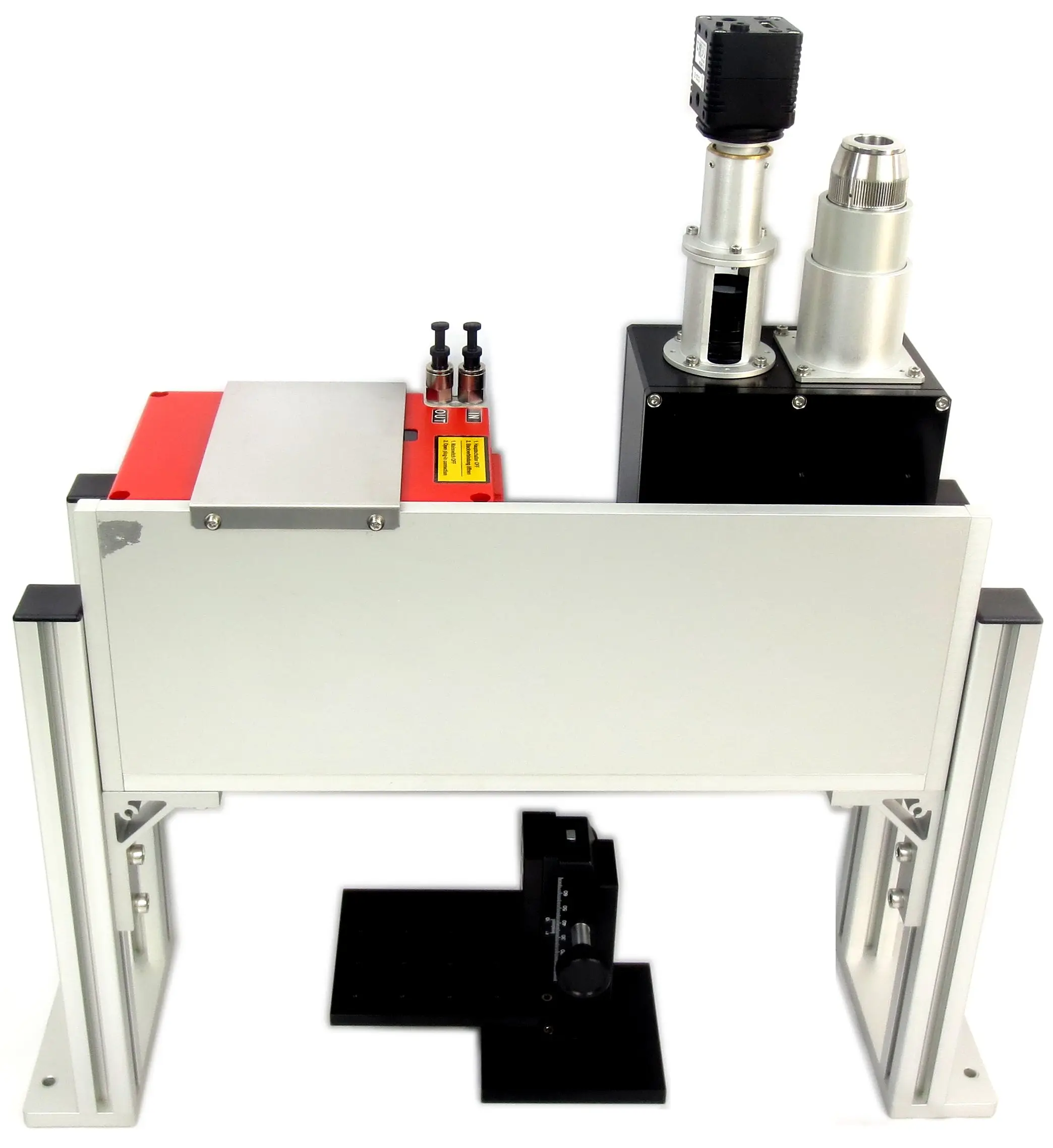

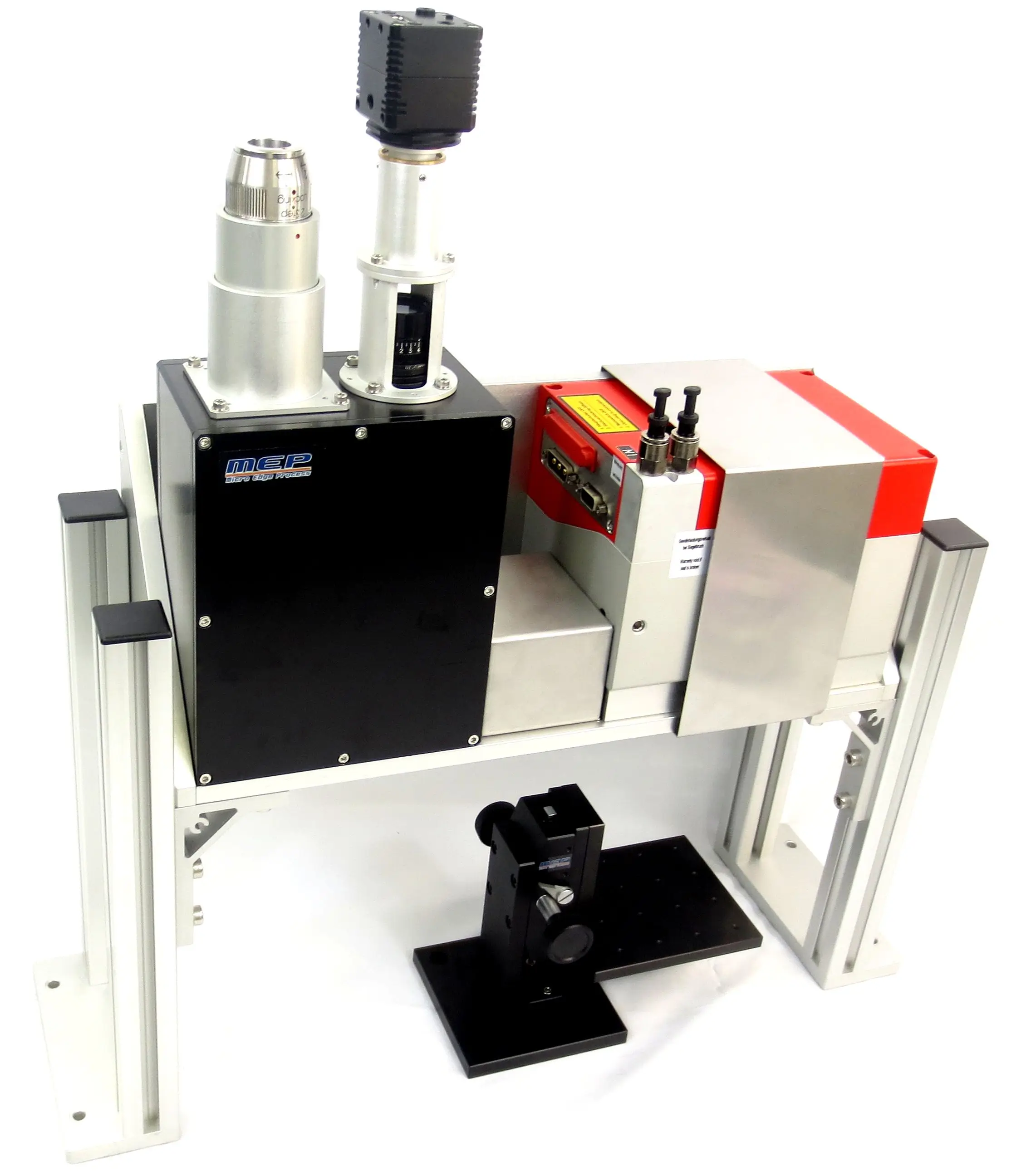

☆ Galvano scanner system MPR3000GB ☆\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
【Features】\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
multipurpose.\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
Example.\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
Due to the high density of parts, multi-legged electronic parts (connectors, etc.) that cannot be removed with a soldering iron or solder spot can be removed in a few seconds without contact.\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
Significant time reduction for improvement and correction work.\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
Prevents damage to printed circuit boards and electronic components\tdue to improvement and correction work.\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
Product name | MPR3000GB Galvano scanner system | ||
Brand Name | Micro Edge Process | ||
Place of Origin | Japan | ||
Specifications | Scanner | SuperScan IV-15 (RAYLASE) | |
f-Theta lens | S4LFT7163 (sill optics) | ||
Work distance [mm] | 197.2 | ||
Laser irradiation range [mm] | 95 x 95 | ||
Irradiation position movement speed [m / sec] | 4.9 | ||
Corresponding laser wavelength [nm] | 1064 | ||
Power supply | Dedicated power supply included | ||
PC interface | SP-ICE3 | ||
PC software | weldMark 3.6 | ||
Control PC | Desktop type | ||
Laser | QCW-150 (Raycus) | ||
NUQ-1064-NA (Nufern) | |||
Coaxial head | Laser connector | For QBH, NUQ-1064-NA (negotiable for other shapes) | |
DV camera | STC-HD203DV (OMRON-SENTECH) (Camera image is displayed in green single color) | ||
Camera image optical adjustment | Focus, iris | ||
Beam expander | S6EXZ5311 / 328 can be installed | ||
General spesicications | Dimensions (mm) | W520 x D152 x H427 | |
Weight | 12kg | ||
