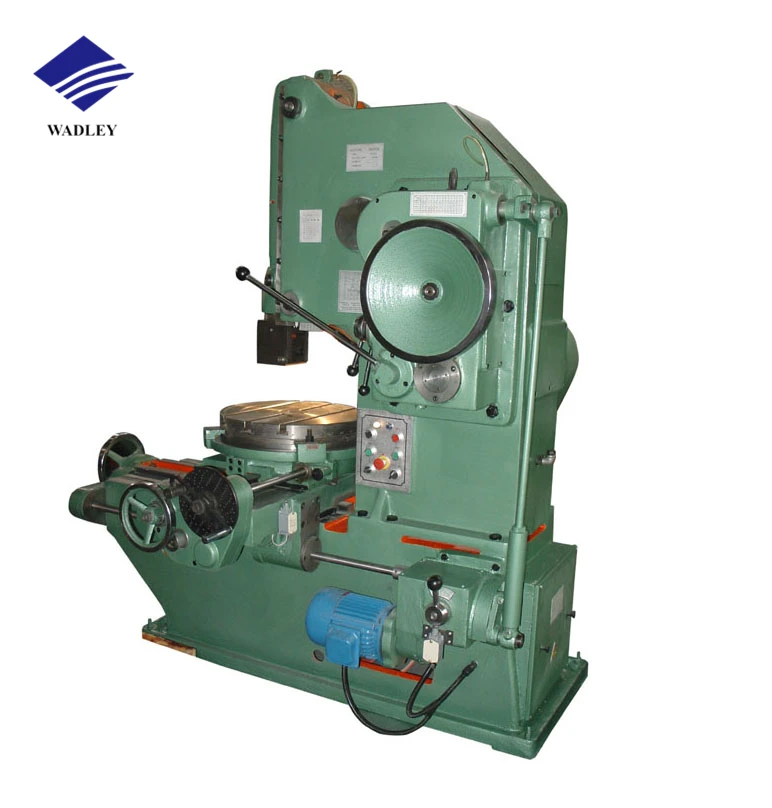

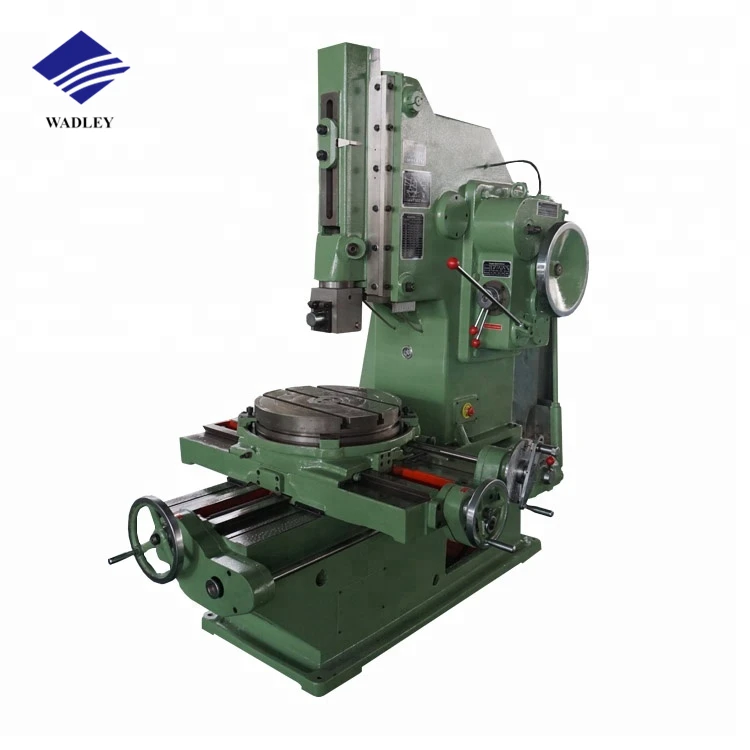

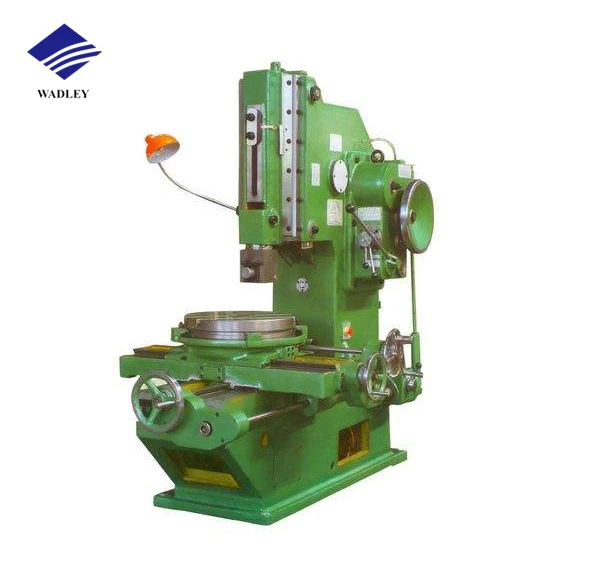

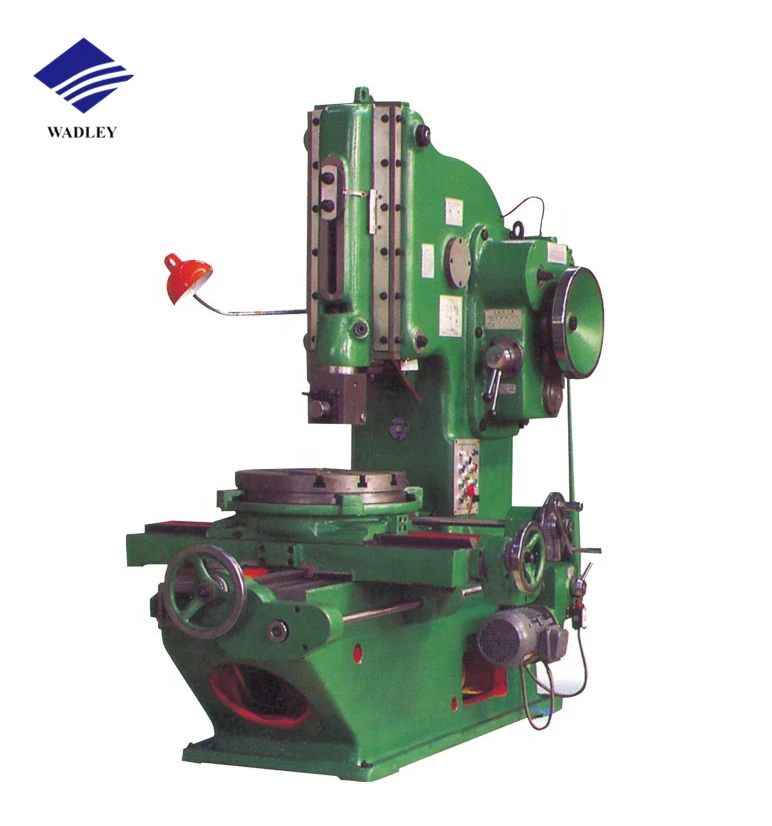

slotting machine for metal B5020 Vertical Slotting Machine for processing metal
- Category: Planer & Slotting Machines >>>
- Supplier: Henan Wadjay Machinery Co. Ltd.
Share on (1600153783706):
Product Overview
Description

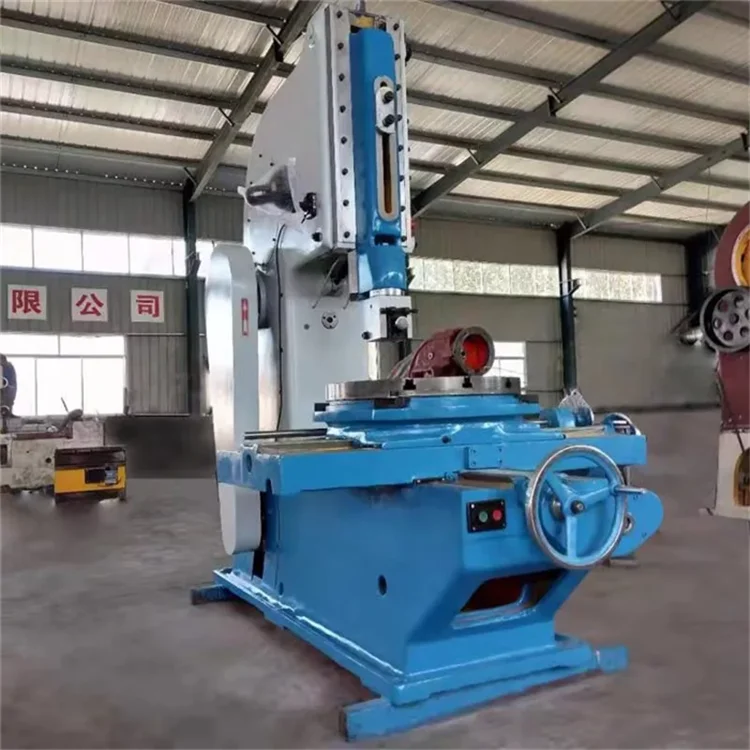

High Efficient Horizontal Vertical Slotting Machine B5020
Product Description
Suitable for single piece or small batch production.
1.Multiple-disk clutch: carried out on the start and stop of the machine
2.crank connecting link: achieved in the reciprocation of the ram

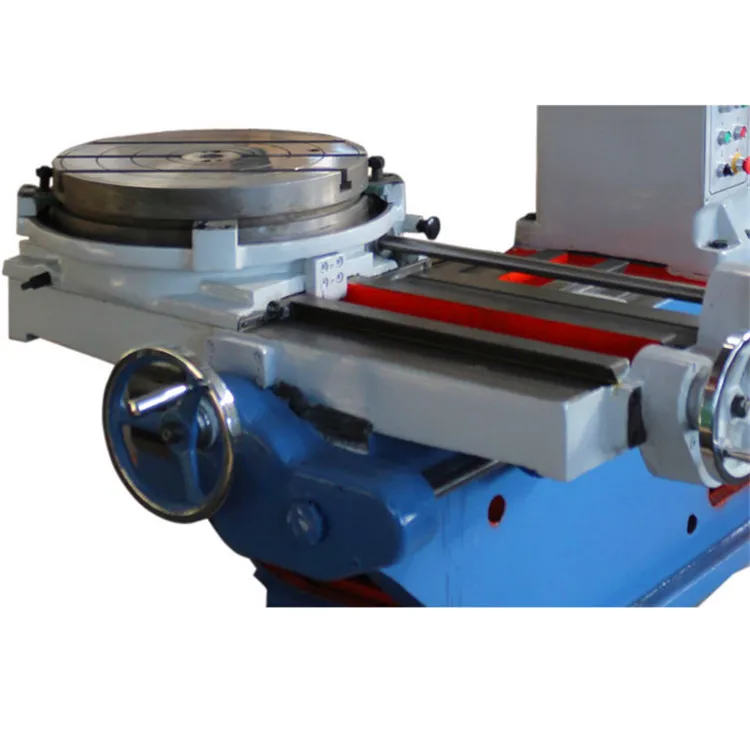

3.table:an automatic mechanism for vertical horizontal and rotary feeding together with its safety device is provided on the table.
4.rapid motion device: there is also a rapid motion device for vertical horizontal and rotary motion of the table which is equipped with an indexing gear for rotary motion.
1.Multiple-disk clutch: carried out on the start and stop of the machine
2.crank connecting link: achieved in the reciprocation of the ram
3.table:an automatic mechanism for vertical horizontal and rotary feeding together with its safety device is provided on the table.
4.rapid motion device: there is also a rapid motion device for vertical horizontal and rotary motion of the table which is equipped with an indexing gear for rotary motion.

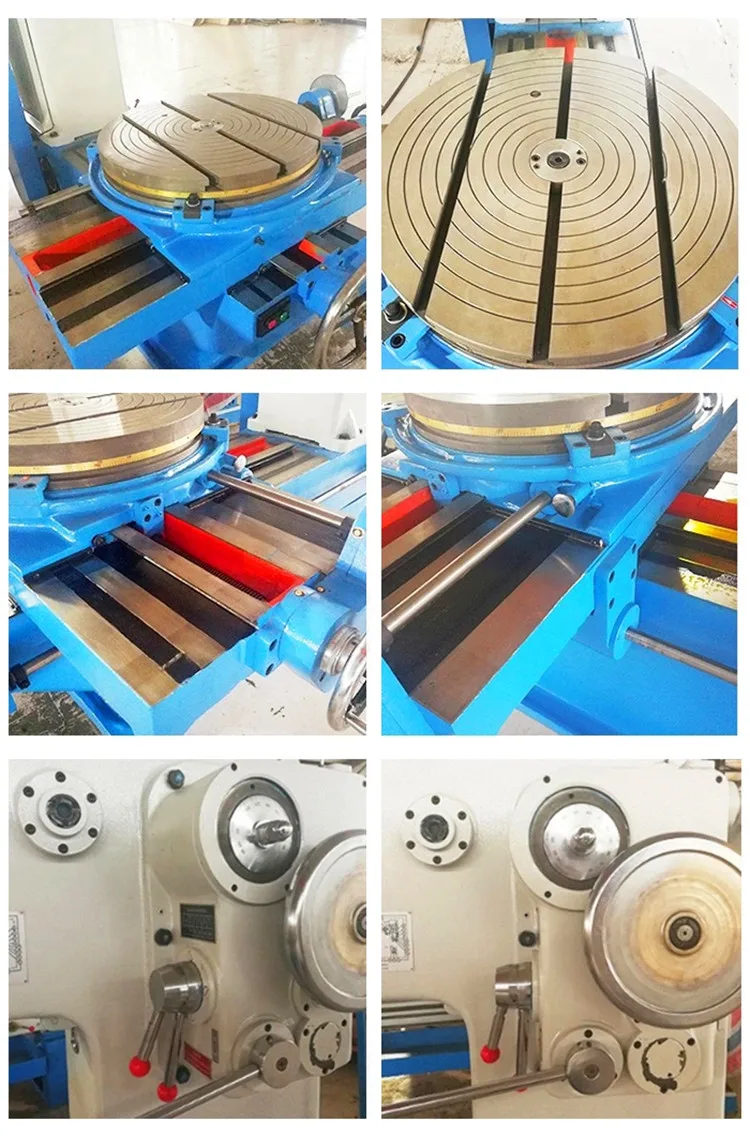

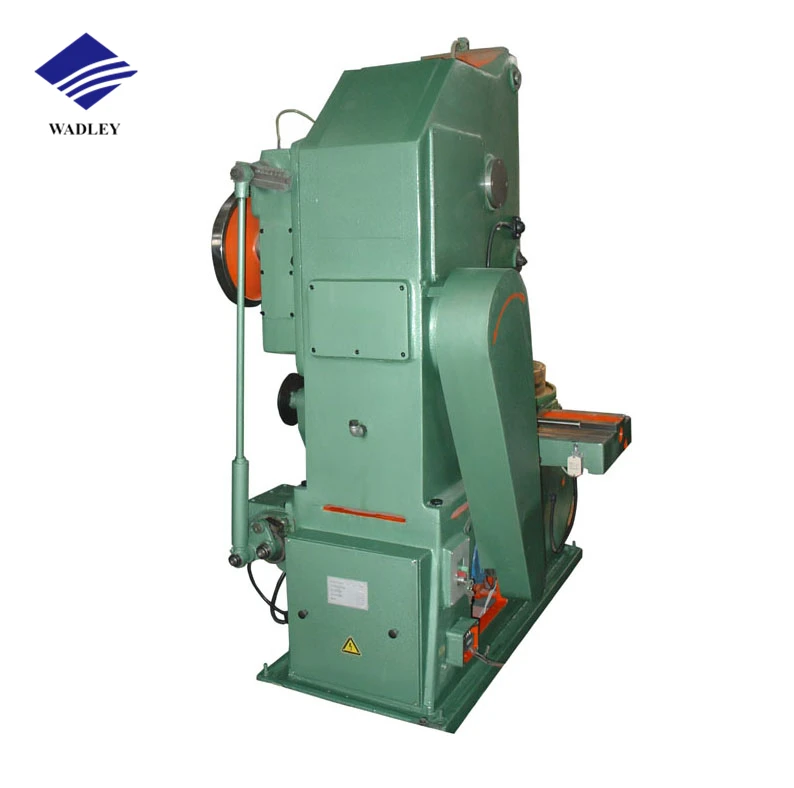

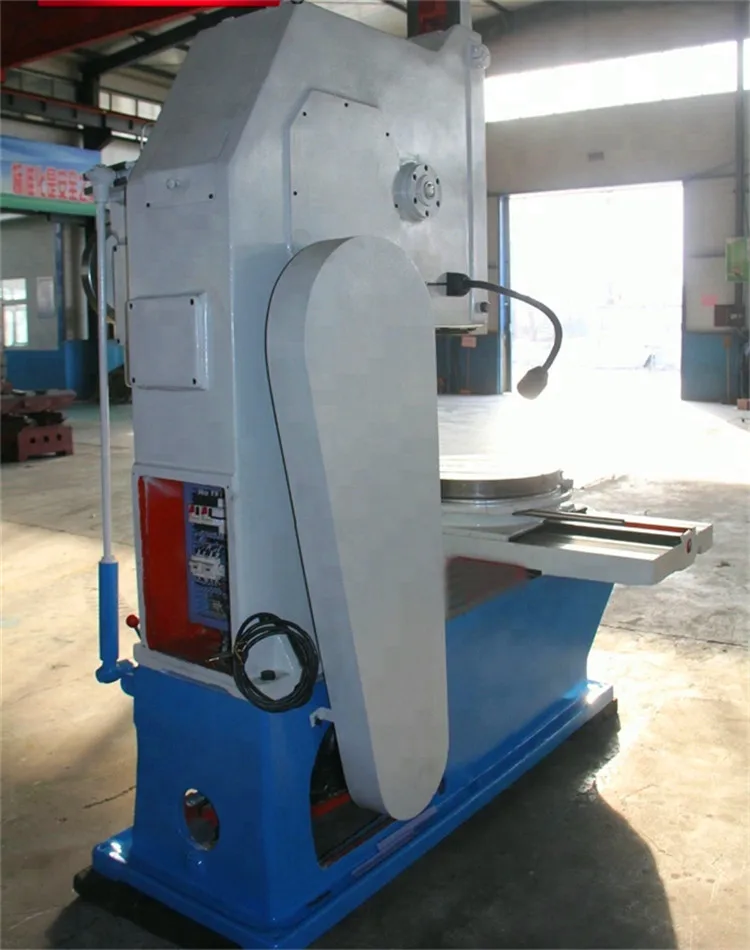

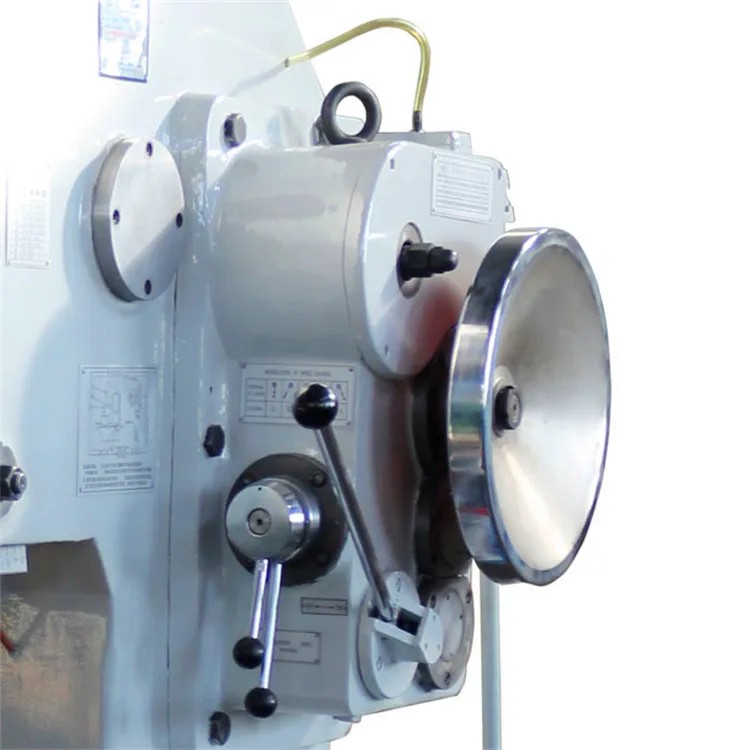

Detailed Images
Parameter of slotting machine
| Specification | Unit | B5032 | B5020 |
| Max. stroke of RAM | mm | 340 | 220 |
| Ram maximum slotting length | mm | 320 | 200 |

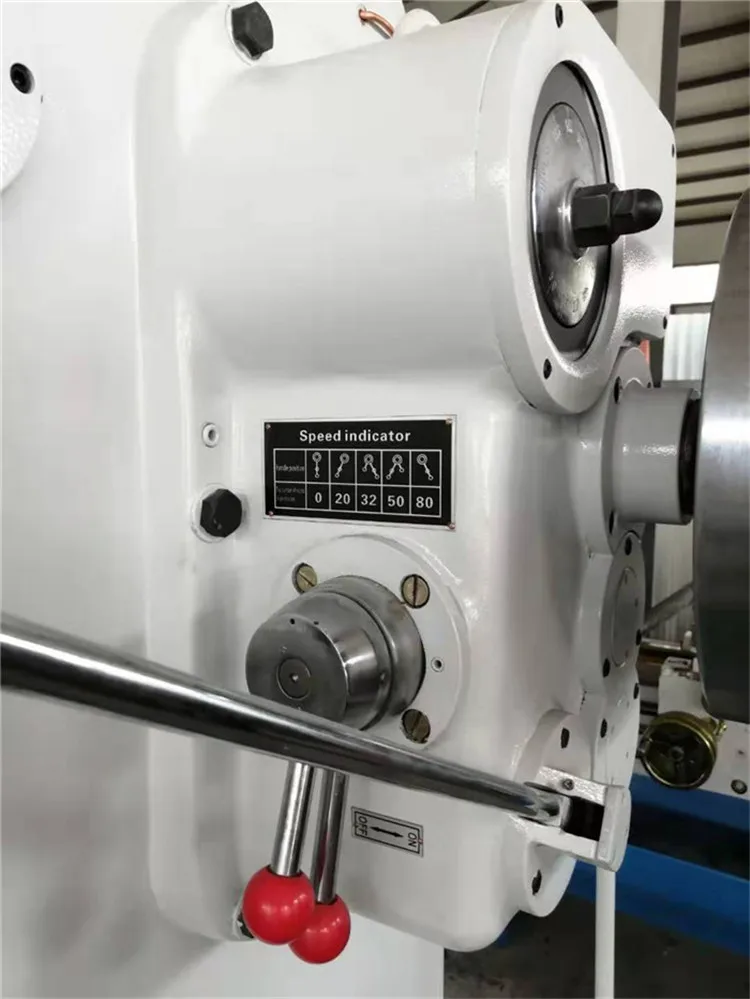

| Ram motion frequency | times/min | 20.32.50.80 | 32.50.80.125 |
| Ram tilt angle | ° | 0-8 | 0-8 |
| Ram vertical adjustment distance | mm | 315 | 230 |
| Cutter head bearing surface to the distance between the forearm bed | mm | 600 | 485 |
| Table Diameter | mm | 630 | 500 |
| The distance between the lower end of the sliding frame to work table | mm | 490 | 320 |
| Max. longitudinal moving distance of working table | mm | 630 | 500 |
| Max. transverse moving distance of working table | mm | 560 | 500 |
| Table maximum rotation angle | ° | 360 | 360 |
| Vertical and horizontal table power feed range | mm | 0.08-1.21 | 0.08-1.21 |
| Table rotary feed range | mm | 0.052-0.783 | 0.052-0.783 |
| Motor power | kw | 4 | 3 |
| Motor speed | r/min | 960 | 1430 |
| Machine weight | kg | 3000 | 2200 |
| Outline dimension | mm | 2261*1495*2245 | 1916*1305*1995 |
Packaging & Shipping
Our Services
Company Information
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
