Automatic plastic extruder for plastic sheet machine PP PS sheet extrusion line machine

Product Overview

Description

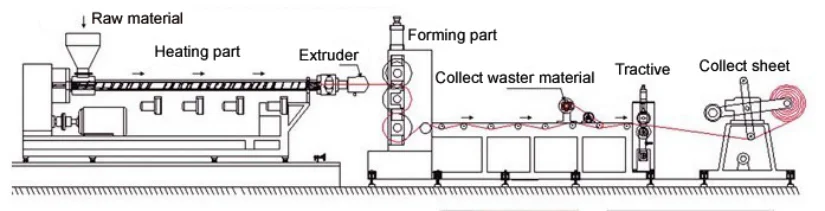

Schematic diagram

Usage

EPS Series Vertical Mono-layer PP/PS Sheet Extrusion Line is specially designed to produce monolayer Polypropylene/Polystyrene/Polyethylene plastic sheet rolls, which is widely used to produce disposable plastic thermoforming items for food packaging, such as, water drinking cups, ice-cream cups, disposable cup/bowl for yoghurt, lids, dishes, plates, clamshell, food containers and etc.

  Features

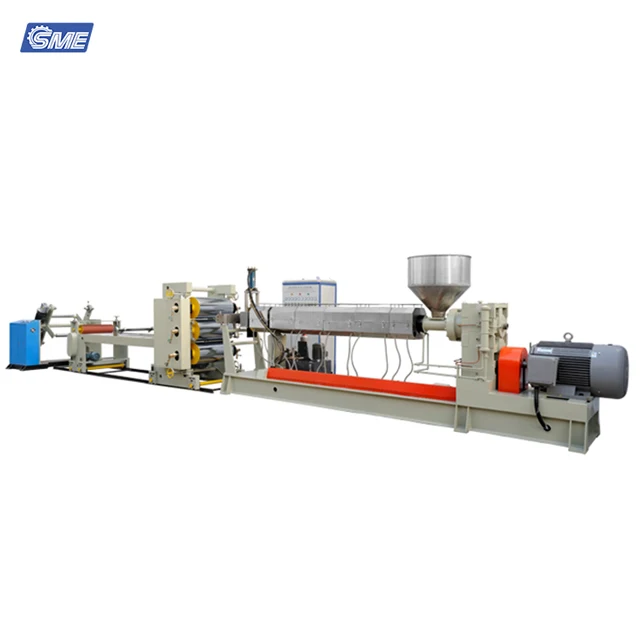

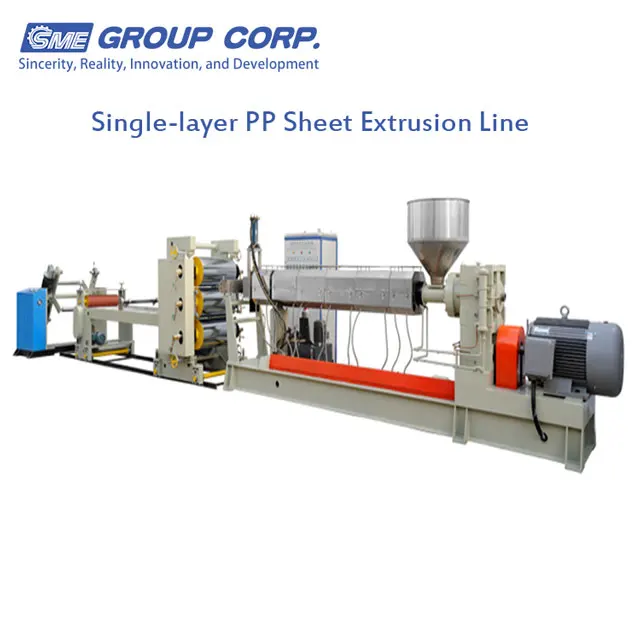

1.EPS Series Vertical Mono-layer PP/PS Sheet Extrusion Line consists of single-screw extruder(including T-die and hydraulic double-sieve screen changer), Vertical three-roller calender, Cooling bracket, Hual-off Unit, double working-position rewinder, and electric control cabinet.

2.The main parts, such as screw&barrel, screen exchanger and T-die adopt superior alloy steel with high hardness, strong corrosion resistance and long operating life after nitrogen treatment

3.Strong and durable hard-surface drive system makes sure the stable output and good quality

4.Non-stop fast screen changer with double-sieve is controlled by hydraulic unit, which ensures easy operation and high production efficiency.

5.The connection method of main motor and gear box adopts direction type, which ensures the machine stable working and high output.

6.Double working-position air-shaft rewinder ensure quick changement of sheet rolls and easy operation.

  Samples

Technical Data EPS series

1.Power Supply	380V/3P/50Hz
2.Material Used	PP granule
3.Sheet details	Max. Width:720 mm(adjustable),Thickness:0.3-2.0mm  Thickness Tolerance±0.01
4.Max.output	250-280Kg/hr(PP virgin)
5.Screw Dia.	110mm
6.Reduction Ratio	3.5:1
7.L/D Ratio	33:1
8.Linear Speed of sheet	13m/min
9.Installed power capacity	130KW

2)Machine Composition

1.Sing-screw Extruder	1 set
2.T-die and Screen Changer	1 set
3.Three-roller Calendar	1 set
4.Air cooling stand	1 set
5.Hual off unit	1 set
6.Double-position rewinder	1 set
7.Electrical control cabinet	1 set
8.Stair	1 set
9.Free spare parts	Several

 Auxiliary equipment

    Vertical Mixer              Hopper Screw                  Plastic Grinder



Hopper Screw Autoloader (Optional)

Feeding motor power, kW	0.75
Material pushing motor power KW	0.55
Material transmission pipe diameter(mm)	76
Feeding capacity(kg/h)	600
Material tank volume(Kg)	80
L×W×H)cm /Dimension of material box	65*65*80CM
Weight(Kg)	80KG









Rotating Blade	Fixed Blade	Screen Aperture	Effective Caliber	Crushing Capacity	Motor Power	Dimension (m)	Weight
6(pc)	4(pc)	Φ12(mm)	800X500(mm)	900-1000 (kg/h)	22KW	1.75*1.55*2.12	1000Kg













1. Payment terms:40% paid for deposit by T/T before production arranged, the balance to be paid before shipment;
2. Delivery time: 90-100 days after receipt of deposit;
3. Guarantee: One year;
We supply you spare parts for 1 year, but the freight will be on buyer’s account;
4. Installation: Our company can send one technician to the buyer’s side for machine installation, test running machine and basic training. If it exceeds one week, the buyer needs to pay US$100 one day for the technician as the salary. The visa and round trip tickets, accommodation will be on the buyer's account;
Delivery Time: It will take within 90-100 days to ship out customer’s goods after get customer’s advance payment.
