PVC UPVC plastic conical twin screw extruder
PVC UPVC plastic conical twin screw extruder machine
Description:
The serise extruders with appropriate diemould and auxiliary machine can directly convert thermoplastic espical pvc powder into pipe, plate sheet, film and profile, and also provide function of modefling and pelleting, but twin screw extruder need work with different downstream machines in the whole production line.

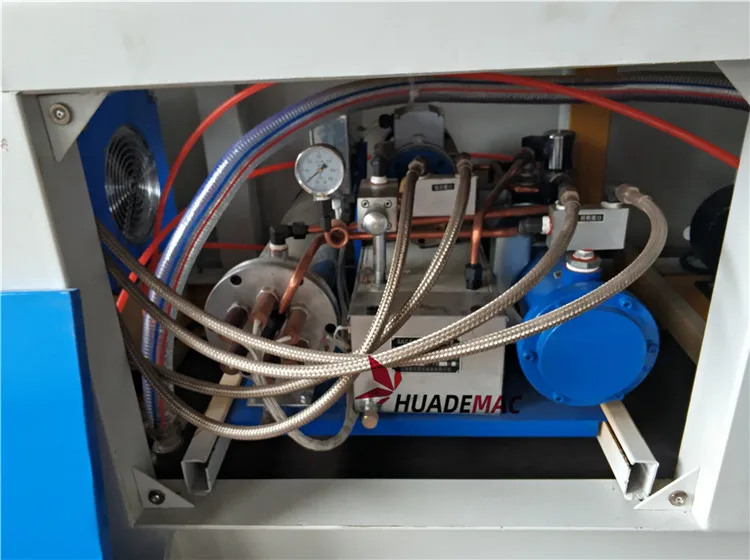

The extruders are derived by DC motor with a thrusters to regulate. It is also equipped with the over-load protection and stoppage alarming system. The screw's core and the outside of barrel is cooled by ciculation of oil, it includes vacuum venting and forced feeding.
Description:
The serise extruders with appropriate diemould and auxiliary machine can directly convert thermoplastic espical pvc powder into pipe, plate sheet, film and profile, and also provide function of modefling and pelleting, but twin screw extruder need work with different downstream machines in the whole production line.
The extruders are derived by DC motor with a thrusters to regulate. It is also equipped with the over-load protection and stoppage alarming system. The screw's core and the outside of barrel is cooled by ciculation of oil, it includes vacuum venting and forced feeding.
Model | SJSZ-48 | SJSZ-55 | SJSZ-65 | SJSZ-80 | SJSZ-92 |
Screw Dia.(mm) | 48/118 | 53/128 | 65/132 | 80/156 | 92/188 |
Max. Screw Rotary Speed (rpm) | 0-36 | 0-36 | 0-36 | 0-36 | 0-36 |
Main Motor (kw) | 15 | 22 | 37 | 55/75 | 90/110 |
Output (kg/h) | 125 | 180 | 280 | 400 | 750 |
Center Height (mm) | 1000 | 1000 | 1000 | 1050 | 1100 |

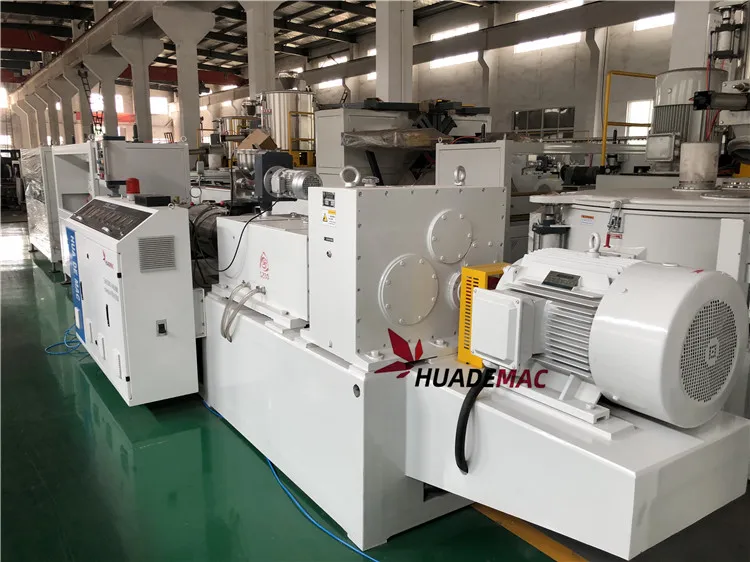

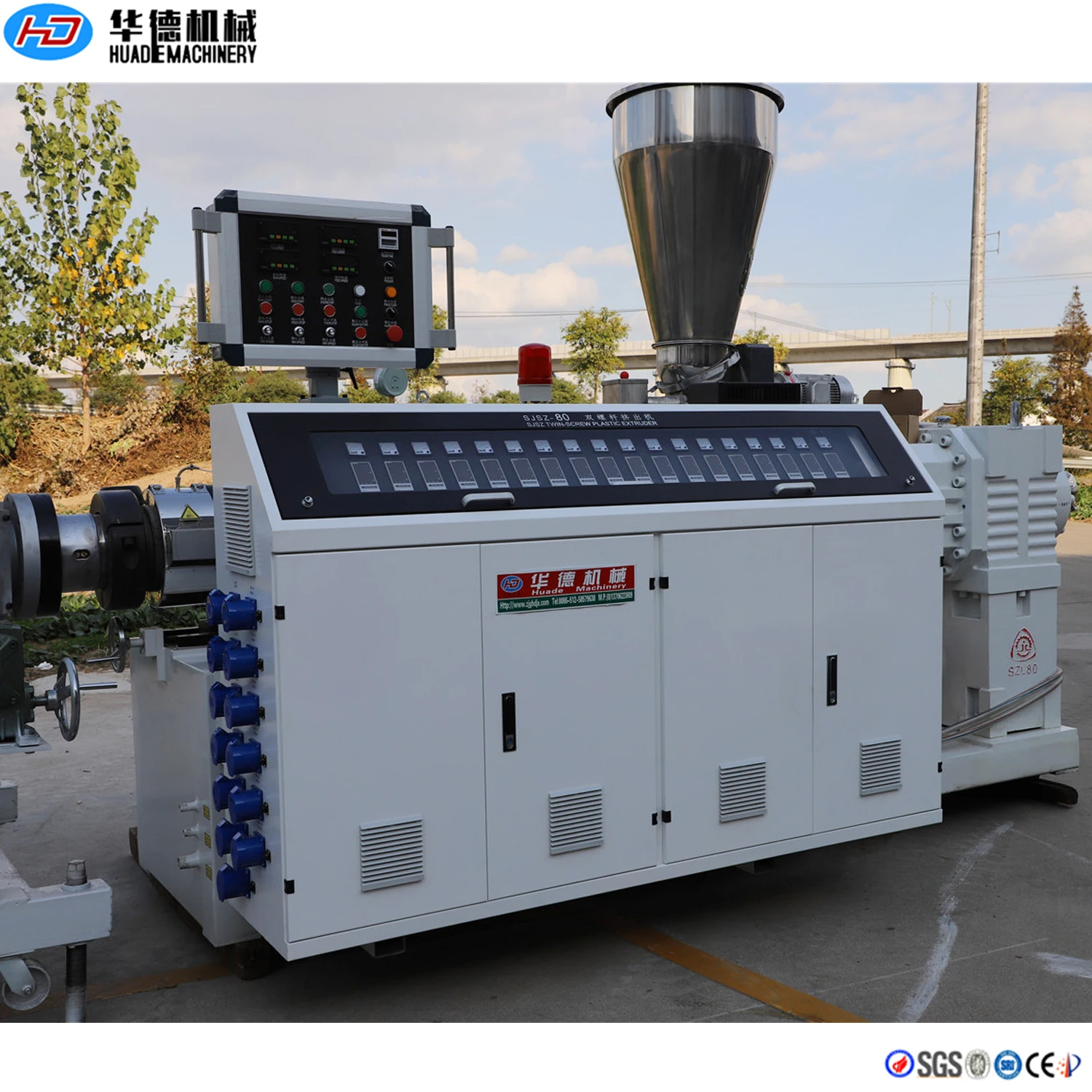

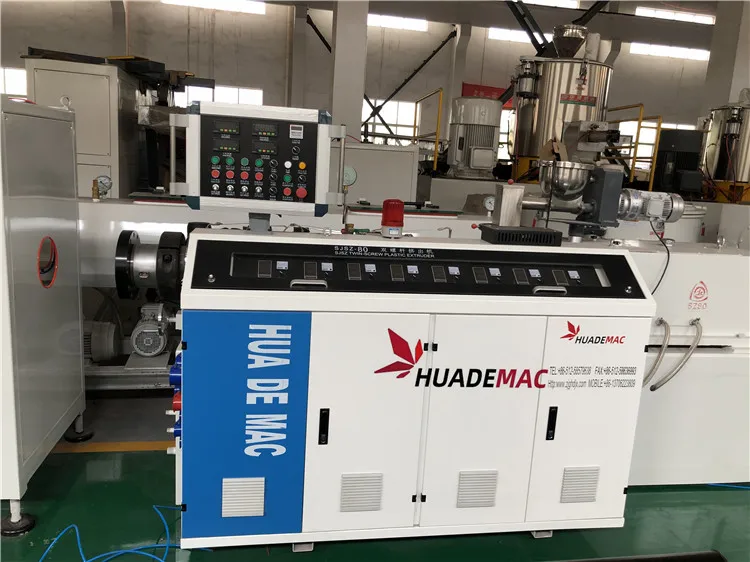

PVC UPVC plastic conical twin screw extruder machine

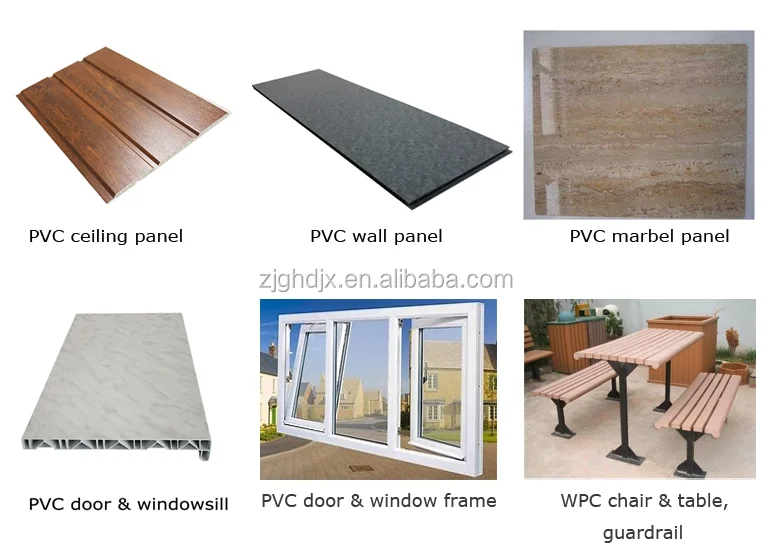

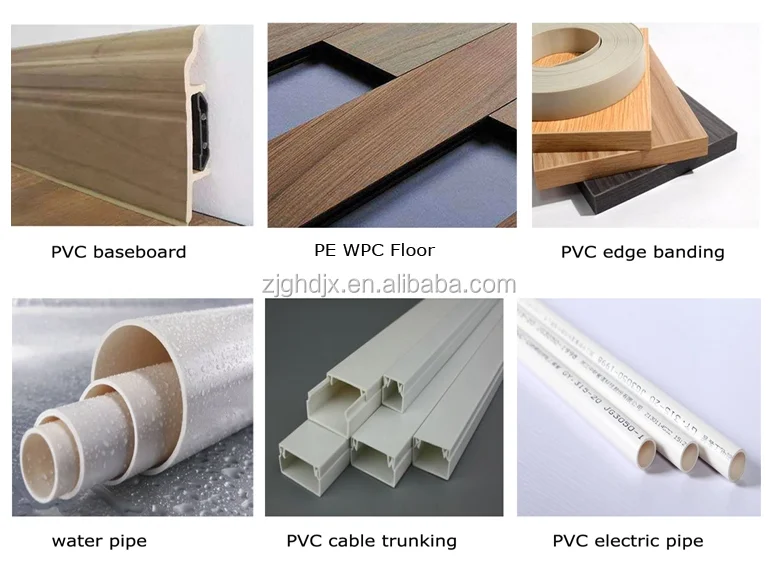

PVC UPVC plastic conical twin screw extruder granulator machine final products

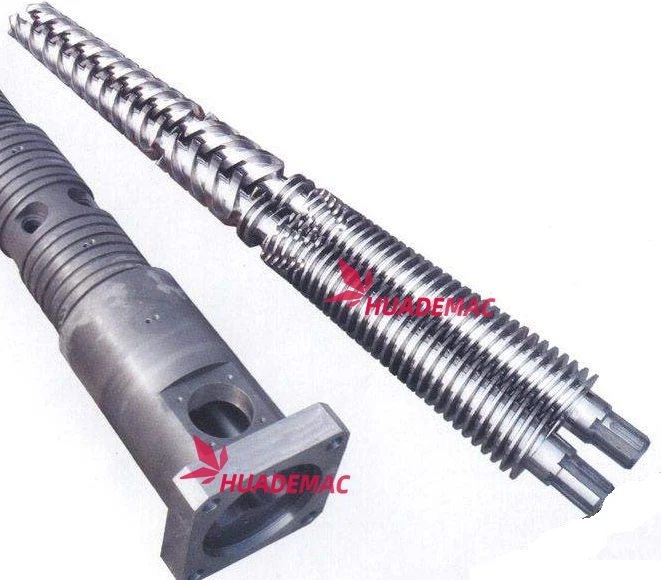

• Material of screw & Barrel: 38CrMoAl & Bimetallic

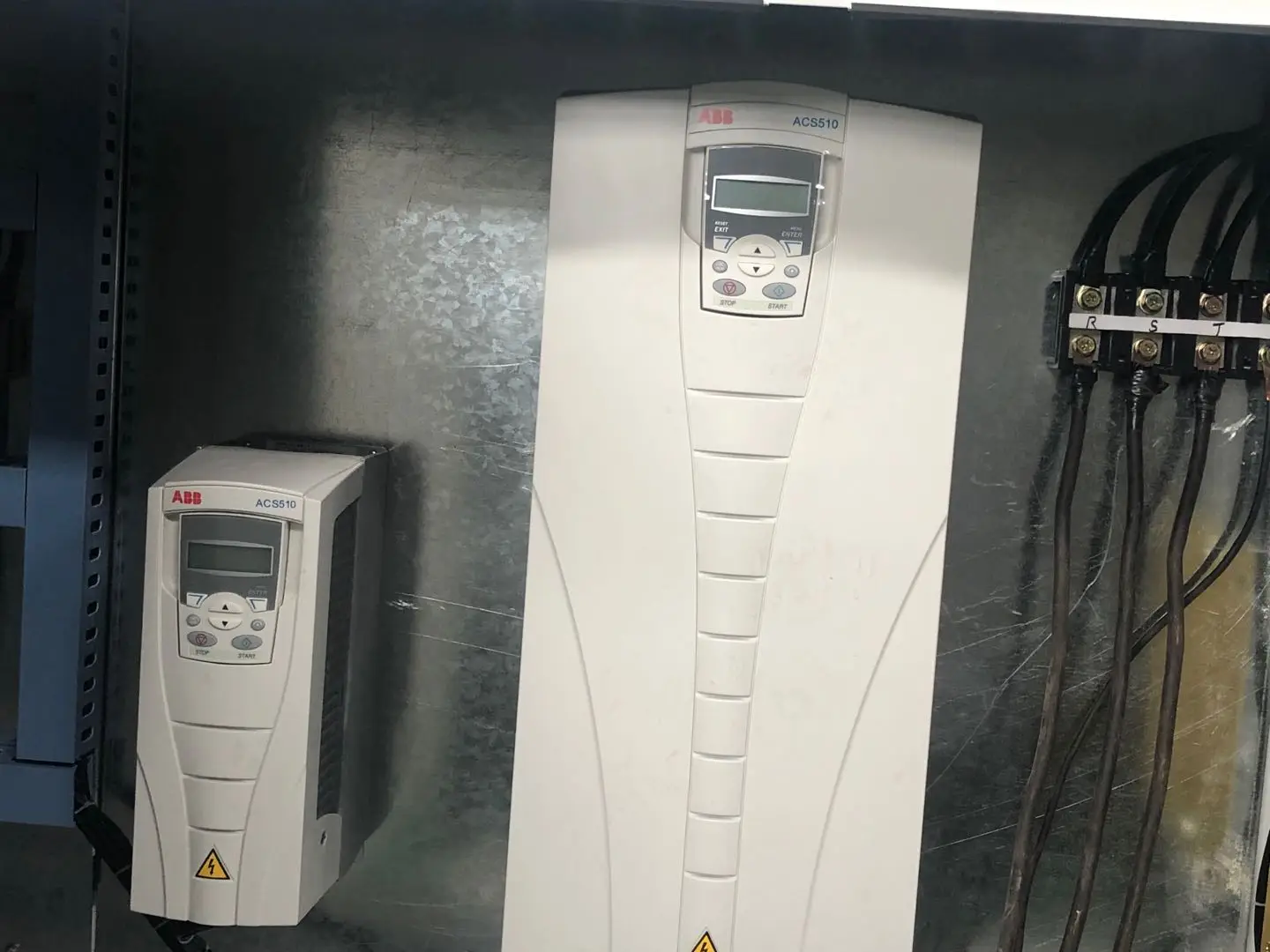

• World famous brand electrical component such as Siemens, Schneider, ABB etc
•High torque gearbox with adopts NSK/SKF bearing;
• Siemens motor achieved global after service;
• Bimetallic screw and barrel;
• PID and PID control systems for optional

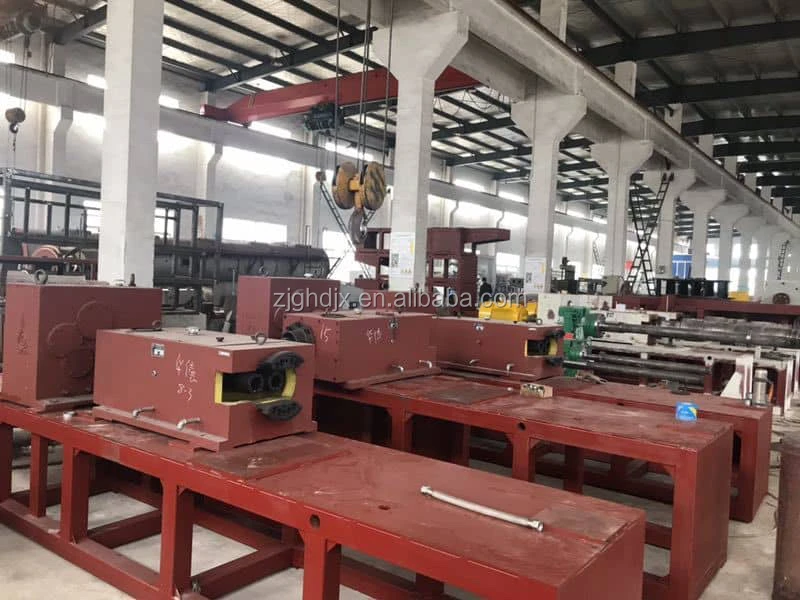

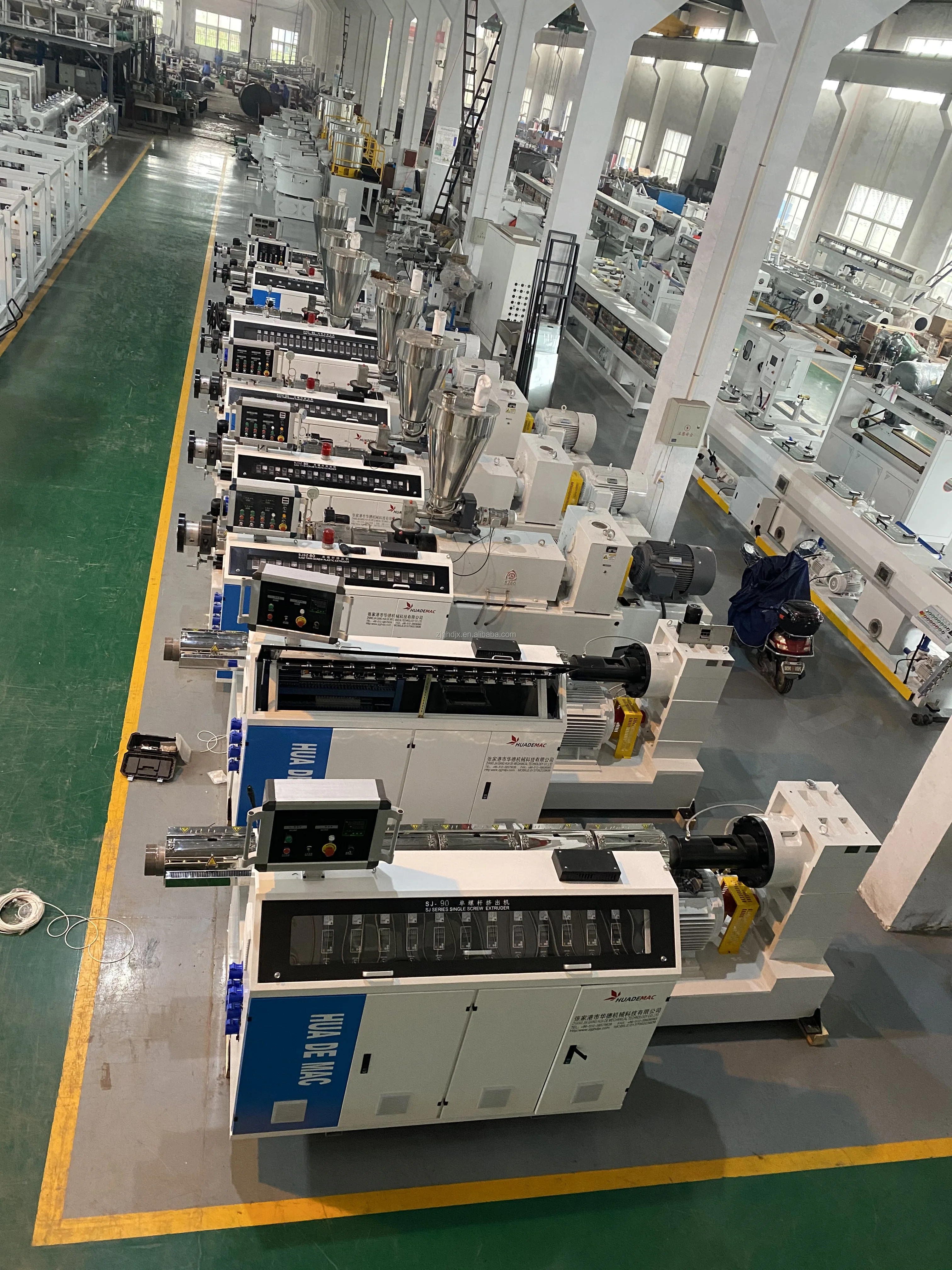

PVC UPVC plastic conical twin screw extruder granulator machine from Zhangjiagang Huade Machinery
Packaging and Shipment of PVC UPVC plastic conical twin screw extruder granulator machine
