2 Ton Manual Hydraulic Stacker With Adjustable Forks For Sale
US $270.00-$550.00

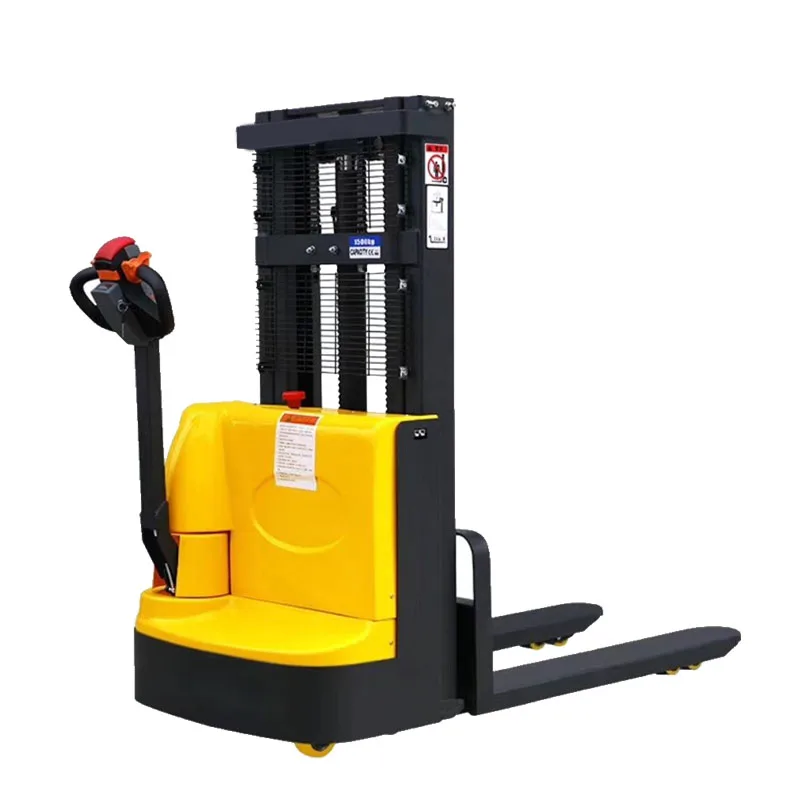

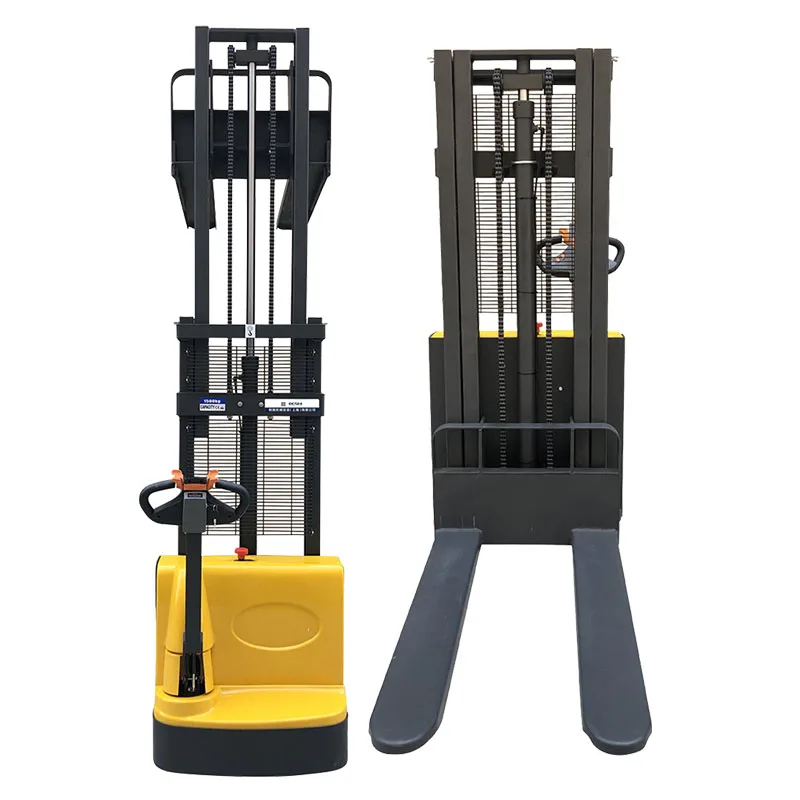

Вилочный погрузчик постоянного тока на 1,5 тонн, электрический штабелер для поддонов
- Category: Stacker & Reclaimer >>>
- Supplier: Qingdao Eterlift Machinery Co. Ltd.
Share on (1600172704841):
Product Overview
Description

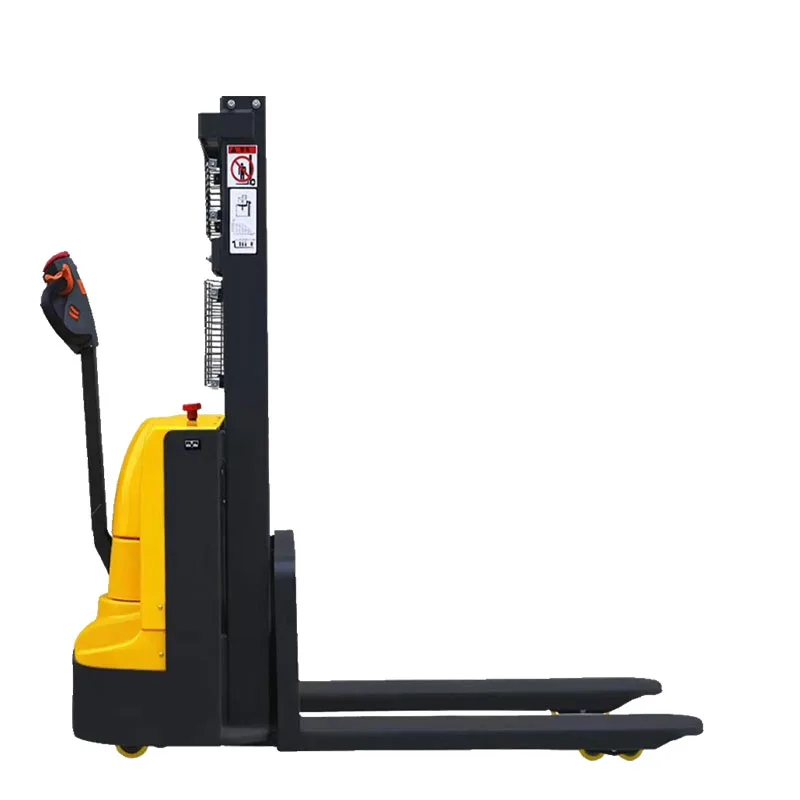

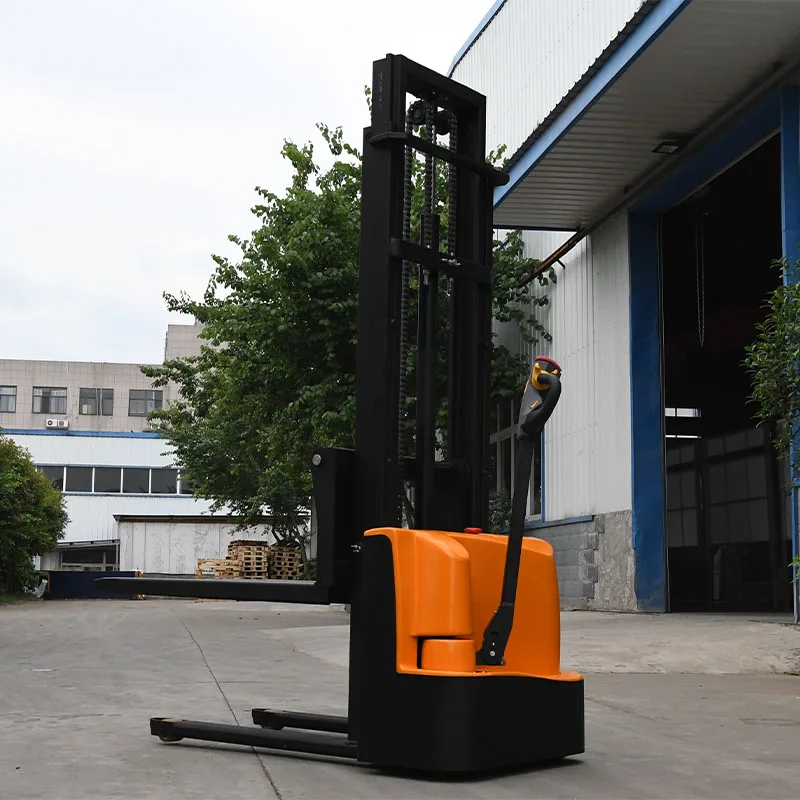

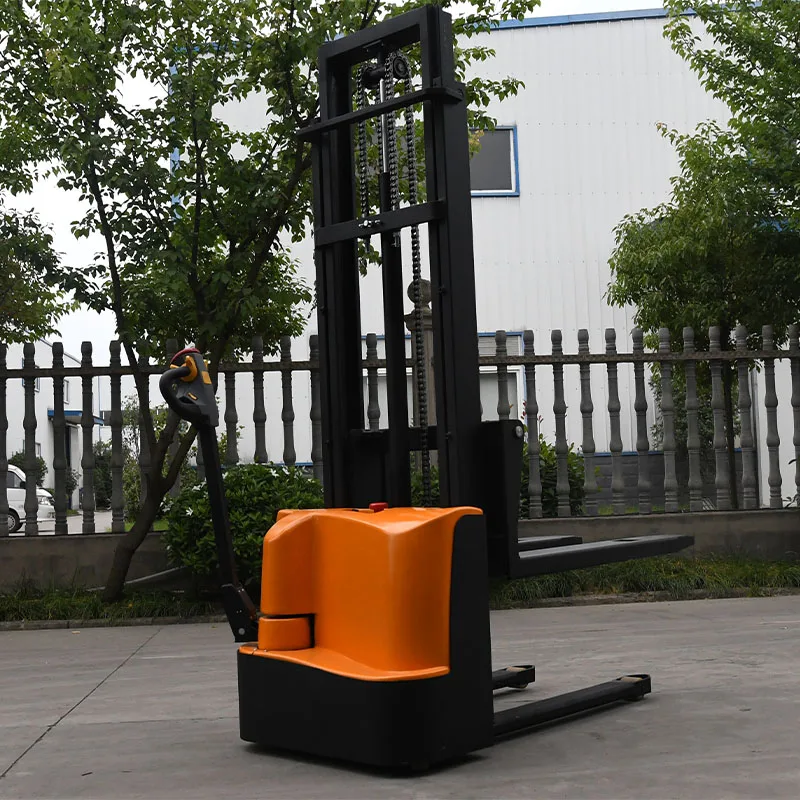

Electric stacker lifter
The stacker has simple structure, flexible control, good micro-movement, and high explosion-proof safety performance. It is suitable for operations in narrow passages and limited spaces. It is an ideal equipment for loading and unloading pallets in high-bay warehouses and workshops. It can be widely used in etroleum, chemical, pharmaceutical, textile, military, paint,pigment, coal and other industries, as well as ports, railways, freight yards, warehouses and other places containing explosive mixtures for loading, unloading, stacking and handling operations. It can greatly improve work efficiency, reduce labor intensity of workers, and win market competition opportunities for enterprises.
The stacker has simple structure, flexible control, good micro-movement, and high explosion-proof safety performance. It is suitable for operations in narrow passages and limited spaces. It is an ideal equipment for loading and unloading pallets in high-bay warehouses and workshops. It can be widely used in etroleum, chemical, pharmaceutical, textile, military, paint,pigment, coal and other industries, as well as ports, railways, freight yards, warehouses and other places containing explosive mixtures for loading, unloading, stacking and handling operations. It can greatly improve work efficiency, reduce labor intensity of workers, and win market competition opportunities for enterprises.

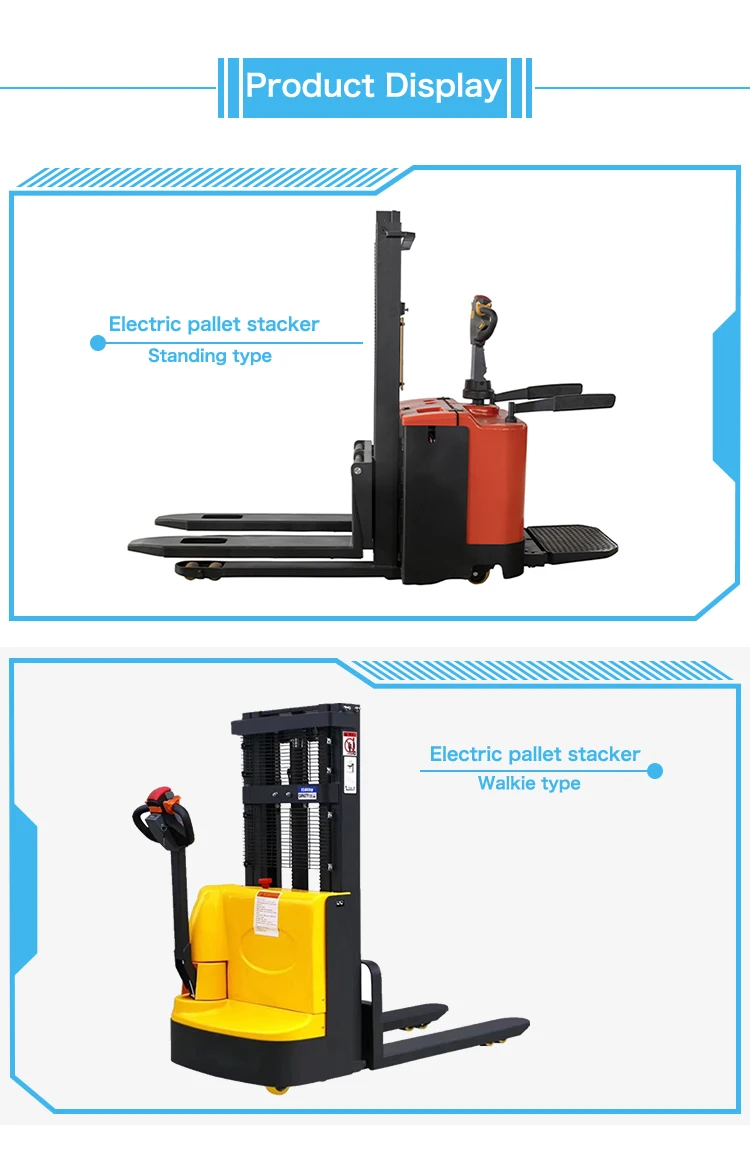

Name | Electric Pallet Stacker(walkie type) | ||||||||||
Model No. | EDD10C-16 | EDD10C-25 | EDD10C-30 | EDD15C-16 | EDD15C-25 | ||||||
Loading capacity | kg | 1000 | 1000 | 1000 | 1500 | 1500 | |||||
Max lifting height | H(mm) | 1600 | 2500 | 3000 | 1600 | 2500 | |||||
Load center | C（mm） | 500 | 500 | 500 | 500 | 500 | |||||
Wheel type | PUsolid tire | ||||||||||
Fork size | mm | 1150*160 | |||||||||
Width over fork | mm | 560/680 | 560/680 | 560/680 | 560/680 | 560/680 | |||||
Overrall length | L(mm) | 1785 | 1785 | 1785 | 1785 | 1785 | |||||
Overall width | S(mm) | 800 | 800 | 800 | 800 | 800 | |||||
Height mast lowered | H1(mm) | 2075 | 1825 | 2075 | 2075 | 1825 | |||||
Maximum height (fork lifting) | H2(mm) | 2075 | 3037 | 3537 | 2075 | 3037 | |||||
Min fork height | h1(mm) | 85 | 85 | 85 | 85 | 85 | |||||
Turning radius | Wa(mm) | 1380 | 1380 | 1380 | 1380 | 1380 | |||||
Wheel distance | mm | 430 | 430 | 430 | 430 | 430 | |||||
Min stacking aisle | mm | 2155 | 2155 | 2155 | 2155 | 2155 | |||||
Max waking speed | Km/h | 3.5/4 | 3.5/4 | 3.5/4 | 3.5/4 | 3.5/4 | |||||
Grade ability | % | 3/6 | 3/6 | 3/6 | 3/6 | 3/6 | |||||
Total weight | Kg | 506 | 546 | 566 | 596 | 666 | |||||
Driving wheel | mm | ∅210*70 | |||||||||
Front wheel | mm | ∅80*70 | |||||||||
Balance wheel | mm | ∅125*50 | |||||||||
Battery capacity | V/Ah | 2*12/80 | |||||||||
Lithium battery capacity | V/Ah | 24/50 | |||||||||
Driving motor | Kw | 0.75 | |||||||||
Lifting motor | Kw | 2.2 | |||||||||
Walking adjustable type | Holzer type accelerator | ||||||||||
