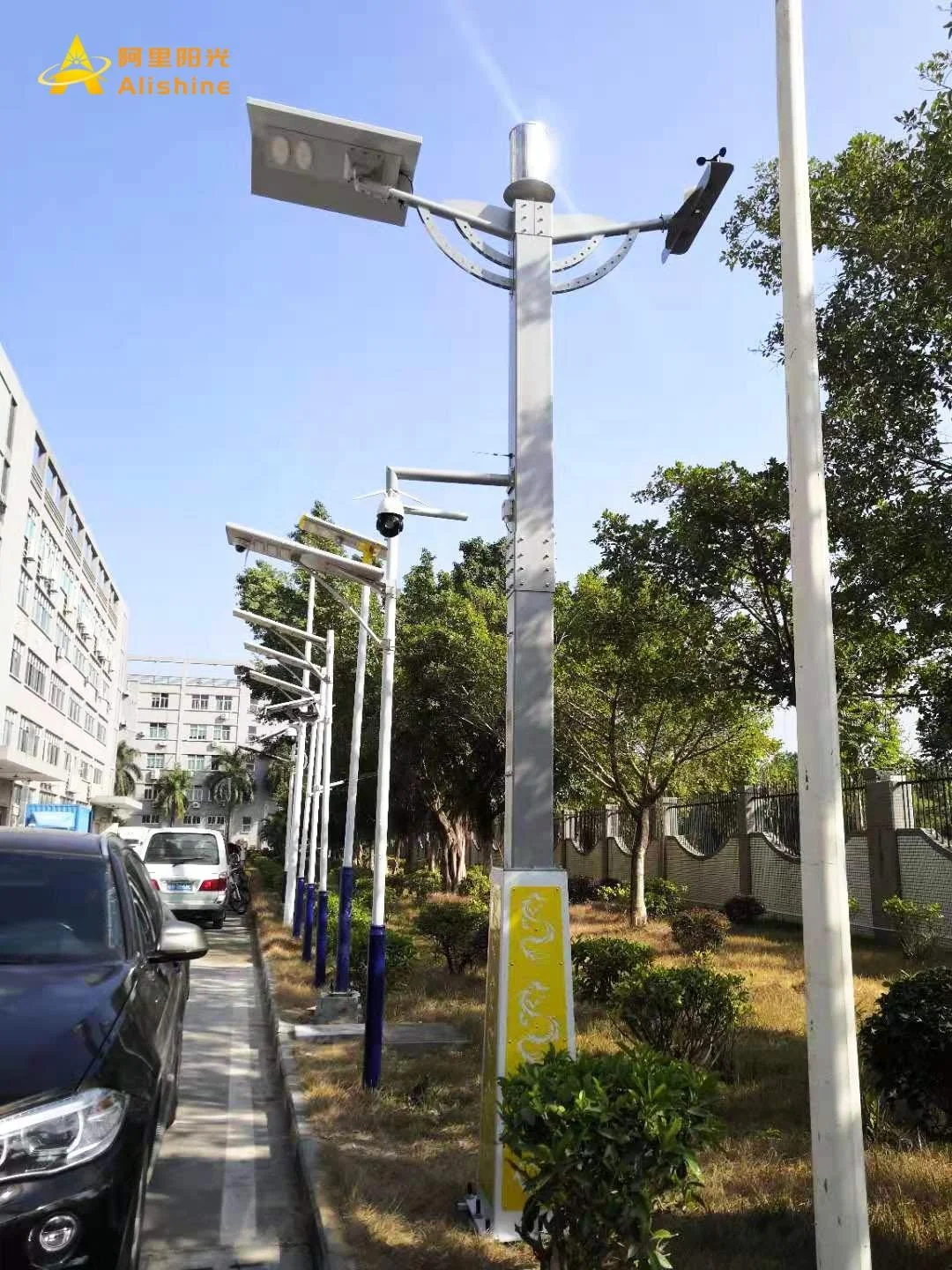

All In One Type Solar Street Light Smart City Pole with Monitoring Function
- Category: Lamp Poles >>>
- Supplier: Shenzhen Alishine Energy Technology Co. Ltd
Share on (1600187255166):
Product Overview
Description

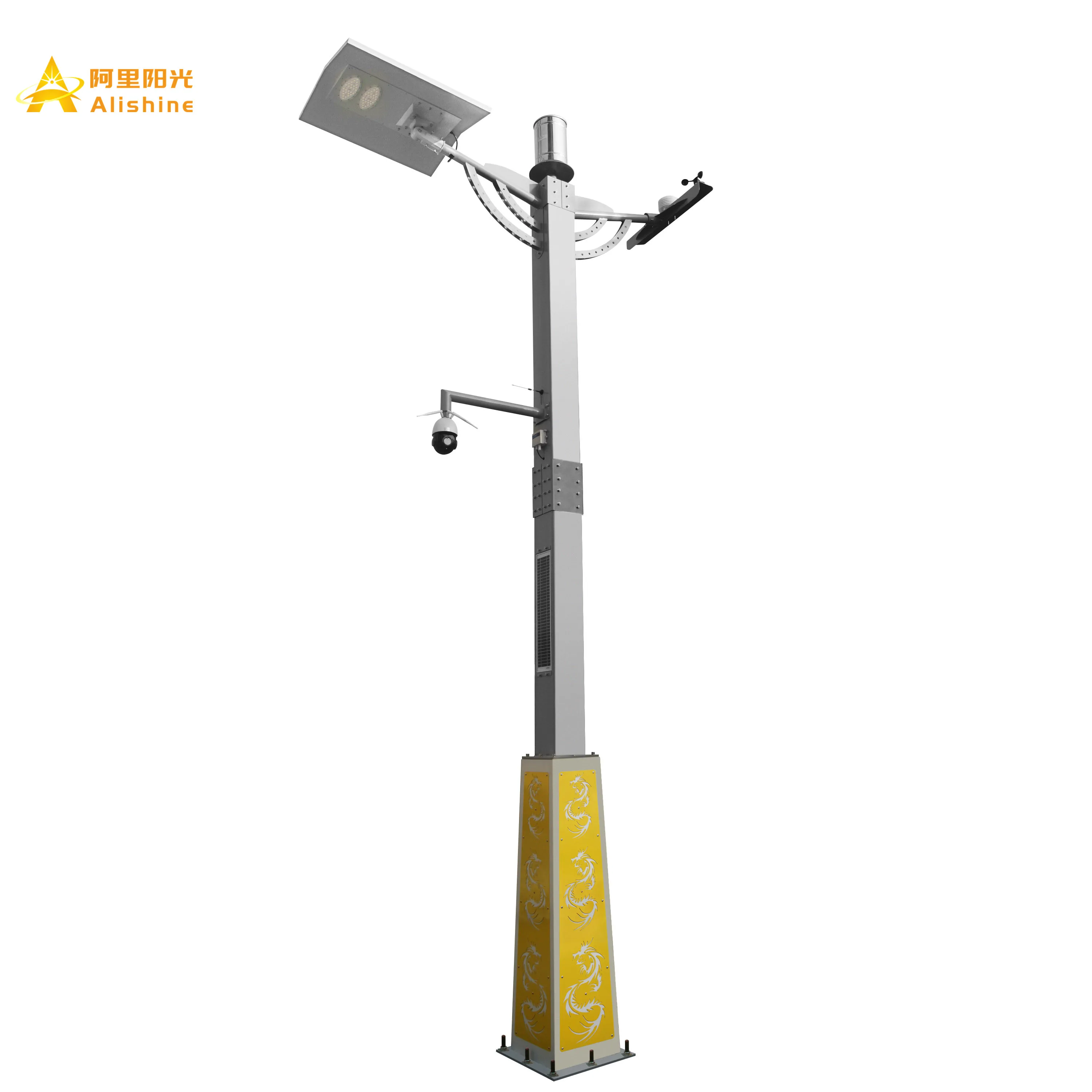

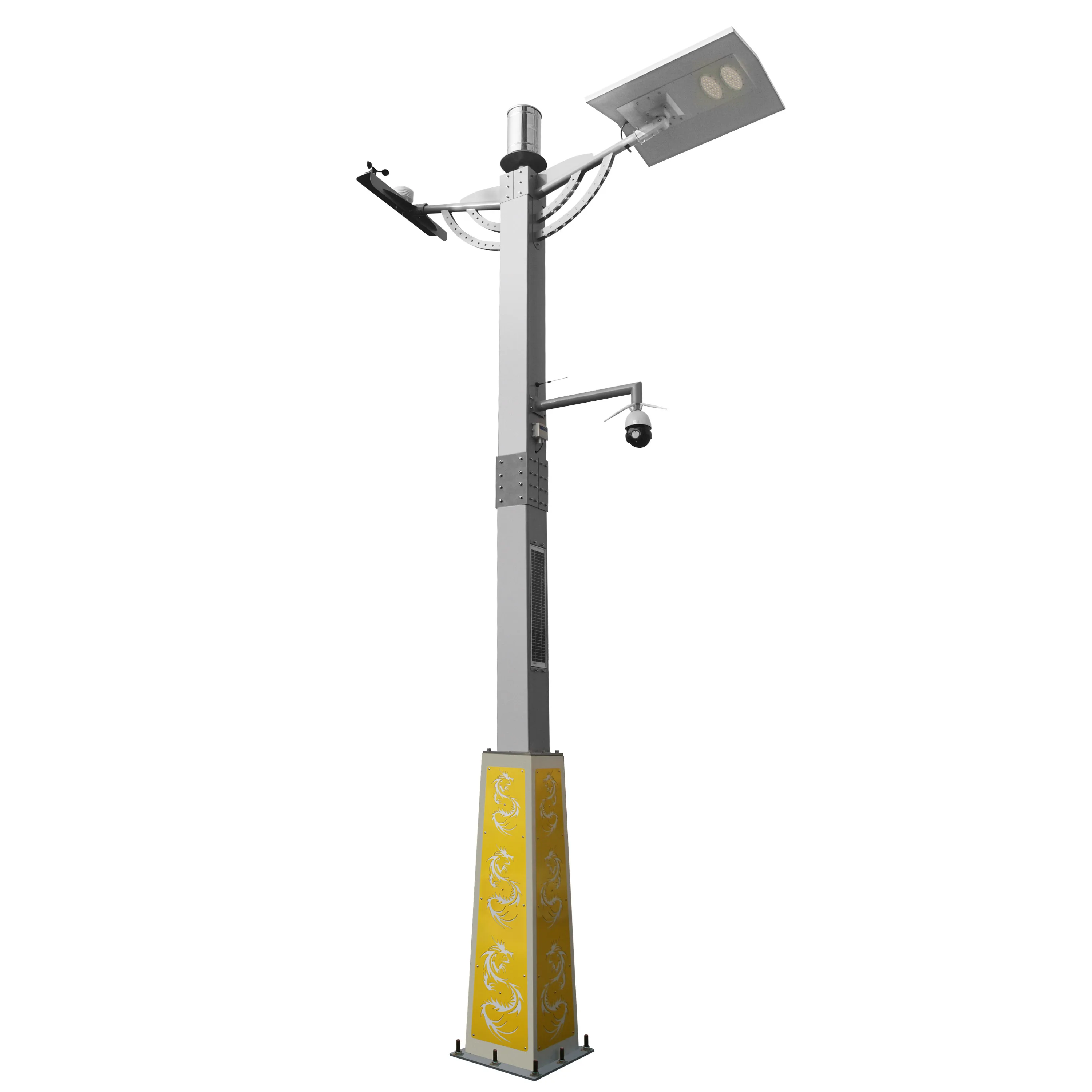

All In One Type Smart Solar Street Light Pole with Monitoring Function
Product Description
Product Features:
1. 2000 cycle times for LiFePO4 Lithium battery,10 years lifespan;
2. Support more than 5 rainy days with the best smart technology;
3. 3 lighting mode for choosing, motion sensor for energy saving.
4. Detachable design of battery pack and led chip, saving maintenance cost.
5. Aluminum alloy case,waterproof IP65, all in one design, easy to install.
6. Turn on at dusk and tun off at dawn automatically.
7. 5m/6m/7m pole for choice, Camera Function,Lighting Fucntion,Environmental Monitoring Function.
| S.N | Item Name | Specification | |
| 1 | Platform | applets | Remotely detect the working status of the battery, control the output power and the switch of the lamp, watch the monitoring screen in real time, and the dual language system can view the environmental monitoring data in real time. |
| web | Same function as above; You can also add devices to manage users. | ||
| 2 | Lighting | controller | MPPT controller, charging:15A, discharging:5A, maximize the efficiency of the system |

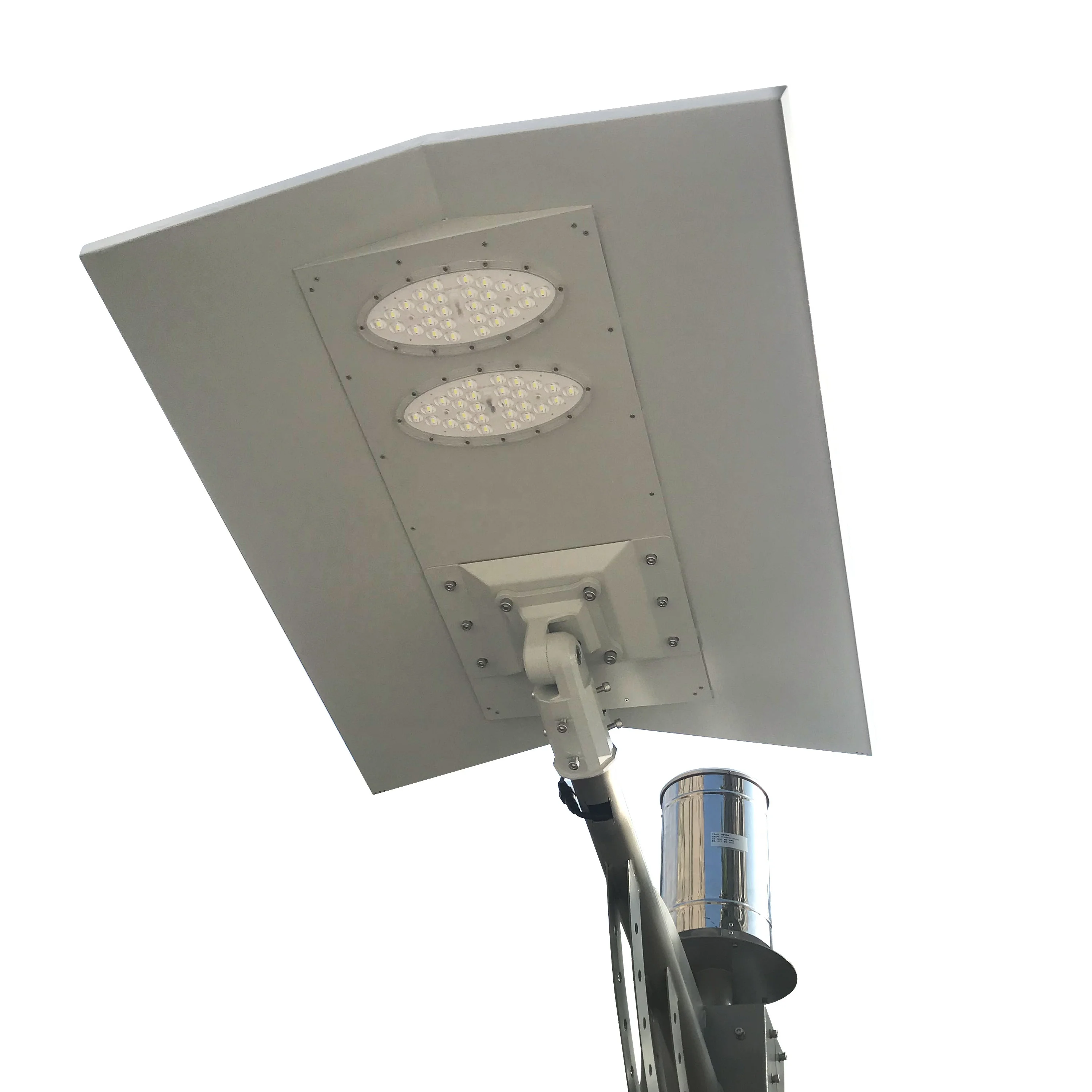

| LED source | 56pcs 5050 led with high luminous | ||

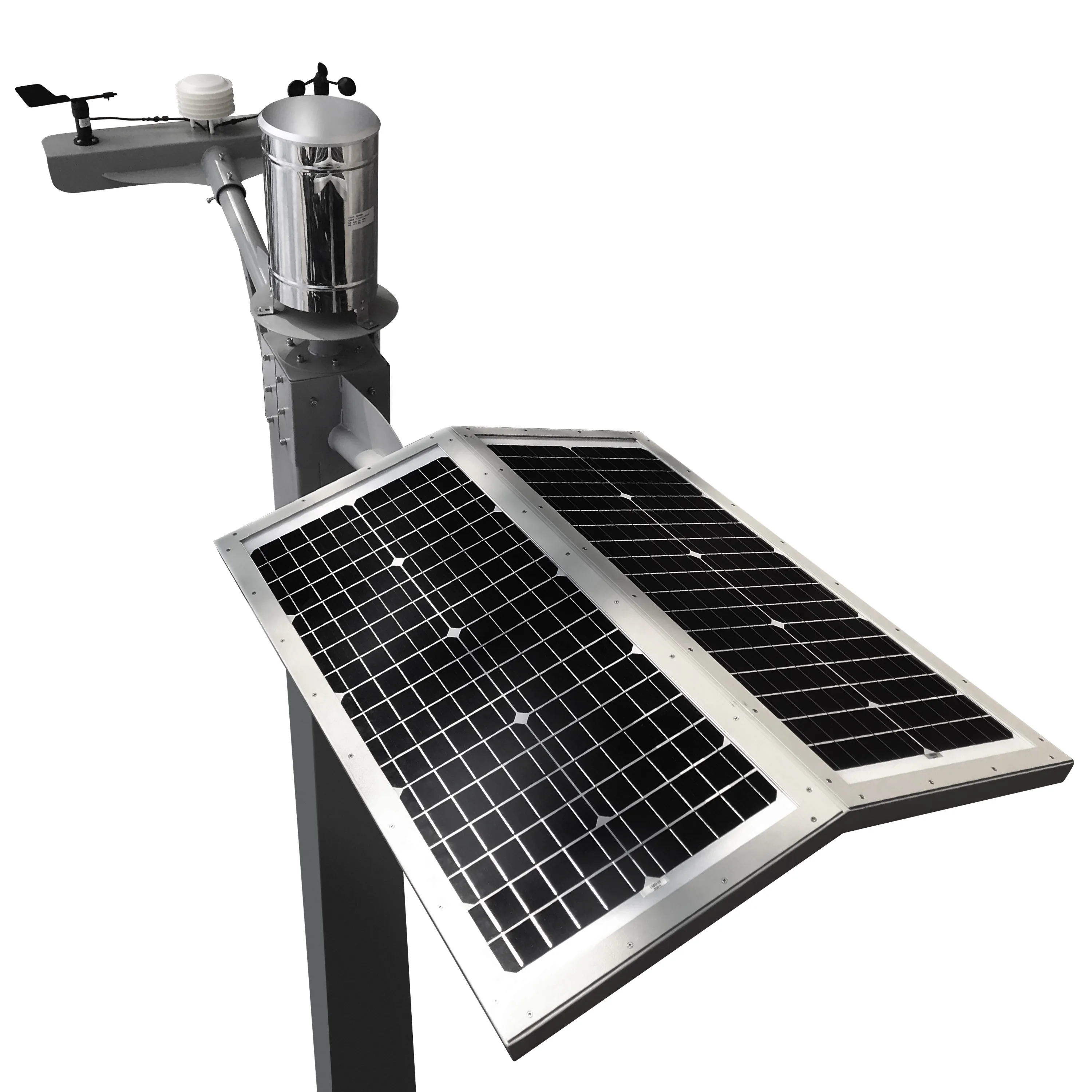

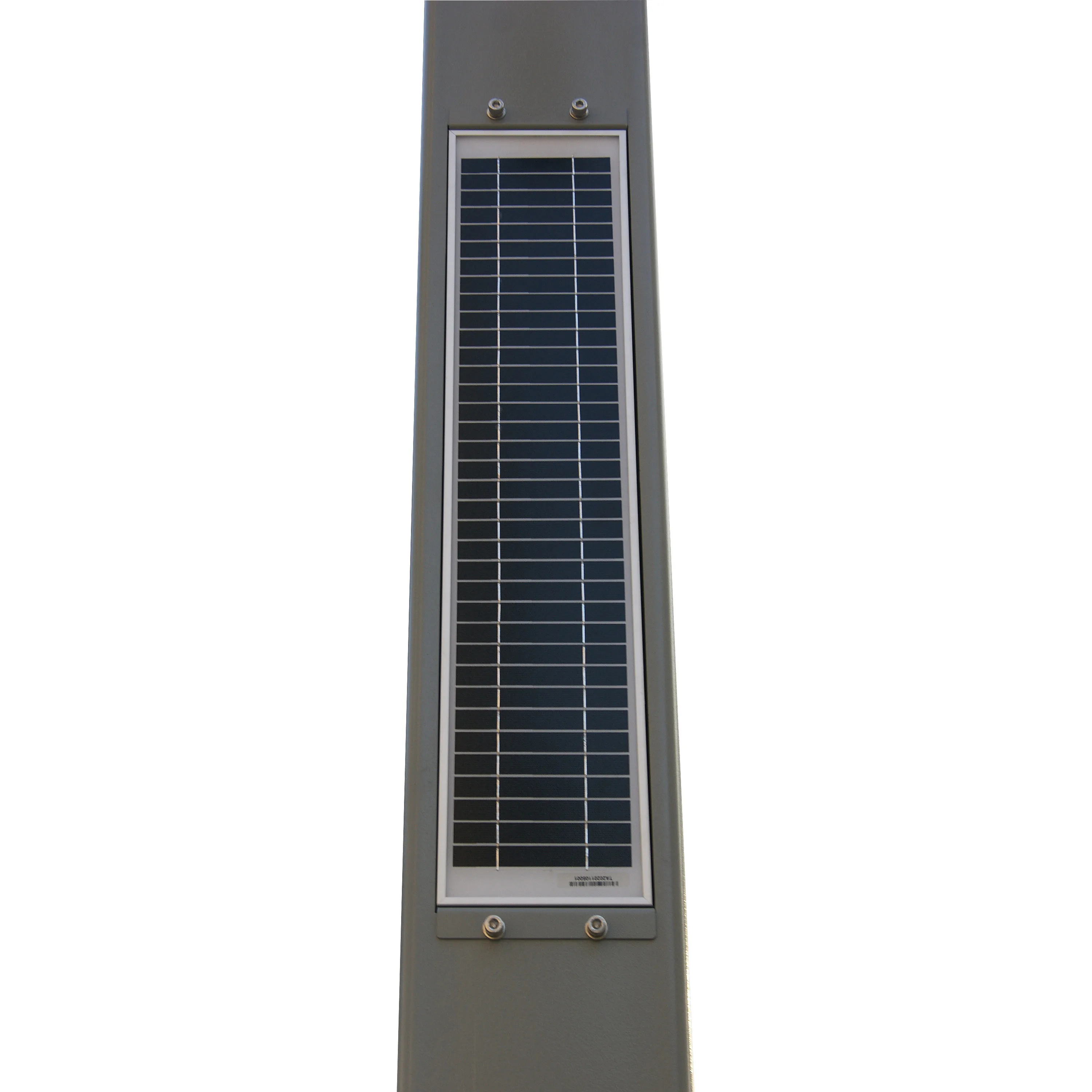

| solar panel | 2pcs*18V/60W high-efficiency mono solar panel 1pc*18V/15W high-efficiency mono solar panel | ||
| Battery | 12.8V/75AH LiFePO4 lithium battery | ||

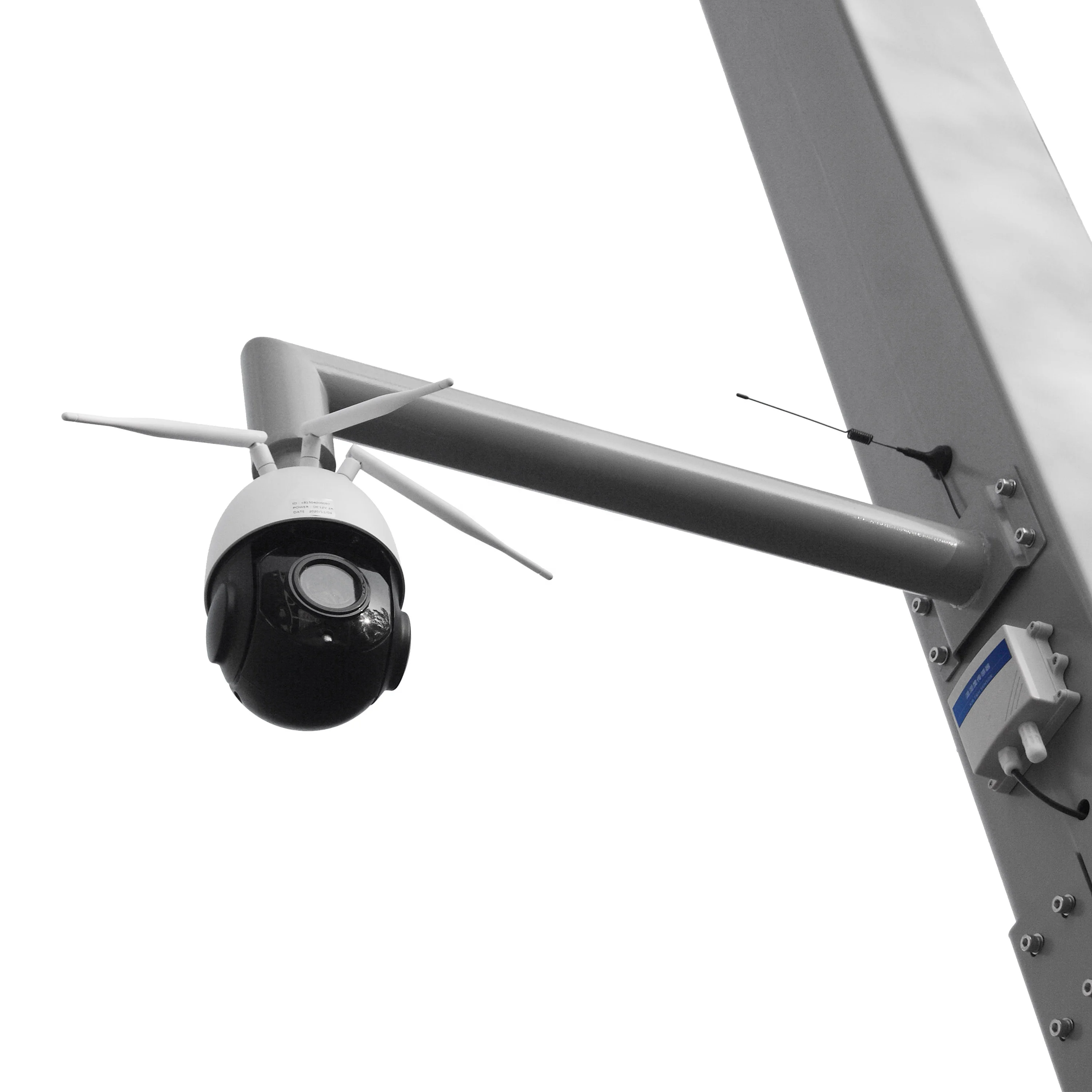

| 3 | Monitor-ing | Ball-shape camera (built-in 32G SD card) | High performance 1/3 inch 2 million pixel CMOS image sensor ·Support conversion between day and night, conversion between color and black & white, color 0.1Lux@ (F1.2, AGC ON); black & white 0.01Lux@(F1.2,AGC ON) ·Built-in fixed HD lens (standard configuration 3.6mm) Using high-quality dot matrix infrared light, high energy and low consumption, infrared irradiation distance is 10~60 meters Support H.265/H.264 video encoding, high compression ratio, high video quality ·Support 4G network and WIFI connection ·Support 2.4G wireless network connection ·Support motion detection, alarm recording, picture capture ·Support multiple web browsers ·Support front-end storage function, maximum support 128G memory card ·Fully enclosed waterproof, dustproof, high protection level |

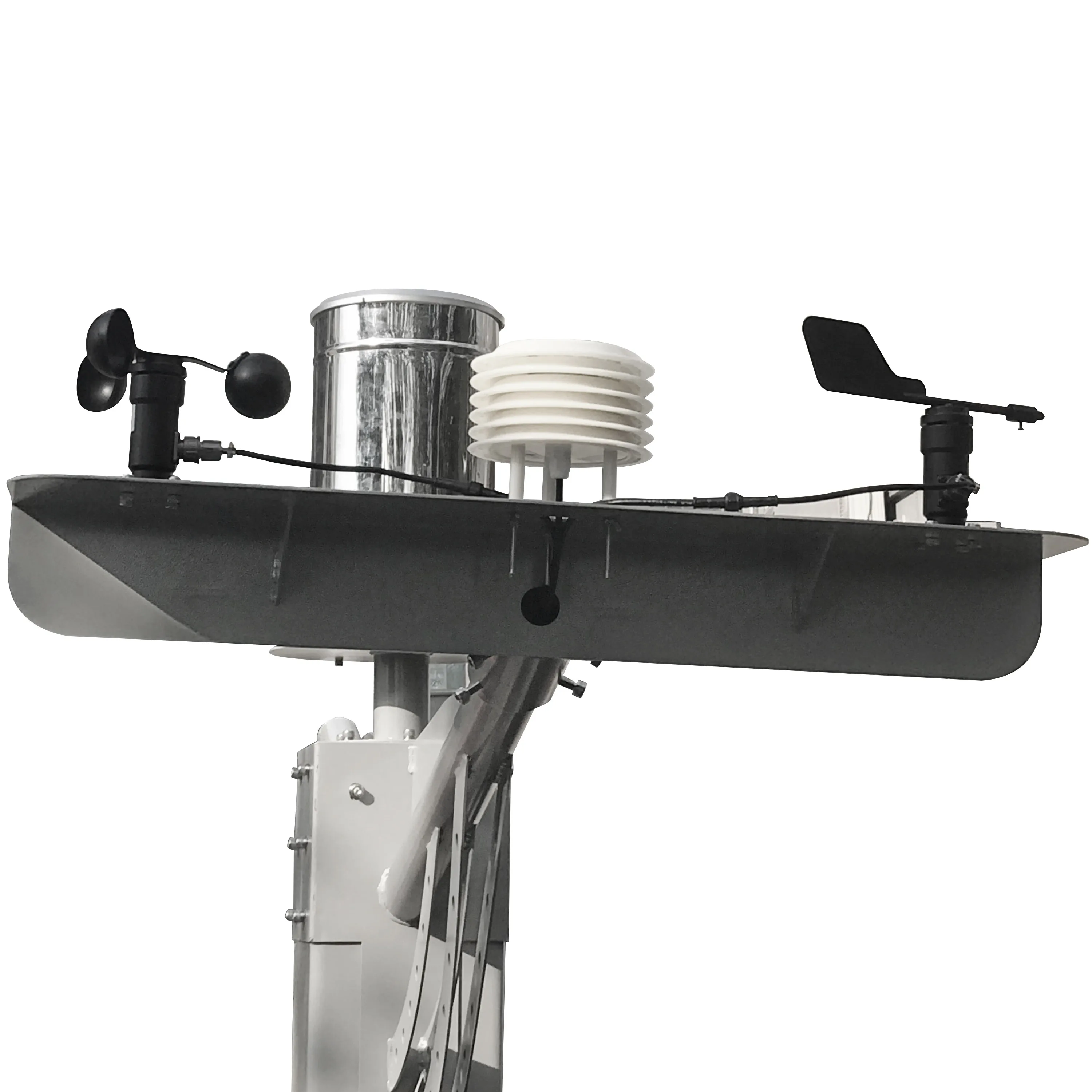

| 4 | Environ-mental monitoring | Temperature & humidity sensor | Measuring range:-20℃-70℃(Temp),0-100%RH(Humidity) Working scope:-20℃-70℃(Temp),0-80%RH(Humidity) Long-term stability:Temp≤0.1℃/year,Humidity≤0.1%RH/year Resolution:0.1℃(Temp),0.1%RH(Humidity) |
| Rain sensor | Rain bearing caliber:φ200min Resolution:0.2mm Accuracy:±2% Material: Stainless steel Output signal:RS485(Moudbus protocol) Working scope:-20℃-70℃(Temp), 0-95%RH (Humidity) The mesh is designed at the funnel to prevent debris from blocking the rainfall downflow, and the rainfall is converted into digital information output in the form of switching values to achieve information transmission, processing, recording and display requirements; Good measurement linearity, easy installation and long transmission distance | ||
| Wind direction sensor | DC power supply:12-24V Average power consumption:40mW output signal: RS485(Modbus protocol) Measuring range:0°-360° Working scope:-20℃-70℃(Temp), 0-80%RH (Humidity) Accuracy:22.5° Response time:<2S | ||
| Wind speed sensor | Measuring range: 0-30m/s Working scope:-20℃-70℃(Temp), 0-80%RH (Humidity) Accuracy:±1m/s Resolution:0.1 m/s | ||
| PM2.5PM10 | Measuring range:0-10000 Resolution: 1 Accuracy:±10% Unit:ug/m3 | ||

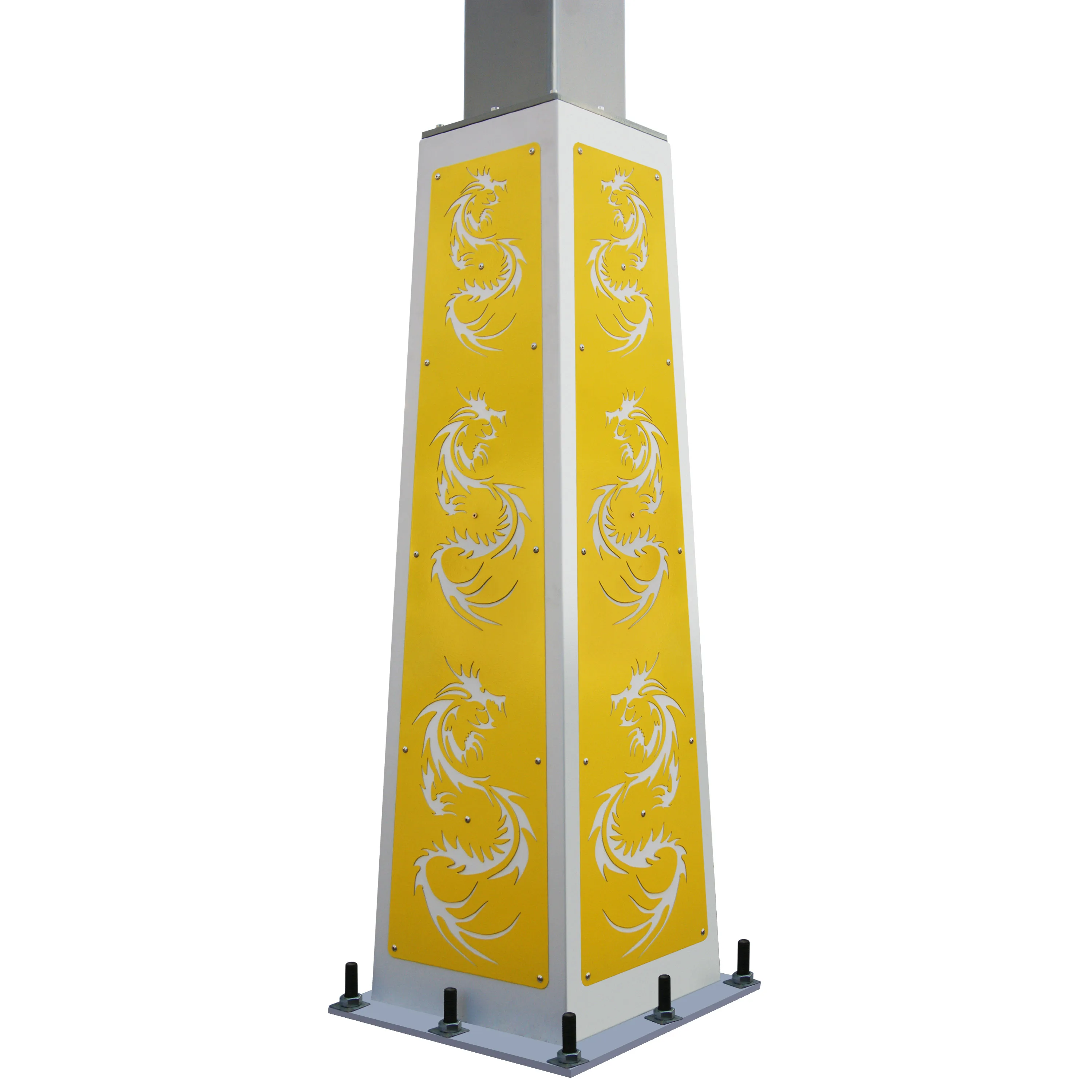

| 5 | Pole | Pole | Chassis size:550*550mm Lower size of bottom pole:399.2*399.2, upper size:300*300,Angle:2°, height:1512mm |
| Anchor cage | size: 525*525*500mm | ||
| 6 | IOT Gateway | Gateway | support RTC 1 way RS485 interface, 2 way MAX232 interface 2 way Switch output, 2 way Switch input detection support LORA free protocel 1 way goes down, 1 way goes down support 8MB-1GB memory card Support SIM data card: 2G/4G Power input: DC10V-36V Network method:4G,GPRS,WiFi,Ethernet Network protocol:TCP Communication protocol:MQTT Domestic: including 4G data card & three-year data fee |
| 7 | Accessories | Auxiliary materials, screws, waterproof wire terminals | |
