Hot DIP Galvanized Post Steel Polyester Solar LED Street Light/Lighting Pole (1600221242765)

Share on:


Price:$203.00 - $233.00
Price in USD:Details

Quantity:


Product Overview

Description



Professional Led Street Solar Light Pole Factory Manufacturing Street Light Pole For 20 Years



- Rich Experiecne In OEM/ODM


- Small Order Quantities Are Workable


- More Than 212 Customers Are Satisfied With Our Products & Service





PRODUCT DETAILS.jpg








































































































Height



From 3 m to 25 m



Suit for



Airport ,seaport,plaza,stadium ,square,highway,street way etc



Shape



Conoid ,Multi-pyramidal,Columniform,polygonal or conical



Material



Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-



Lamp power



20 W- 400 W (HPS/MH)


220V (+-10%) /50Hz



Torlance of the dimenstion



+- 2%



Optical assembly of lighting fixture



IP 65



Electroshock resistant protective grade



Grade one



The casing anti-corrosion performance



Class two



Working atmosphere of lighting fixture



-35 °C~+45 °C



Surface treatment



Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.



Joint of Poles



Insert mode,innerflange mode,face to face joint mode



Design of pole



Against earthquake of 8 grade



Wind Speed



160 Km/Hour



Minimum yield strength



355 mpa



Minimum ultimate tensile strength



490 mpa



Max ultimate tensile strength



620 mpa



Standard



ISO 9001



Length of per section



Within 12m once forming without slip joint



Welding



We has past flaw testing.Internal and external double welding makes the welding beautiful in shape


Welding Standard :AWS ( American Welding Society ) D 1.1



Thickness



1 mm to 30 mm



Production Process



Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages



Packages



Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.



Style



Size and styles are veriable as per customer request

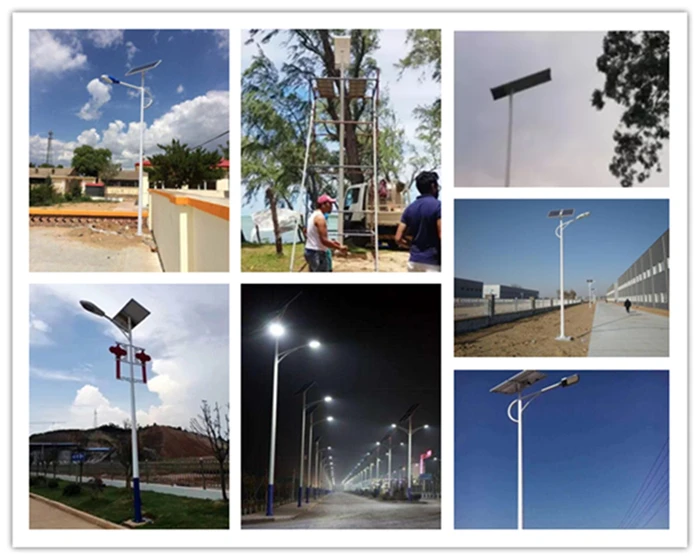

2---.jpgpole process2.jpgCAD-double arm pole.jpgproject show1.jpg






OUR ADVANTAGE.jpg

OUR ADVANTAGES
1. PV generstion module& Wind tubine module combination
2. Battery heating technology:In low temerature, battery will be heated to work normally with the help of smart controller, temperature sensor and heater band.
3.Buletooth communication module:Support troubleshooting, read light data and control the light switch on/off by smart phone buletooth APP.
4.Red pathway Indicator for warning effect and decoration at night


OUR SERVICE

1.Any inquiry or question from you will be replied in 24hrs during working day.
2.Accepting ODM/OEM.
3.Accepting order. we will make led lamp promtly,accrording to your requirements
4.Once sending the goods, we will send you the tracking number or bill of lading
5.We will get your comment and track for any products promptly, after you finish test or installation.
6.Warranty: 3years/ 5 years , provide free accessories as maintenance within the warranty period.
7.If our quality make led lamp not work, we will send you a news one freely.
8.Every led lamp will be aged for 48 hours in order to ensure the high quality.
9.Delivery time: Within one/two week for samples.



OUR AFTER-SALES SERVICE

1.For all your inquiries, please contact us immediately, We will reply you within 12hours
2.After-sales service:  any problems , we will solve it in the first time
3.Long time maintenance service for the product , for problematic items, We will send new parts to you free
4.OEM/ODM will be accepted.





COMPANY PROFILE.jpg_.jpgOUR FACTORY3.jpgshipping&payment.jpgcertificate1.jpg.jpg

               Q1. Can I have a sample order for led light?
               A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
              Q2. What about the lead time?
               A: Samples within 5 days, big order within 2 weeks.
              Q3. Do you have any MOQ limit for led light order?
               A: Low MOQ, 1pc for sample checking is available
              Q4. How do you ship the goods and how long does it take to arrive?
              A: We usually ship by sea shipping. It usually takes 1 week to arrive.
              Q5. How to proceed an order for led light?
              A: Firstly let us know your requirements . Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
              Q6. Is it OK to print my logo on led light product?
              A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
             Q7: Do you offer guarantee for the products?
             A: Yes, we offer 3-7 years warranty to our products.
             Q8: How to deal with the faulty?
             A: Firstly, Our products are produced in strict quality control system and the defective rate will be than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.
