RVV высокое качество многоядерных на возраст 2, 3, 4 ядра медных проводов H05VV F гибкий электрический провод
- Category: Power Cables >>>
- Supplier: Shenzhen Brother Young Development Co. Ltd.
Share on (1600190078797):
Product Overview
Description

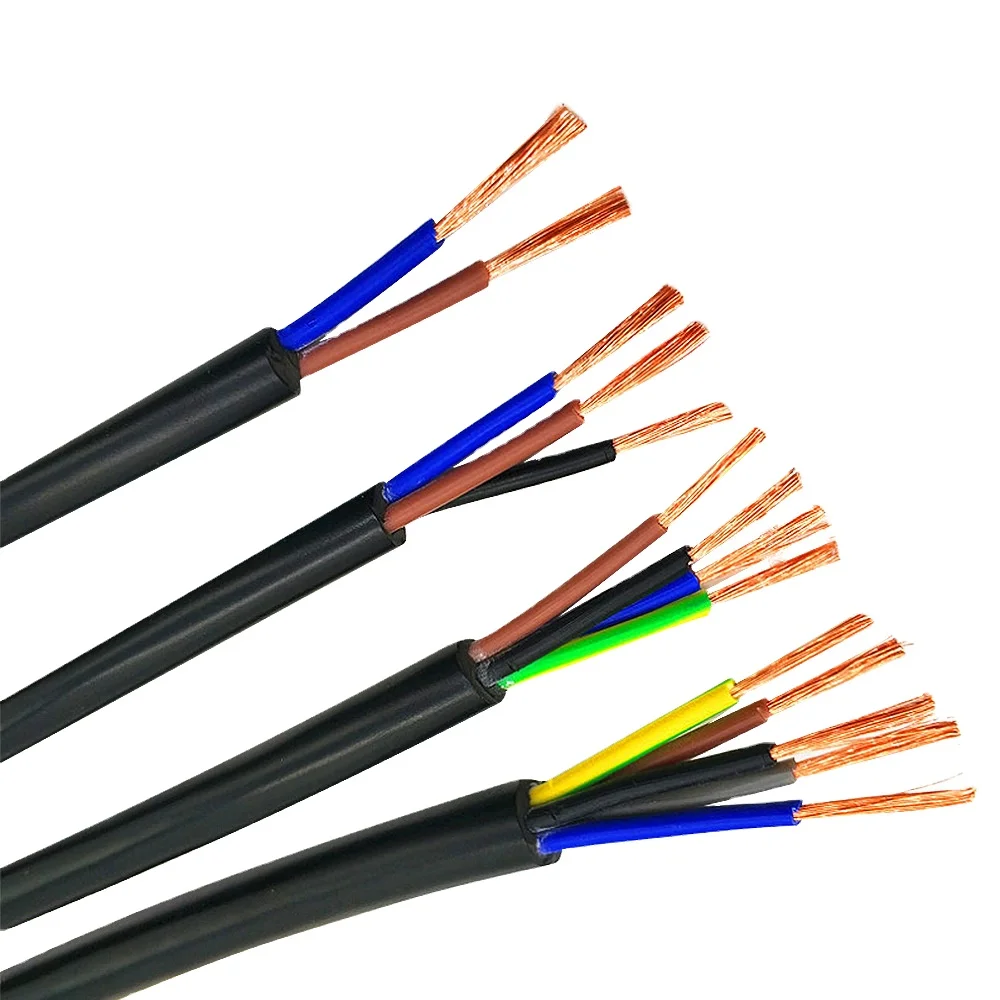

Low Voltage RVV Copper Electric Wire
Shenzhen Brother Young Develpoment Co,. Ltd

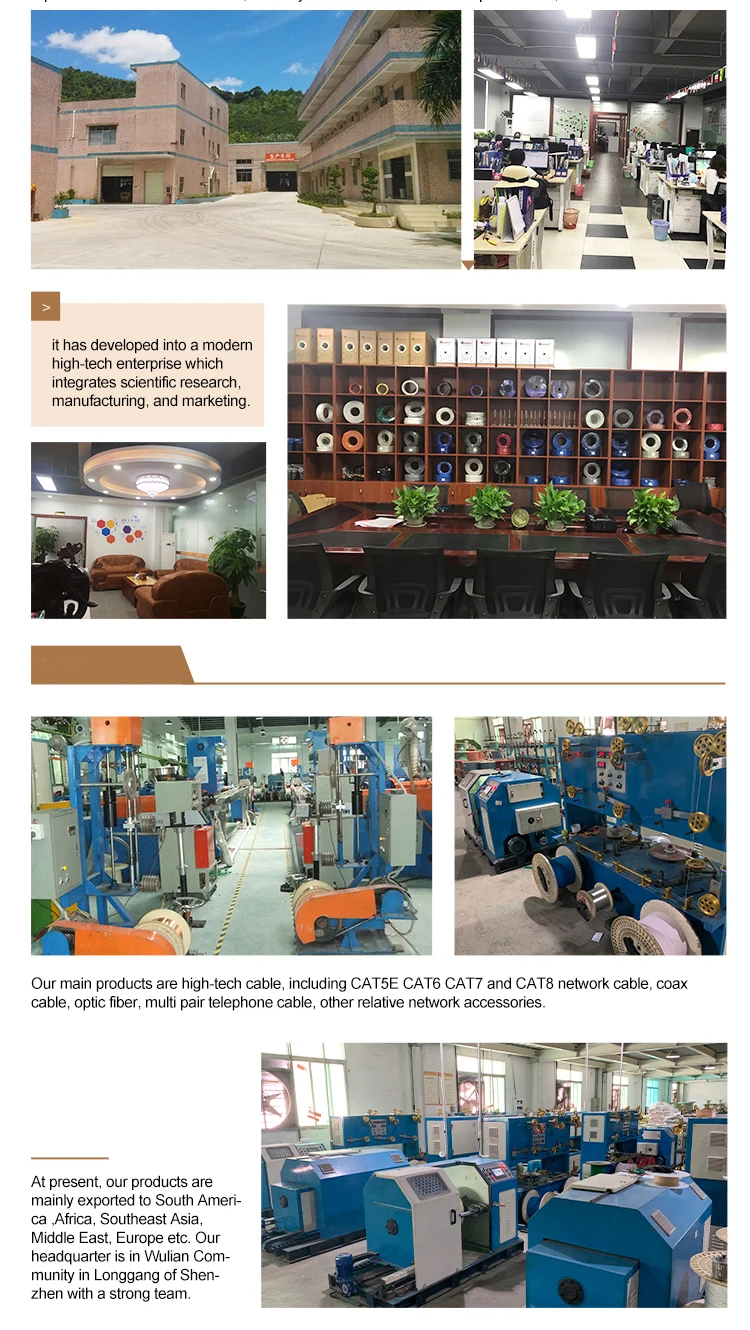

Found in 2002, have 3 factories in Guangdong, which has been committed to the development of Optical Fiber Cable, electric cable,lan cable and kinds of cable. All of the products are widely used in telecom, electric power, railway and other communication products related department, exported to many countries and districts such as America, Europe, Mideast and Southeast Asia. Shenzhen Brother Young Development CO., Ltd is a high-tech company group engaged in researching, manufacturing, selling communication products with our own import and export rights.
Application
PVC insulated wires is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).
Standard
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we cab design and manufacture the products as the requirements of customers.
Brief construction
1) Conductor: Copper, Stranded, Class 2
2) Insulation: PVC
3) Number of cores: Single core
4) Other special characteristics: Design and manufacture according to the requirements of customers.
5. Service performance
1) Rated voltage: 450/750V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
Model No. | Conductor | Insualtion | Jacket | ||||
Cores × Nom. Area | Max. Resistance at 20°C | Thickness | Min. Resistance at 70°C | Thickness | Min. Dia. | Max. | |
mm² | MΩ/km | mm | MΩ/km | mm | mm | mm | |
RVV2×0.75 | 2×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6 | 7.6 |
RVV2×1.0 | 2×1.0 | 19.5 | 0.6 | 0.01 | 0.8 | 6.4 | 8 |
RVV2×1.5 | 2×1.5 | 13.3 | 0.7 | 0.01 | 0.8 | 7.4 | 9 |
RVV2×2.5 | 2×2.5 | 7.98 | 0.8 | 0.009 | 1 | 8.9 | 11 |
RVV3×0.75 | 3×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6.4 | 8 |
RVV3×1.0 | 3×1.0 | 19.5 | 0.6 | 0.01 | 0.8 | 6.8 | 8.4 |
RVV3×1.5 | 3×1.5 | 13.3 | 0.7 | 0.01 | 0.9 | 8 | 9.8 |
RVV3×2.5 | 3×2.5 | 7.98 | 0.8 | 0.009 | 1 | 9.6 | 12 |
RVV4×0.75 | 4×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6.8 | 8.6 |
RVV4×1.0 | 4×1.0 | 19.5 | 0.6 | 0.01 | 0.9 | 7.6 | 9.4 |
RVV4×1.5 | 4×1.5 | 13.3 | 0.7 | 0.01 | 1 | 9 | 11 |
RVV4×2.5 | 4×2.5 | 7.98 | 0.8 | 0.009 | 1.1 | 10.5 | 13 |
RVV5×0.75 | 5×0.75 | 26 | 0.6 | 0.011 | 0.9 | 7.4 | 9.6 |
RVV5×1.0 | 5×1.0 | 19.5 | 0.6 | 0.01 | 0.9 | 8.3 | 10 |
RVV5×1.5 | 5×1.5 | 13.3 | 0.7 | 0.01 | 1.1 | 10 | 12 |
RVV5×2.5 | 5×2.5 | 7.98 | 0.8 | 0.009 | 1.2 | 11.5 | 14 |
6. Other model
Model | Name |
BV | Copper core PVC insulation wire |
BLV | Aluminium core PVC insulation wire |
BVR | Copper core PVC insulation flexible wire |
BVV | Copper core PVC insulation PVC sheath wire |
BVVB | Copper core PVC insulation PVC sheath parellel wire |
BLVVB | Aluminium core PVC insulation PVC sheath parellel wire |
BV-105 | Copper core heat-resistance 105oC PVC insulation wire |
