Professional conferencing equipment auto tracking english 3x video conference camera
- Category: >>>
- Supplier: World Win Technology (shenzhen) Co. Ltd.
Share on (1600199538341):
Product Overview
Description
Tip:
1.Contact us can get more discount;
2.OEM/ODM are also welcome；
3.Excellent quality and better Price.
3.Excellent quality and better Price.
Products Description
Professional conferencing equipmen auto tracking english 3x video conference camera
WIN-J31UB-3X
WIN-J31UB-3X Selling Points:
1.FULL HD 1080P clear image;
2. USB Connection,plug and play;
3. 355 ° degree pan, tilt range 120° degrees;
4. 3X optical zoom,100° Wide Angle, suitable for small and middle size room;
5. Precision step motor driver, Flexible operation& control, positioning accuracy (± 0.1 °)
6. 9 preset positions by IR remote controller,
2. USB Connection,plug and play;
3. 355 ° degree pan, tilt range 120° degrees;
4. 3X optical zoom,100° Wide Angle, suitable for small and middle size room;
5. Precision step motor driver, Flexible operation& control, positioning accuracy (± 0.1 °)
6. 9 preset positions by IR remote controller,
200 preset positions by PC or keyboard controller, memory auto store when power off;
7. VISCA and PELCO P / D protocol optional;
8. 254 addresses can be set (can be controlled 7 cameras via VISCA);
9. Multi control methods available, support IR remote control, RS-232C / 422 serial controls;
10. Multi-installation methods: wall mounting, desktop or ceiling mounting;
7. VISCA and PELCO P / D protocol optional;
8. 254 addresses can be set (can be controlled 7 cameras via VISCA);
9. Multi control methods available, support IR remote control, RS-232C / 422 serial controls;
10. Multi-installation methods: wall mounting, desktop or ceiling mounting;

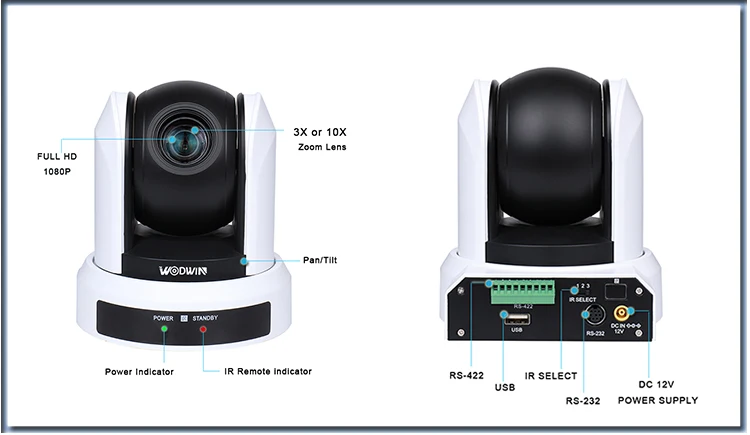

Details Images
Product Paramenters
Product Name | USB PTZ CONFERENCE CAMERA | ||
Item No. | WIN-J31UB-3X | WIN-J31UB-10X | |
Effective Pixels | 2.19 Megapixels | 2.07 Megapixels | |
Lens | 3X optical zoom | 10X optical zoom | |
Horizontal View Angle | 99.6°(W)～30.6°(T) | 60.9°(W)～6.43°(T) | |
Interface | USB 2.0,RS232,RS422 | ||
Pan | 355°(max.speed:80°/s) | ||
Tilt | -30°to 90°(max.speed:60°/s) | ||
Signal | PAL/NTSC | ||
Minimu Illumination | 0.1Lux | ||
Protocol | SONY VISCA、PELCO P/D | ||
Control Mode | RS-232C、RS-422/485 | ||
Power | 12V DC(10.8～13.0V DC) | ||
Accessories | DC 12V power adapter,IR Remote,Operation Manual,USB cable,Ceiling bracket | ||
Product packaging
Recommend Products
WIN-M51U
USB2.0 CAMERA
3X or 10X Zoom
WIN-J40RS
USB+HDMI PORT
12X or 20X Zoom
WIN-DM3B
BLUETOOTH MICROPHONE
360° Voice Pick Up
Company Profile
Certifications
FAQ
Q1. Can I have a sample order?
Yes, welcome sample order to test and check quality.
Yes, welcome sample order to test and check quality.
Q2. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT.
It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3. What about the lead time?
Sample needs about 2-3 working days,
Small batch production time needs 5-10 days,
OEM or large order need about 14-25 days.
Q4. Could I put my own logo on products?
Sure, with our R&D department, we can do ODM and OEM.
Q5. What`s your warranty period?
The warranty period is 3 years and start from the purchase date.
Q6. How do you guarantee the quality?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
Yes, surely.We have very professional technical team,and it is our responsibility to help our clients
when meet with any technical problem.
Q8. I'm buying with your company at the first time, how can I trust you?
We totally understand if you have some doubt about us at our first cooperation.
You are welcome to visit our company or our factory anytime you like.
You can also choose trade assurance for your order.
Q9. What's your payment term?
Our payment term is TT in advance before shipment.
