Full hd1080p video hd sdi ptz live streaming camera 20x zoom video conference camera for conference/church/telemedicine
- Category: >>>
- Supplier: World Win Technology (shenzhen) Co. Ltd.
Share on (1600199609925):
Product Overview
Description
Tip:
1.Contact us for more discount;this black model only for OEM batch order.
2.OEM/ODM are also welcome；
3.Excellent quality and better Price.
3.Excellent quality and better Price.
Products Description
Full hd1080p video hd-sdi ptz live streaming camera 20x zoom video conference camera for conference/church/telemedicine
WIN-J91AF
WODWIN WIN-J91AF SDI PTZ CAMERA
1. POE IP SDI Version, NDI|HX version optional
2. Full HD1080P60fps high quality resolution
3. 20X optical zoom suitable for large size space
4. With rich video output: HD-MI,USB3.0,SDI ,LAN(POE)
5. With SONY 1/2.8" Progressive CMOS, 3.50 Megapixels high quality image
6. VISCA and PELCO P/D protocol
8. Low noise and High SNR
9. H.264, H.265 video compression and Multiple network protocol
10. Support wall mounted, desktop or ceiling mounting
Name | SDI PTZ Camera |
Optical Zoom | 20X zoom |
Interface | HD-MI, USB3.0,SDI,POE LAN |
Resolution | FULL HD 1080P60FPS |
Megapixels | 3.5MP |

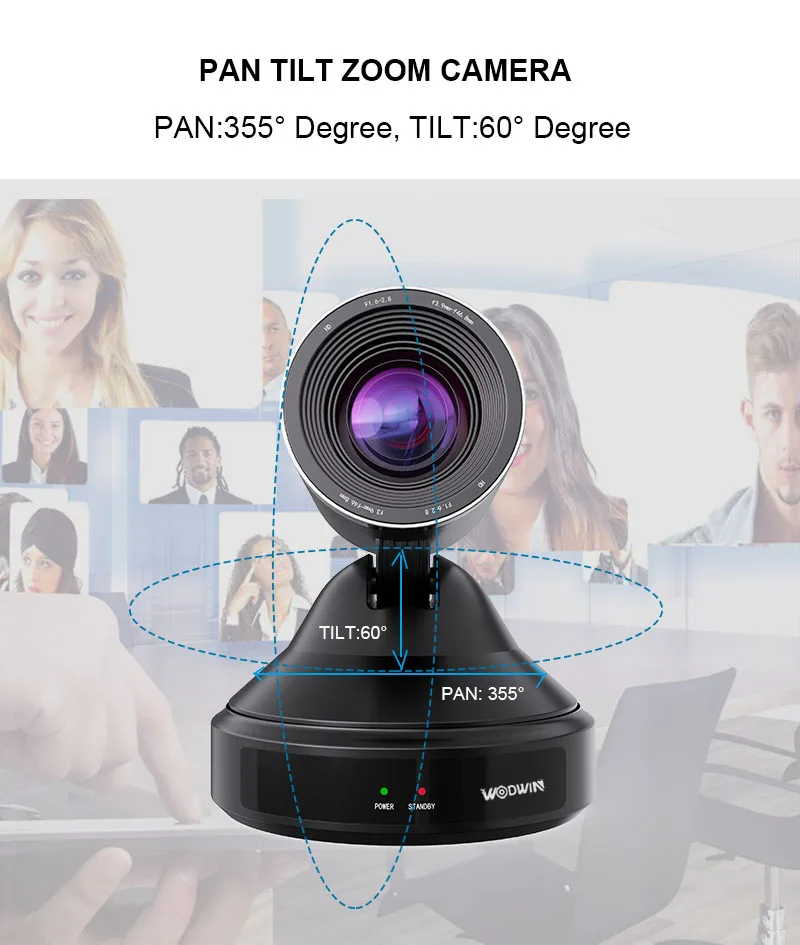

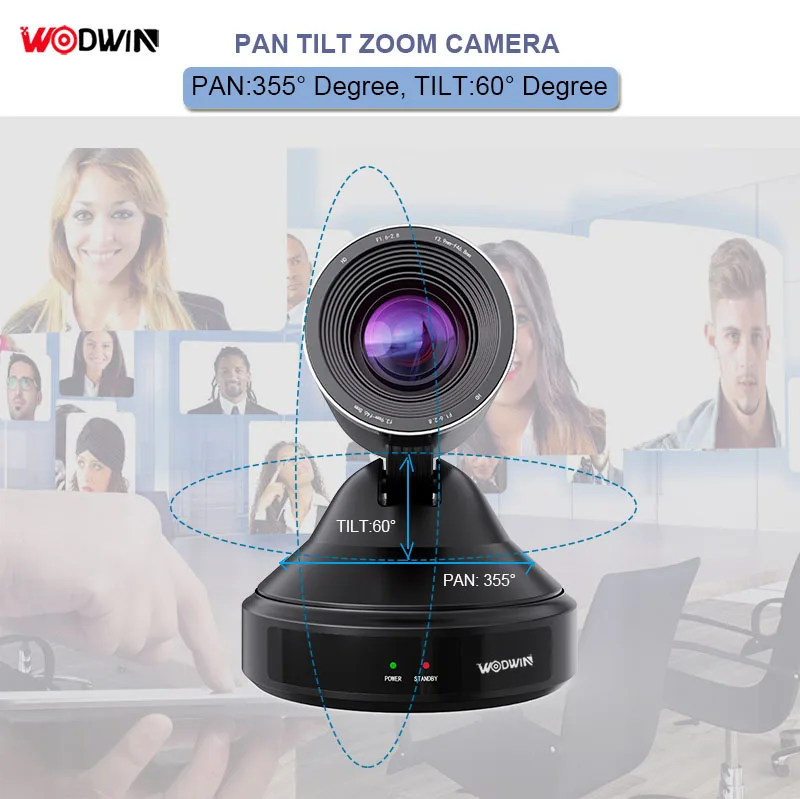

Pan/Tilt | 355°/60° degree |

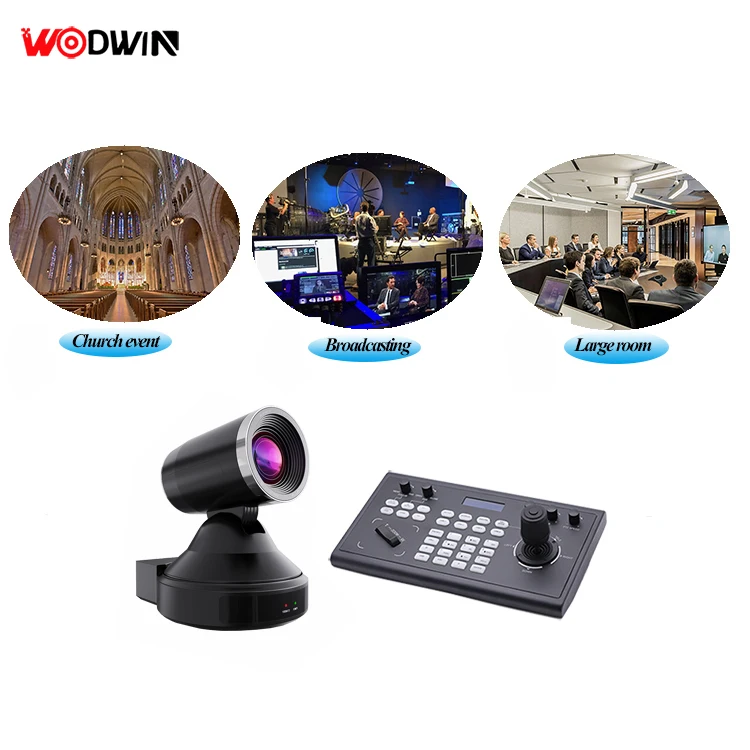

Application | Live studio and streaming,church,stage |
Details Images

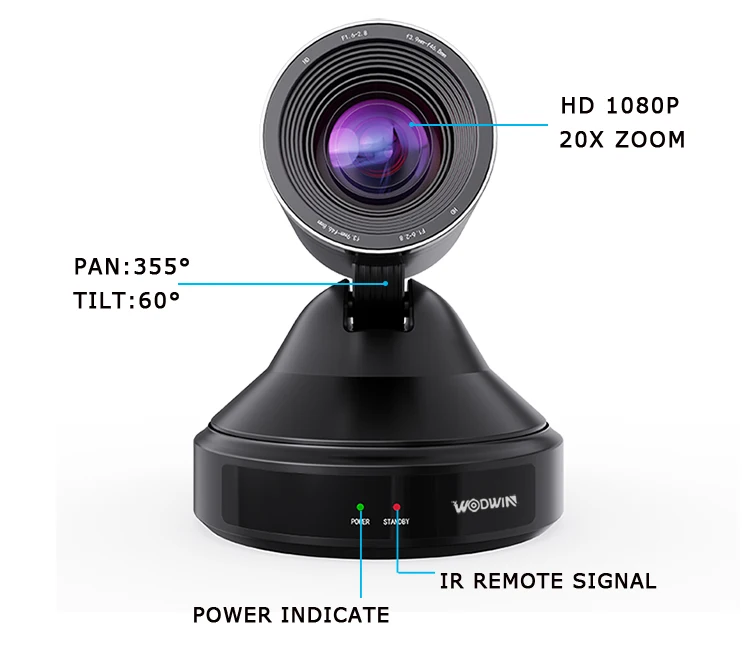

20X Optical Zoom
WIN-J91AF is HD PTZ camera with 20X optical zoom which can zoom very far image to near, very clear enough.

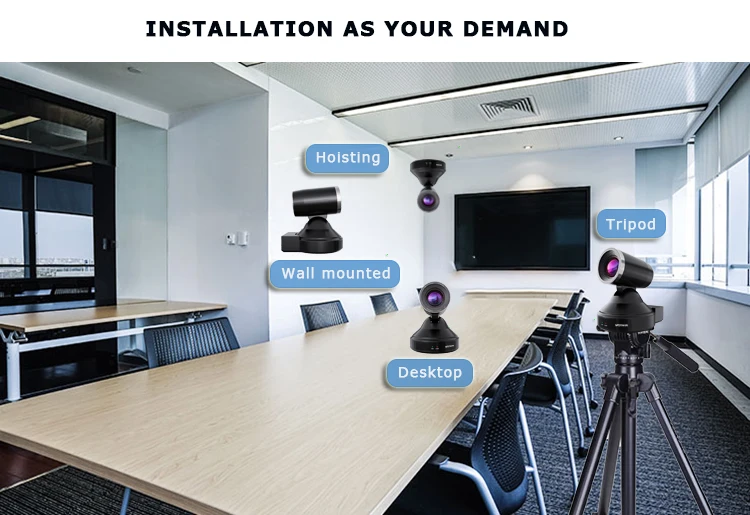

Multi-Install
Wodwin's Video Conference Camera you can easy install as you like such as wall mounted, hoisting tripod.
Product Paramenters
Product Name | SDI PTZ Video Camera | ||||||
Item No. | WIN-J91AF | ||||||
Effective Pixels | 3.50 Megapixels | ||||||
Lens | 20X optical zoom | ||||||
Horizontal View Angle | 58.7°(W)~3.2°(T) | ||||||

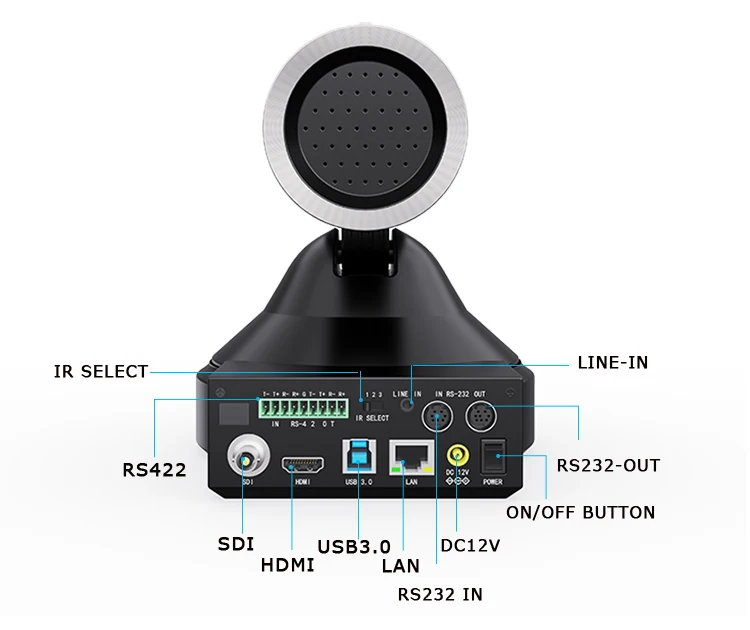

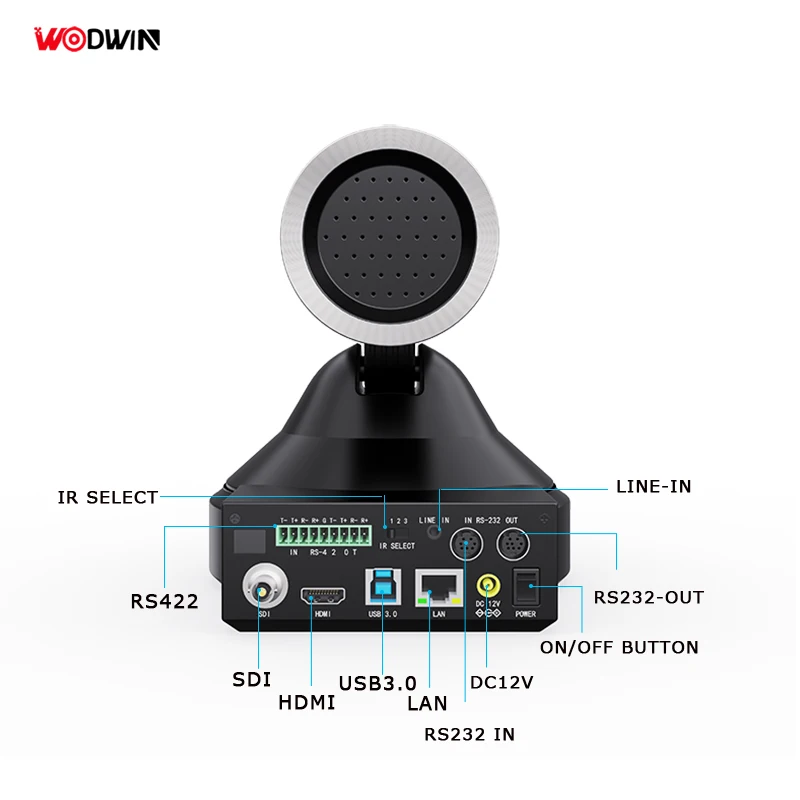

Interface | HDM1, SDI, USB3.0,LAN | ||||||
Pan | 355°(max.speed:80°/s) | ||||||
Tilt | -30°to 30°(max.speed:60°/s) | ||||||
Signal | PAL/NTSC | ||||||
Minimu Illumination | 0.1Lux | ||||||
Protocol | SONY VISCA、PELCO P/D | ||||||
Control Mode | RS-232C、RS-422/485 | ||||||
Dimension | (L)147 ×(W)147 ×(H)165mm | ||||||
Power | 12V DC(10.8～13.0V DC) | ||||||

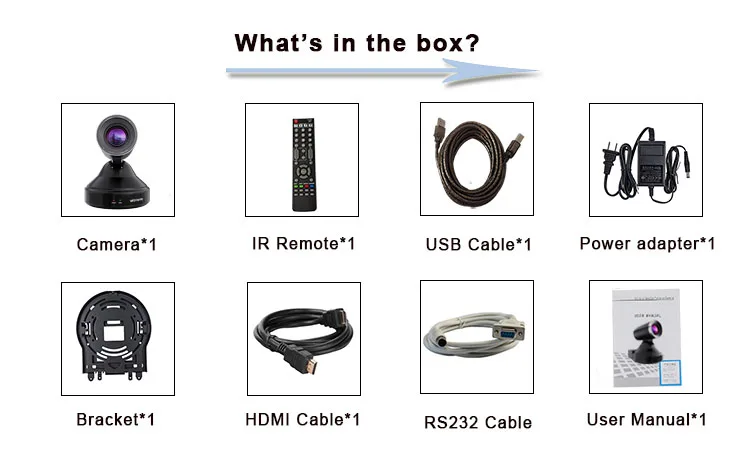

Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDM cable, USB Cable, Ceiling bracket | ||||||
Product packaging
Recommend Products
WIN-M57SN
NDI CAMERA
12X or 20X Zoom
WIN-M57S
SDI CAMERA
12X or 20X Zoom
WIN-J40AS
SDI CAMERA
12X or 20X Zoom
WIN-P237W
WIRELESS EXTENDER
150M TX+RX
WIN-MK2
IP version
PTZ Controller
WIN-HS1608P
POE SWITCH
24-PORTS MANAGED
Company Profile
WODWIN
World's leading supplier of audio and video conferencing products, which have it's own factory and with rich supply chain in all kinds of video conference equipment such as PTZ Video Conference Camera, USB HD PTZ conference cameras, Conference Microphones, PTZ joystick controller, Recording and Broadcasting System.
Certifications
FAQ
Q1. Can I have a sample order?
Yes, welcome sample order to test and check quality.
Yes, welcome sample order to test and check quality.
Q2. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT.
It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3. What about the lead time?
Sample needs about 2-3 working days,
Small batch production time needs 5-10 days,
OEM or large order need about 14-25 days.
Q4. Could I put my own logo on products?
Sure, with our R&D department, we can do ODM and OEM.
Q5. What`s your warranty period?
The warranty period is 3 years and start from the purchase date.
Q6. How do you guarantee the quality?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
Yes, surely.We have very professional technical team,and it is our responsibility to help our clients
when meet with any technical problem.
Q8. I'm buying with your company at the first time, how can I trust you?
We totally understand if you have some doubt about us at our first cooperation.
You are welcome to visit our company or our factory anytime you like.
You can also choose trade assurance for your order.
Q9. What's your payment term?
Our payment term is TT in advance before shipment.
