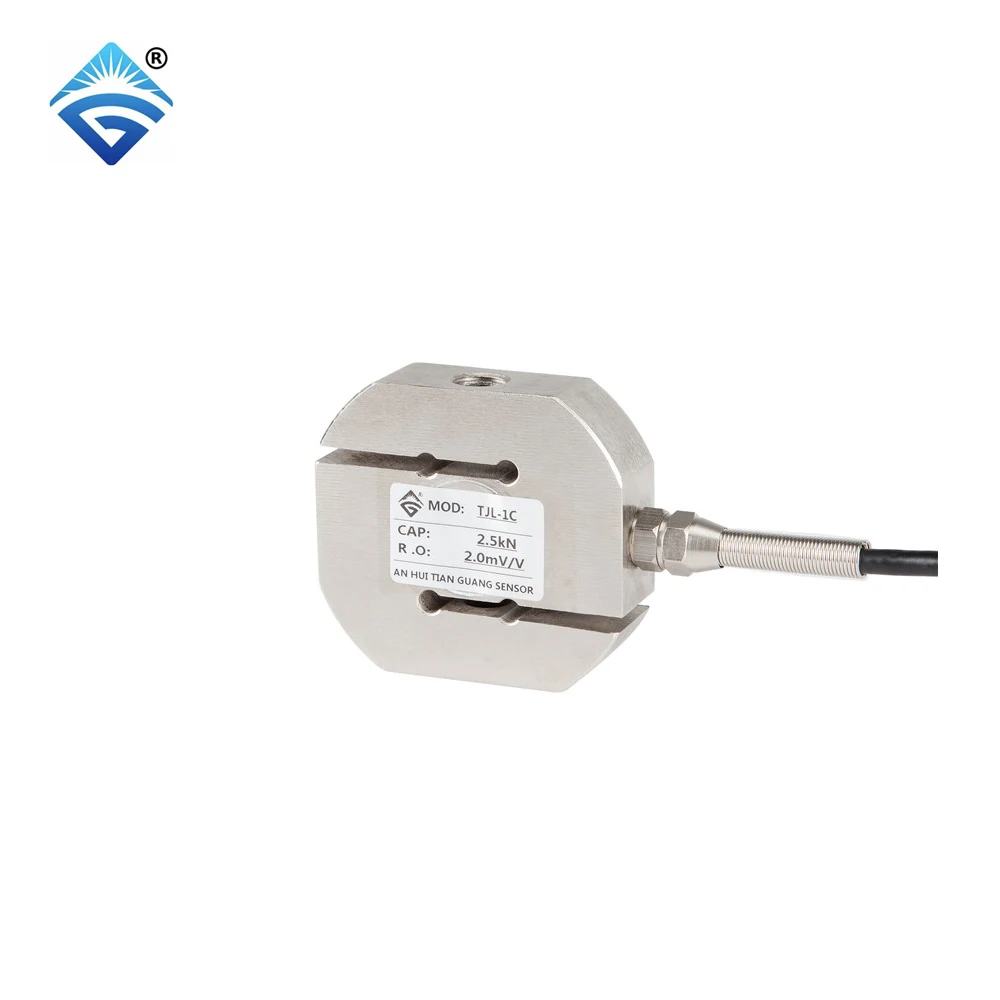

TJL 1C низкая стоимость дозирования шкала упаковочные весы тензодатчик
TJL-1C низкая стоимость дозирования шкала упаковочные весы тензодатчик
TJL-1C низкая стоимость дозирования шкала упаковочные весы тензодатчик
TJL-1C низкая стоимость дозирования шкала упаковочные весы тензодатчик
TJL-1C низкая стоимость дозирования шкала упаковочные весы тензодатчик
TJL-1C низкая стоимость дозирования шкала упаковочные весы тензодатчик
TJL-1C низкая стоимость дозирования шкала упаковочные весы тензодатчик

TJL 1C низкая стоимость дозирования шкала упаковочные весы тензодатчик

Share on (1600199800347):


Price:17,49 $ - 24,86 $

Quantity:


Product Overview

Description



Product Description


1. Rated Force Range: 0.2-1.5kN,2-5kN,10kN,20-50kN
2. Cable length: 3m
3. OEM: Acceptable
4. Certification: ISO9001
5.Packing: See the details


Features


Made of alloy steel material, very durable
High precision, bidirectional bearing, easy installation
The surface is plated with Ni, which makes it well protected against water, dust and corrosion
Widely applied to various working environment


Product Show




Product Description


Product Name
TJL-1C
Accuracy
0.02~0.05%FS
Sensitivity
2.0mV/V
Relative creep over 30 min
±0.02%
Temp. influence on sensitivity
±0.02%FS/10℃
Temp. influence on the zero signal
±0.02%FS/10℃
Zero output
±1.0%FS
Input resistance
380±10Ω
Output resistance
350± 3Ω
Insulation resistance
>5000 MΩ
Operating temperature range
-20~+65℃
Reference temperature
23℃
Reference excitation voltage
10V DC
Limit force
150%
Breaking force
>300%
Material
Alloy Steel
Mode of connection
Input+ : Red, Input- : Black, Output+ : Green, Output- : White

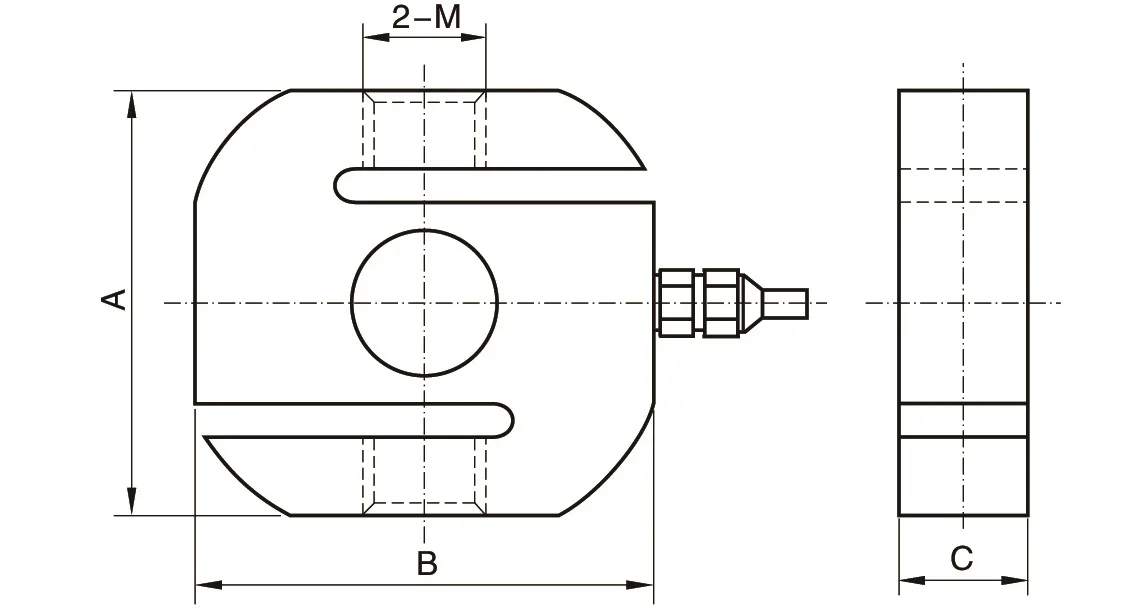

Demension Drawing




Capacity
Size/mm
kN
Amount to
A
B
C
M
0.2-1.5
20-150kg
74
62
16
6.9
2-5
200-500kg
90
73
20
8.5
10
1t
116
96
30
11
20-50
2-5t
132
108
38
13


Related Products


Spoke type load cell
Digital measurement and control transmitter
Plate ring tension


Packing & Delivery


Packing Details : Standard export packaging,carton box,PE cotton
Delivery Details : 5-30 days after payment


Process Flowchart




Our Company




Anhui Tianguang Sensor Co., Ltd. was founded in 1991, covers an area of 22,000 square meters, registered capital of 16 million. Main research and development, production and sales: load cell, ice coating detection sensors, torque sensors, tension sensors, shaft pin sensors, pressure sensors, tension and pressure sensors, oil field load sensors and related monitoring and control instruments and other products. Over the past 20 years Skylight constantly draws on domestic and foreign advanced technology, the introduction of foreign advanced equipment and technology, learning and absorbing the concept of modern enterprise management, has developed, produced more than 100 kinds of load cell sensors and ancillary instruments, the products are widely used in military.

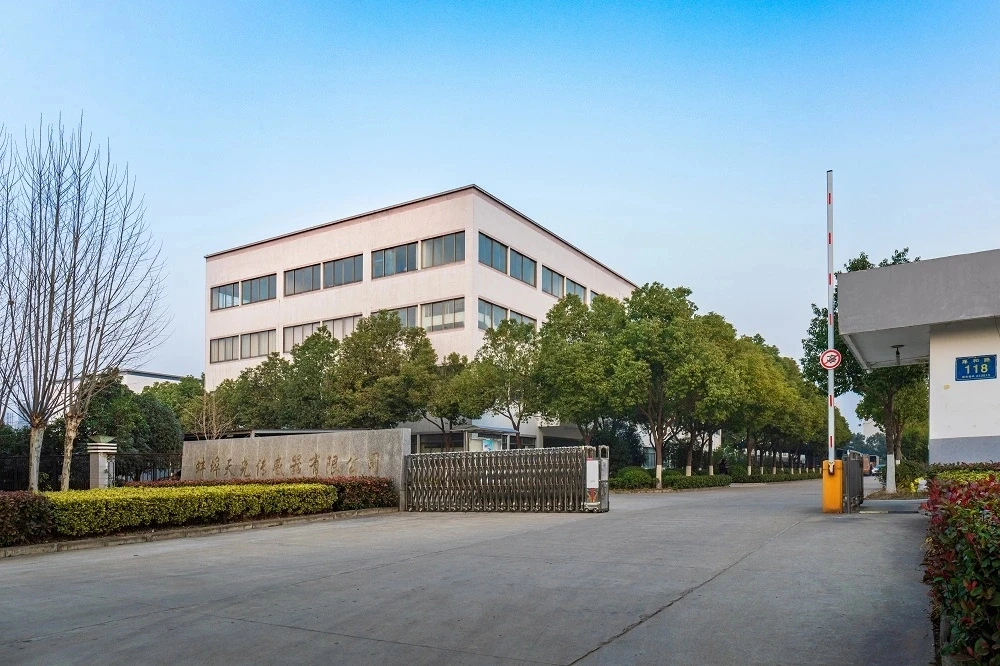

Factory
Workshop


Warehouse
Equipment


Team
Office


Certifications and enterprise honor




FAQ


Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the small size sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.
