30N 6.6Lb Digital Push Pull Force Gauge With Clamp Manufacturer
US $15000-$155000
500N/50Kg/110Lb SF 500N Economical Digital Push and Pull Force Gauge
- Category: Force Measuring Instruments >>>
- Supplier: Decca,Precision,Measuring,Instrument,(shenzhen),Co.,Ltd.
Share on:
Product Overview
Description
500N/50Kg/110Lb SF-500N Economical Digital Push and Pull Force Gauge

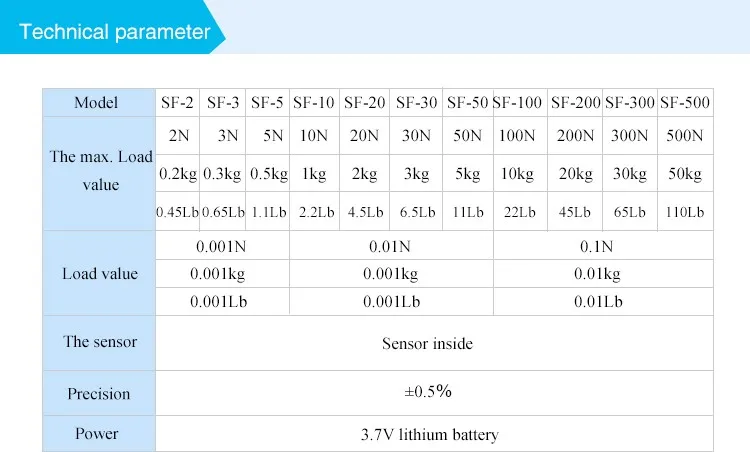

\t\t\t Model \t\t\t | \t\t\t SF-2 \t\t\t | \t\t\t SF-3 \t\t\t | \t\t\t SF-5 \t\t\t | \t\t\t SF-10 \t\t\t | \t\t\t SF-20 \t\t\t | \t\t\t SF-30 \t\t\t | \t\t\t SF-50 \t\t\t | \t\t\t SF-100 \t\t\t | \t\t\t SF-200 \t\t\t | \t\t\t SF-300 \t\t\t | \t\t\t SF-500 \t\t\t |
\t\t\t The \t\t\t max. \t\t\t Load \t\t\t value \t\t\t | \t\t\t 2N \t\t\t | \t\t\t 3N \t\t\t | \t\t\t 5N \t\t\t | \t\t\t 10N \t\t\t | \t\t\t 20N \t\t\t | \t\t\t 30N \t\t\t | \t\t\t 50N \t\t\t | \t\t\t 100N \t\t\t | \t\t\t 200N \t\t\t | \t\t\t 300N \t\t\t | \t\t\t 500N \t\t\t |
\t\t\t 0.2kg \t\t\t | \t\t\t 0.3kg \t\t\t | \t\t\t 0.5kg \t\t\t | \t\t\t 1kg \t\t\t | \t\t\t 2kg \t\t\t | \t\t\t 3kg \t\t\t | \t\t\t 5kg \t\t\t | \t\t\t 10kg \t\t\t | \t\t\t 20kg \t\t\t | \t\t\t 30kg \t\t\t | \t\t\t 50kg \t\t\t | |
\t\t\t 0.45Lb \t\t\t | \t\t\t 0.65Lb \t\t\t | \t\t\t 1.1Lb \t\t\t | \t\t\t 2.2Lb \t\t\t | \t\t\t 4.5Lb \t\t\t | \t\t\t 6.5Lb \t\t\t | \t\t\t 11Lb \t\t\t | \t\t\t 22Lb \t\t\t | \t\t\t 45Lb \t\t\t | \t\t\t 65Lb \t\t\t | \t\t\t 110Lb \t\t\t | |
\t\t\t
\t\t\t Load Value \t\t\t | \t\t\t 0.001N \t\t\t | \t\t\t 0.01N \t\t\t | \t\t\t 0.1N \t\t\t | ||||||||
\t\t\t 0.001KG \t\t\t | \t\t\t 0.001KG \t\t\t | \t\t\t 0.01KG \t\t\t | |||||||||
\t\t\t 0.001Lb \t\t\t | \t\t\t 0.001Lb \t\t\t | \t\t\t 0.01Lb \t\t\t | |||||||||
\t\t\t The sensor \t\t\t | \t\t\t Sensor inside \t\t\t | ||||||||||
\t\t\t Precision \t\t\t | \t\t\t ±0.5% \t\t\t | ||||||||||
\t\t\t Power \t\t\t | \t\t\t 3.7V lithium battery \t\t\t | ||||||||||

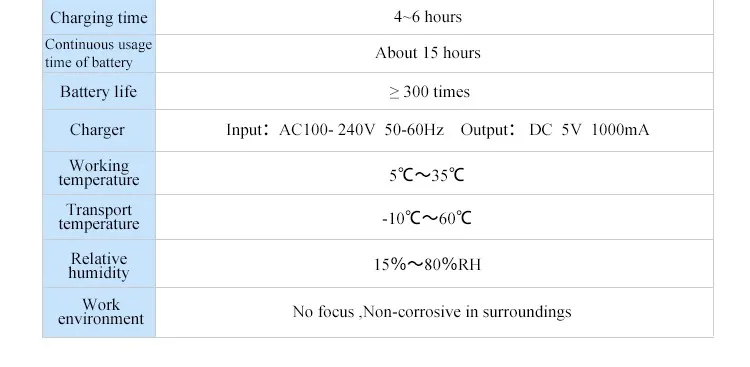

\t\t\t Charging time \t\t\t | \t\t\t 4~6 hours \t\t\t | ||||||||||
\t\t\t Continuous usage time of battery \t\t\t | \t\t\t
\t\t\t About 15 hours \t\t\t | ||||||||||
\t\t\t Battery life \t\t\t | \t\t\t ≥ 300 times \t\t\t | ||||||||||
\t\t\t Charger \t\t\t | \t\t\t Input:AC100- 240V 50-60Hz Output: DC 5V 1000mA \t\t\t | ||||||||||
\t\t\t Working temperature \t\t\t | \t\t\t 5 ℃ ~35 ℃ \t\t\t | ||||||||||
\t\t\t Transportation temperature \t\t\t | \t\t\t -10 ℃~60℃ \t\t\t | ||||||||||
\t\t\t Relative humidity \t\t\t | \t\t\t 15%~80%RH \t\t\t | ||||||||||
\t\t\t Work environment \t\t\t | \t\t\t No focus ,Non-corrosive in surroundings \t\t\t | ||||||||||
