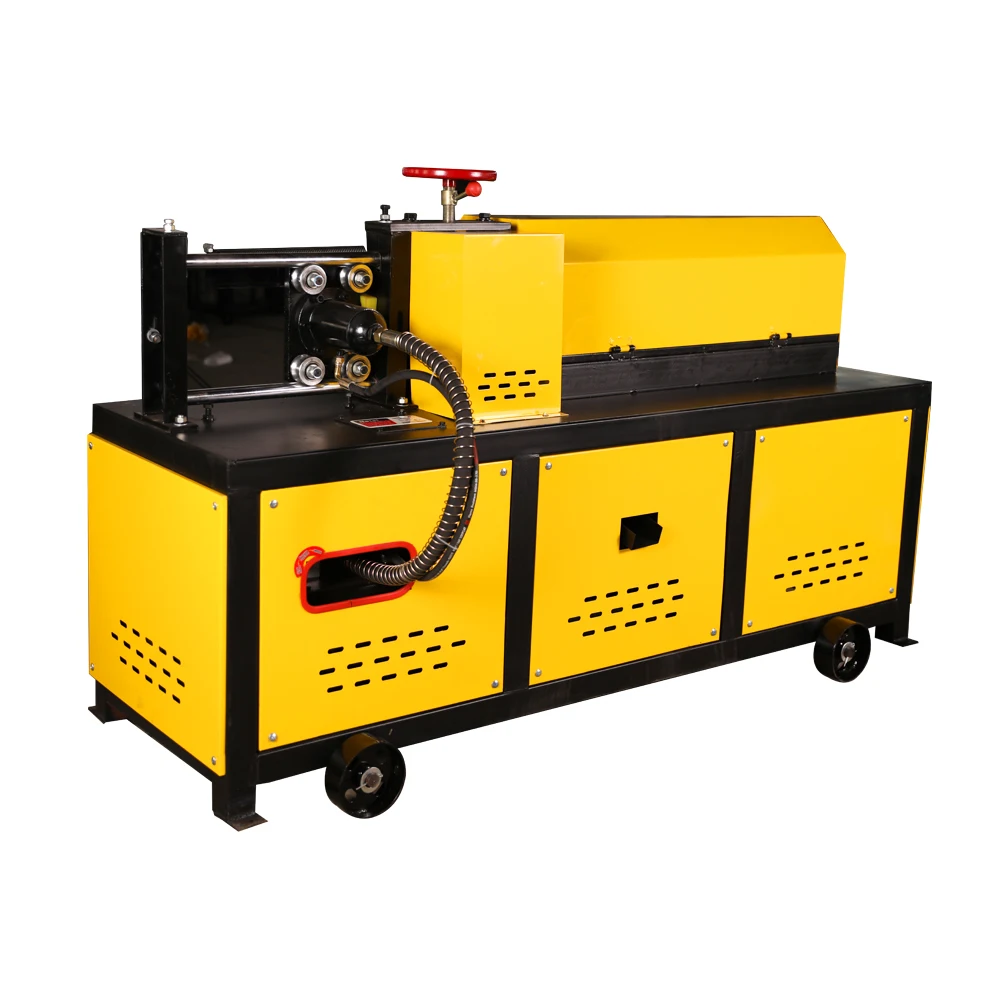

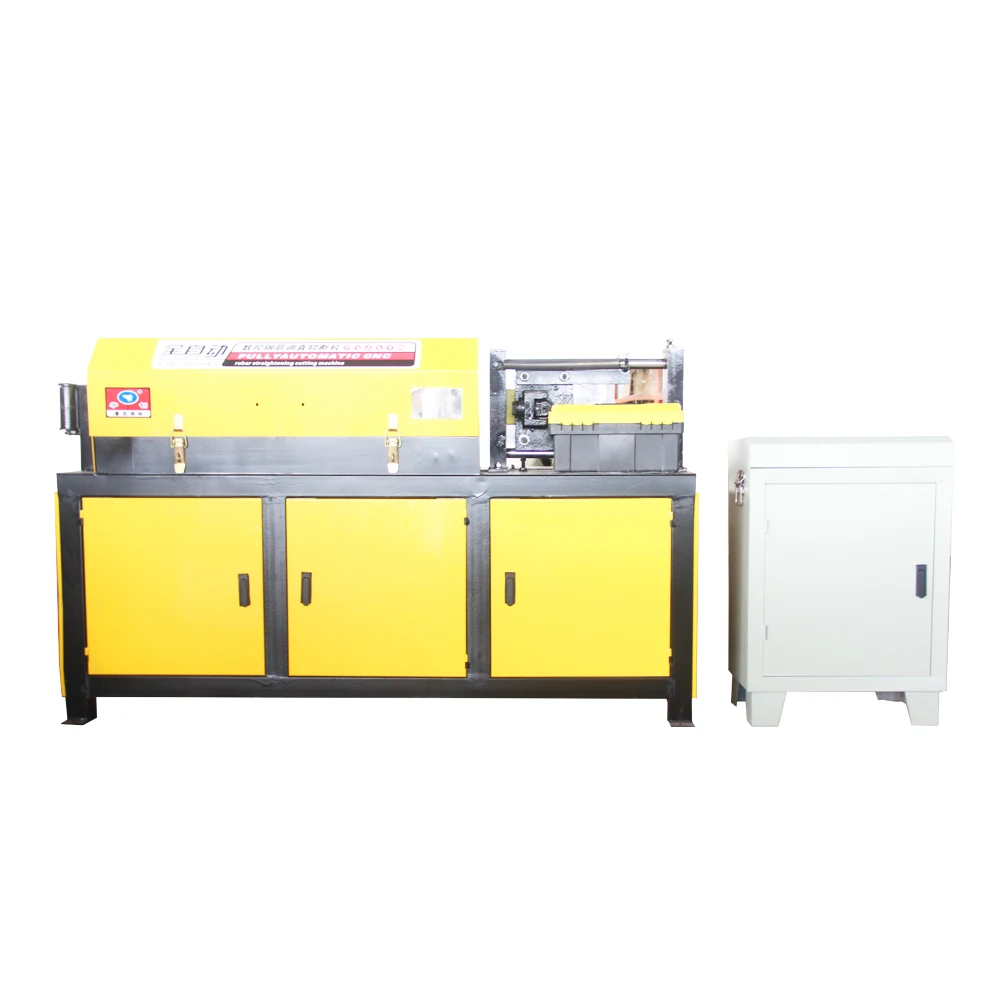

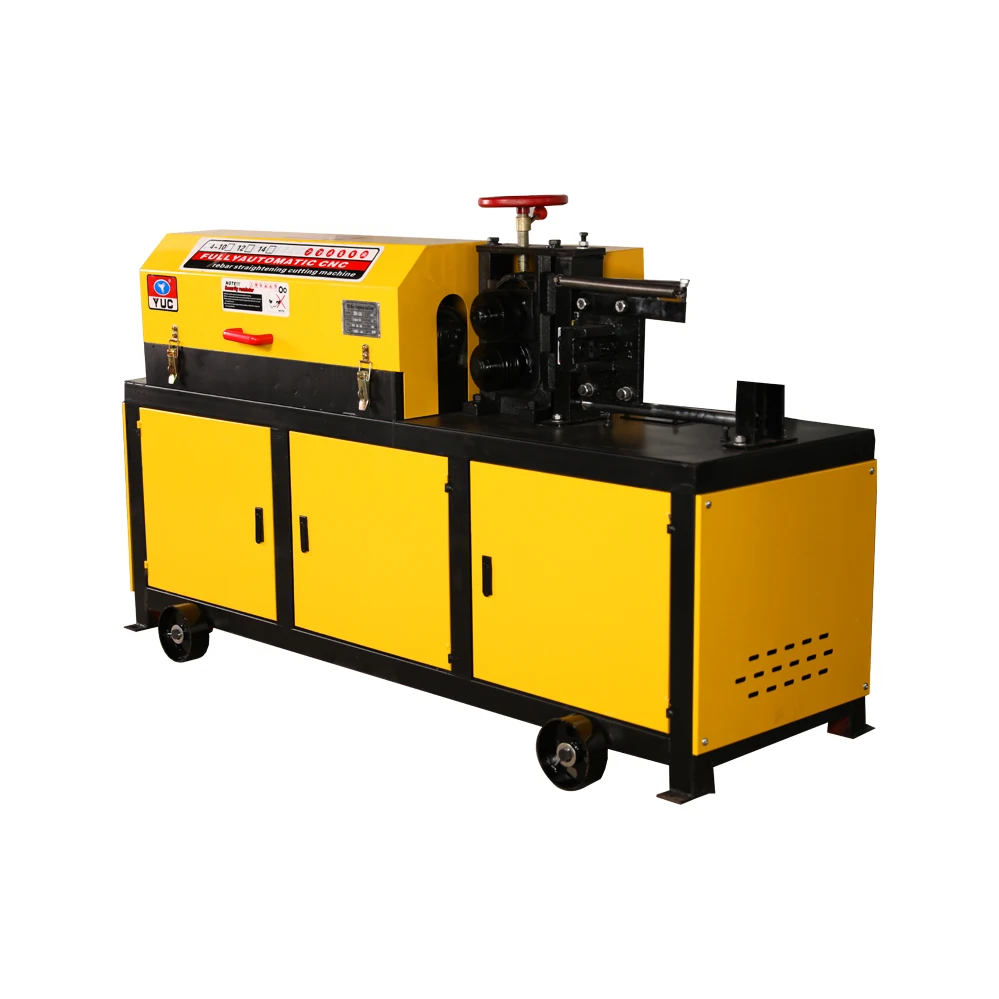

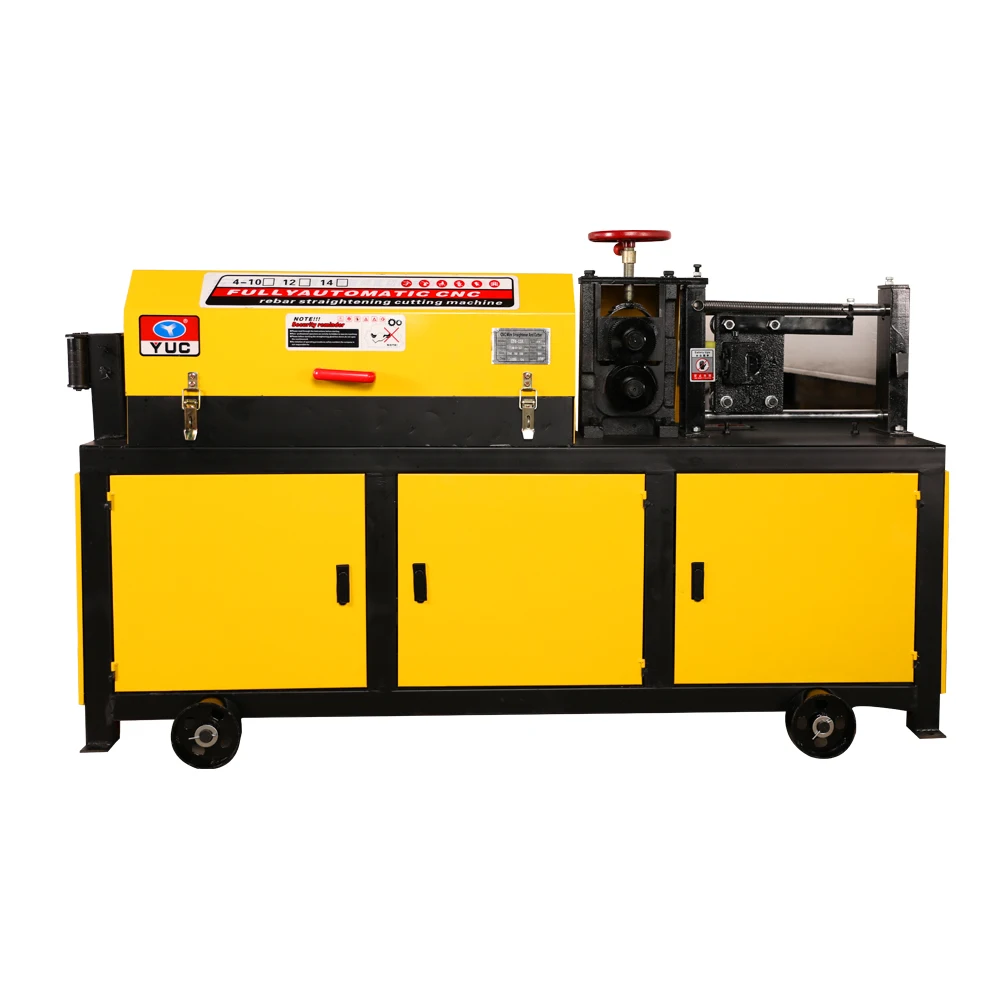

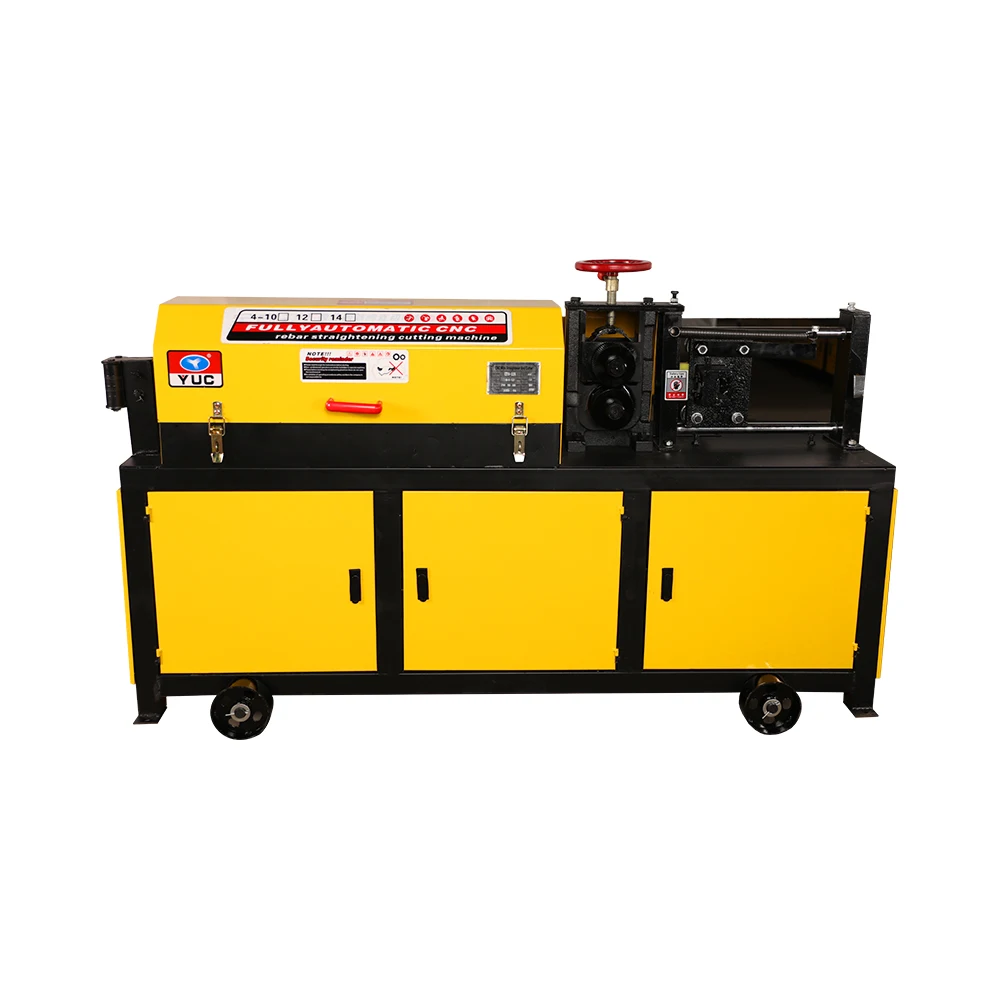

Automatic rebar/ steel rod bar straightening and cutting machine rebar straightener and cutter
- Category: Machine Tool Equipment >>>
- Supplier: Henan Xinyuchuang Machinery Manufacturing Co. Ltd.
Share on (1600201897265):
Product Overview
Description
Products Description
Machine Feature
1. Traction and straightening synchronous transmission reduces the resistance of the mechanical part and improves the work
efficiency.
2. Both the front and rear of the machine are designed with gearbox and pressure roller control, which reduces the free rotation
of the mechanical end. Improved machine safety.
3. The hydraulic part is designed to be controlled separately, and the straightening and cutting do not affect each other, which
is easy to troubleshoot and reduce the disadvantages of uncoordinated hydraulic straightening and cutting in the case of low
temperature.
4. The hydraulic system is designed reasonably, and the original parts are all international brands.
5. The control system is independently researched and developed, and a single-chip computer is used to write programs, which is
easy to understand and easy to operate.
6. Microcomputer control, automatic straightening ,automatic ruler setting and automatic cut-off. Straightening cutting machine
makes mechanical cutting more precise and the error is controlled within ±0.2mm.
7. Steel wire straightening and cutting machine is a kind of steel bar processing equipment, which is mainly used for
straightening and cutting all kinds of steel bar materials, such as ordinary carbon steel, hot-rolled round steel, rebar,
cold-rolled steel bar and so on.
8. Straightening and cutting machine can be widely used in bridge, pile foundation, building construction, standardized
construction, steel bar processing factory and other industries.
Characteristic
1. The original electrical components are all international brands, such as contactor supporting Schneider and encoder supporting
South Korea's Tutonix.
2. The straightening cutter at the inlet is processed by Cr12mov and H13 respectively, and the processing steel bar is more than
1,000 tons.
3. Multiple batches of rebars can be input at one time during work and can be automatically switched, which greatly saves time,
saves materials and reduces waste.
4. High efficiency, walking 60 meters per minute. A single person can produce 12 tons of steel per day.
5. Save 2-3 people and reduce cost by 30%.
1. Traction and straightening synchronous transmission reduces the resistance of the mechanical part and improves the work
efficiency.
2. Both the front and rear of the machine are designed with gearbox and pressure roller control, which reduces the free rotation
of the mechanical end. Improved machine safety.
3. The hydraulic part is designed to be controlled separately, and the straightening and cutting do not affect each other, which
is easy to troubleshoot and reduce the disadvantages of uncoordinated hydraulic straightening and cutting in the case of low
temperature.
4. The hydraulic system is designed reasonably, and the original parts are all international brands.
5. The control system is independently researched and developed, and a single-chip computer is used to write programs, which is
easy to understand and easy to operate.
6. Microcomputer control, automatic straightening ,automatic ruler setting and automatic cut-off. Straightening cutting machine
makes mechanical cutting more precise and the error is controlled within ±0.2mm.
7. Steel wire straightening and cutting machine is a kind of steel bar processing equipment, which is mainly used for
straightening and cutting all kinds of steel bar materials, such as ordinary carbon steel, hot-rolled round steel, rebar,
cold-rolled steel bar and so on.
8. Straightening and cutting machine can be widely used in bridge, pile foundation, building construction, standardized
construction, steel bar processing factory and other industries.
Characteristic
1. The original electrical components are all international brands, such as contactor supporting Schneider and encoder supporting
South Korea's Tutonix.
2. The straightening cutter at the inlet is processed by Cr12mov and H13 respectively, and the processing steel bar is more than
1,000 tons.
3. Multiple batches of rebars can be input at one time during work and can be automatically switched, which greatly saves time,
saves materials and reduces waste.
4. High efficiency, walking 60 meters per minute. A single person can produce 12 tons of steel per day.
5. Save 2-3 people and reduce cost by 30%.
Model | GT4-12 | GT4-12A | GTQ4-10 | |
Straightening diameter | 4-10mm | 4-10mm | 4-10mm | |
Straightening wheels | 6 pics | 6 pics | 6 pics | |
Cutting space | 900mm | 900mm | 900mm | |
Speed of working | 25-35m/min | 35-45m/min | 25-35m/min | |
Motor power | 7.5KW | 7.5KW | 5.5kw | |
Packing size（mm） | 2530x850x1200mm | 2530x900x1350mm | 2000x800x1000mm | |
GW | 454kgs | 620kgs | 370kgs | |
NW（kgs） | 340kgs | 500kgs | 270kgs |
Packing&Shipping
Company Profile

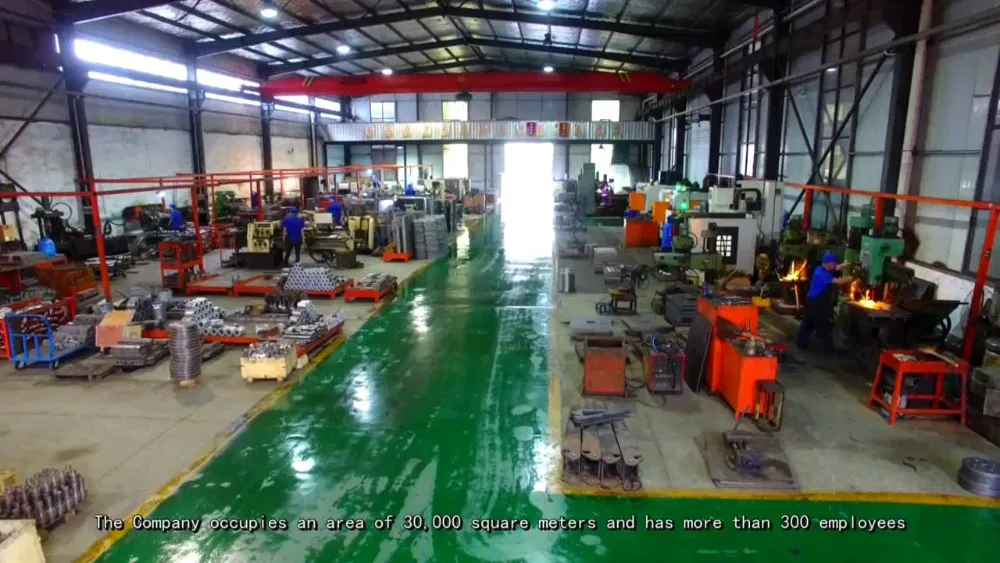

Henan Yuchuang Machinery Manufacturing Co.,Ltd., established in 1996,is located in Changge city, Henan province. Our location is very convenient , it is only 25kms to Xinzheng international airport . which is a combination of production and trade, industry and trade integration business. As an integrated company with design, production, sales and after sales service, we have very competitive advantages, competitive quality , price and sale and after -sale service. The company specializes in producing rebar cutter, rebar bender, CNC wire straightening and cutting machine, CNC stirrup bender,GTW Series CNC Automatic stirrup bender , HL series Cage welding machine , sells very good both in domestic and foreign market. We also produce road machines , such as concrete cutter , concrete vibrator , plate compactor, road roller, tamping rammer, power trowel and so on. Our products have been widely exported to many foreign coutries and areas , such as ,Russia, uzbekistan, Bulgaria,Israel, Egypt, India, Sri Lanka, Pakistan,Vietnam , Indonesia, Malaysia, and so on. Our factory covers an area of 20,000 square meters, with more than 300 staff and 20 high-class engineering technicians. We have sophisticated equipements,complete testing system,powerful technical force,advanced manufacturing process and strict quality control.we have passed ISO9001-2008 certificate , becoming a famous backbone enterprise in central China . “Develop by science and technology , marketing by quality, win customer by service.” As our management, satisfying customer’s needs as our persistent pursuit. We sincerely invite agencies from all over the world cooperate with us to make mutual glory!
FAQ
1.Q:How long of the delivery time?
A:5 days for our own design.(motor:380v 50hz 3phases).
10 days for cusmoized model.
2.Q:How can we use the machine?
A:we will send the english user manual and video with the machine, if not enough, we can teach you online.
3. Q: How does your factory do regarding quality control?
A: We test our machine before shipping. Our factory has gained ISO9001:2000authentication.
4.Q: How long is the warranty?
A: one year warranty and after sales service for whole life
5.Q: how to pay for the product?
A: 100% irrevocable L/C at sight,
T/T 30% in advane and the rest 70% before shipment ,
Alibaba's on-line trade assurance order,
6.Q:How to consult the quotation of the rebar bender?
A:pls tell me:what's the diameter of the round bar?what's the diameter of the ribbed bar
Why choose us?
1We are the manufacturer which has produced these machines for almost 20 years,you can get the machine from us directly rather than through other trading company,so you can save a lot of money.
2.We have two years warrently compare with others only one year.
3.100% QC inspection before Shippment;
4.ISO/SGS/3C Listed,competitve price.
Payment Terms:
1.Payment: T/T, Western Union; 30% deposits; 70% balance before delivery
2. MOQ: 1pcs;
How to Contact Us?
Send your Inquiry Details in the Below, Click "Send" Now!!
A:5 days for our own design.(motor:380v 50hz 3phases).
10 days for cusmoized model.
2.Q:How can we use the machine?
A:we will send the english user manual and video with the machine, if not enough, we can teach you online.
3. Q: How does your factory do regarding quality control?
A: We test our machine before shipping. Our factory has gained ISO9001:2000authentication.
4.Q: How long is the warranty?
A: one year warranty and after sales service for whole life
5.Q: how to pay for the product?
A: 100% irrevocable L/C at sight,
T/T 30% in advane and the rest 70% before shipment ,
Alibaba's on-line trade assurance order,
6.Q:How to consult the quotation of the rebar bender?
A:pls tell me:what's the diameter of the round bar?what's the diameter of the ribbed bar
Why choose us?
1We are the manufacturer which has produced these machines for almost 20 years,you can get the machine from us directly rather than through other trading company,so you can save a lot of money.
2.We have two years warrently compare with others only one year.
3.100% QC inspection before Shippment;
4.ISO/SGS/3C Listed,competitve price.
Payment Terms:
1.Payment: T/T, Western Union; 30% deposits; 70% balance before delivery
2. MOQ: 1pcs;
How to Contact Us?
Send your Inquiry Details in the Below, Click "Send" Now!!
