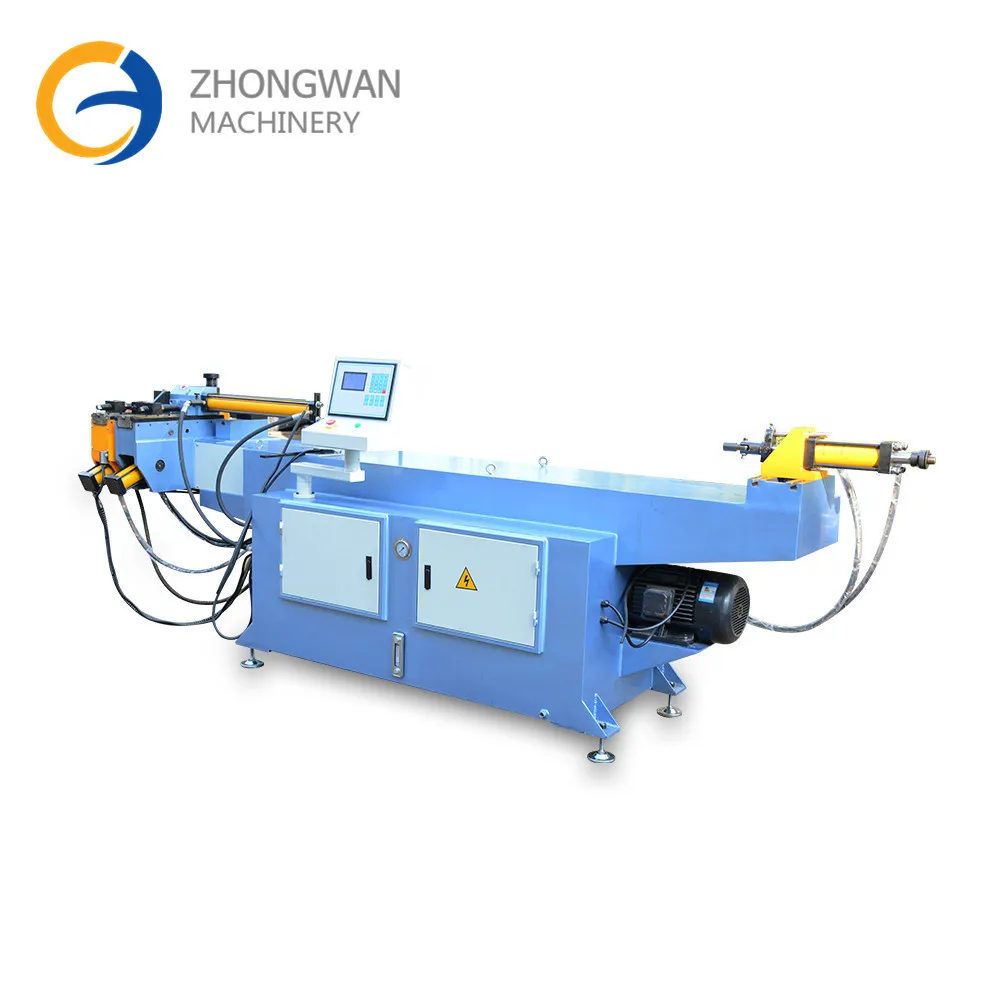

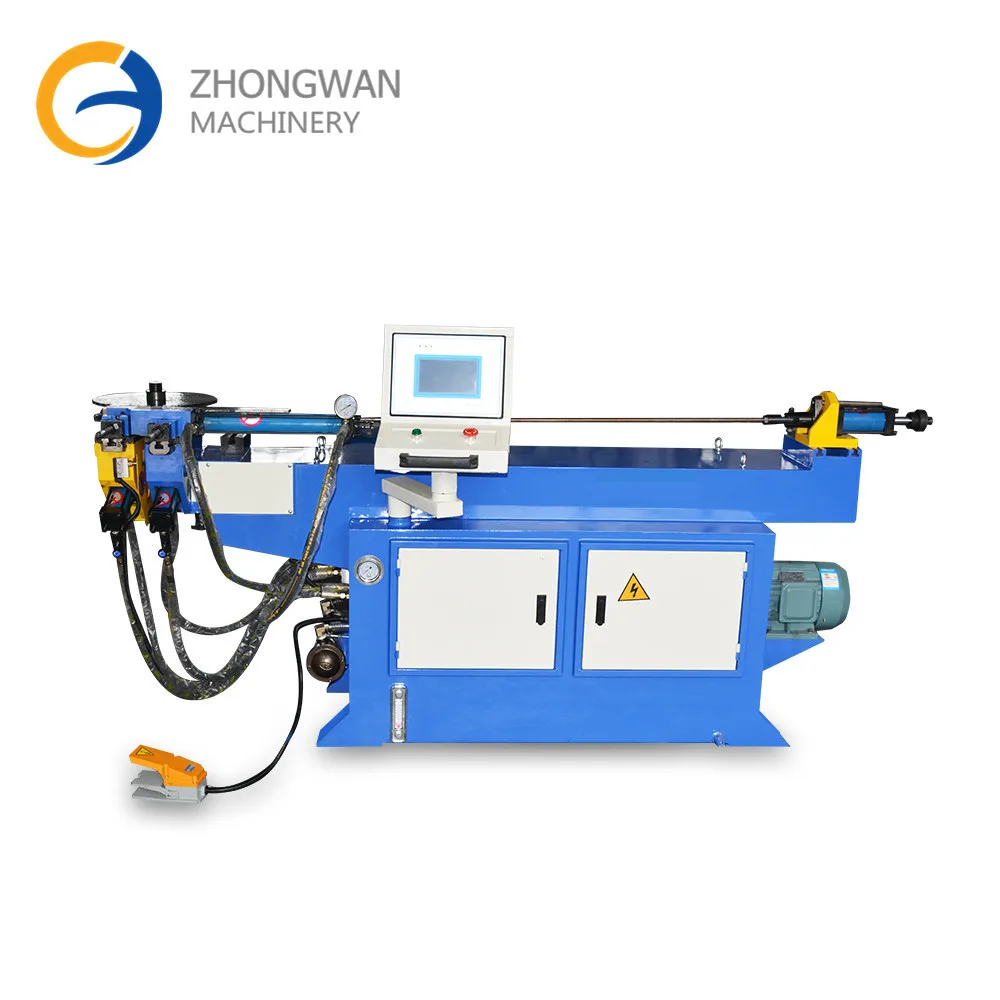

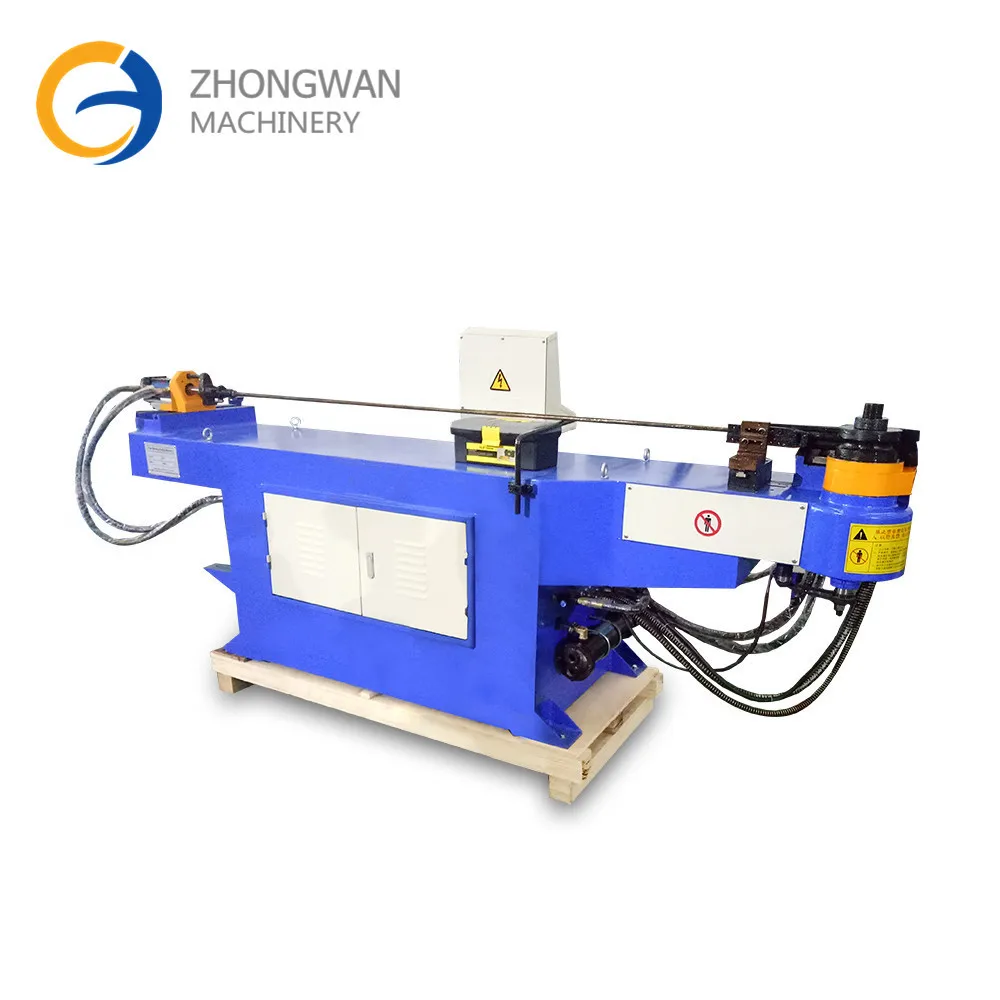

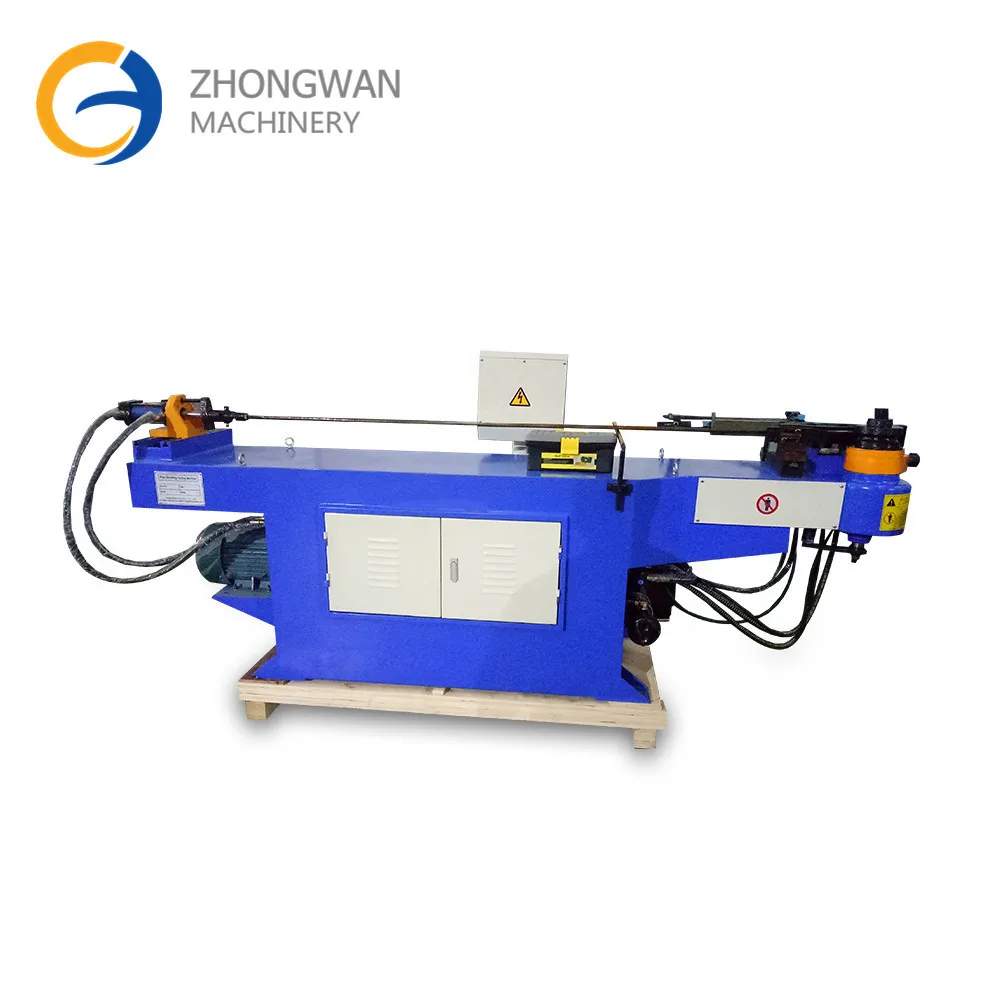

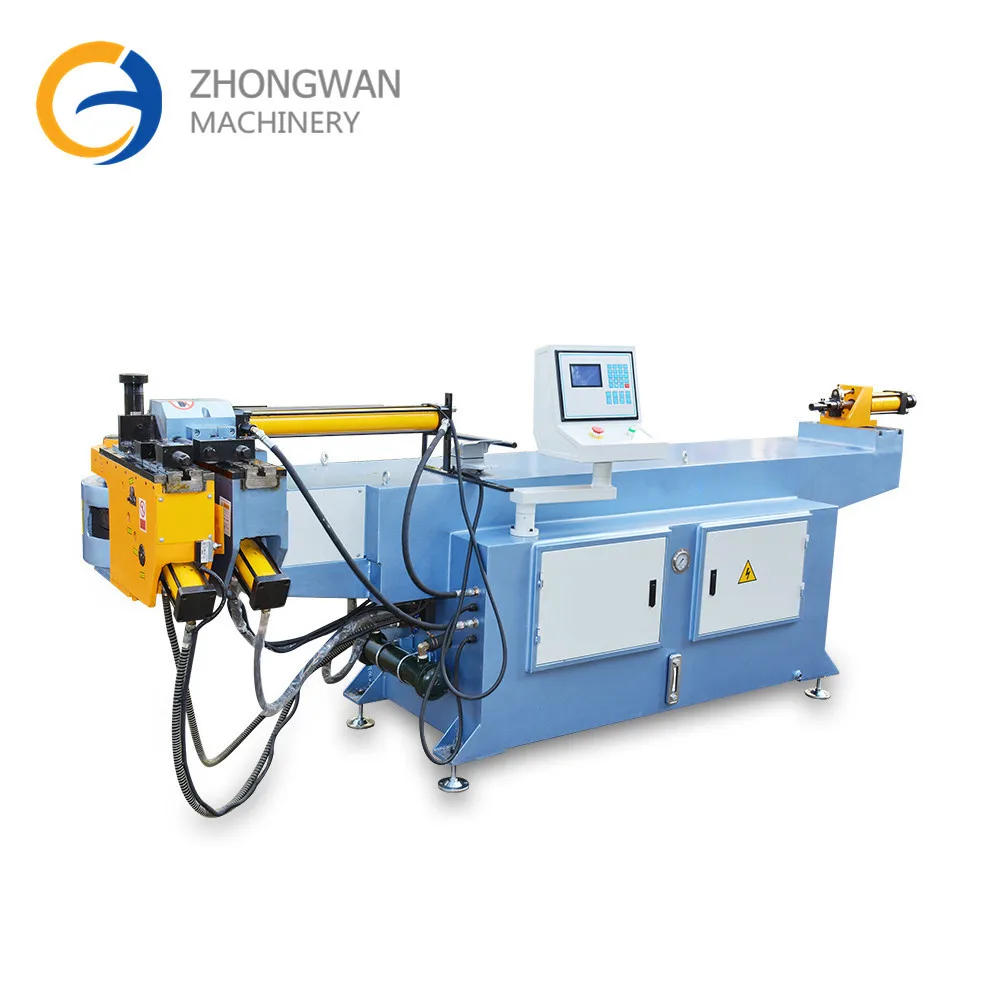

* Bending part automatic * Equipped with hydraulic system--economical way * Stable performance * Easy operation * Cost-effictive machine
Main features
1. Operate by NC control unit, imported electric and hydraulic elements. 2. English showing and conversational operation. 3. It can adjust speed in each bend and the bending precision is high. 4. 16 groups of bending information can be stored. Multiple angles can be finished once. 5. The foot switches with functions of automatic start, emergency stop and resuming.The safety is high. 6. Delicate design of the bending head makes the bending space large. 7. Suitable Materials: Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.
Max bending capacity
Ø38mmx2mm
Max bending radius
R260mm
Min bending radius
According to pipe diameter
Max bending degree
190°
Max effective distance of mandrel
1600mm
Control system
NC control
Max elbow bend pipe
16
Max storable sections
16x16
Motor power
4Kw
Max hydraulic pressure
12Mpa
Oil tank capability
110L
Measurement
260x60x100cm
Weight
750kg
PLC Controller
Easy operating and working fast
Electrics
Schneider, France brand
Mortor
Yuanbang, Taiwan brand. Bending is drived by hydraulic motor, which can keeps high efficiency and accurate bending angle.
Clamping Hydraulic Oil Tube
Kejia, China famous brand.
Water Cooling System
Detailed Images
Bending sample
Related Products
Company Profile
As a Sino-foreign joint venture specializing in machining and production of metal pipes, Jiangsu Zhongwan Machine Technology Co., Ltd. is located in the most developed Yangtze River Delta economic circle-Zhangjiagang, Jiangsu- the famous ring garden city in China. Zhongwan Machinery has the strong design and R&D ability, already has developed CNC numerical control pipe bending machine, series CNC NC Pipe end molding machine, series CNC NC metal circular sawing machine, riveting machine, CNC NC gear grinding machine and other automatic pipe processing machines. Zhongwan Machinery provides complete sets and perfect automation equipment for aerospace, heavy engineering machinery, nuclear power, wind energy, thermal power, shipbuilding yachts, auto parts, motor vehicle frames, air conditioning, sports fitness equipment, steel pipe furniture, tourism and leisure products, water heating sanitary ware, decorative materials and other industries of metal pipe products processing. The company can design and manufacture the special specification unmanned intelligent automation machine, as well as all kinds of non-standard mechanical equipment according to customer's demand.
FAQ
1.Do you provide any training to make sure our user can operate the machine very well? 1)We will provide detailed video and instruction book for this machine; 2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city, to make sure every client will be the expert in using our machine!
2. How long warranty can you provide? Our machine warranty is one year,and we use all the stable compoenents with long working life! And we can also send our technician to do the after-sale service in client's factory!
3.What kind of solution you can offer to make sure your pipe bending machine can do our job? 1)We will help you confirm the model of our machine according to your offered pipe information. 2)Before you start the order for this big value machine,you can offer your workpiece drawing to us. We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally. 3)You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
4. Are you a manufacturer or trading company? We are a manufacturer, We are dedicated to pipe processing equipment manufacturing.
5.What is the difference for NC and CNC machines? NC is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic. CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending, multiple tooling stack are available for two and more different bending radius .
6.Where is your factory located? How can I visit there? Our factory is located in Suzhou Zhangjiagang city (beside to Shanghai).You can fly to Shanghai Hongqiao or Pudong airport directly.
