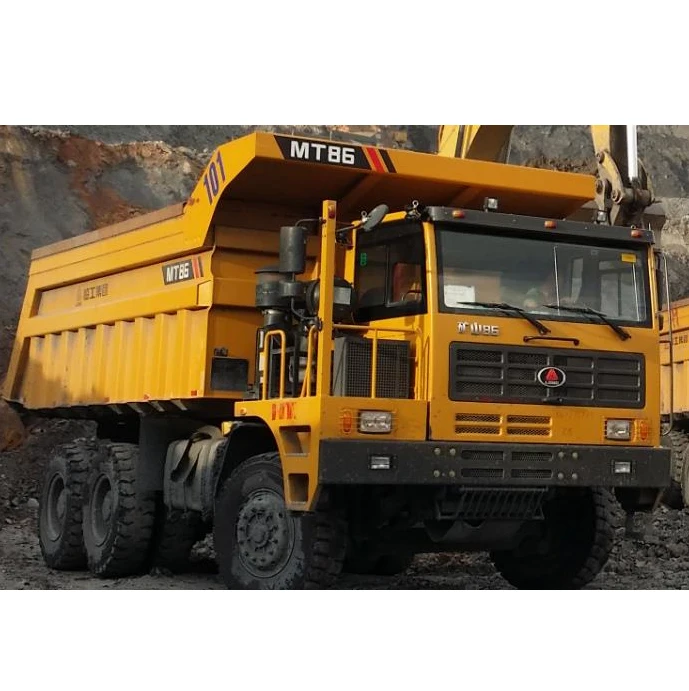

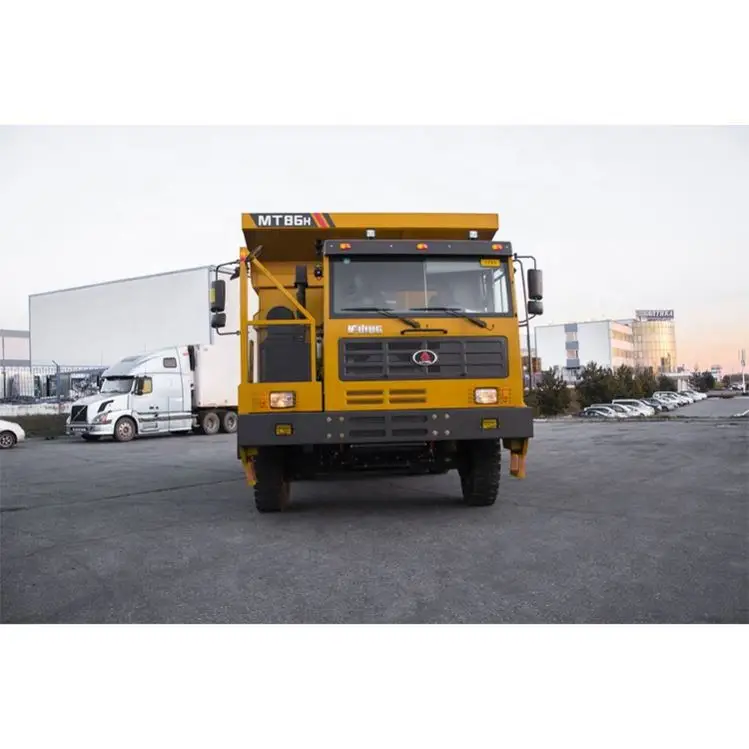

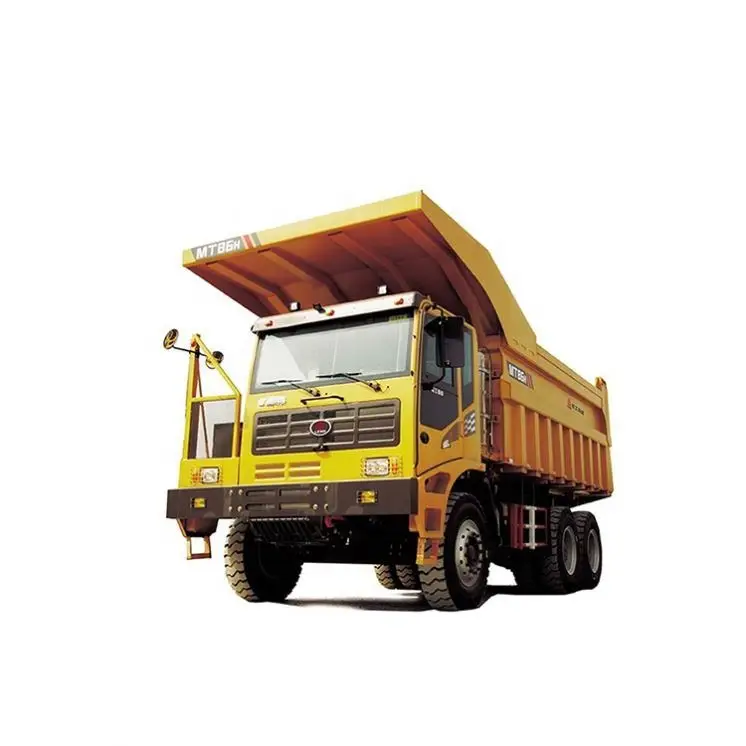

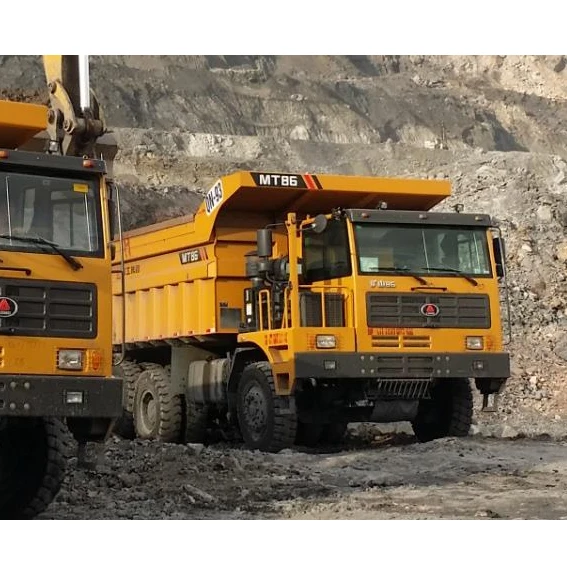

Mining truck LGMG MT86 55 ton payload with Weichai engine

features

1. The reinforced riveted frame with large cross section is fabricated from high strength steel plates, ensuring large loading capacity, good shock and twisting resistance.


2. The transmission, specially developed for mining operations, is featured large torque output, and is more adaptive to harsh working conditions.


3. By applying dual push rods, rubber shock blocks and adding leaf spring plates, the front suspension is greatly strengthened.


4. Box-section stiffeners wedged to form a frame structure for the body, and abrasion resistant steel applied, better impact and abrasion resistance.


5. Driver’s cab strengthened by roll-over protection structure, which is derived from excavator technique. The cab is optimized from all-around way, making it safe and comfortable.

The product

Model	MT86
Curb Weight (kg)	28000
Gross Weight (kg)	88000
Payload (kg)	60000
Body Volume (m³)	34 (Without tailgate)
Truck Dimension (L*W*H) (mm)	8670×3390×3885
Wheelbase (mm)	3800+1500
Drive Mode	6×4
Min. Curving Radius (m)	≤11
Approach/Departure Angle	30/40°
Max. Speed (km/h)	57
Max. Gradeability  (%)	36
Engine Model	WD12.420
Engine Power (kW)	309
Transmission	10JSD220(A)
Tire	14.00-25
Axle Bearing Capacity (t)	19+37+37
