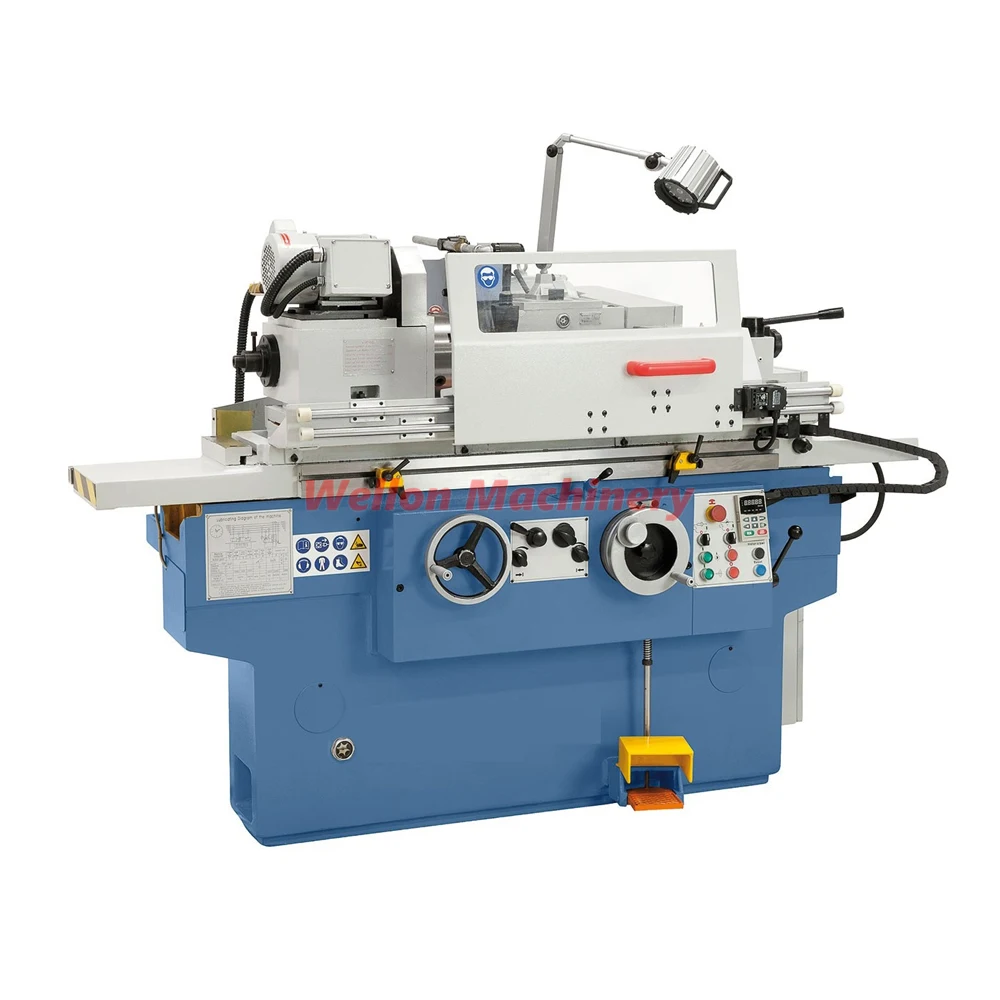

M1320 Cylindrical Grinding Machine /M1320H Grinder Machine
Features:
This machine is suitable for grinding cylindrical, conical shape internal, external and end face of various middle and small size work piece.
With strong rigidity High precision High grinding efficiency.
It has strong cutting function Rigid
Grinding head has the certain cutting edge
Applicable to small batch production in the workshop and the use of the tool machine shop
Technical Parameter :
Specification & Model | Unit | M1320 x500 | M1320 x800 |
External grinding dia | mm | 8-200 | 8-200 |
Internal grinding dia | mm | / | / |
Center height | mm | 135 | 135 |
Max travel of table | mm | 650 | 950 |
Hydraulic traverse speeds | M/min | 0.1-4 | 0.1-4 |
Max. Work piece weight | kg | 50 | 50 |
Grinding length external/internal | mm | 500 | 800 |
Swivel range of grinding wheel | . | -5-+9 | -3-+7 |
Max.peripheral speed of grinding wheel | M/s | 38 | 38 |
External wheel size | mm | Max dia400*50*200 Min dia280*50*203 | |
Internal wheel spindle rotating speed | R/min | / | / |
Head and tailstock center taper |
| MT4 | MT4 |
Machine motor power | kw | 5.625 | 5.625 |
Overall dimension | mm | 2500*1600*1500 | 3000*1600*1500 |
Machine weight | kg | 2500 | 3000 |
Working accuracy | |||
roundness | um | 1.5 | 1.5 |
Uniformity of dia longitudinal section | um | 5 | 5 |
Surface roughness | um | Ra<=0.32 | Ra<=0.32 |
