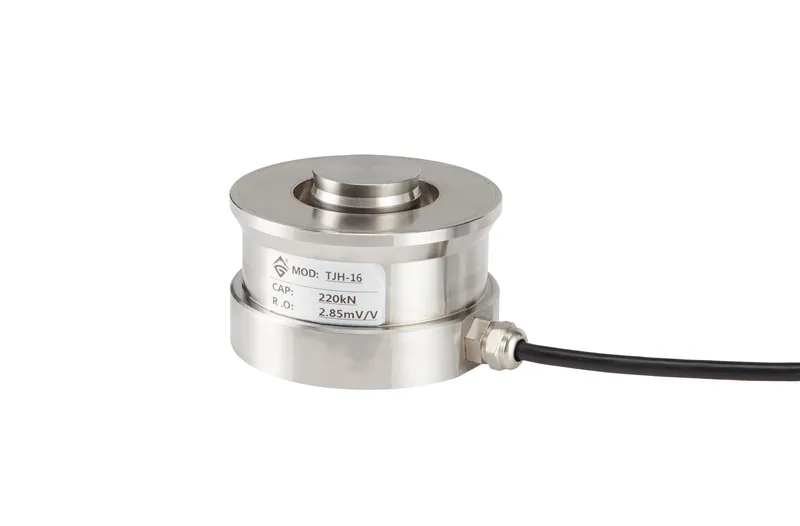

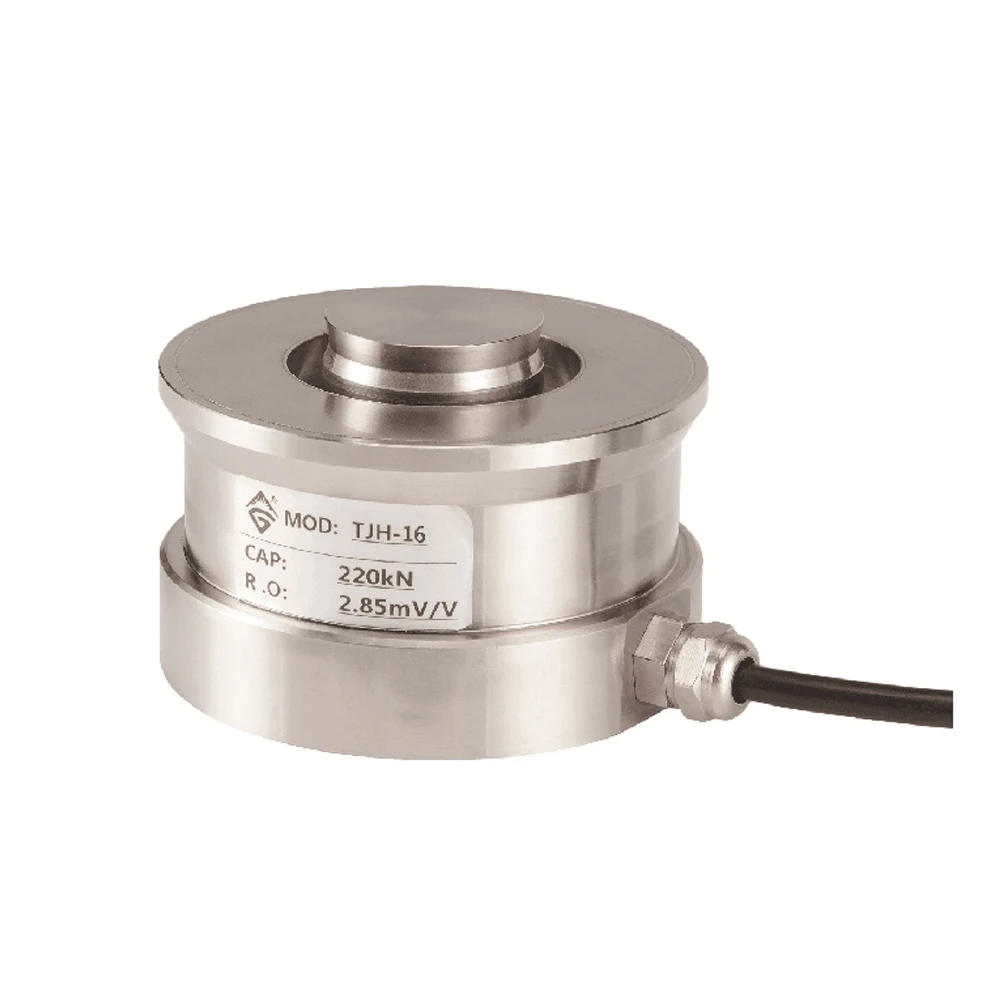

TJH 16 GT высокопрочных болтов кручения и кольцевого типа Взвешивание тензодатчик датчик 1000 кг
TJH-16 GT высокопрочных болтов кручения и кольцевого типа Взвешивание тензодатчик датчик 1000 кг
TJH-16 GT высокопрочных болтов кручения и кольцевого типа Взвешивание тензодатчик датчик 1000 кг
TJH-16 GT высокопрочных болтов кручения и кольцевого типа Взвешивание тензодатчик датчик 1000 кг

TJH 16 GT высокопрочных болтов кручения и кольцевого типа Взвешивание тензодатчик датчик 1000 кг

Share on (1600212469720):


Price:93,10 $ - 127,40 $

Quantity:


Product Overview

Description



Video Description




Product Description


Product Name
Type T overload protection device load sensor
Accuracy
0.05~0.1%FS
Sensitivity
2.0mV/V
Relative creep over 30 min
0.05%
Temp. influence on sensitivity
0.05%FS/10℃
Temp. influence on the zero signal
0.05%FS/10℃
Zero output
±1.0%FS
Input resistance
380±10Ω
Output resistance
350± 3Ω
Insulation resistance
>5000 MΩ
Operating temperature range
-20~+65℃
Nominal (rated) temperature range
-10~+45℃
Reference temperature
23℃
Reference excitation voltage
10V DC
Limit force
150%
Breaking force
>300%
Material
Alloy Steel
level of protection
IP66（IP67-Stainless Steel）
Mode of connection
Input+ : Red, Input- : Black, Output+ : Green, Output- : White
Mass
0.6kg

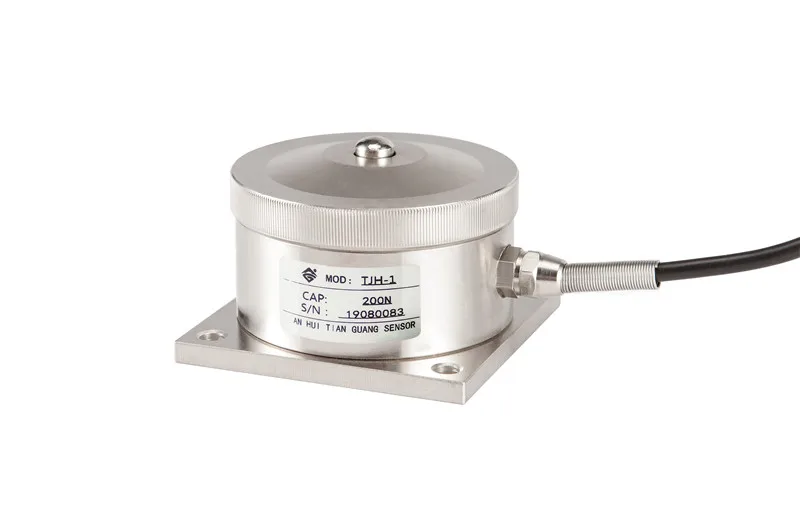

Product Show

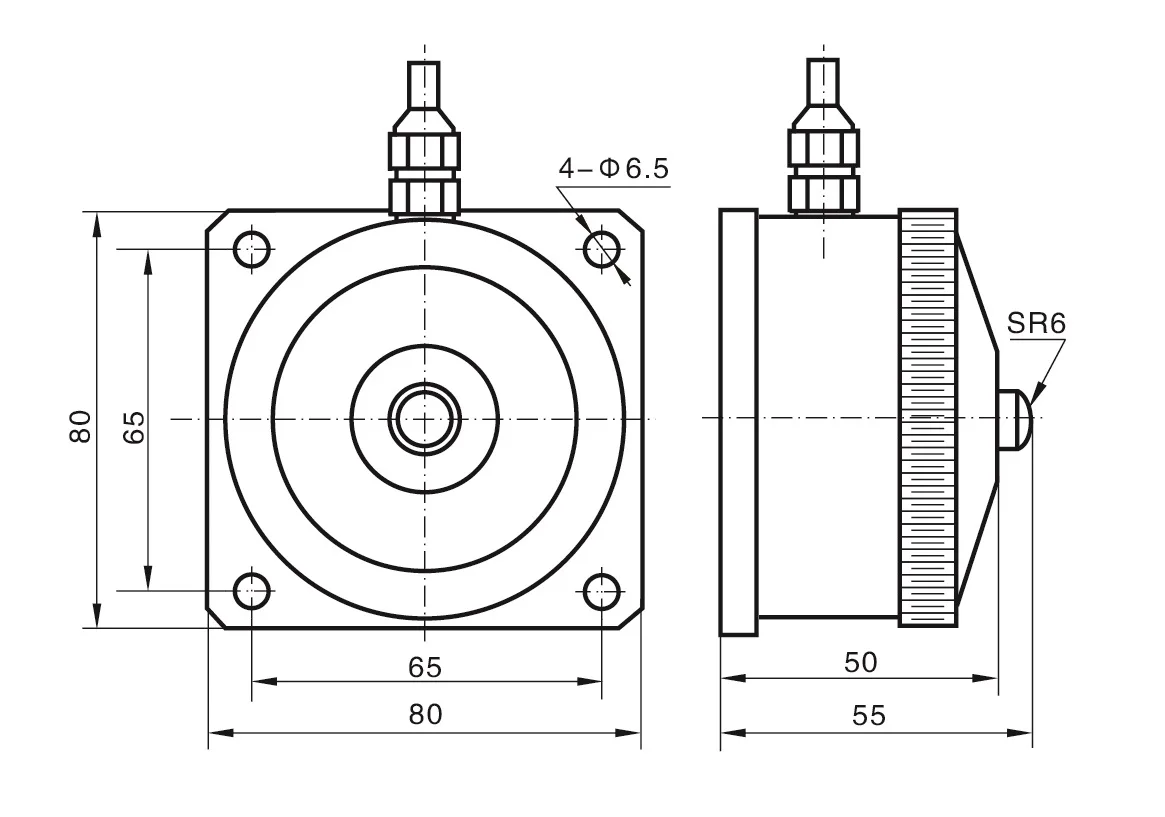

Demension Drawing
