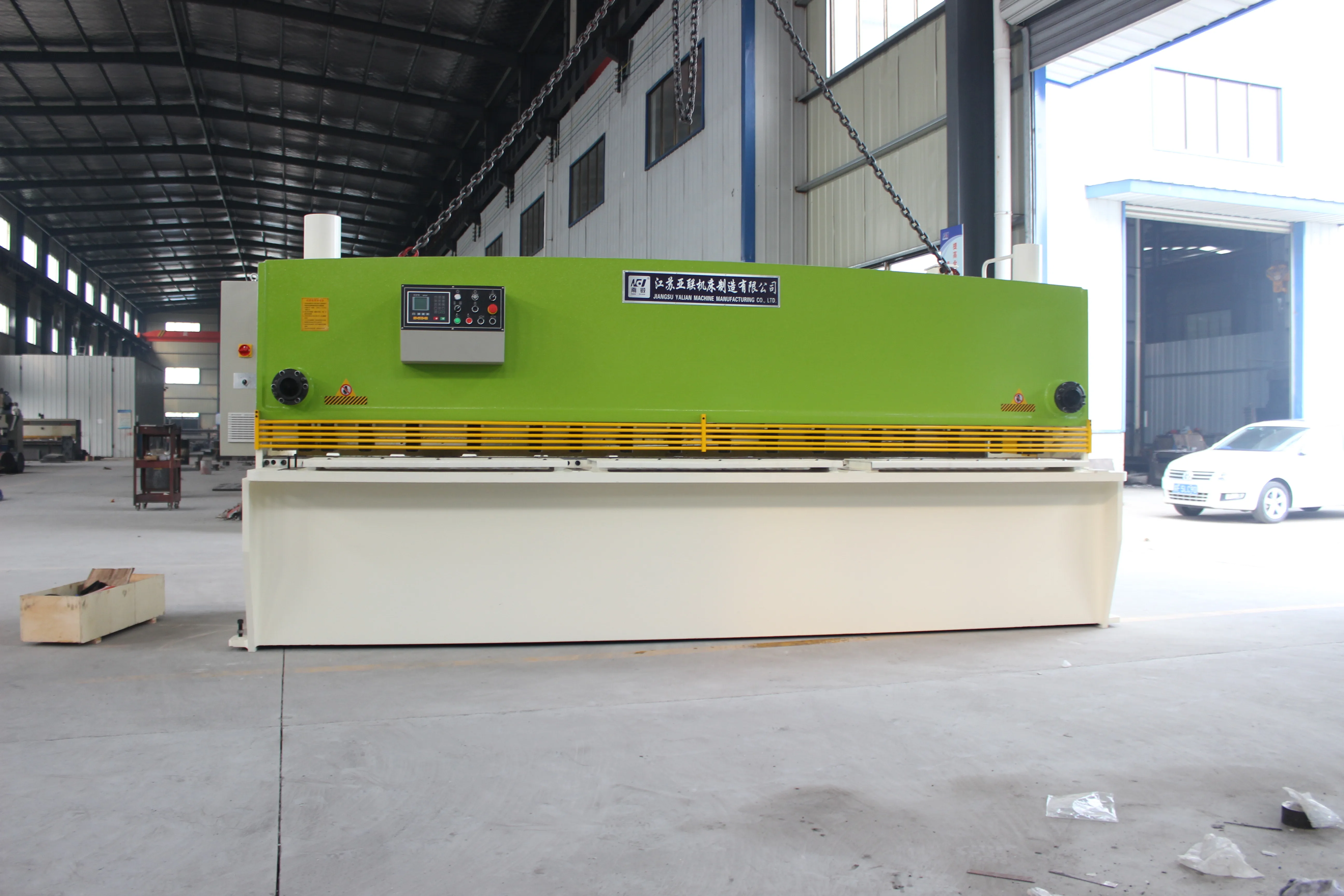

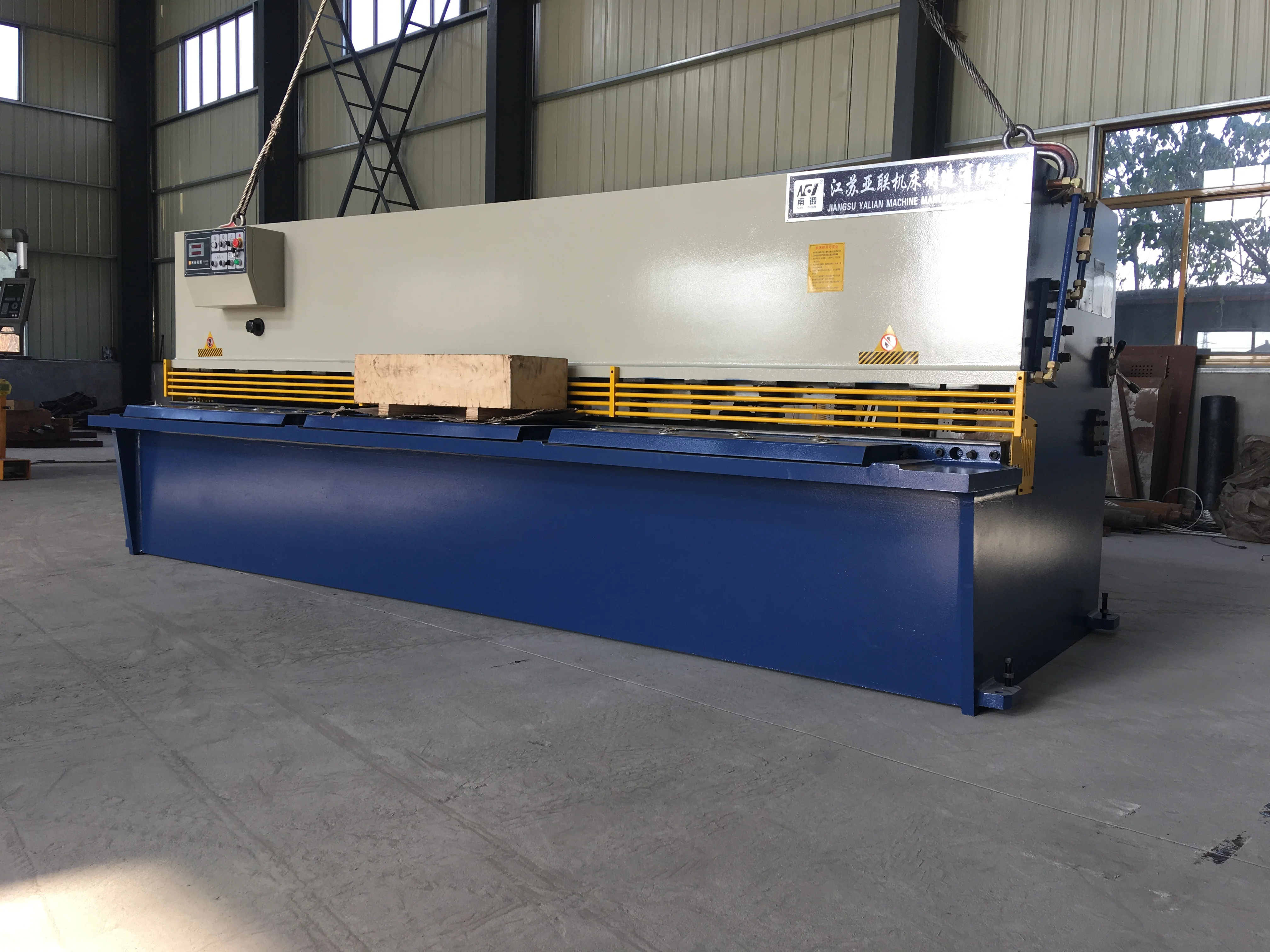

YALIAN/USKY 10x3200 Hydraulic Swing Beam Shearer
- Category: Shearing Machines >>>
- Supplier: Nantong Usky Import And Export Co. Ltd.
Share on (1600215970769):
Product Overview
Description
Product Overview
Main Feature:
1.Streamlined design originated from EU, the machine frame is a whole through overall welding and annealing treatment.
2.Reliable Germany Rexroth integrated hydraulic system and hydraulic transmission; the design can effectively reduce problems
caused by leakage of hydraulic fluid.
3.Hydraulic swing beam shearing machine is one kind of equipment by swinging the upper blade to shear plate with smaller shearing
angle and distortion, improving shearing quality.
4.Backgauge is adjusted by high-precision ball screw driven by E21S controller, during the process frequency convertor prevent
positioning device horizontal swinging, significantly improving positioning accuracy.
5.Light aligning device, convenient for manual operation; pressure cylinder with built-in spring mechanism and bottom end
furnished with special material gasket to prevent aluminum or other soft materials from being imprinted.
6.Made by high-quality alloy tool steel, the machine can meet the requirements of impacting load and high wear resistance when
working.
7.Light and practical cantilever referring to man-machine engineering design, easy NC operation interface with features of high
precision and more comfortable.
8.The worktable adopts the rolling steel ball to reduce the frictional resistance, protect the work piece surface; novel
protective devices complying with safety specifications: protecting the operator’s personal safety; ingenious design: petty
material can be cutter easily.
9.Front material supporter is equipped with Perpendicularity and positioning regulator to ensure the cutting accuracy, easy
operation, practical and efficient.
10.Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting steplessly.
2.Reliable Germany Rexroth integrated hydraulic system and hydraulic transmission; the design can effectively reduce problems
caused by leakage of hydraulic fluid.
3.Hydraulic swing beam shearing machine is one kind of equipment by swinging the upper blade to shear plate with smaller shearing
angle and distortion, improving shearing quality.
4.Backgauge is adjusted by high-precision ball screw driven by E21S controller, during the process frequency convertor prevent
positioning device horizontal swinging, significantly improving positioning accuracy.
5.Light aligning device, convenient for manual operation; pressure cylinder with built-in spring mechanism and bottom end
furnished with special material gasket to prevent aluminum or other soft materials from being imprinted.
6.Made by high-quality alloy tool steel, the machine can meet the requirements of impacting load and high wear resistance when
working.
7.Light and practical cantilever referring to man-machine engineering design, easy NC operation interface with features of high
precision and more comfortable.
8.The worktable adopts the rolling steel ball to reduce the frictional resistance, protect the work piece surface; novel
protective devices complying with safety specifications: protecting the operator’s personal safety; ingenious design: petty
material can be cutter easily.
9.Front material supporter is equipped with Perpendicularity and positioning regulator to ensure the cutting accuracy, easy
operation, practical and efficient.
10.Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting steplessly.
FEATURES AT A GLANCE
1.The second generation of shear.
2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.Advanced integrated hydraulic system with and excellent reliabitity quality.
4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.The adjustable rake angle can minimize plate deformation.
6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of
products can be also guaranteed.
7.Shearing in sections,shadow-line cutting.
8.Counter for the motorized back gauge.
9.Back support device (optional).
2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.Advanced integrated hydraulic system with and excellent reliabitity quality.
4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.The adjustable rake angle can minimize plate deformation.
6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of
products can be also guaranteed.
7.Shearing in sections,shadow-line cutting.
8.Counter for the motorized back gauge.
9.Back support device (optional).
Machine Back
Pressure finger
DELEM DAC310 or ESTUN E21S
PRODUCT SPECIFICATIONS
Shearing Capability (mm) | Back Gauge (mm) | Shearing Angle(°) | Throat Depth (mm) | Motor Power (KW) | Net Weight (kg) | Dimension (LxWxH)(mm) |
4x2000 | 20-600 | 1.30 | 150 | 4 | 3200 | 2750x1500x1600 |
4x2500 | 20-600 | 1.30 | 150 | 4 | 4000 | 3300x1500x1700 |
6x2500 | 20-600 | 1.30 | 150 | 7.5 | 5800 | 3200x1650x2000 |
6x3200 | 20-600 | 1.30 | 150 | 7.5 | 7000 | 3900x1650x2000 |
6x4000 | 20-600 | 1.30 | 150 | 7.5 | 9000 | 4750x1800x2200 |
8x2500 | 20-600 | 1.30 | 150 | 11 | 6000 | 3200x1700x2280 |
8x3200 | 20-600 | 1.30 | 150 | 11 | 8300 | 3900x1750x2280 |
8x4000 | 20-600 | 1.30 | 150 | 11 | 9500 | 4750x1800x2200 |
10x3200 | 20-600 | 1.30 | 150 | 15 | 9500 | 3900x1850x2200 |
10x4000 | 20-600 | 1.30 | 150 | 15 | 11000 | 4800x1900x2280 |
12x3200 | 20-900 | 1.30 | 150 | 18.5 | 12000 | 3900x2200x2200 |
12x4000 | 20-900 | 1.30 | 150 | 18.5 | 15800 | 4850x2280x2450 |
PRODUCT CONFIGURATION
Rexroth valve
Electric Box
Pneumatic support
SIMILAR PRODUCTS
FAQ
Q.How to confirm the Machine Model?
A:You can tell us the material ,max thickness and width of your plate.We will recommend the suitable model to you .
Q. How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q.What is the payment term?
A:T/T (30% advance payment, and 70% balance paid one week before shipment)
L/C (100% L/C at sight), this should be negotiated first.
Q.Will you show me how to install the machine?
A:Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our
engineers are available to service machinery overseas.
Q. After I buy the machine, what will you do if I don't know some of the function?
A: We will show you how to use the machine perfectly. Technical support and the video is available.
Q. What can I do if the machine troubled after I buy it?
A:We provide completely after sales service, and our engineers are available to service machinery overseas.
A:You can tell us the material ,max thickness and width of your plate.We will recommend the suitable model to you .
Q. How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q.What is the payment term?
A:T/T (30% advance payment, and 70% balance paid one week before shipment)
L/C (100% L/C at sight), this should be negotiated first.
Q.Will you show me how to install the machine?
A:Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our
engineers are available to service machinery overseas.
Q. After I buy the machine, what will you do if I don't know some of the function?
A: We will show you how to use the machine perfectly. Technical support and the video is available.
Q. What can I do if the machine troubled after I buy it?
A:We provide completely after sales service, and our engineers are available to service machinery overseas.
