Product Overview
Description
Products Description

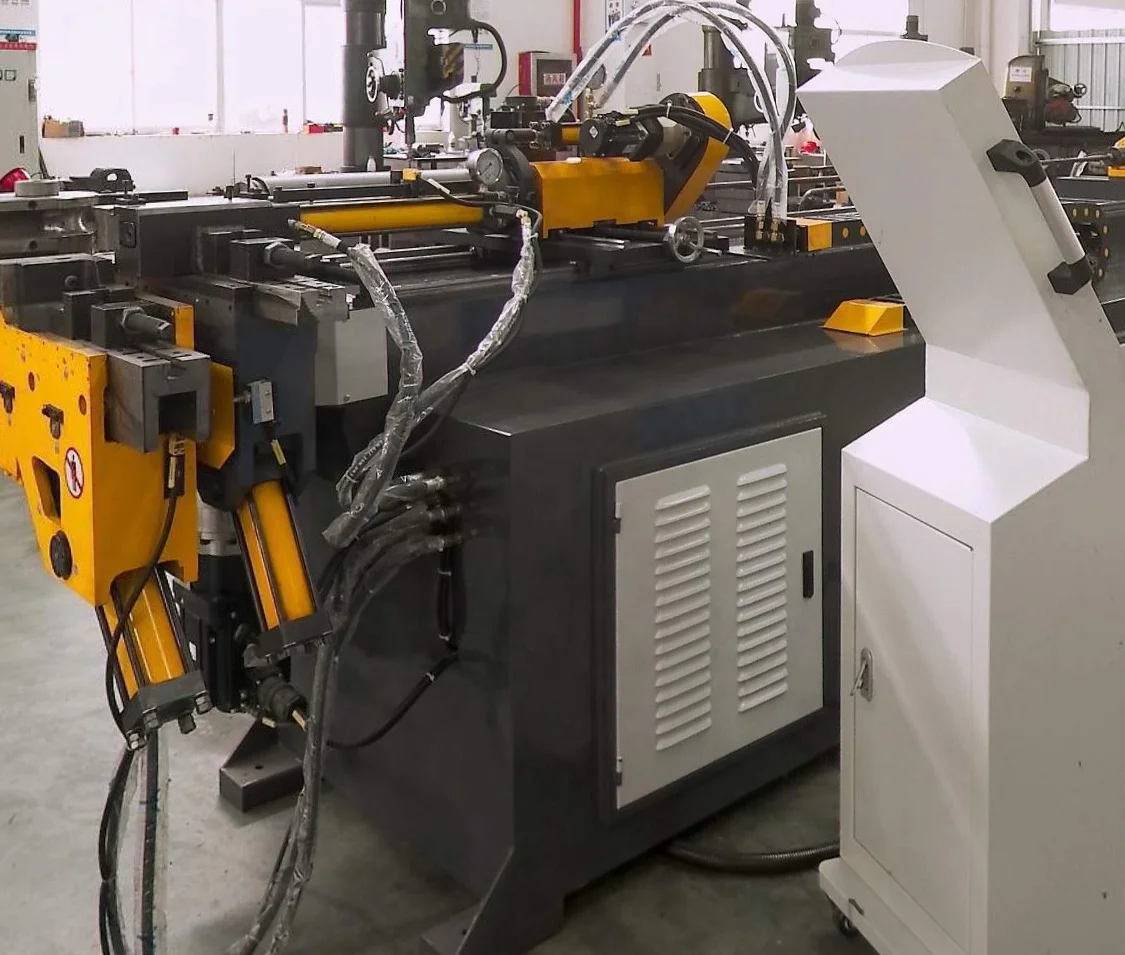

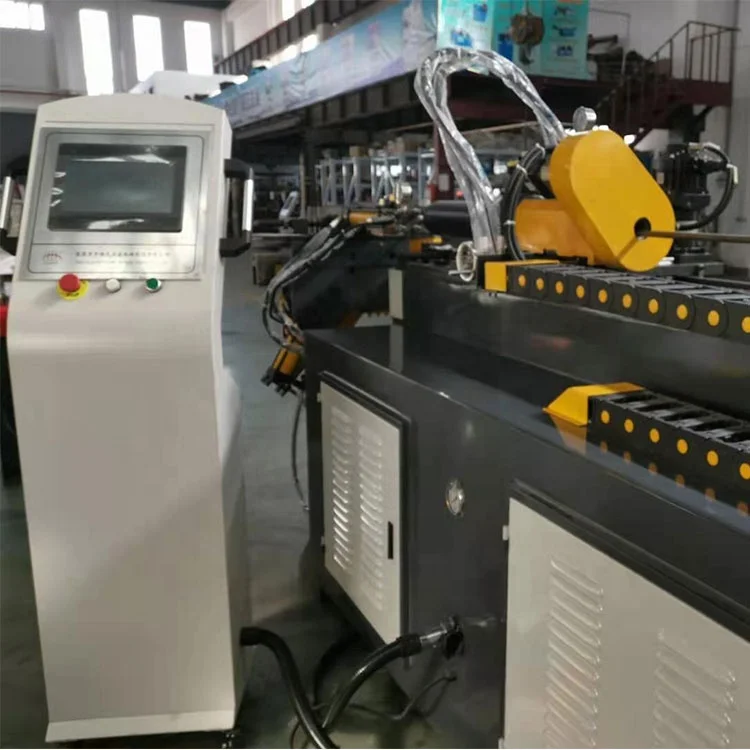

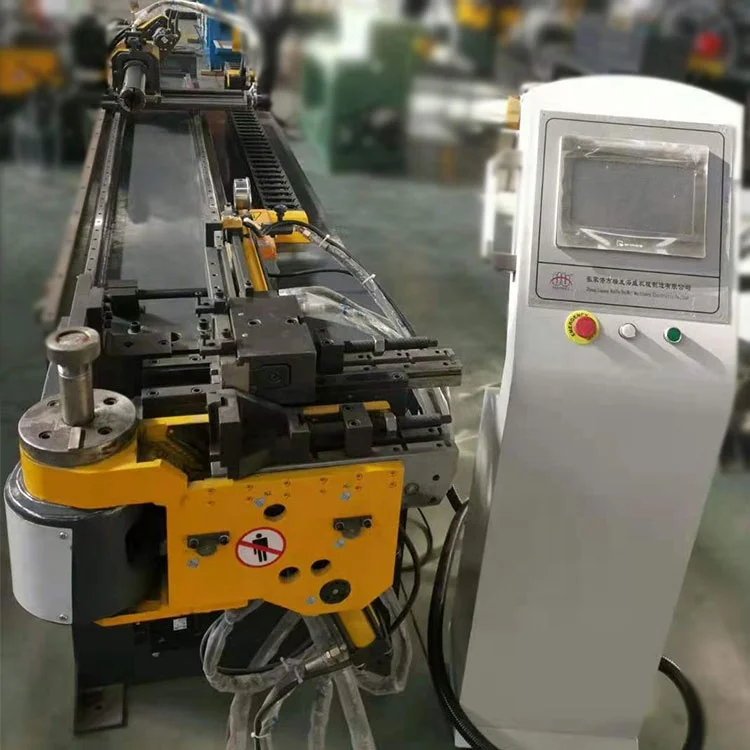

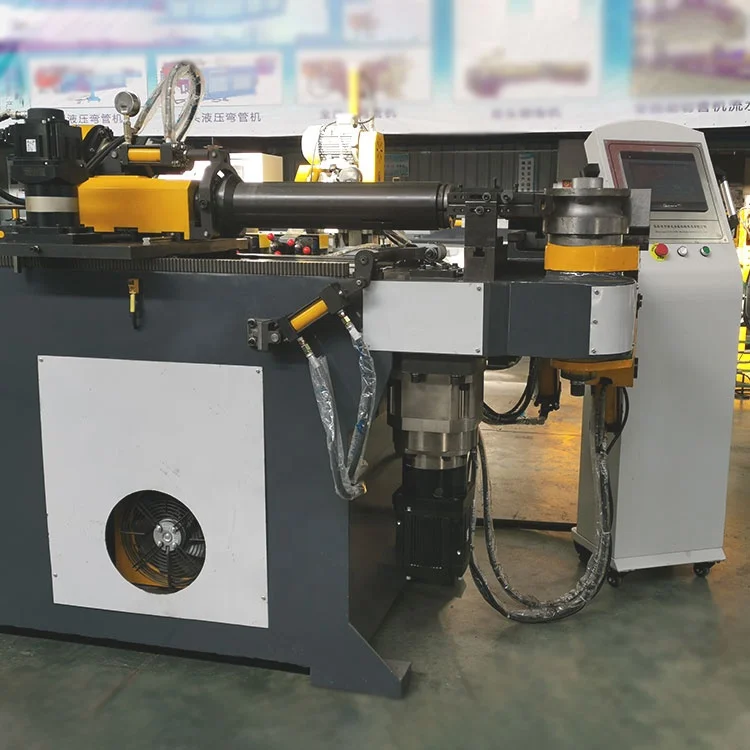

HWD-38CNC Fully Automatic Pipe Bending Machine
Auto Servo Feed, Auto Servo Rotate, Auto Hydraulic Bend
Item# | Name | Unit | Data | Remark/Brand | |
1 | Max pipeO.D.×thickness | mm(1.5inch) | Φ 38×2mm | ||
2 | Maxi. Bending radius | mm | R200 | can be adjusted | |
3 | Mini. Bending radius | mm，R>=1.5D | R10 | ||
4 | Maxi. Bending angle | degree | 190° | ||
5 | Maxi. Length of feeding | mm | 2500 | can be adjusted | |
6 | Feeding way | Directly | |||
7 | Bending speed | degree/s | 150 | can be adjusted | |
8 | Rotating speed | degree/s | 210 | can be adjusted | |
9 | Feeding speed | mm/s | 1200 | can be adjusted | |
10 | Bending accuracy | degree | ±0.3 | ||
11 | Rotation accuracy | degree | ±0.1 | ||
12 | Feeding accuracy | mm | ±0.1 | ||
13 | Control panel | PLC with touch screen or industrial computer | Taiwan Delta | ||
14 | Data input way | 1.coordinates (X,Y,Z) 2.working values (Y,B,C) | Taiwan Delta | ||
15 | Rotating servo motor power | w | 450 | Japan Mitsubishi | |
16 | Feeding servo motor power | w | 1000 | Japan Mitsubishi | |
17 | Maxi. Pipe bender number | pcs | 32 | ||
18 | Hydraulic/OIL motor power | KW | 5 | ||
19 | Maxi. System pressure | MPA | 12 | ||
20 | Power | V | 380v, 50Hz | ||
21 | Machine Size | mm | 4000×1000×1400 | ||
22 | Net .weight | T | 2 | ||
