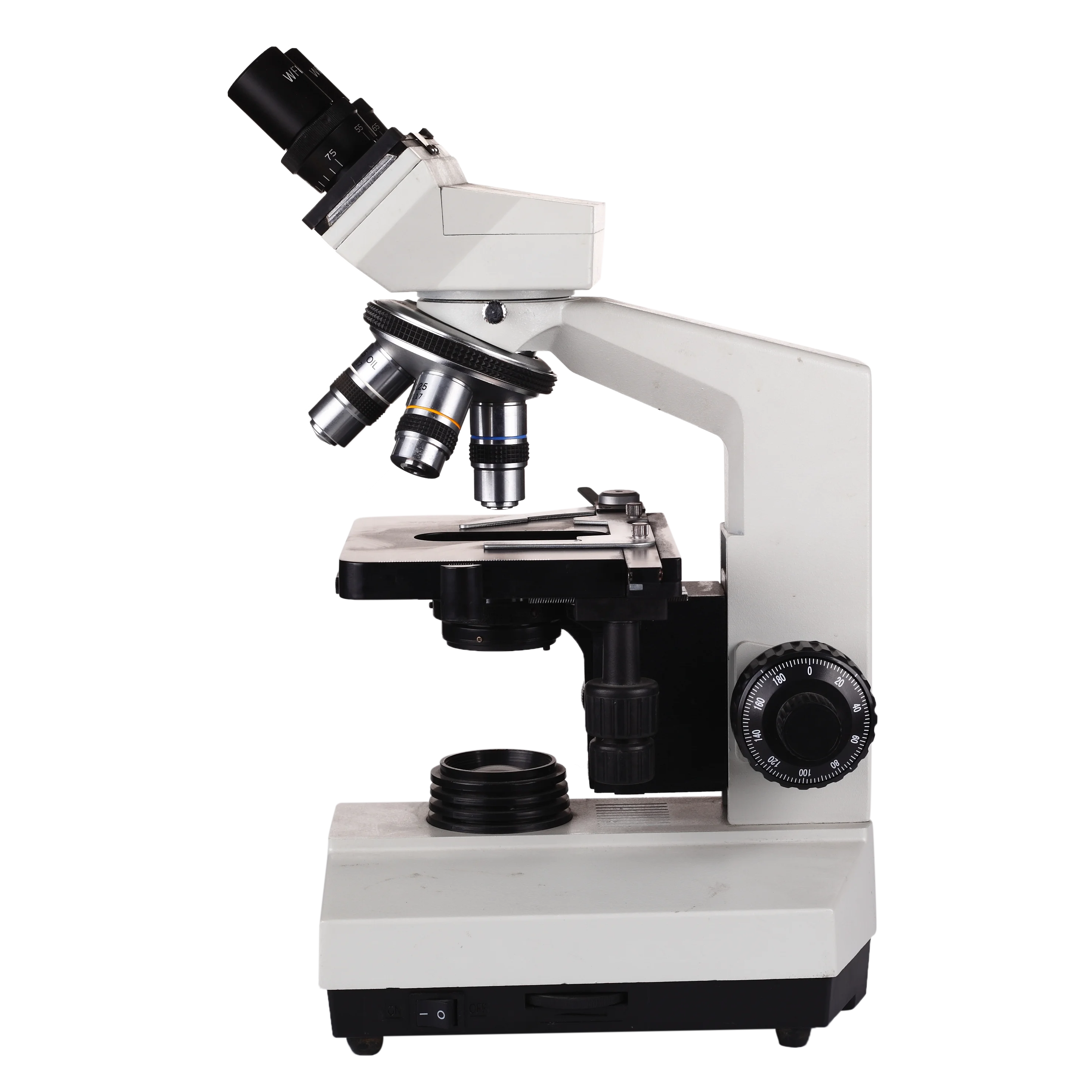

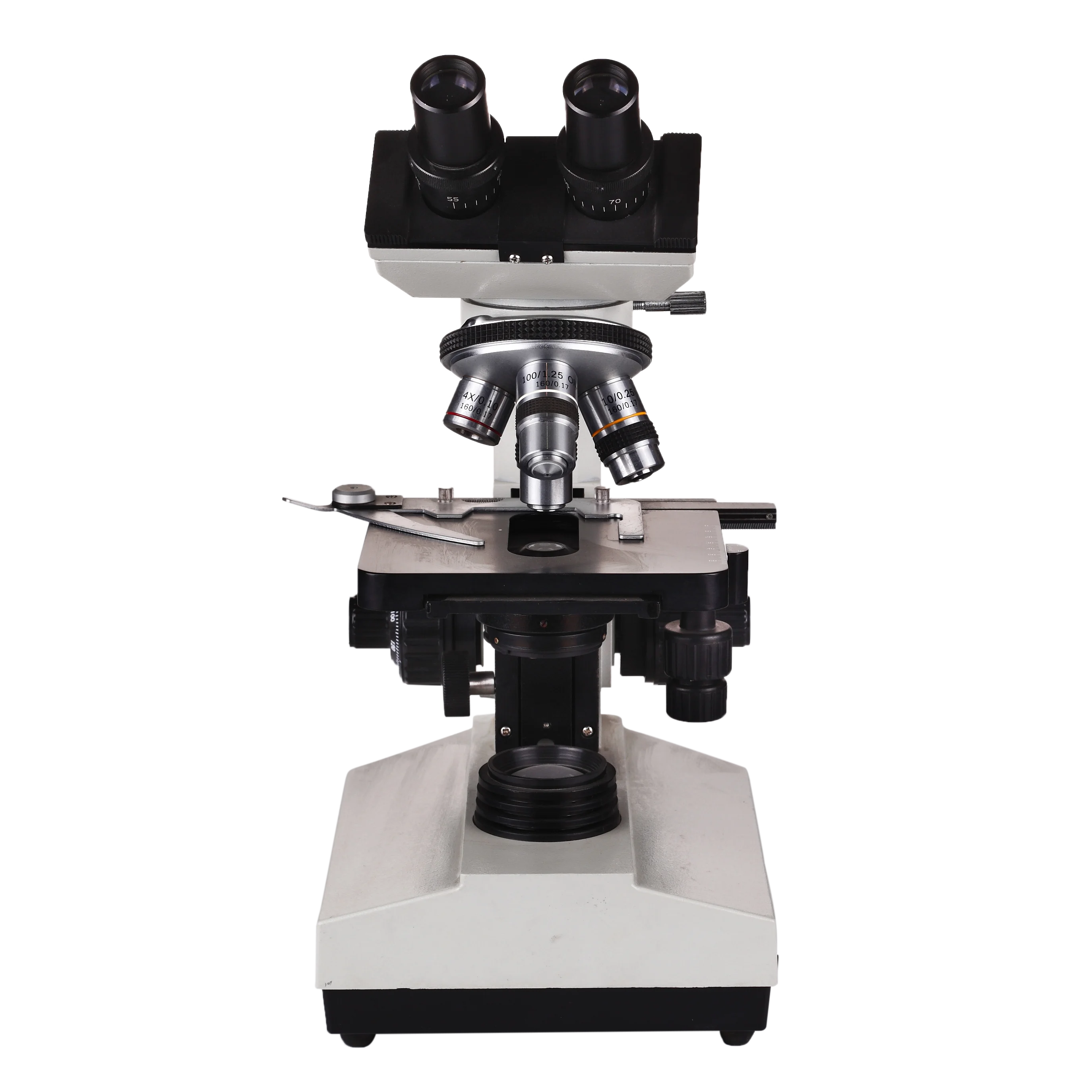

OPTO-EDU A12.1305-B China Binocular Professional Laboratory Microscope
US $214.29-$266.67
Biological Microscope for Student
- Category: Microscopes >>>
- Supplier: Qingdao Robin Healthcare Technology Co. Ltd
Share on (1600219303441):
Product Overview
Description
Product Description
107BN series of bio-microscopes has stable frame and can fit monocular, binocular, trinocular head on it. Double layer mechanical stage with adjustable long handle and coaxial coarse/fine focus knob make the operation easily.It is provided with high quality achromatic objectives, wide field eyepieces and halogen lamp adjustable brightness, which guarantee the best image. It’s both excellent in performance and moderate price. It is used widely for clinical examination,teaching demonstration, bacteioscopy and cytoscopy in colleges and universities, medical and health estabishments, research institutes and department of forestry and agriculture.
Specification
Specification of Standard Accessories

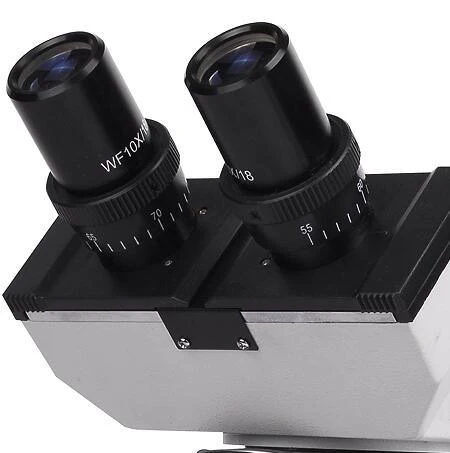

1.Eyepieces | |||
Category | Magnification | Diameter of view-field(mm) | Remark |
WF10X | ф18 | ||
WF16X | ≥ф11 |
2.Objectives | |||||||
Category | Magnification | Numerical aperture | Working distance | Remark | |||
Achromatic objective | 4X | 0.10 | 37.5 | ||||
10X | 0.25 | 7.613 | |||||
40X(s) | 0.65 | 0.632 | Spring | ||||
100X(s.oil) | 1.25 | 0.198 | Spring, oil | ||||
3.Total magnification | ||||||
Objectives | tube coefficient | Eyepiece 10X | Eyepiece 16X | |||
4X | 40X | 64X | ||||
10X | 100X | 160X | ||||
40X(S) | 400X | 640X | ||||
100X(S.oil) | 1000X | 1600X | ||||
4.Mechanical tube length: 160mm
5.Object to primary image distance; 195mm

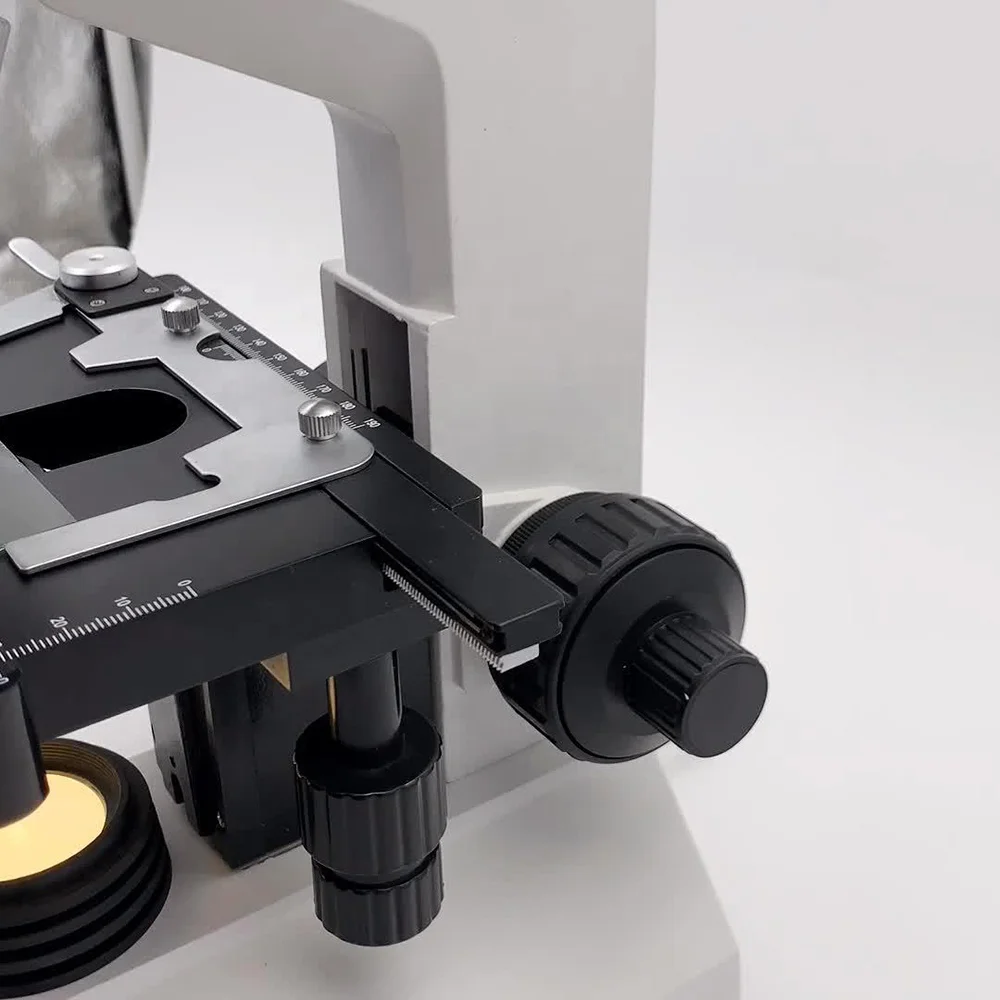

6.Stage size: 142x132mm,moving range: 75*50mm
7.ABBE condenser, NA=1.25 with iris diaphragm(Kohler illumination is optional)
8.Coarse/fine focal range: 25mm
9.Illumination: 6V 20W halogen lamp, adjustable brightness
10.Net weight: 6Kg
11.Measurement( including binocular head): 185(L) *270(W)*400(H)mm
12.Power: 20w,AC input 230V, 50Hz
13.Output: 25w,1- 6V, 15kHz±1.5kHz
14.Fuse: BGDP-1A-250V
5.Object to primary image distance; 195mm
6.Stage size: 142x132mm,moving range: 75*50mm
7.ABBE condenser, NA=1.25 with iris diaphragm(Kohler illumination is optional)
8.Coarse/fine focal range: 25mm
9.Illumination: 6V 20W halogen lamp, adjustable brightness
10.Net weight: 6Kg
11.Measurement( including binocular head): 185(L) *270(W)*400(H)mm
12.Power: 20w,AC input 230V, 50Hz
13.Output: 25w,1- 6V, 15kHz±1.5kHz
14.Fuse: BGDP-1A-250V
Details Images

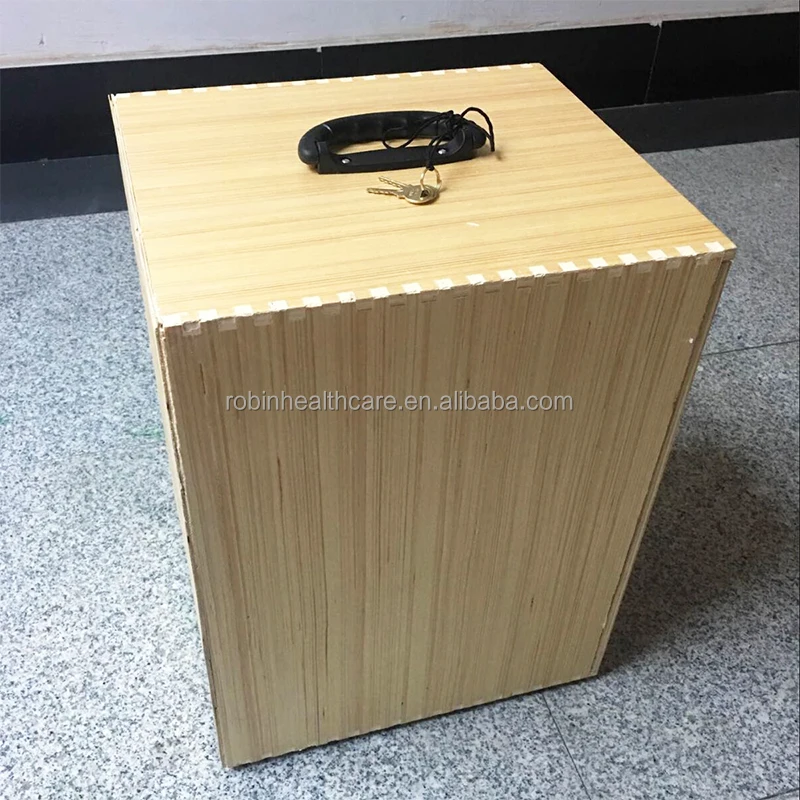

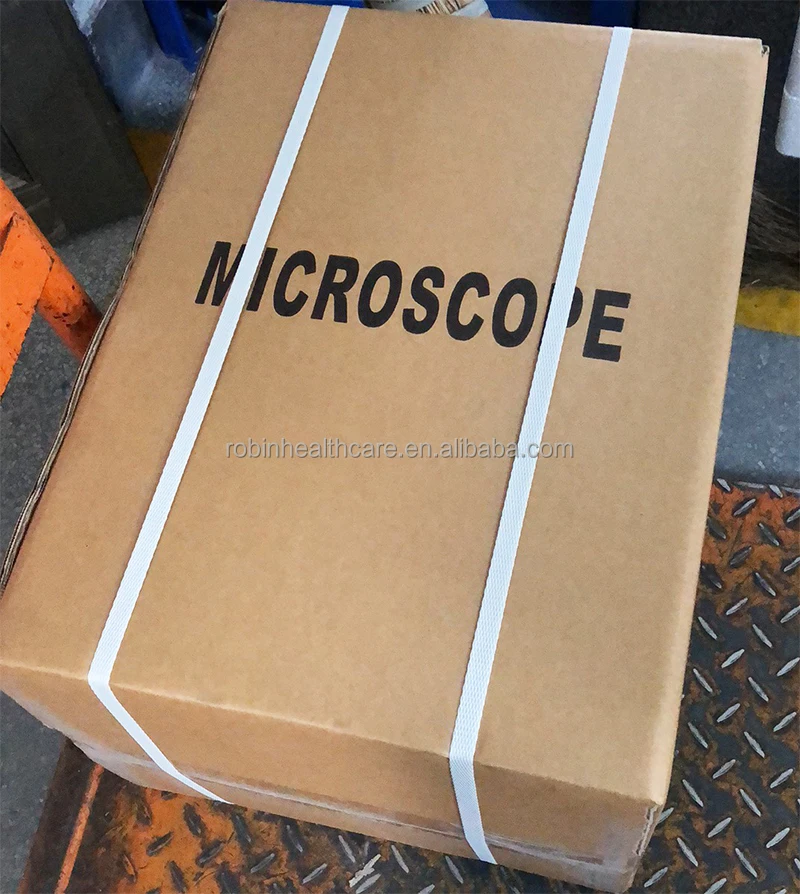

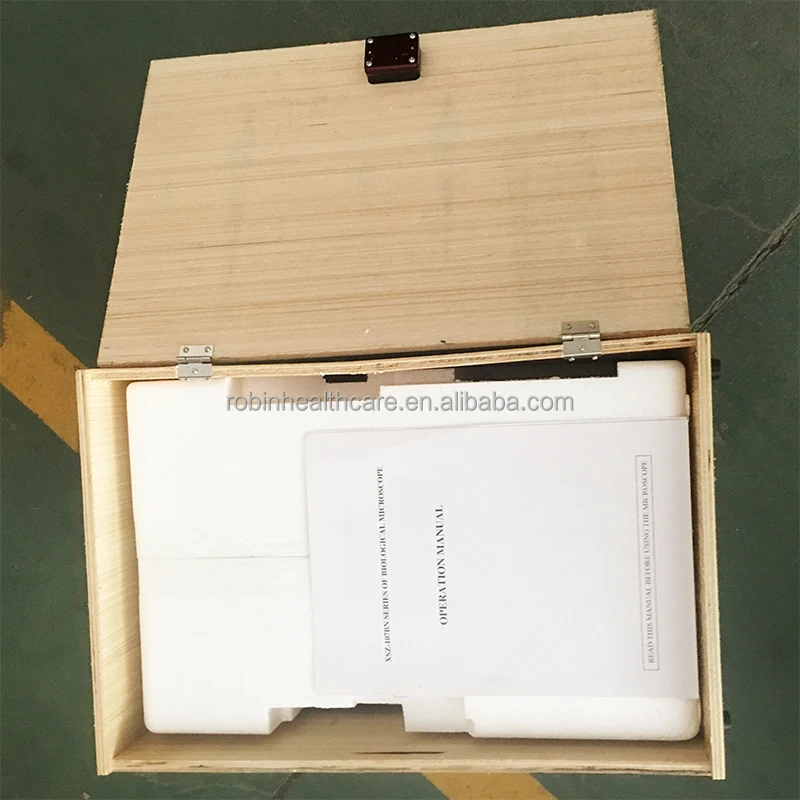

Product packaging
Standard Configuration | |
Objective: 4X, 10X, 40X(S), 100X(S,oil) | 0 |
Wide field eyepiece WF10X | 0 |
Objective head:Sliding binocular head | 0 |
Quadruple revolving nosepiece | 0 |
Double layeer mechanical stage 142x132mm | 0 |
Illumination system:ABBE condenser NA=1.25 | 0 |
6V/20W halogen lamp | 0 |
Filter: light blue | 0 |
Optional parts | |
Widefield eyepiece 16x | |
Quintuple | |
Green filter |

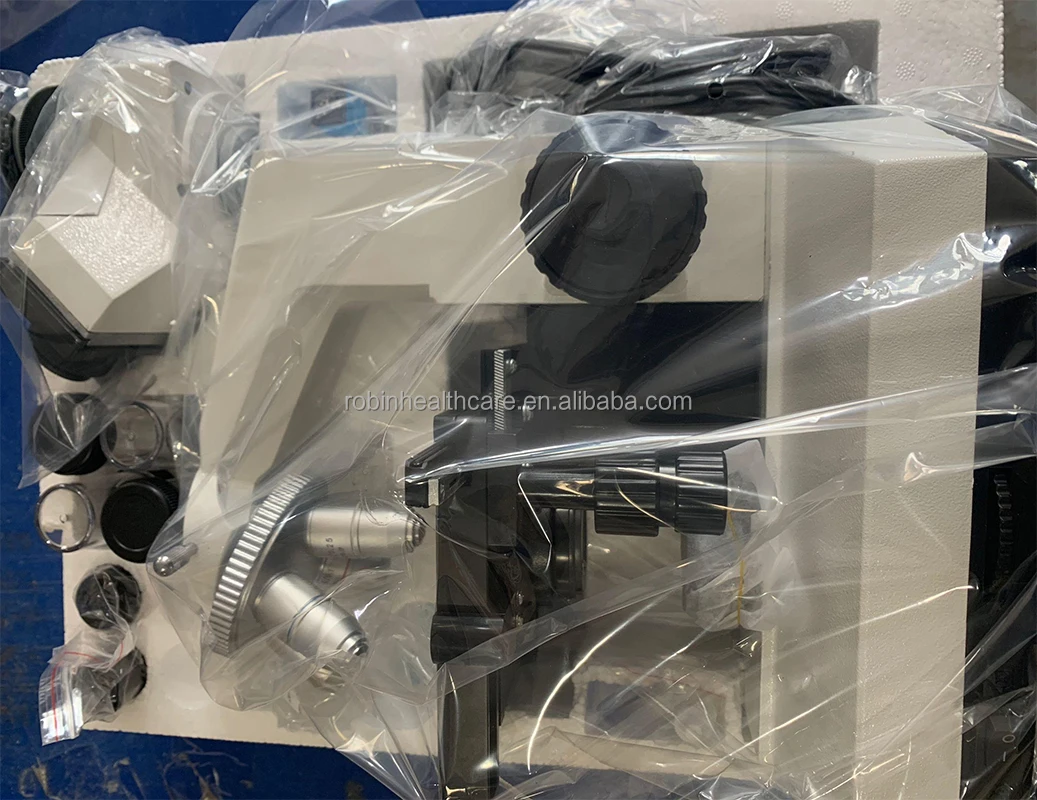

Packing & Delivery
Full Set of the Instrument
1.Mainframe of bio-microscope of XSZ-107BN 1set
2.Eyepiece head 1pc
3.Objective: 4X, 10X, 40X(S), 100X(S,oil) 1pc of each
4.Eyepieces: WF 10X,WF16X 2pc s of each
5.6V 20W Spare halogen lamp 1pc
6.BGX 1-20 (0.5A) fuse 2pcs
7.Filter: light blue 1pc
8.Cedarwood oil 1bottle
9.Dust cover 1pc
10.Desiccant 1 packet
11.Operation Manual 1 copy
2.Eyepiece head 1pc
3.Objective: 4X, 10X, 40X(S), 100X(S,oil) 1pc of each
4.Eyepieces: WF 10X,WF16X 2pc s of each
5.6V 20W Spare halogen lamp 1pc
6.BGX 1-20 (0.5A) fuse 2pcs
7.Filter: light blue 1pc
8.Cedarwood oil 1bottle
9.Dust cover 1pc
10.Desiccant 1 packet
11.Operation Manual 1 copy
Payment&Shippment
Certifications
FAQ
Q1. Can I have a sample order ? A: Yes.Welcome to test quality by samples. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days. Mass production time needs 20-35days.
Q3. Can we put our logo on packages and products?If yes ,what you need from us?
A:Yes,we can achieve it by silkscreen ,laser etching on products, and higher quaity printing on package with full color etc. Need your logo Ai Format or EPS.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on it?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q2. What about the lead time?
A:Sample needs 3-5 days. Mass production time needs 20-35days.
Q3. Can we put our logo on packages and products?If yes ,what you need from us?
A:Yes,we can achieve it by silkscreen ,laser etching on products, and higher quaity printing on package with full color etc. Need your logo Ai Format or EPS.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on it?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
