Лидер продаж, 3d видеомикроскоп с ЖК экраном

Share on (62211749014):


Price:159,00 $ - 298,00 $

Quantity:


Product Overview

Description



Product Display








Parameter




Specification

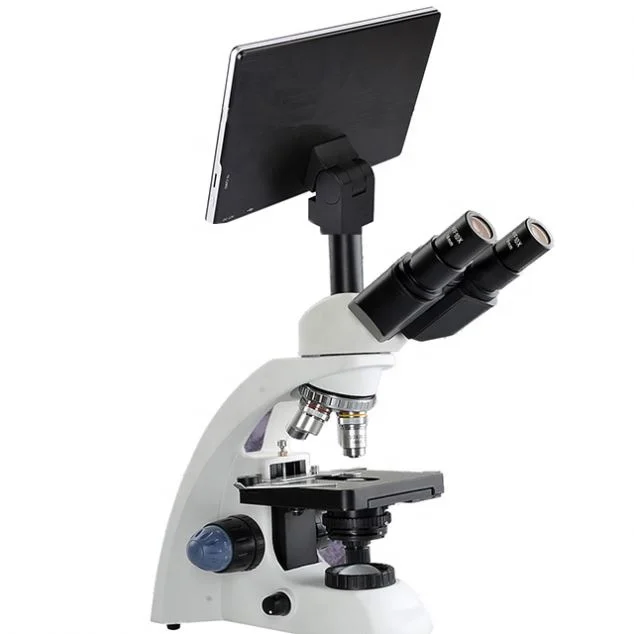

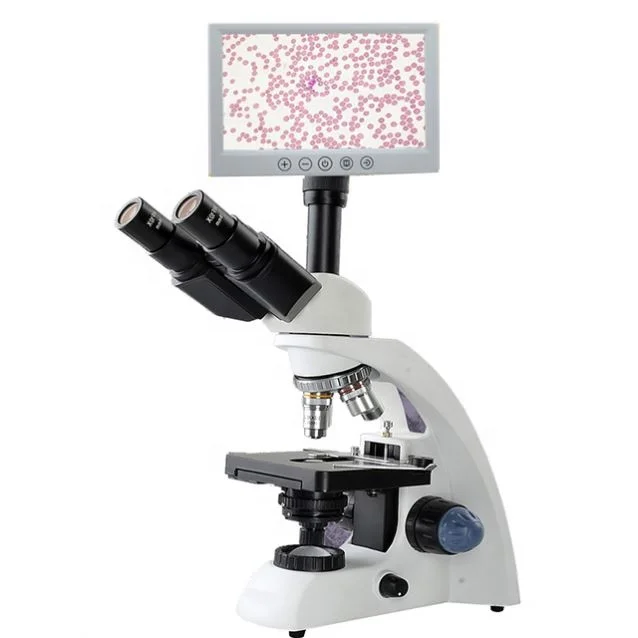

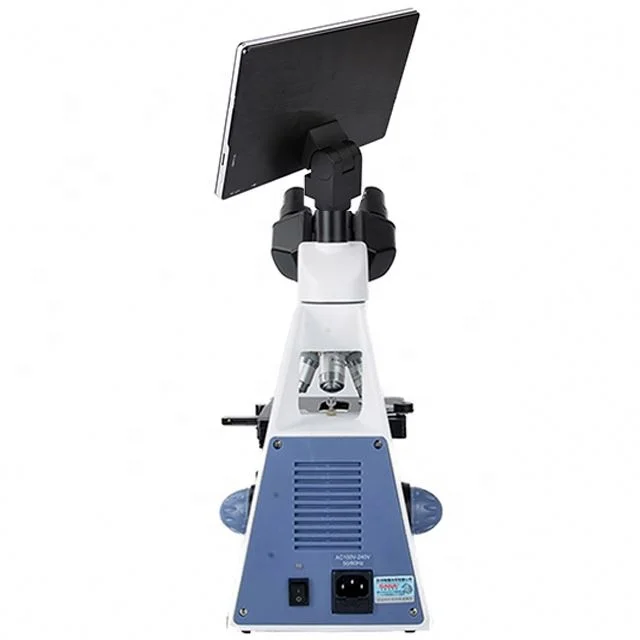

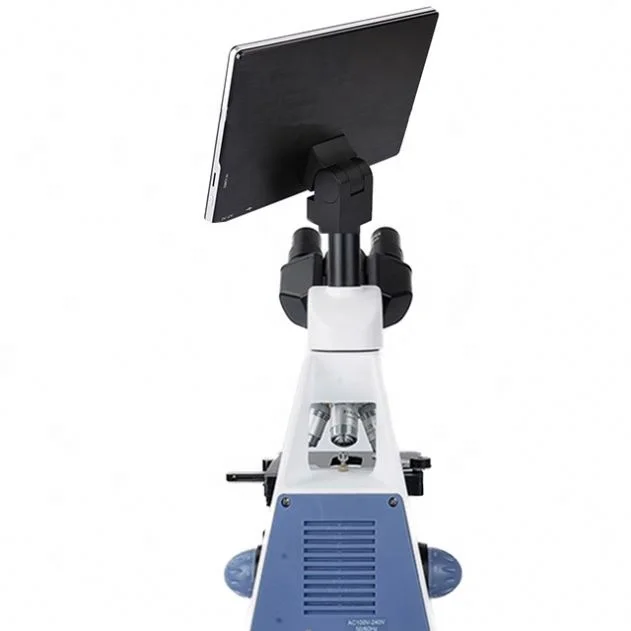

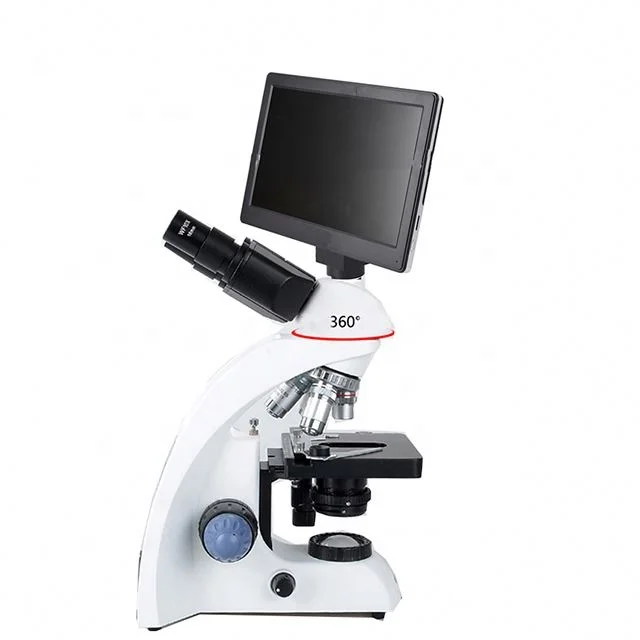

Binocular biological microscope DV50 (NEW)
Optical System
finite Optical System
magnification
40x-1000x.(40x-1600x optional)
Head
30° Inclined, 360° Rotatable
Nosepiece
Backward quadruple nosepiece
Stage
Double Layers Mechanical Stage 126×115mm, Moving Range 76×50mm, Fine Division0.1mm
Focusing System
Coaxial Coarse And Fine Adjustment, Fine Division0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 28mm,With Safty Stop
Illumination
3W LED lighting, predetermined center, continuous brightness adjustable.
Condenser
Abbe Condenser NA1.25 with Aperture Diaphragm
Power Supply
External Power Adaptor, Wide Voltage AC 100~240V, DC 5V/2A
Filter
Blue filter Φ 38
Package Size
 Packing Box240*214*365mm
gross  weight
4.3KG



Eyepiece
 large field of viewBinocular,Interpupillary Distance 50-75mm
Field
WF10X/18mm

objective lens
finite  Achromatic Objective
Magnification
4X
10X
40X
100X(oil)
Condenser NA
0.1
0.25
0.65
1.25
Distance(mm)
18.3
11
3.8
1.35




1. Size: 7 inch

2. Weight: 0.5 kg

3. CCD pixels:1024*600 . 1/2.86 inch

4. Pixel size: 2.75*2.75 um

5.LCD screen: HD 1080P

6. Frame rate: 60FPS

7. White balance: manual, automatic

8. Brightness: Automatic / Manual

9. Color: R/G/B adjustable

10.OSD: UI design, mouse control

11. Edge enhancement: YES

12.Photo/Video: YES

13. Cross cursor: adjustable

14. Image comparison: YES





1. Size: 9.0 inch

2. Weight: 0.7 kg

3. CCD pixels: 1920*1080. 1/2.86 inch

4. Pixel size: 2.75*2.75 um

5.LCD screen: HD 1080P

6. Frame rate: 60FPS

7. White balance: manual, automatic

8. Magnification: 10X

9. Brightness: Automatic / Manual

1. Color: R/G/B adjustable

11.OSD: UI design, mouse control

12. Edge enhancement: YES

13.Photo/Video: YES

14. Cross cursor: adjustable

15. Image comparison: YES

16.SD card: SD2.0. 32G

17. Interface: HDMI/USB





1. Size: 11.6 inch

2. Weight: 1kg

3. CCD pixels: 1920*1080. 1/2.86 inch

4. Pixel size: 2.75*2.75 um

5.LCD screen: HD 1080P

6. Frame rate: 60FPS

7. White balance: manual, automatic

8. Magnification: 10X

9. Brightness: Automatic / Manual

1. Color: R/G/B adjustable

11.OSD: UI design, mouse control

12. Edge enhancement: YES

13.Photo/Video: YES

14. Cross cursor: adjustable

15. Image comparison: YES

16.SD card: SD2.0. 32G

17. Interface: HDMI/USB



Product Details


















Packaging & Shipping


NO.
Name
Number
Note
1
Microscope host
1

2
Binocular tube
1
3
Double Layers Mechanical Stage
1

4
Eyepiece(10X/16X)
4

5
Objective(4X.10X.40X/100X)
4
6
Power line
1

7
Warranty card
1

8
Certification
1

9
Specifications
1

10
HD LCD screen (7 inch )
1
Optional 9inch / 11.6 inch
11
Filter
1
Blue filter Φ 38
12
Packaging
1
polyfoam protection and strong carton
13
Shipping time

5-15 days after receive the deposit


Product Application


Biological microscope is widely used in medical and health institutions, laboratories, NongKeSuo units, research institutes and institutions of higher learning for biology, bacteriology and pathology observation, teaching and professional study, clinical experiment and routine medical inspection, the product modelling is novel, structure and uses a variety of advanced technology, make the instrument easy to use, safe and reliable.







Our advantages



1.\tManufacturer direct price

2.\tNice quality and nice price

3.\tSmall order welcome

4.\tSupport OEM

5.\tSupport 7 day refund money

6.\tProvide technical support






Company Information


     Qingdao Dovoll Technology Co., Ltd.Integrates the design, development, manufacture and sales of integrated enterprises, and provides a complete set of optical imaging system solutions! Years of study and hard-working have developed a series of classical optical products, and promote the development of the national optical industry, the optical products laid a solid foundation for the long-term development. Products are widely used in agriculture, industry, electronics, metallurgy, medical, chemical, aviation, astronomy and other industries and scientific research, education, defense and other departments. Filled a number of gaps for the optical industry.








Transaction more than 100 countries
