XSZ 107T Laboratory Biological Microscope

Product Overview

Description

Portable Slit Lamp Microscope AJ-5S



Feature
Binocular crossed stereomicroscope provides sharp observation.
High illumination white LED fully charged can be use for 5 or 6 hours
Compact and one hand operational, portable for carrying with.
Net weight: 750g.
Equipped with all functions of a desktop slit lamp
Fully charged can be used for 5-6 hours
4 light spots is option.









Slit Lamp Microscope with Electric Table AJ-5P





Feature

Basic slit lamp with two-step magnifications: 10×, 16×.

Converging optical path

All the lens are multi-coated, midewproof and anti-reflection

Excellent optical performance gives a superior clarity image.



Specification

Microscope Type	Converging Stereoscopic microscope
Eye Piece	10×
Magnifications (Field of View)	10×(23-mm), 16×(14-mm)
Pupil Distance	55-mm ~ 75-mm
Adjustable Diopter	±5D
Slit Width	0-mm~9-mm adjustable
Slit Height	1-mm~8-mm adjustable
Slit Angle	0°~180° adjustable
Diameter of Light Spot	9mm, 8mm, 5mm, 3mm, 2mm, 0.2mm
Filter	Heat absorption, Grey, Red free, Cobalt blue
Illumination Bulb	12V/50W or 12V/30W halogen bulb
Input Voltage(frequency)	AC220V±22V(60HZ±1HZ), AC110V±11V(50HZ±1HZ)
Electrical Safety Standard	Executive standard IEC601-1, Class I, Type B
Whole Packing Volume	0.3 m³
Total Weight	24kg (table not included), 42kg (table included)

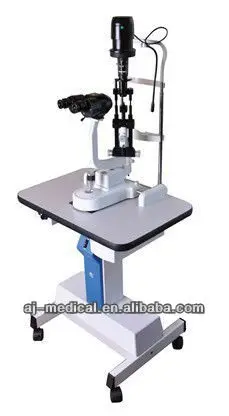

Slit Lamp Microscope with Electric Table AJ-5E









Feature



Universal slit lamp with three-step magnifications: 10×, 16×, 25×.



The slit can be inclinated.



The optical lens are made of glass imported from Germany. All the lens are multi-coated, mildewproof and anti-reflection



Clearer optical image and broader field of view.



Specification



Microscope Type	Converging Stereoscopic Microscope
Eye Piece	10×, 16×
Magnifications (Field of View)	10×(23-mm), 16×(14-mm), 25.6×(9-mm)
Pupil Distance	55-mm ~ 75-mm
Adjustable Diopter	±5D
Slit Width	0-mm~9-mm adjustable
Slit Height	1-mm~8-mm adjustable
Slit Angle	0°~180° adjustable
Slit Inclination	5°, 10°, 15°, 20°
Diameter of Light Spot	9mm, 8mm, 5mm, 3mm, 2mm, 0.2mm
Filter	Heat absorption, Grey, Red free, Cobalt blue
Illumination Bulb	12V/50W or 12V/30W halogen bulb
Input Voltage(frequency)	AC220V±22V(60HZ±1HZ), AC110V±11V(50HZ±1HZ)
Electrical Safety Standard	Executive standard IEC601-1, Class I, Type B
Whole Packing Volume	0.34 m³(table included)
Total Weight	24kg (table not included), 42kg (table included

Digital Slit Lamp Microscope with Electric Table AJ-5D / 5D1 / 5D2



Slit lamp Feature
Galilean optical path give a clarity image
Digital camera is capable of 10 mega pixel and plus with background illumination system.
Photos can be taken and transferred to computer by the button of the software or by foots switch.



Advanced Software Feature
Images transferred from digital camera to the software immediately and directly
High resolution digital imaging
Easy to operate
Digital capture from multiple sources
Vast online storage
Comprehensive patient data and images
High level of data security
Image processing, such as measurement, note, merge, magnify, bright adjust, color adjust and so on
Video and Real-time display
DICOM export



Digital Upgrade
AJ-5D1
With all functions of AJ-5D, Bright adjustment: 3 steps; Slit angle:0-180°; Digital camera is capable of 10 million pixels and more.
AJ-5D2
With all functions of AJ-5D, add spectroscope, camera adapter, CCD and CCD adapter; Images transferred from digital camera to the software immediately and directly, Computer.



Electric Table of Slit Lamp Microscope







Description
This instrument table is manufactured strictly according to the Environment & Safety Standard of Medical Electric Equipment. So it is independence for many situations in hospital such as operation room, clinic room, chemical analysis room etc.
Tight arrangement and building blocks design make the assembling and dispatch very easy. The maximum weight to take up is no less, than 50KG.
There are 4 wheels underneath on base of the instrument table. Two of them have brake device. So it is very easy to move and to be fixed.
Table size: 660*400mm
Total weight: 21kg
