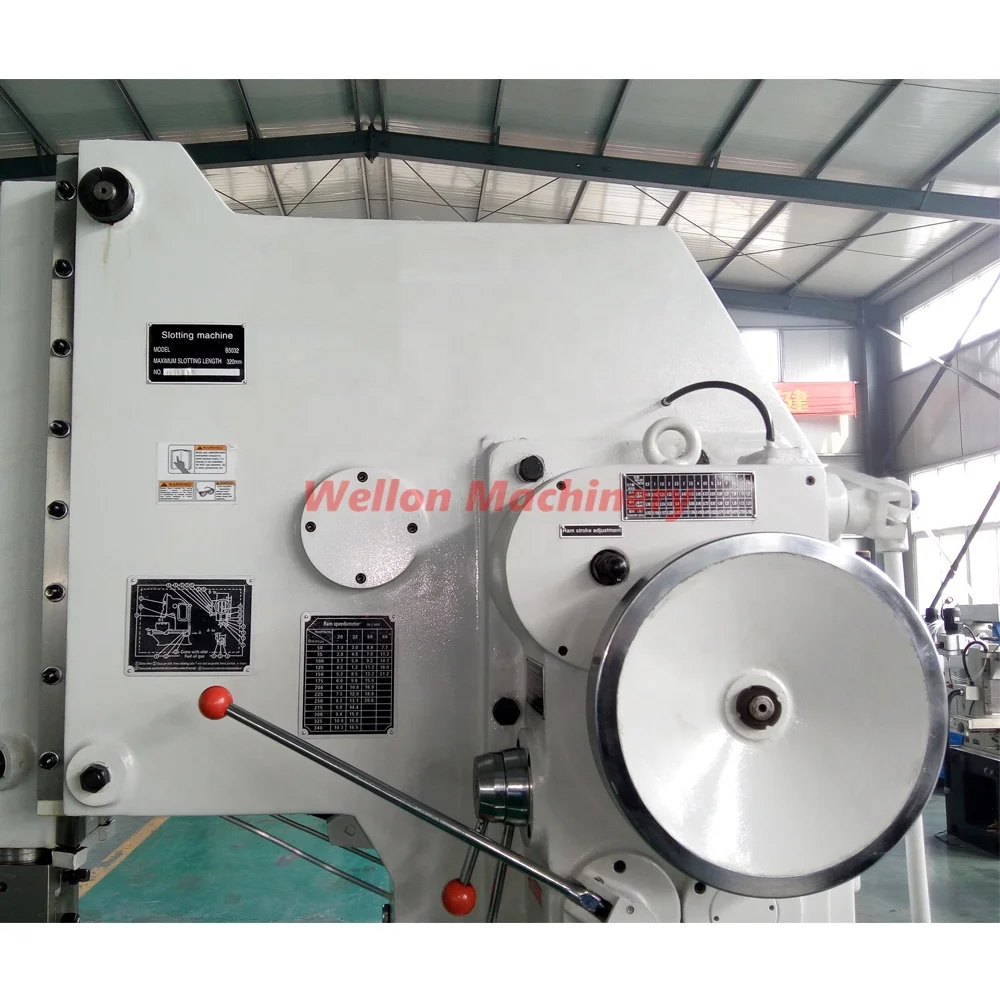

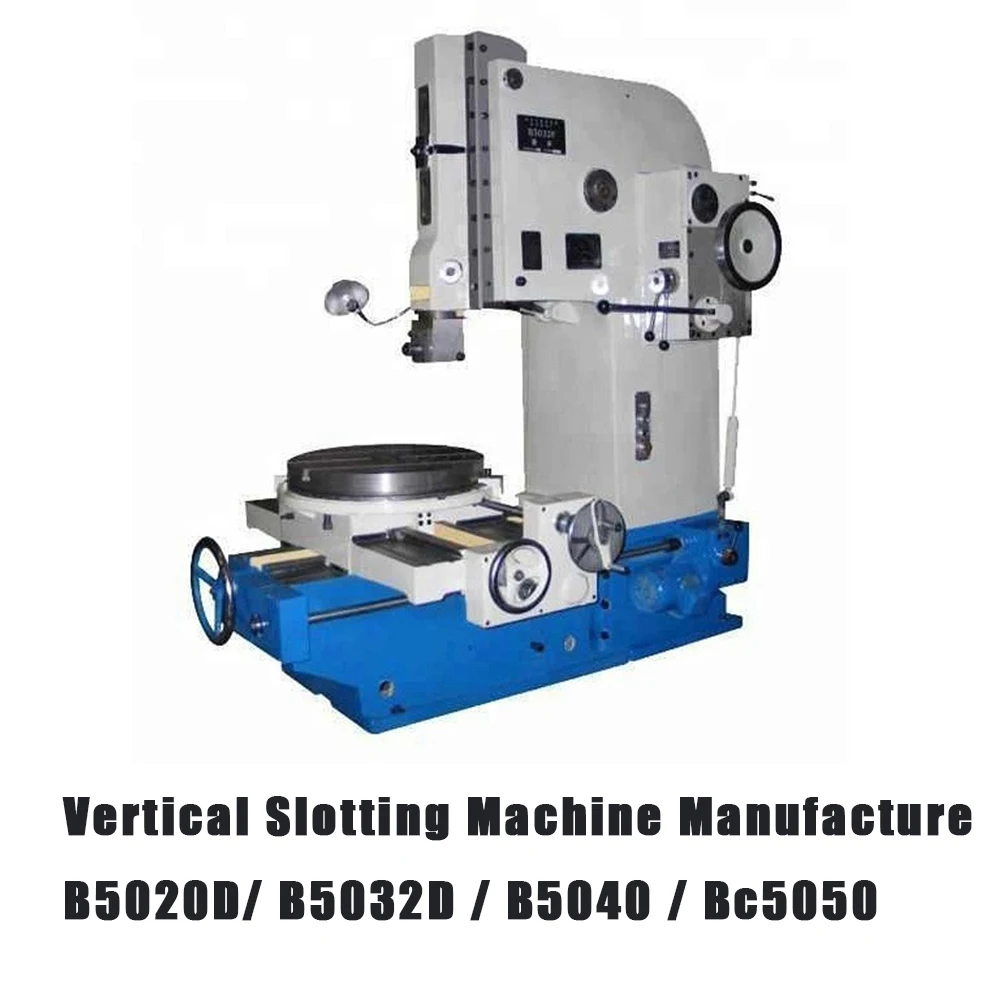

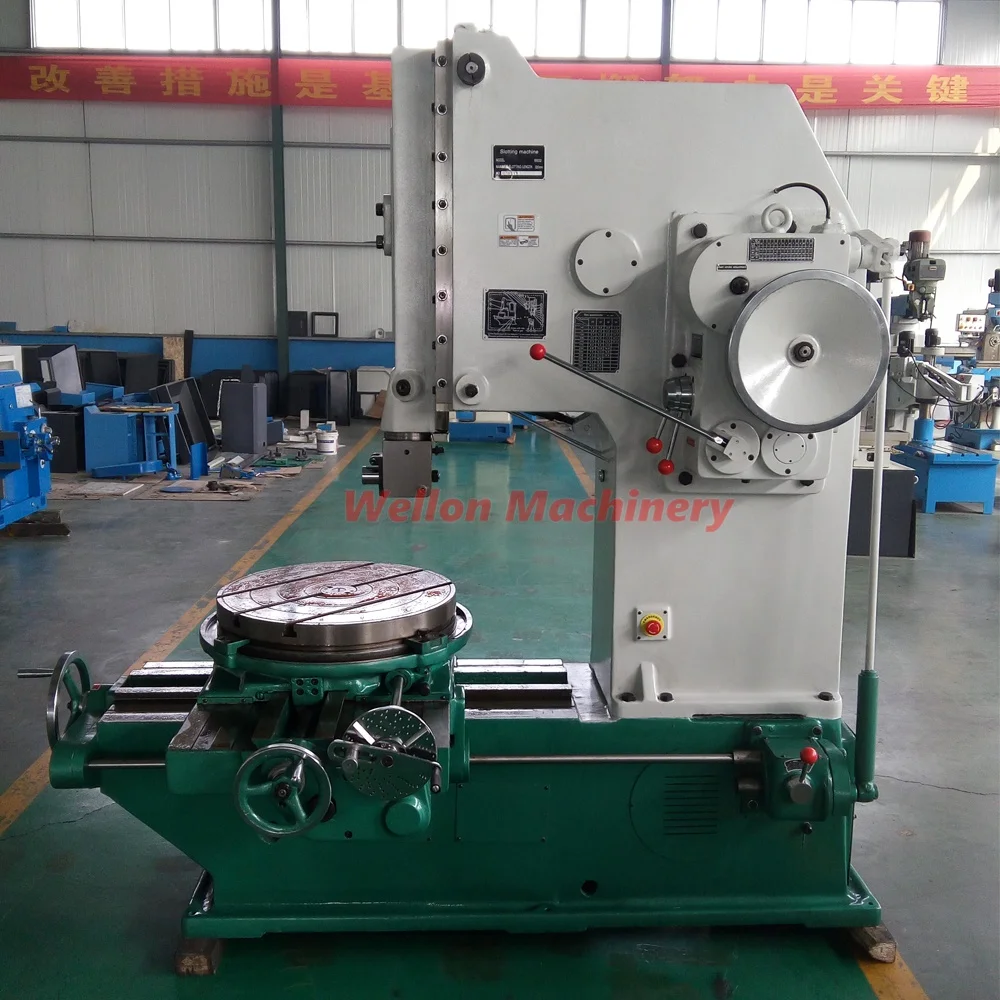

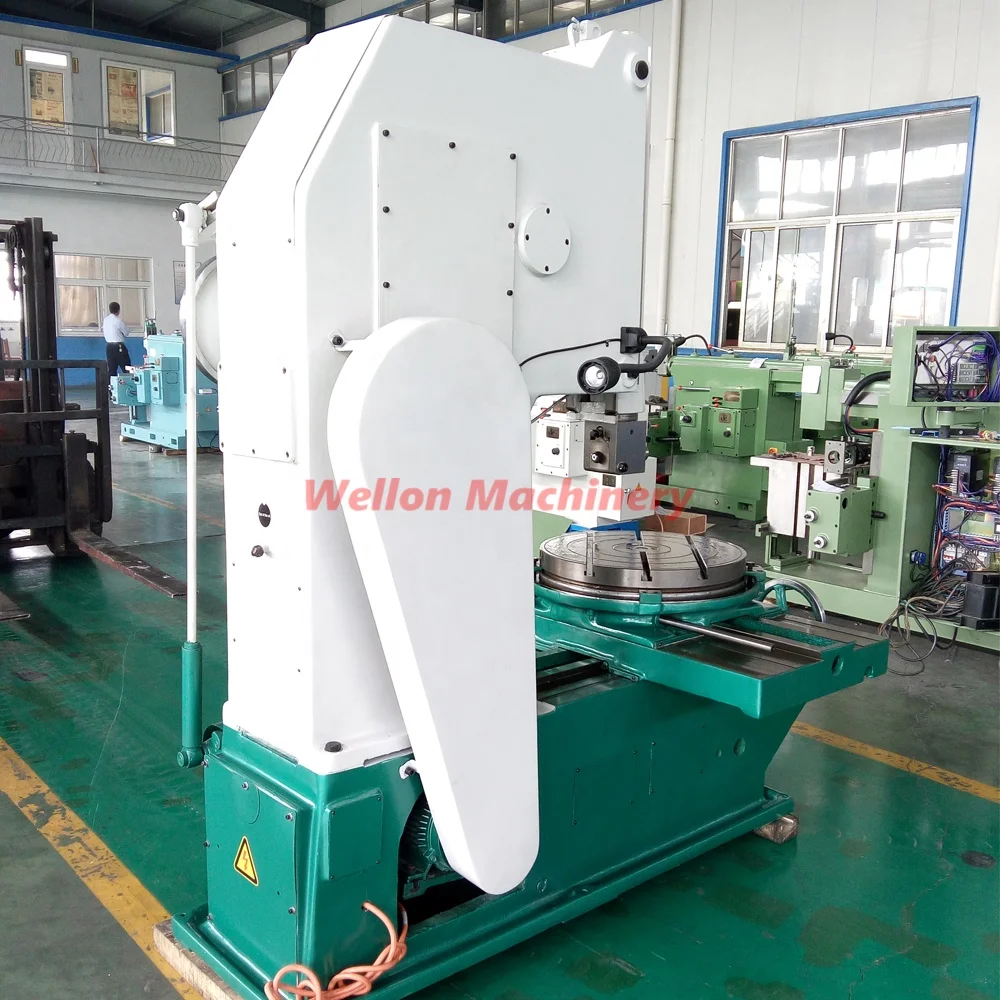

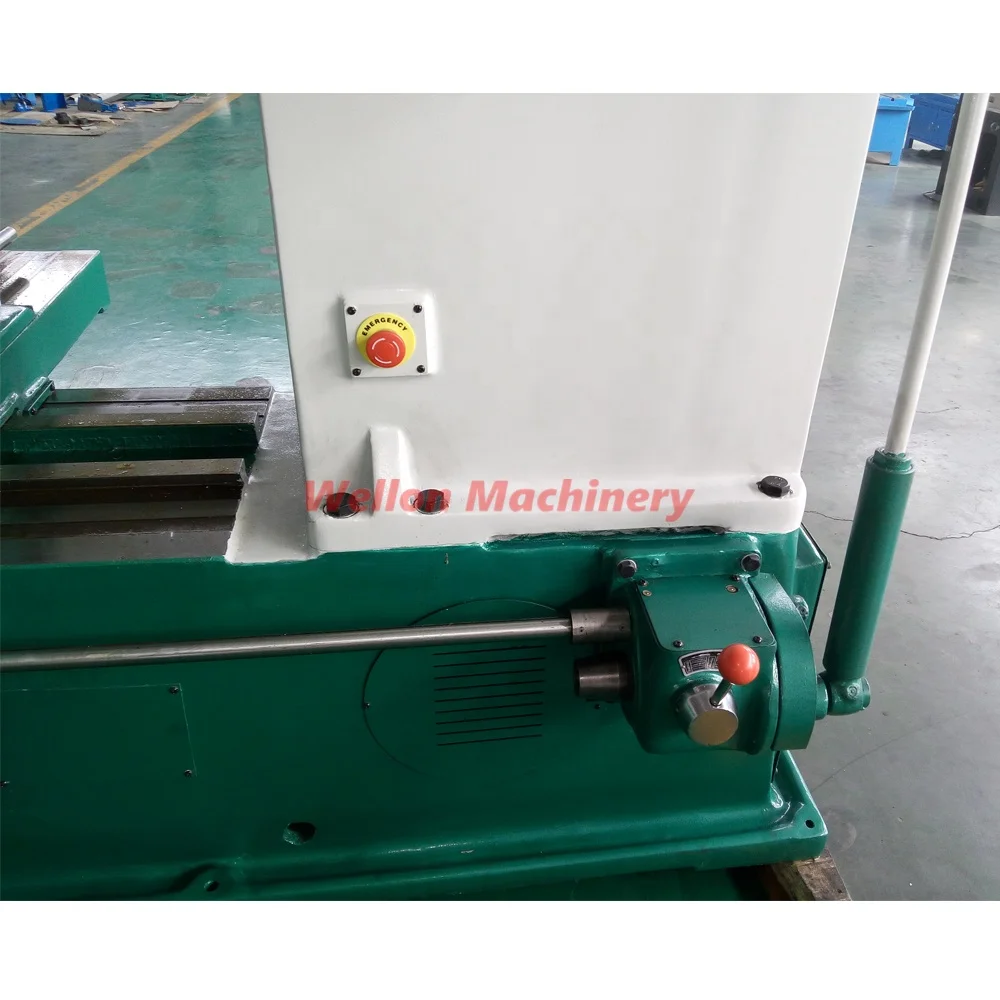

Vertical Slotting Machine Manufacture B5020D/ B5032D / B5040 / Bc5050 Slotting Machine

Product Overview

Description

Features:

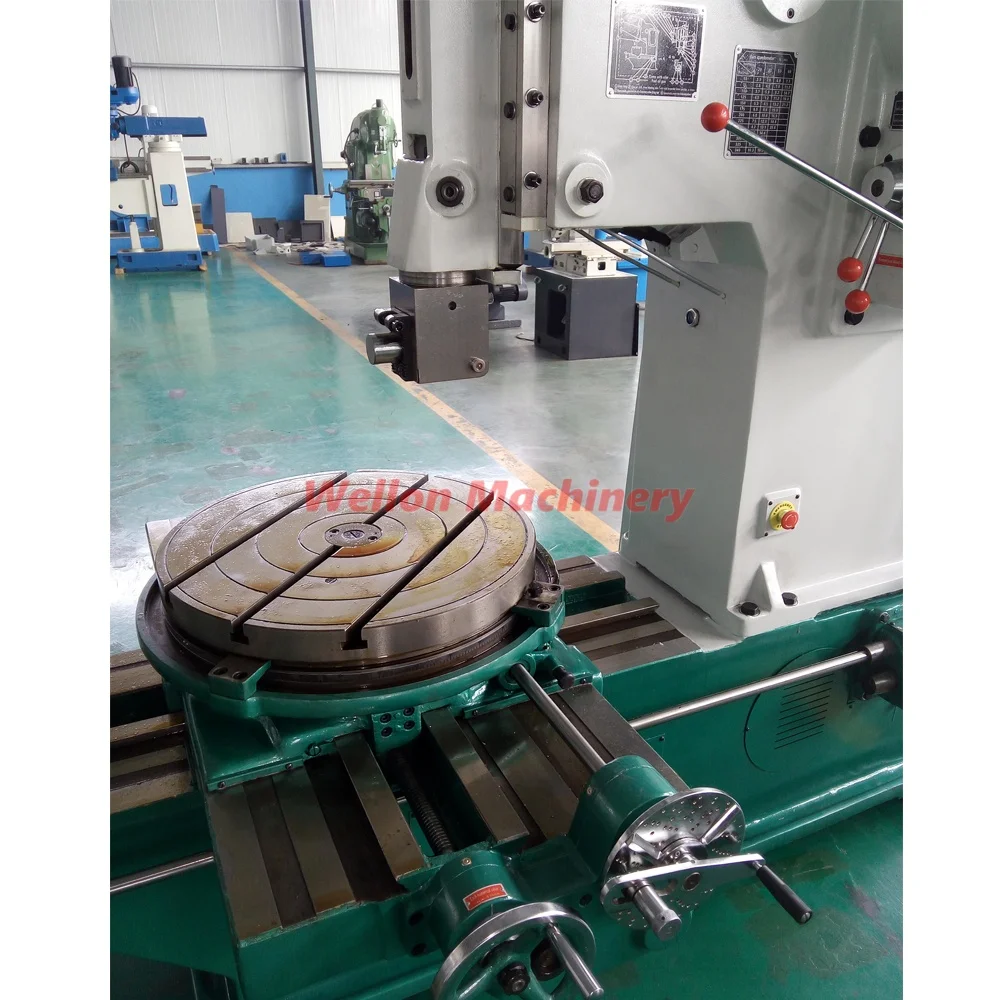

1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining

2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.

5.Use hydraulic feed the slotting machine, Is when the work is over  turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

Technical Parameter :

Specification	B5020D	B5032D	B5040	BC5050
Max slotting length	200mm	320mm	400mm	500mm
Max dimensions of workpiece (LxH)	485x200mm	600x320mm	700x320mm
Max weight of workpice	400kg	500kg	500kg	2000kg
Table diameter	500mm	630mm	710mm	1000mm
Max longitudinal travel of table	500mm	630mm	560/700mm	1000mm
Max cross travel of table	500mm	560mm	480/560mm	660mm
Range of table power feeds (mm)	0.052-0.738	0.052-0.738	0.052-0.783	3,6,9,12,18,36
Main motor power	3kw	4kw	5.5kw	7.5kw
Overall dimensions (LxWxH)	1836x1305 x1995mm	2180x1496 x2245mm	2450x1525 x2535mm	3480x2085 x3307mm
