12 24VDC LED Dimmer With Remote Controller 12A PMW Single Color Dimming Switch Dimmer

Product Overview

Description

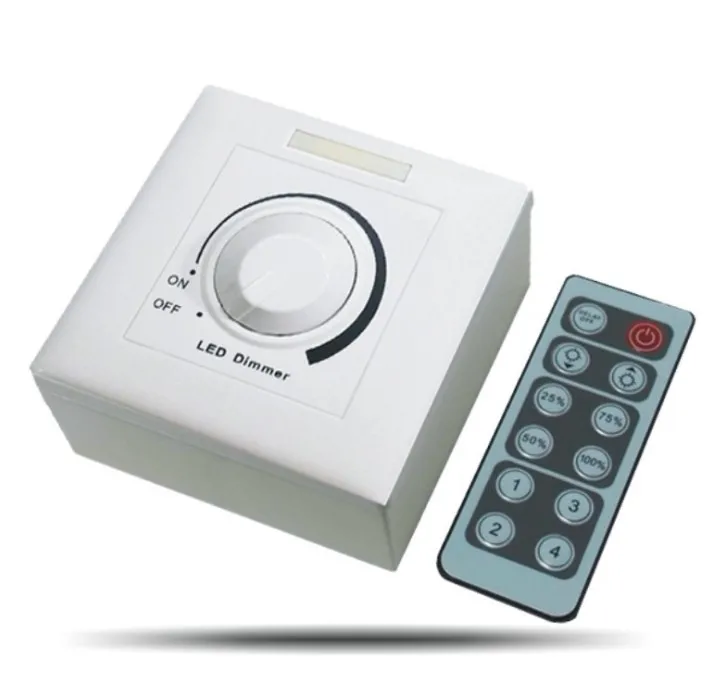

12-24VDC LED Dimmer With Remote Controller

12A PMW Single Color Dimming Switch Dimmer



Introduction:

Infrared 12-key panel dimmer is a dimming controller for LED lighting. It adopts PWM (Pulse Width Modulation) digital brightness adjustment method. The brightness can be adjusted steplessly by manual knob, or remote adjustment can be done with IR wireless remote control. Light; suitable for commercial or household standard 86 type switch socket low box installation, can be mounted or concealed; the installation of LED dimmer switch can be used for commercial or home lighting in different periods and different environments; high-power and low-power LEDs The lights can be dimmed. It is used to control the lamps and lanterns with LED as the light source, such as: point light source, soft light strip, wall washer light, glass curtain wall light, etc.; it has the advantages of low price, simple wiring, convenient use, etc.; through the infrared remote control and the dimmer on the Knob for brightness adjustment; gray scale 255; with custom function, shutdown function and fixed gray scale output function.

Product parameter
Model: YX-216 infrared 12-key single-channel 86 dimmer
Working temperature: -20-60℃
DC5V, DC12V ~24V optional (please indicate the required voltage when ordering)
Output: 1 loop

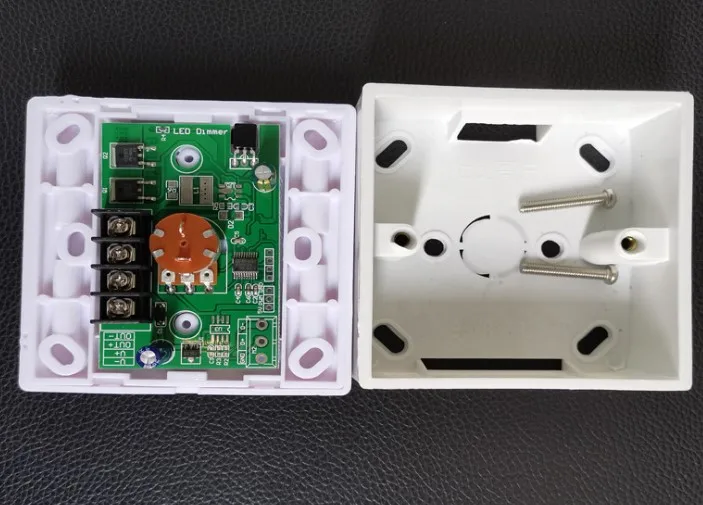

Dimensions: L87.5xW87.5xH53mm
Remote control size: L86xW33xH7mm
Packing size: L160xW95xH51mm
Net weight: 145g
Gross weight: 180g
Static power consumption: <1W
Output current: <12A
Output power: 5V:<60W,12V:<144W,24V:<288W

One. Instructions for use

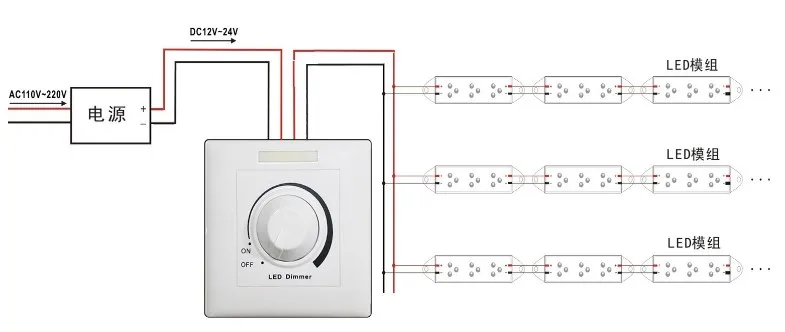

1. Connect the load line first, then the power line; check that there is no short circuit between the connecting lines before powering on;
2. When operating, point the remote control at the infrared receiver and check that there is no obstacle between the remote control and the receiver; the dimmer adopts two dimming modes:
(1) Infrared remote control adjustment mode; the function of each button is shown in the following table (arranged according to the position of the button):



(2) Potentiometer adjustment mode:

Turn the knob clockwise to increase the brightness; turn the knob counterclockwise to decrease the brightness.
