Product Overview
Description
Products Description
High quality factory pcb maker Audio Radio power bank 94v0 pcb fr4 electronics circuit board multilayer pcb
FR-4 Process capability | ||
Item | Craft Ability | |
Surface Finish | HASL,Immersion Gold,Gold Plating,OSP,Immersion Tin,etc | |
Layer | 1-32 layers | |
Min.Line Width | 4mil | |
Min.Line Space | 4mil | |
Min.Space between Pad to Pad | 3mil | |
Min.Hole Diameter | 0.20mm | |
Min.Bonding Pad Diameter | 0.20mm | |
Max.Proportion of Drilling Hole and Board Thickness | 1:10 | |
Max.Size of Finish Board | 23inch*35inch | |
Rang of Finish Board′s Thickness | 0.21-3.2mm | |
Min.Thickness of Soldermask | 10um | |
Soldermask | Green,Yellow,Black,White,Red,transparent photosensitive solder mask,Strippable solder mask | |
Min.Linewidth of Idents | 4mil | |
Min.Height of Idents | 25mil | |
Color of Silk-screen | White,Yellow,Black | |
Date File Format | Gerber file and Drilling file,Report series,PADS 2000 series,powerpcb series,ODB++ | |
E-testing | 100%E-Test:High Voltage Testing | |
Material for PCB | High TG Material:High Frequence ROGERS,TEFLON,TADONIC,ARLON(Haloger free Material) | |
E-testing | Impedance Testing,Resisitance Testing,Microsection etc | |
Special Technological Requirement | Blind&Buried Vias and High Thickness Copper | |

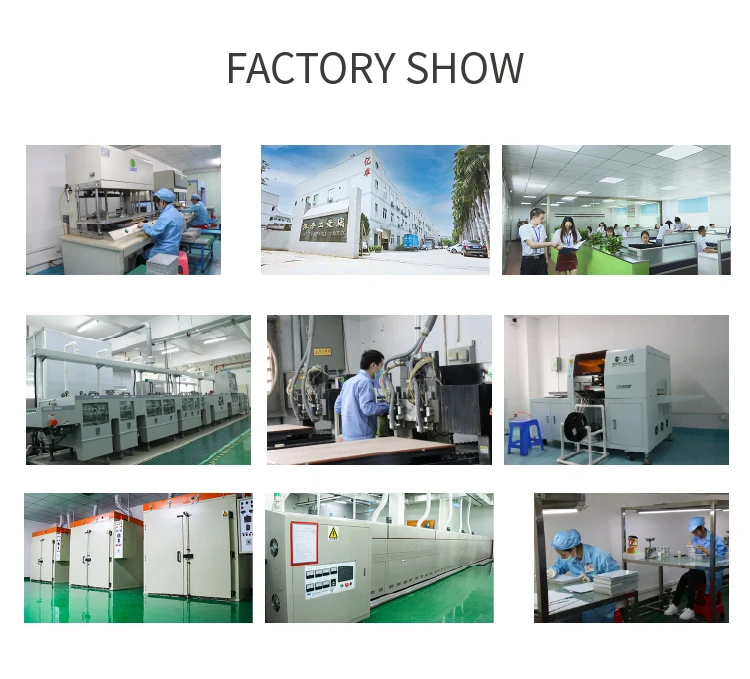

Company Profile
Shenzhen Yizhuo Electronics Co.,Ltd has been established in 2012 years, Our factory area more than 5,000 square meters. We have more than 100 workers and 20 employees.We are Aluminum PCB and FR4 PCB manufacturer,our products are widely used in lighting, Electronics, New Energy, Medical care,Automotive and Other industries.Our PCB production capacity can reach 120000 sq.m/per month.
Our factory has passed ISO9001:2015 system and has CE, ROHS, UL certification. Based on our production capacity and R&D team, We can do ODM or OEM service for customers. Our products are selling well around the world. Welcome to send inquiry to us!
Our factory has passed ISO9001:2015 system and has CE, ROHS, UL certification. Based on our production capacity and R&D team, We can do ODM or OEM service for customers. Our products are selling well around the world. Welcome to send inquiry to us!
Shenzhen Yizhuo Electronics Co., Ltd.
PACKING AND SHIPPING
