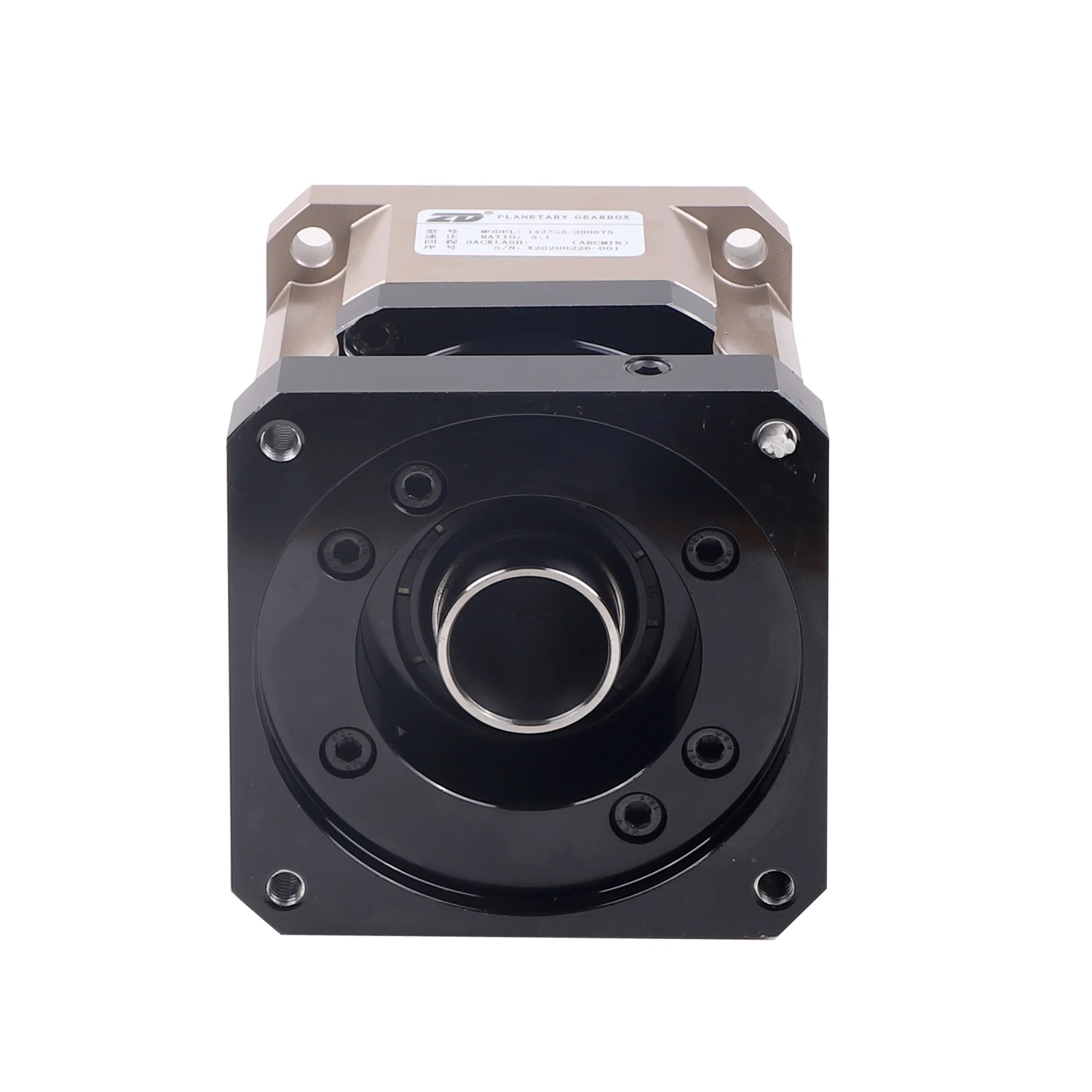

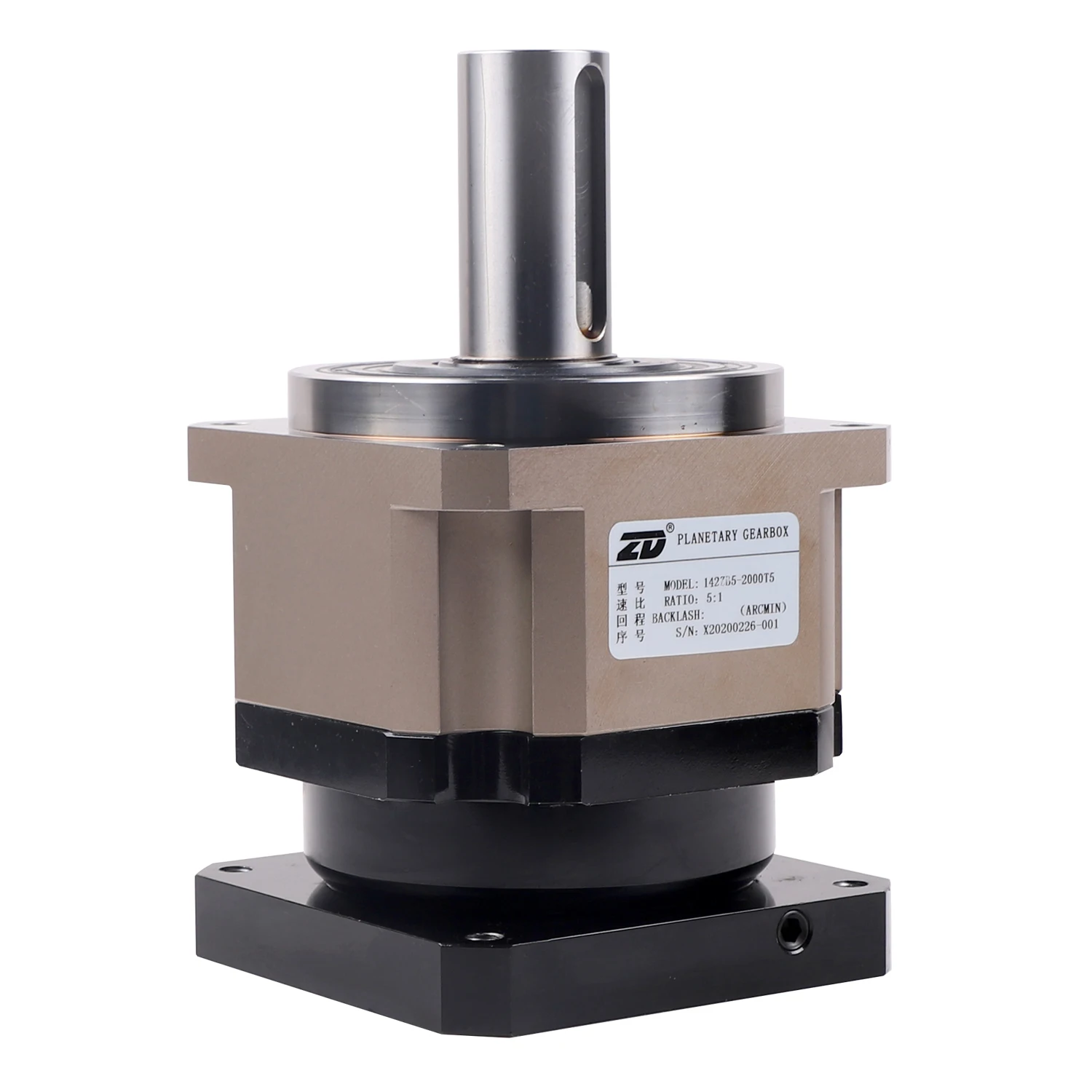

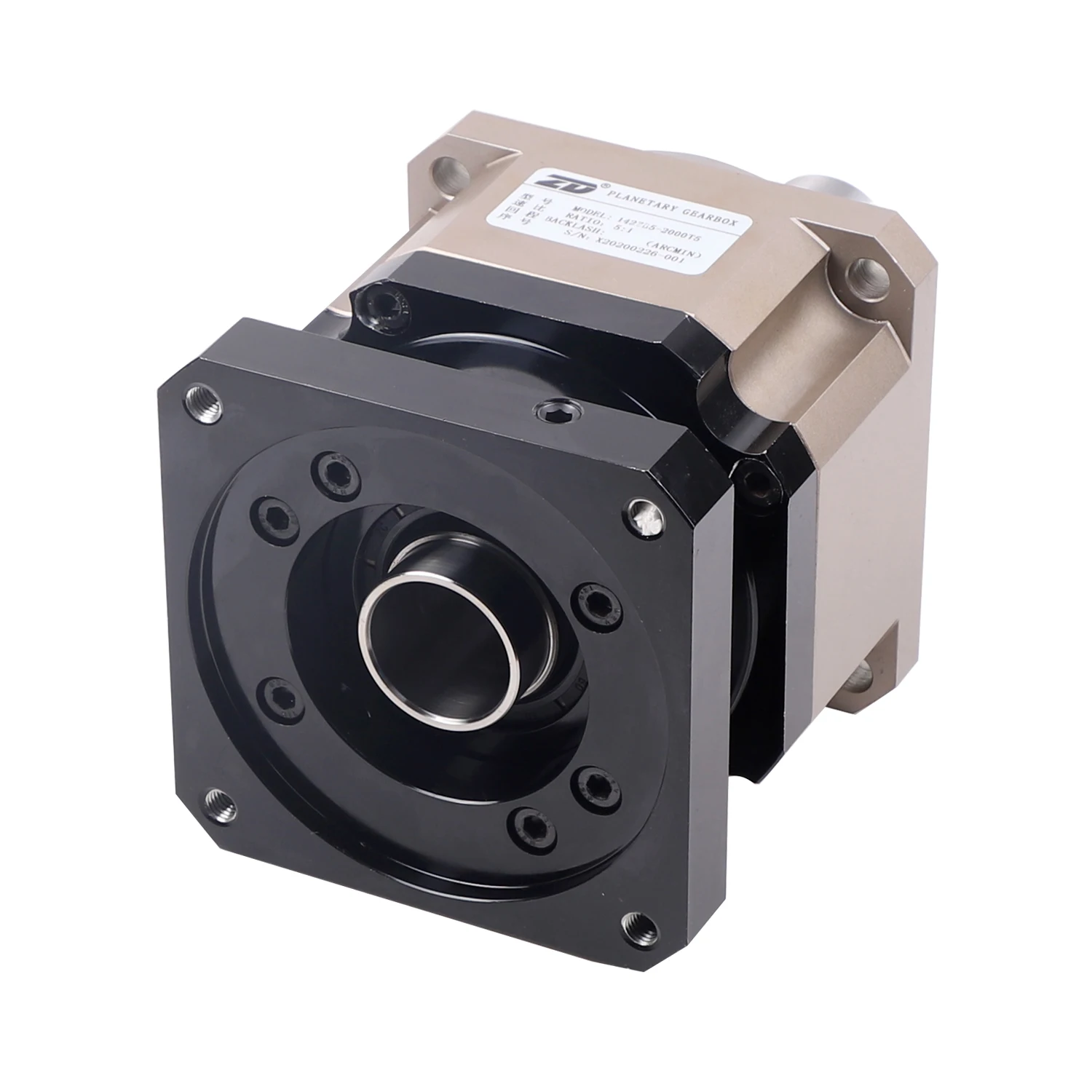

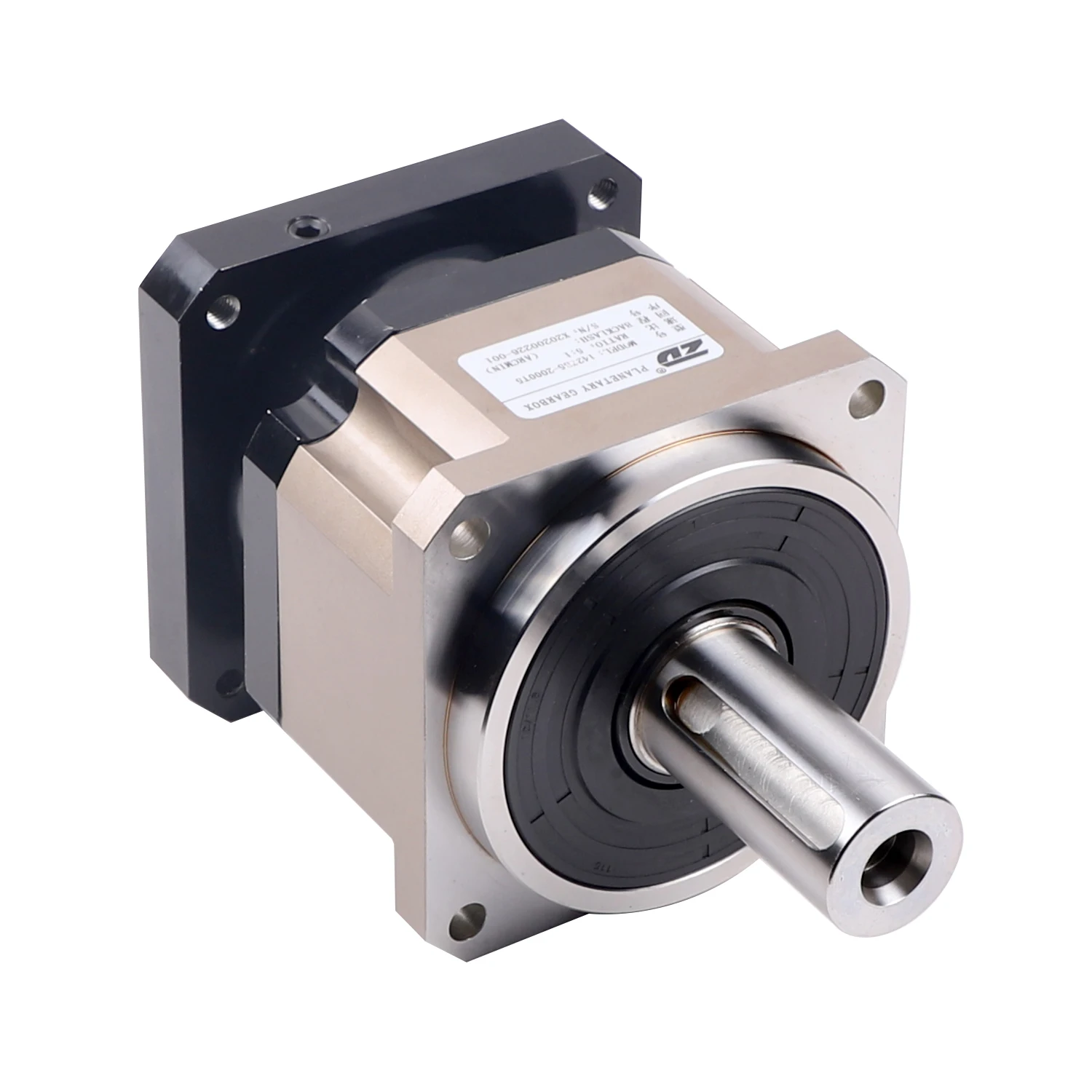

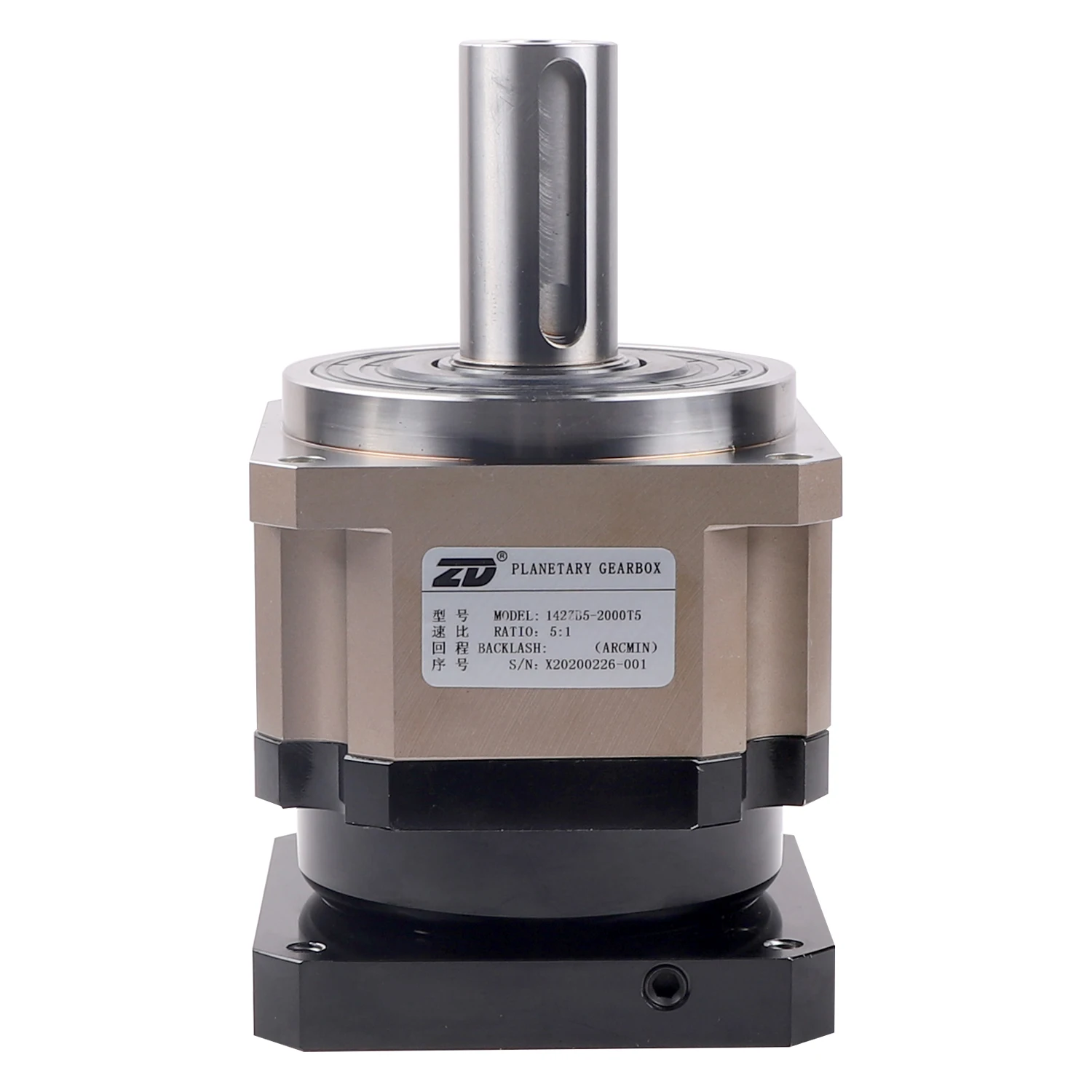

142mm china high torque planetary gearbox for industrial polishing machine
ZB series is our highly successful high precision gearbox series. All ZB gears adopt the alloy forged steel as the rawmaterial,the powerful heat treatment, helical gear design, full needle roller bearings, and global top level gear grinding craft. Perfect integrated design of caged planetary carrier and output shaft to realize high rigidity. For any high precision applications, ZB would be your great option for gearbox.


Feature Overview


Gear Type
Planetary ，Helical
Shaft Orientation
Coaxial
Rated Torque
342-650 N.M
Performance
High-efficiency,                    High-torque,            Maintenance-free
Other Characteristics
Compact, Solid-shaft,  single stage,two stages，IP65,for food industry machinery, for textiles, for printing machines, for packaging machines,  for medical devices, for railway applications


ZD Planetary Gearbox Model Read: 142 ZB 20 ( ) (S1) -750 T1 a b c d e f g


a
Frame Size
142 = 142mm
b
Series code: ZB
Square mounting flange series
c
Reduction Ratio
Single Stage: 3,4,5,6,7,8,9,10;
Two Stages: 15,20,25,30,35,40,45,50,60,70,80,90,100
d
Backlash
Single Stage: 3arc.min;
Two Stages: 5arc.min;
e

Input shaft type
S1: Locking with locking ring (Regardless whether the motor with keyway can use it.);
S2: Locking with keyway (Input shaft with key);
A: Other types (Please contact with us)
f
Applicable servo motor power (W),Please contact us for specific power
g
Please contact us for the mouting type of the flange


Product Paramenters


Performance
Unit
Number of  Stage
Reduction Ratio
142ZB














Rated Output Torque














N.M





1
3
342
4
542
5
650
6
600
7
550
8
500
9
450
10
450









2
15
342
20
542
25
650
30
600
35
550
40
500
45
450
50
650
60
600
70
550
80
500
90
450
100
450
Allowable radial force

N
1，2
3~100
9400
Allowable axial force
1，2
3~100
4700

Full Load Efficiency

%
1
3~10
≥97%
2
15~100
≥94%

Backlash

arc.min
1
3~10
≤3
2
15~100
≤5
Noise Level(input speed=3000 rpm，length=1m，no load
≤65


Dimensions（Unit mm）

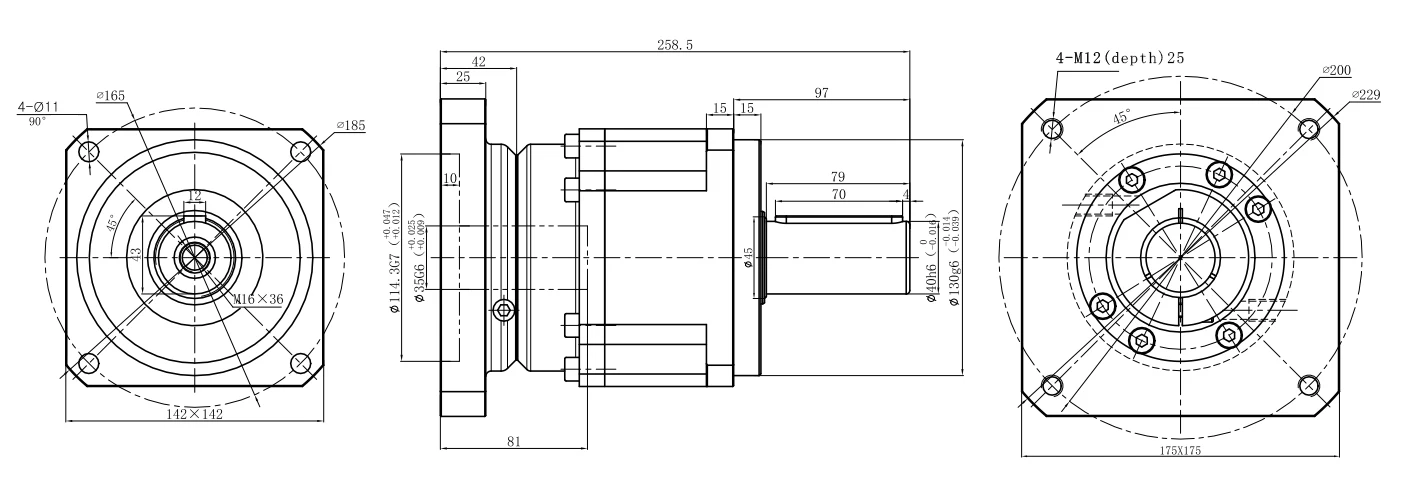

Dimensions(Single-stage, Reduction Ratio i=3~10, Unit: mm):

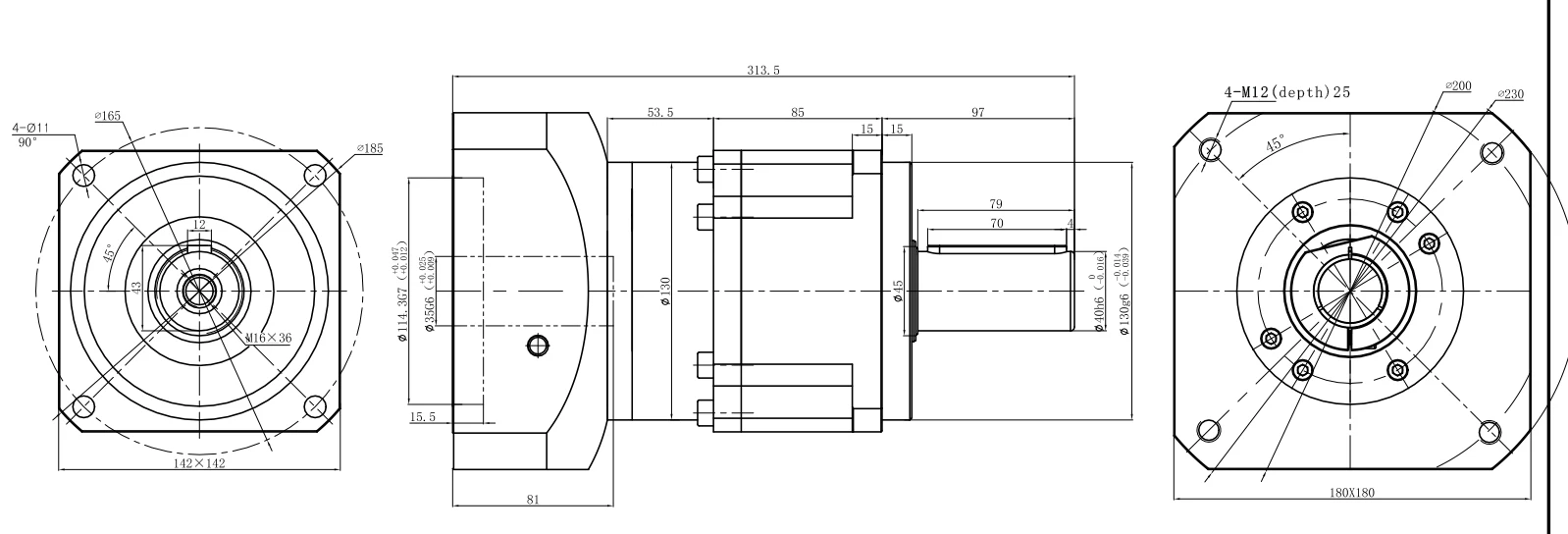

Dimensions(Two-stage, Reduction Ratio i=15~100, Unit: mm):
