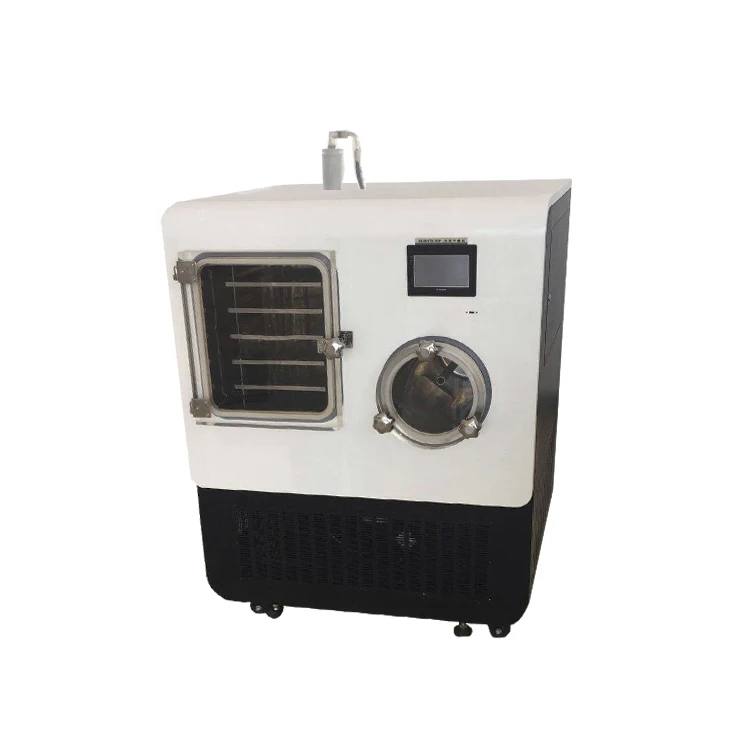

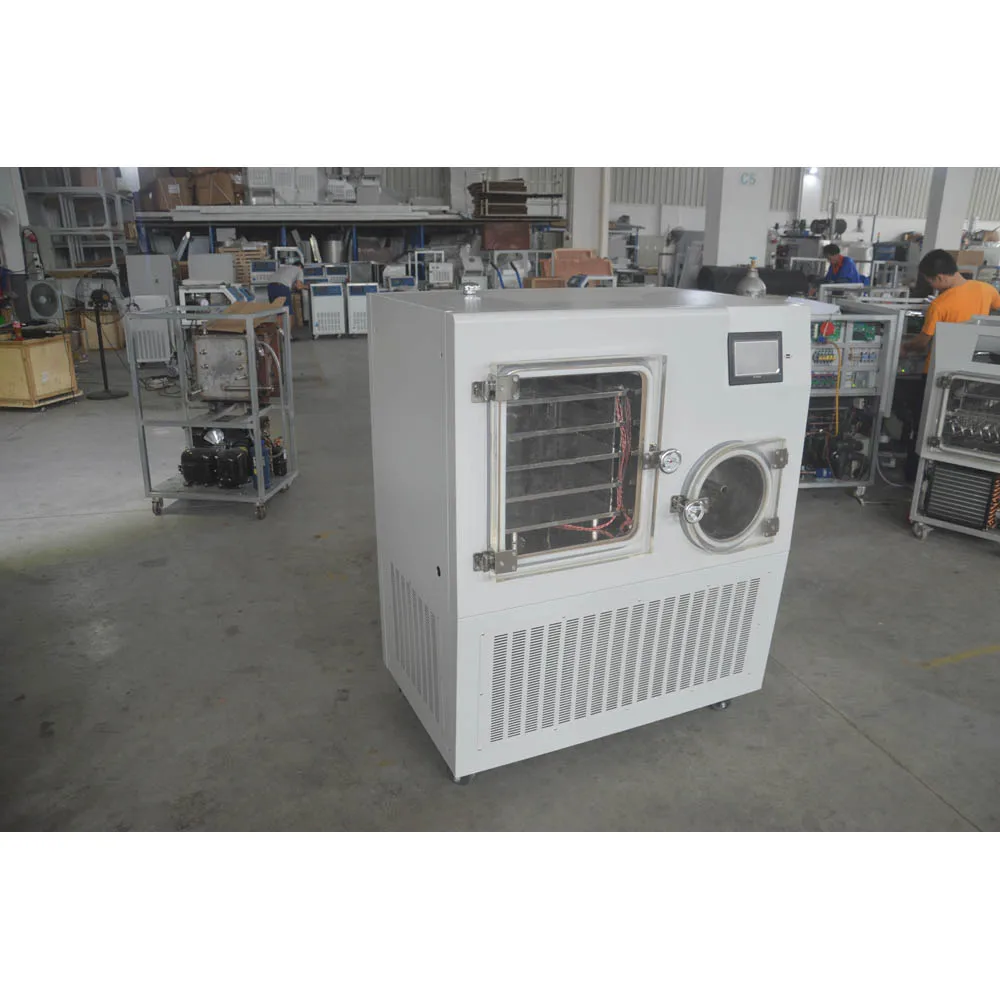

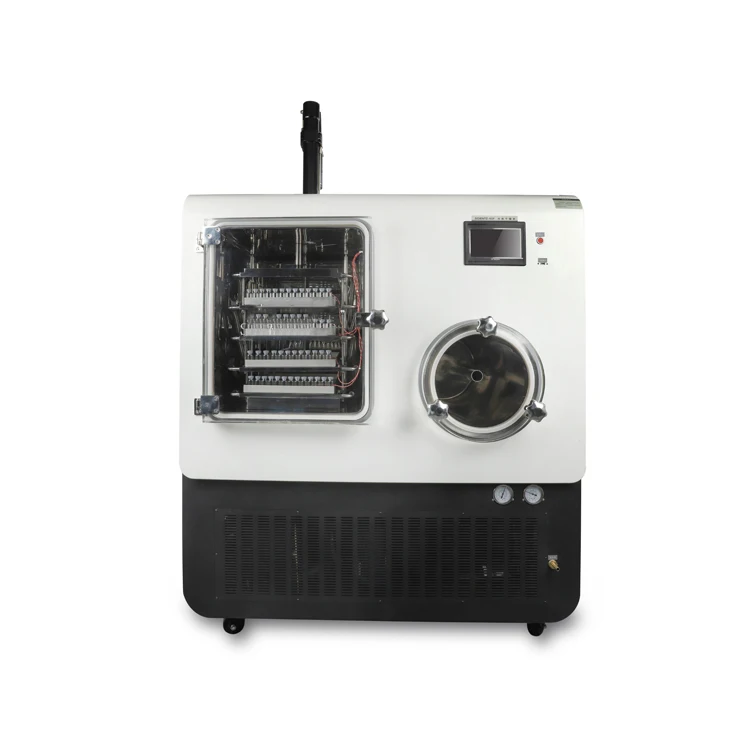

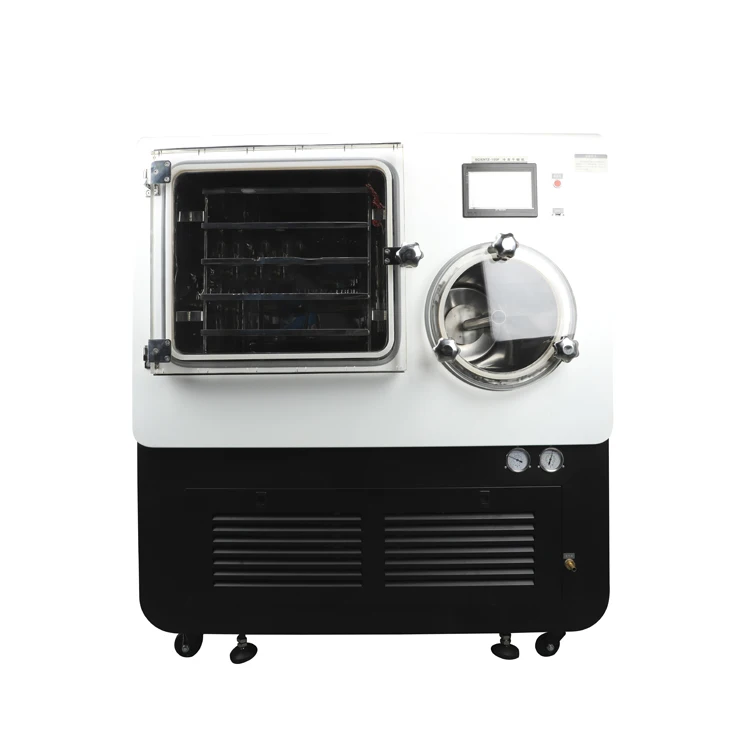

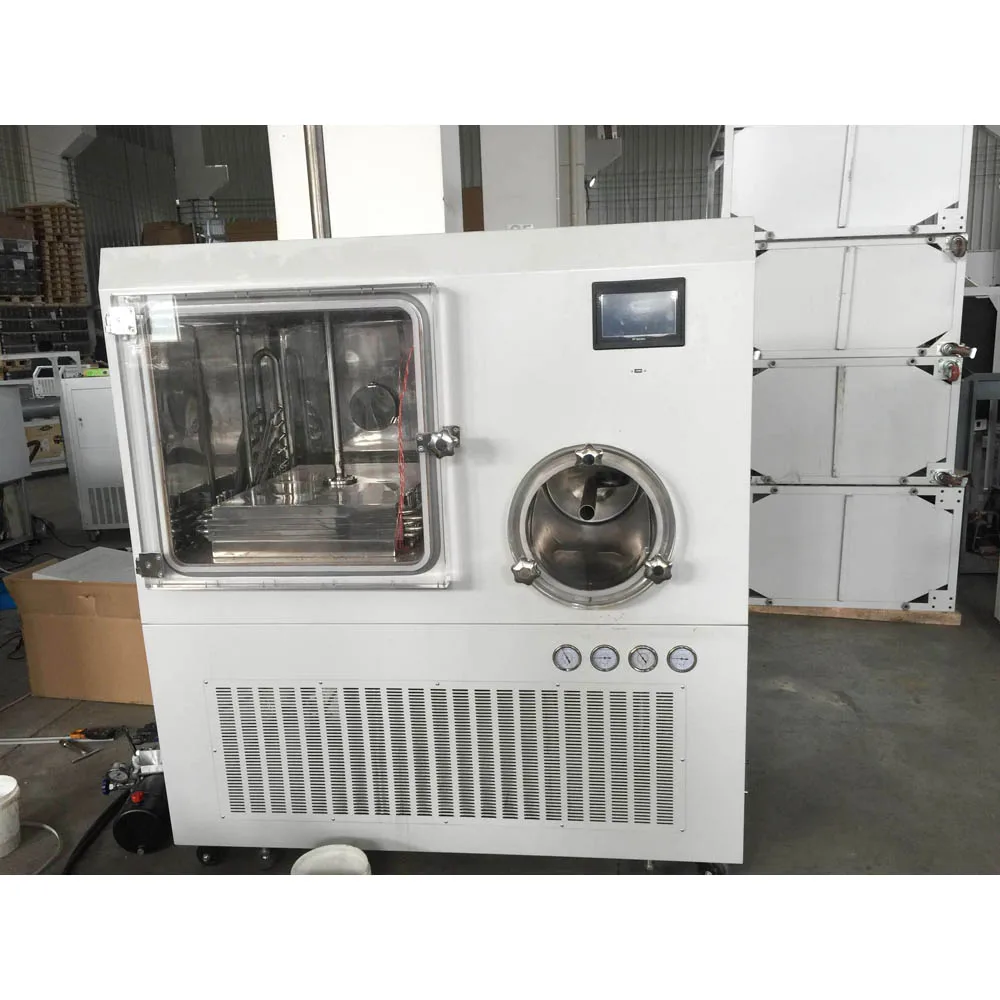

0.5 to 200m2 Industrial Food Freeze Dryer Fruit Dehydrator
US $25000-$28000
DW 20F коммерческих заводская цена лиофилизатор сублимационной сушки машины низкотемпературный очищающий фермент DPM Отопление вакуумный сублиматор
- Category: Freeze Drying Equipment >>>
- Supplier: Chongqing Drawell Instrument Co. Ltd.
Share on (1600229455850):
Product Overview
Description
Product Description
1. Pre-freeze drying process at in situ situation, reduce the complicate operation from drying process, become automatically;
5. Shelf temperature differences ± 1 ℃, dry effect uniform;
6. Intermediate medium circulation technique, shelf can refrigeration, heating, temperature adjustable, controllable, pilot scale test and production process;
7. Due to drying chamber and cold trap for fission structure, special gas circuit designed, capture water ability is strong and drying time to be short;

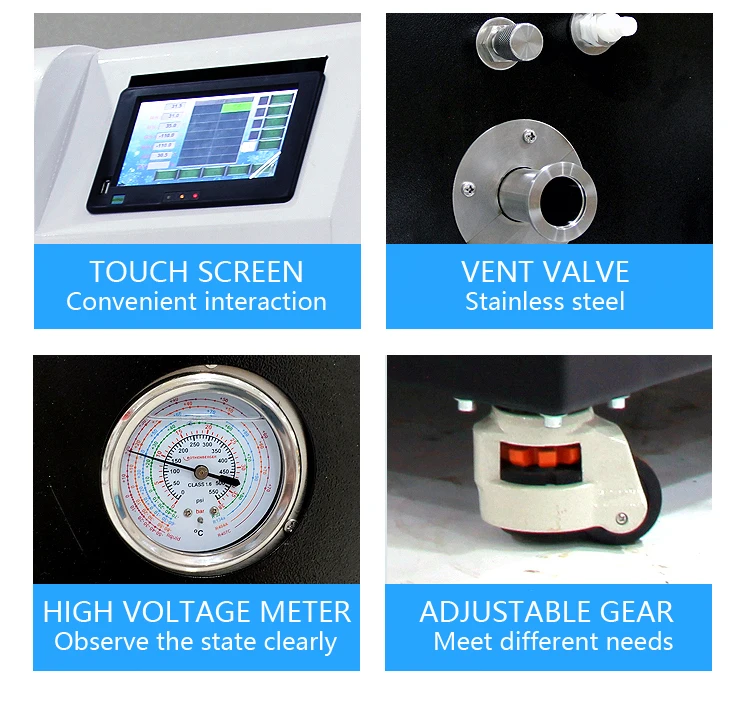

8. Embedded touch screen, PLC controlled and PID temperature controlled display lyophilized curve and history curve;
9. Control system can be stored 40 freeze-dry process programs, each program can have 40 temperature settings, and can choose the manual operation and automatic operation, the Top-Press type is equipped with an automatic defrost function;
10. Optional eutectic point test device;
11. U disk data available;
12. Equipped with PC software can print curve, browsing curve, modify data;
13. Square tray is shape not easily to deformed, easy to operate and clean;
14. Can be configured charging valve, rechargeable dry inert gas.

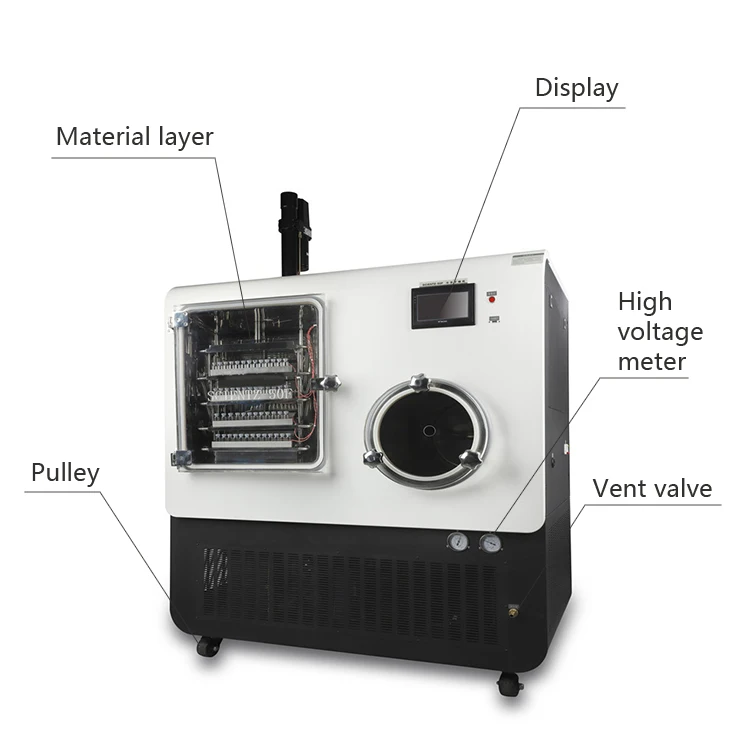

15. Drying chamber adopts high light colorless transparent organic glass door, in operation process can be observed clearly the change of material process;
16. Refrigeration system using overlap refrigeration technology, low refrigeration temperature, large refrigerating capacity, and adopt imported closed compressor, high efficient and reliable, low noise.
5. Shelf temperature differences ± 1 ℃, dry effect uniform;
6. Intermediate medium circulation technique, shelf can refrigeration, heating, temperature adjustable, controllable, pilot scale test and production process;
7. Due to drying chamber and cold trap for fission structure, special gas circuit designed, capture water ability is strong and drying time to be short;
8. Embedded touch screen, PLC controlled and PID temperature controlled display lyophilized curve and history curve;
9. Control system can be stored 40 freeze-dry process programs, each program can have 40 temperature settings, and can choose the manual operation and automatic operation, the Top-Press type is equipped with an automatic defrost function;
10. Optional eutectic point test device;
11. U disk data available;
12. Equipped with PC software can print curve, browsing curve, modify data;
13. Square tray is shape not easily to deformed, easy to operate and clean;
14. Can be configured charging valve, rechargeable dry inert gas.
15. Drying chamber adopts high light colorless transparent organic glass door, in operation process can be observed clearly the change of material process;
16. Refrigeration system using overlap refrigeration technology, low refrigeration temperature, large refrigerating capacity, and adopt imported closed compressor, high efficient and reliable, low noise.
Drying chamber | DW-20F | Ordinary | Top-Press | |
Drying Area | 0.21 m2 | 0.21 m2 | ||
No.of Tray | 2+1 layer | 2+1 layer | ||
Temp. Range | -55～60 ℃ | -55～60 ℃ | ||
Shelf Gap | 70 mm | 70 mm | ||
Shelf Size | 400mm×270mm | 400mm×270mm | ||
Capture water trap | φ22 Schering bottles | 430 | 430 | |
φ16 Schering bottles | 810 | 810 | ||
φ12 Schering bottles | 1300 | 1300 | ||
Temperature | <-70℃（No-load） | <-70℃（No-load） | ||
Ability to Capture Water | 4Kg/24h | 4Kg/24h | ||
Parameters | Power | 3 kw | 3kw | |
Power Supply | 110-115V or 220-240V 50/60Hz | 110-115V or 220-240V 50/60Hz | ||
Plate Load Capacity | 3 L | 1.5 L | ||
Electric Defrost | √ | |||
Vacuum | <5 Pa | <5 Pa | ||
Dimension | 750×640×1200 mm | 750×640×1200 mm | ||
Drying chamber shape | square | square | ||
N.W | 236KG | 286KG | ||
