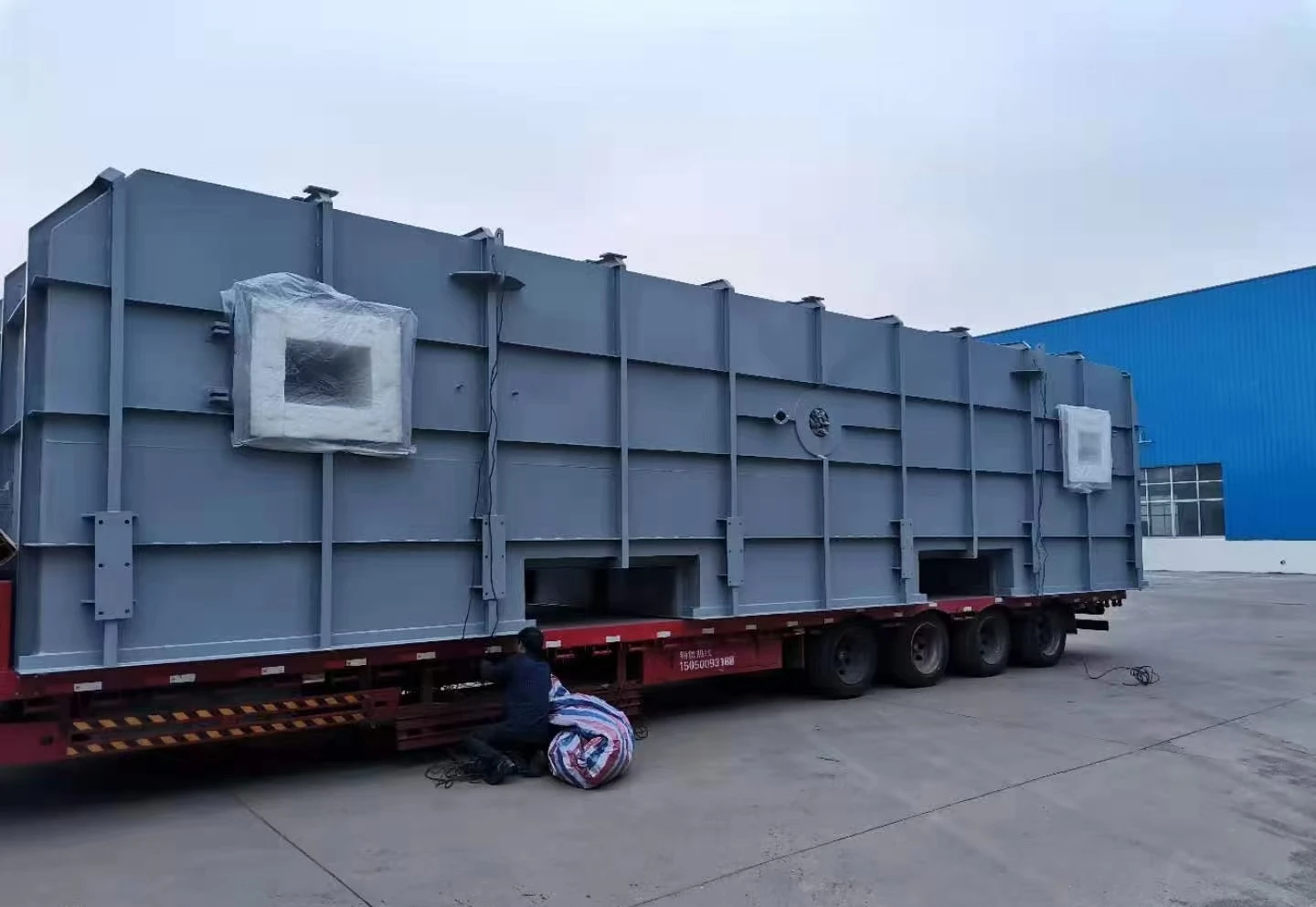

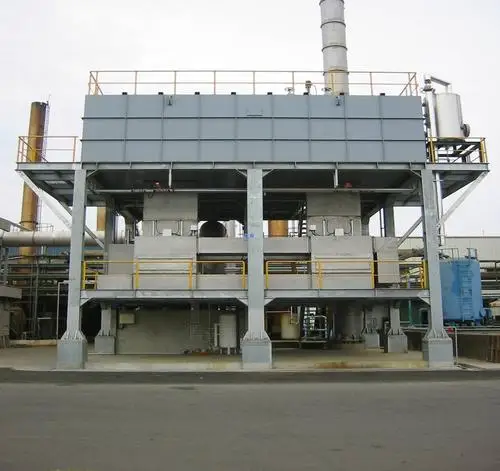

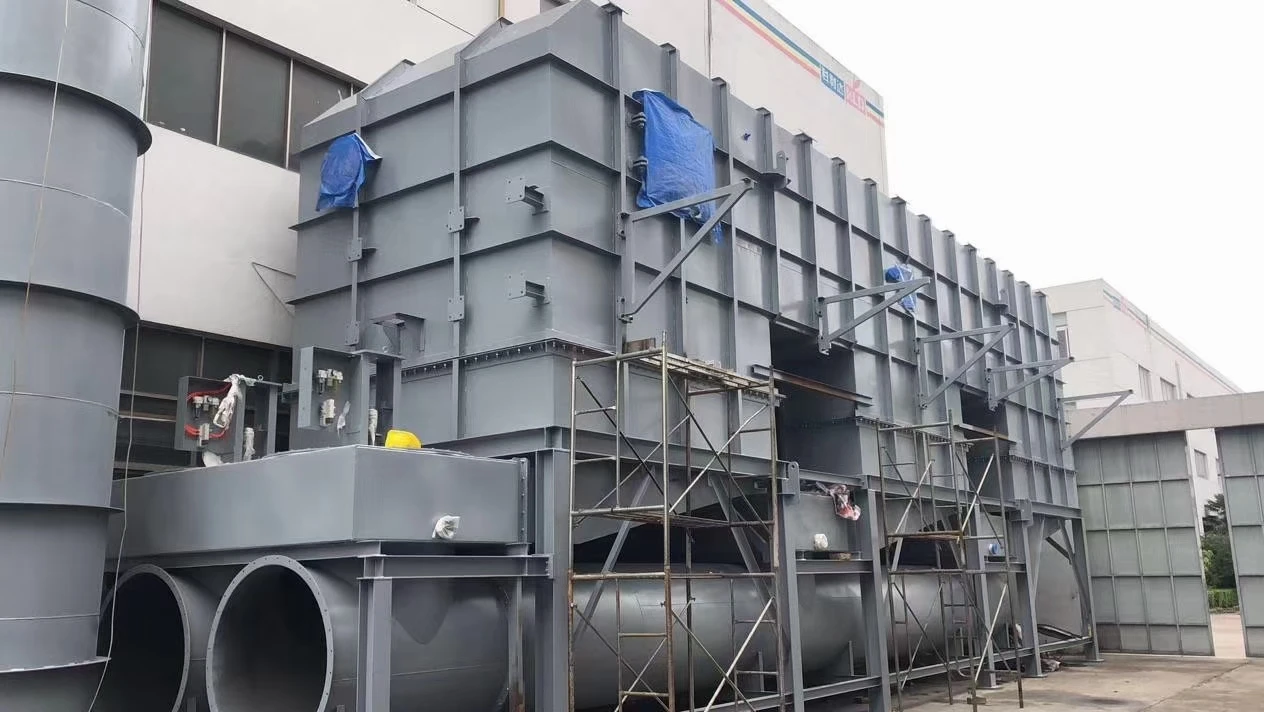

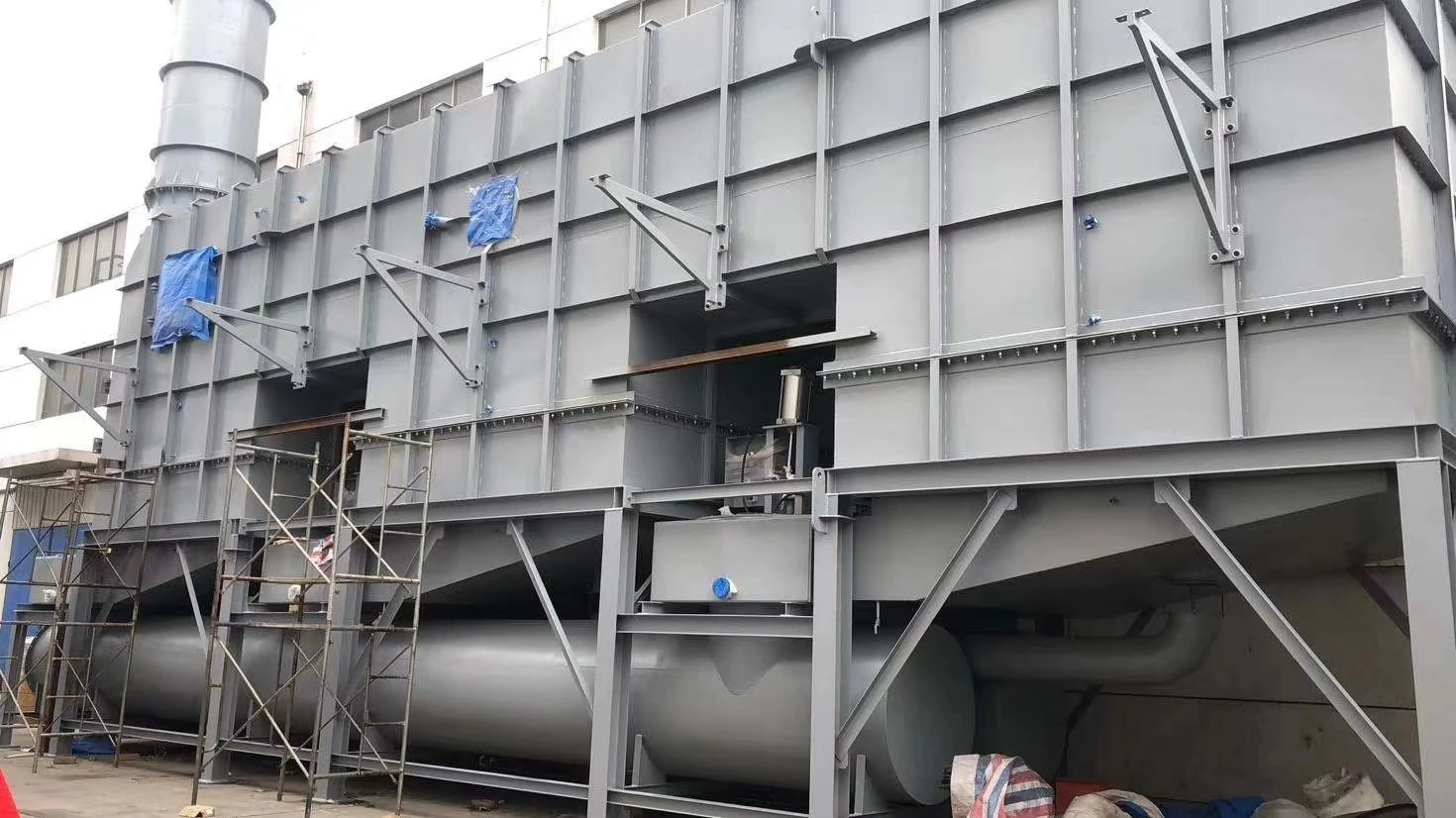

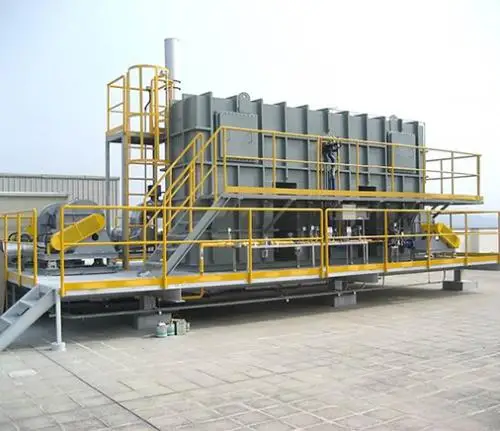

Industrial gas purification waste gas treatment plant Regenerative Thermal Oxidizer(RTO)
- Category: Gas Disposal Machinery >>>
- Supplier: Jiangyin Lancheng Environmental Protection Technology Co. Ltd.
Share on (1600232984366):
Product Overview
Description
Product Paramenters
Product overview
The rotary RTO furnace uses a fixed heat exchange medium bed, and the heat exchange medium is regenerative ceramics. The wastegasfrom the production line is heated after passing through the hot ceramic medium bed; the high-temperaturegas burninginthefurnace heats the heat exchange medium bed,correspondingtothepurgingzoneandtransition zone. Under the action oftherotaryswitching valve, the ceramic medium bed changes circularly,sothatthetwogroupsofheat exchange medium beds switch toeachotherand heat the low-temperature waste gas after heat storage. Because only 1 / 6 of the ceramic medium changes the airflowdirectioneach time, it can effectively reduce the wind pressure fluctuation at the inlet and outlet of RTO, and has littleimpacton the airpressure of the front-end production line, so it is more suitable for coating and wiring.
The inside of the switch valve is designed with a purge duct, so the decomposition rate is higher than that of the tower
RTO,whichmakes the organic waste gas decomposition rate reach more than 99%, and finally makes the waste gasemission meetthenationalenvironmental protection standards. The heat exchange efficiency is above 95%. Iftheconcentration of organic wastegasis enough,it is easy to maintain the oxidation furnace without adding fuel. Treatment capacity: 2500-200000 M / h.
The inside of the switch valve is designed with a purge duct, so the decomposition rate is higher than that of the tower
RTO,whichmakes the organic waste gas decomposition rate reach more than 99%, and finally makes the waste gasemission meetthenationalenvironmental protection standards. The heat exchange efficiency is above 95%. Iftheconcentration of organic wastegasis enough,it is easy to maintain the oxidation furnace without adding fuel. Treatment capacity: 2500-200000 M / h.
Performance characteristics
The air volume of the treatment is from 2000-50000nm/h, because of the high efficiency rotary valve,
Rotate the rotor to change the direction of the variable frequency drive air flow;
The efficiency of treatment is over 98%, and the recovery of heat energy is over 95%;
The rotary valve is operated continuously, with smooth air flow, small noise, little load change and long life of equipment,
compact mechanism and small area of simple equipment;
The driving part and the heat storage body use semi permanent materials, which has low maintenance cost and stable operation;
The contactless gas seal design, gear transmission, durable, intermittent heat storage and heat release, and long relative life.
Rotary RTO can solve organic waste gas of organic matter, industrial waste gas with low concentration, industrial waste gas with
great extensibility, industrial waste gas with concentration change, and low sensitivity to dust, which can reasonably improve the
cleaning efficiency, up to 99%. Rotary RTO can improve the thermal efficiency, up to 95%, and the server maintenance work is less,
which can improve the actual operation safety factor and credibility.
Rotate the rotor to change the direction of the variable frequency drive air flow;
The efficiency of treatment is over 98%, and the recovery of heat energy is over 95%;
The rotary valve is operated continuously, with smooth air flow, small noise, little load change and long life of equipment,
compact mechanism and small area of simple equipment;
The driving part and the heat storage body use semi permanent materials, which has low maintenance cost and stable operation;
The contactless gas seal design, gear transmission, durable, intermittent heat storage and heat release, and long relative life.
Rotary RTO can solve organic waste gas of organic matter, industrial waste gas with low concentration, industrial waste gas with
great extensibility, industrial waste gas with concentration change, and low sensitivity to dust, which can reasonably improve the
cleaning efficiency, up to 99%. Rotary RTO can improve the thermal efficiency, up to 95%, and the server maintenance work is less,
which can improve the actual operation safety factor and credibility.
Process principle:
It is to heat the organic waste gas above 760 ºC for more than 1 second, so that VOCs in the waste gas can be oxidized
anddecomposed into carbon dioxide and water.
The high temperature gas produced by oxidation flows through the special ceramic regenerator to make the ceramic body
temperaturerise and "heat storage". This "heat storage" is used to preheat the organic waste gas entering the furnace body, so as
to save the
fuel consumption of waste gas temperature rise and reduce the operation cost.
The ceramic regenerator should be divided into three zones, and each regenerator in turn goes through the procedures of
heatstorage, heat release and cleaning. After the "heat release" of the regenerator, an appropriate amount of clean air should
beintroduced immediately to clean the regenerator (to ensure that the VOCs removal rate is above 99%). Only after the cleaning
iscompleted, can the "heat storage" process be started.
When the concentration of combustible components in the exhaust gas is too low, the combustion of auxiliary fuel (diesel ornatural
gas) is used to increase the furnace temperature. When the furnace temperature is too high, the high temperature ventvalve
controlled by the furnace temperature will release part of the heat.
anddecomposed into carbon dioxide and water.
The high temperature gas produced by oxidation flows through the special ceramic regenerator to make the ceramic body
temperaturerise and "heat storage". This "heat storage" is used to preheat the organic waste gas entering the furnace body, so as
to save the
fuel consumption of waste gas temperature rise and reduce the operation cost.
The ceramic regenerator should be divided into three zones, and each regenerator in turn goes through the procedures of
heatstorage, heat release and cleaning. After the "heat release" of the regenerator, an appropriate amount of clean air should
beintroduced immediately to clean the regenerator (to ensure that the VOCs removal rate is above 99%). Only after the cleaning
iscompleted, can the "heat storage" process be started.
When the concentration of combustible components in the exhaust gas is too low, the combustion of auxiliary fuel (diesel ornatural
gas) is used to increase the furnace temperature. When the furnace temperature is too high, the high temperature ventvalve
controlled by the furnace temperature will release part of the heat.
Model | Air volume (m3/h) | Size (mm) | Burner(thousand Kcal) |
LC-RTO -50 | 5000 | 5280*1790*3910 | 250 |
LC-RTO -100 | 10000 | 6150*2380*4030 | 550 |
LC-RTO -150 | 15000 | 7050*2830*4310 | 750 |
LC-RTO -200 | 20000 | 7980*3150*4610 | 1000 |
LC-RTO -300 | 30000 | 10650*4260*4950 | 1350 |
LC-RTO -400 | 40000 | 12560*4720*5460 | 2000 |
LC-RTO -500 | 50000 | 14200*5260*5860 | 2000 |
Application scope:
Industry: petrochemical, coating, chemical, spraying
Air volume: 1000-100000nm3 / h
Concentration ≥ 1000mg / m3
Air volume: 1000-100000nm3 / h
Concentration ≥ 1000mg / m3
