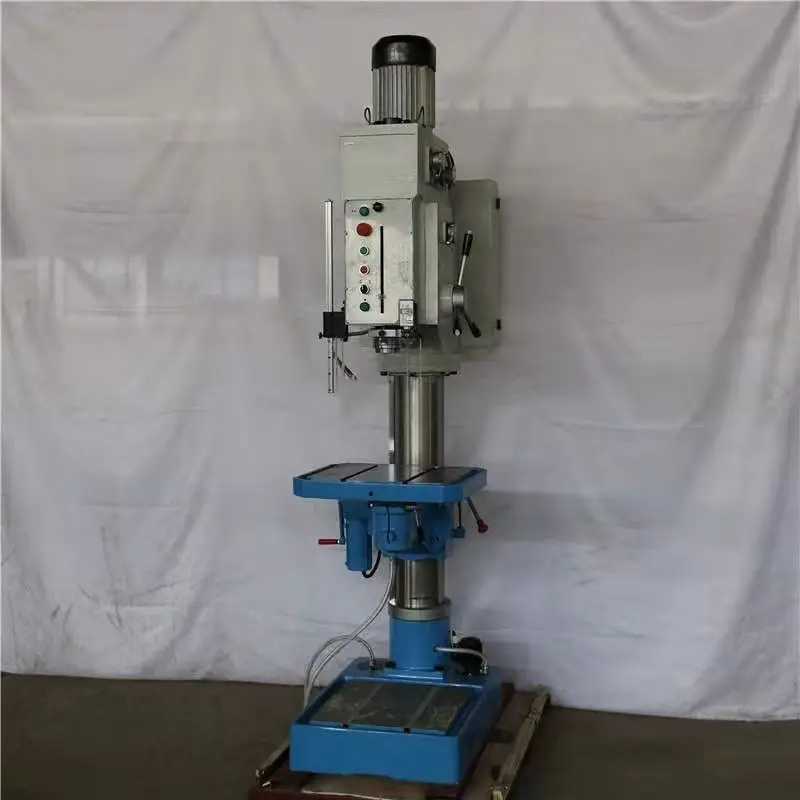

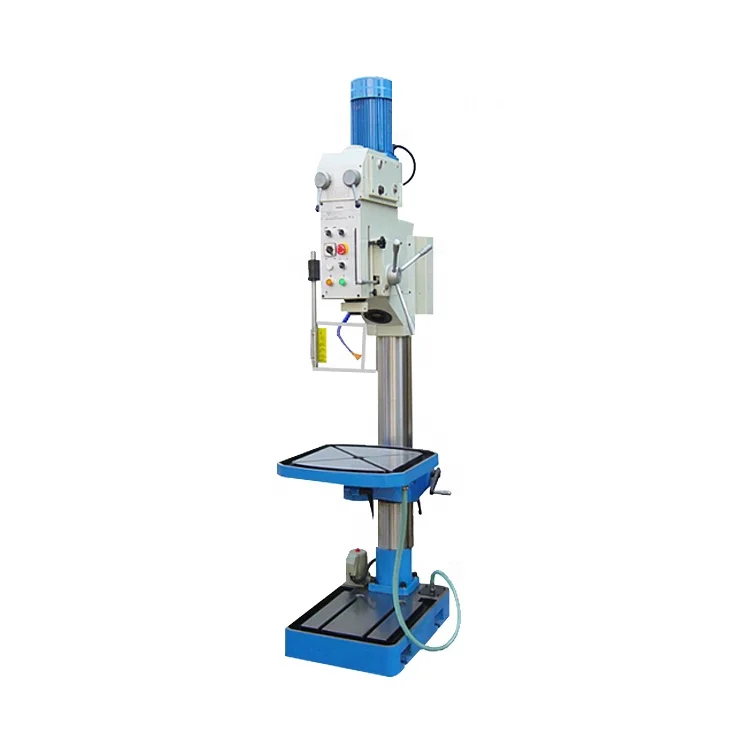

Multifunctional Vertical Column Table Drill Drilling Machine
- Category: Drilling Machines >>>
- Supplier: SJR Machinery Co. Ltd.
Share on (1600233604576):
Product Overview
Description
Recommend Products
Products Description

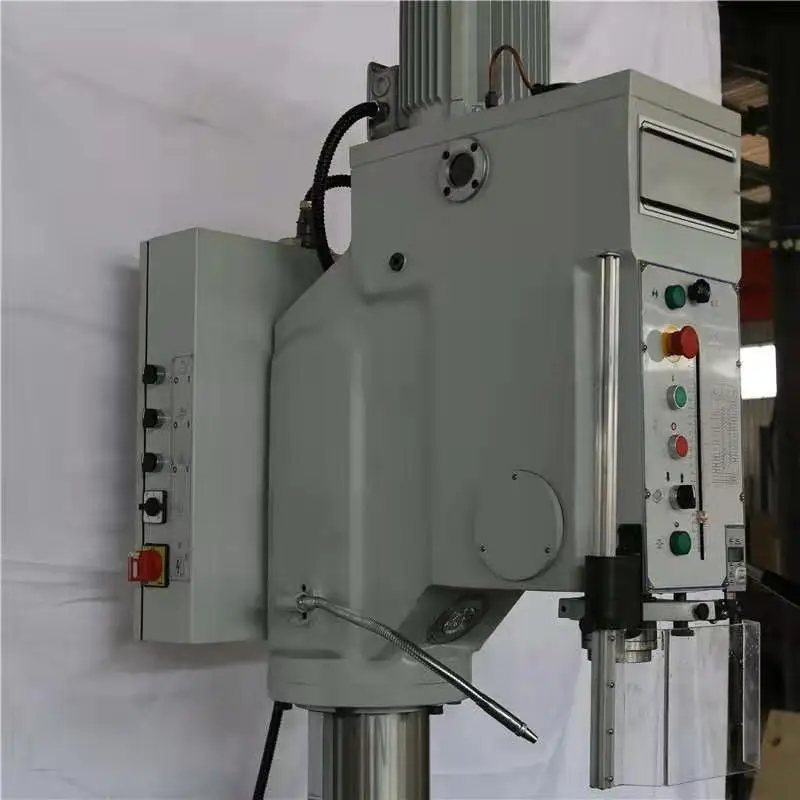

1,Drilling,Milling and Tapping.2,Headstock and worktable up and down perpendicularly.
3,Head swivels 360 ° horizontally
4.Gear driven lower noise
5,Positive spindle lock
6,It have Cross table.
7,Spindle auto feeding
3,Head swivels 360 ° horizontally
4.Gear driven lower noise
5,Positive spindle lock
6,It have Cross table.
7,Spindle auto feeding
Advantages
1 .Novel design and beautiful appearance, the structure of the chips, a wide range of variable speed.

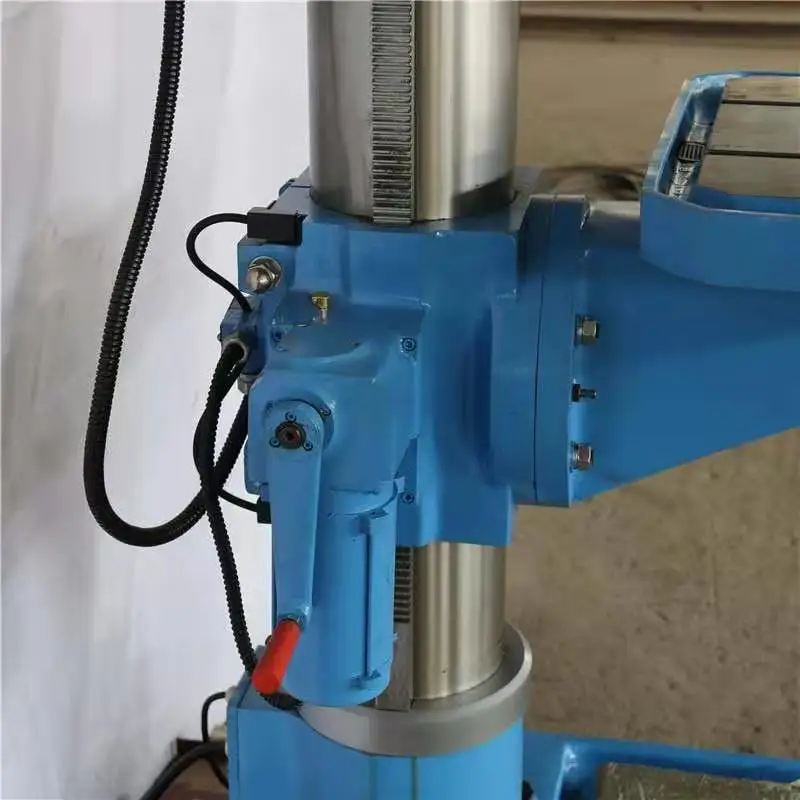

2 .Unique working table, electric and manual lifting mechanism, easy to operate.
3. the table can rotate 180 degrees or 45 degrees, and it can be used for a wide range of application.
4.The is provided with a cooling device and tapping device.
2 .Unique working table, electric and manual lifting mechanism, easy to operate.
3. the table can rotate 180 degrees or 45 degrees, and it can be used for a wide range of application.
4.The is provided with a cooling device and tapping device.
motor power large.
6 .Unique protective devices, safe and reliable.
Application：
Suitable for drilling, reaming, reaming, tapping screws, spot facing machining, and batch production is a single ideal machine.
Application：
Suitable for drilling, reaming, reaming, tapping screws, spot facing machining, and batch production is a single ideal machine.
Suitable for drilling, reaming, reaming, tapping screws, spot facing machining, and batch production is a single ideal machine.
Special attachment | Accessories included in the machine |
Φ6-Φ16mm collect Milling cutter ahank Cross worktable Collet shank Nut for T-slot lnner hexagon bolt 125mm precision vice | Shaft sleeve for taper shank tool Key type drill chuck Connecting bar for drill chuck Wedge for taper shank tool Double open end spanner |
Product parameter
Main Specifications:

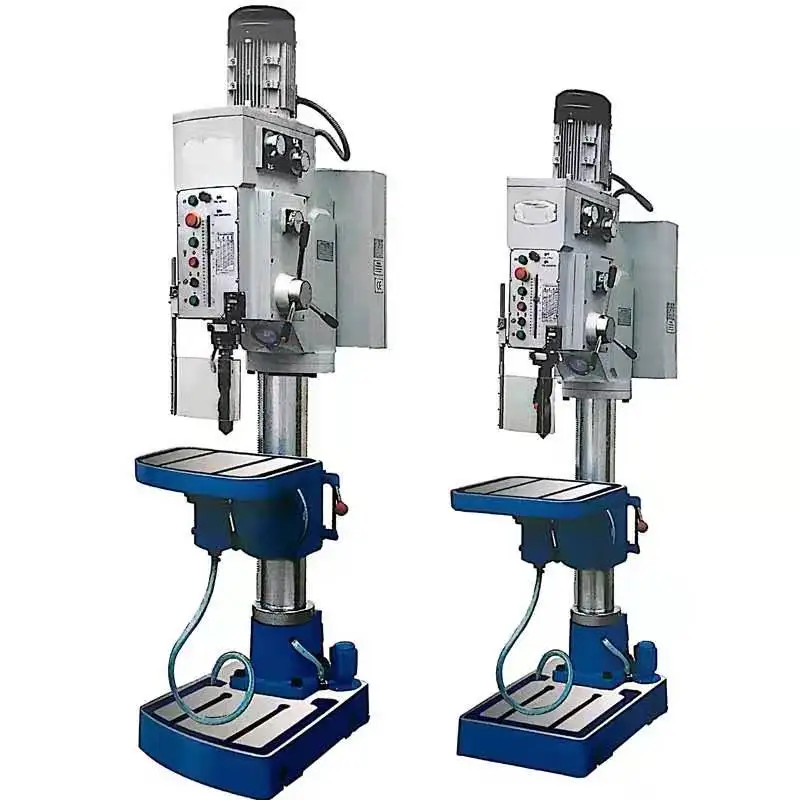

Type | Column type of Vertical Drilling Machine | ||||||||||||
15163 | 15164 | 15165 | 15166 | 15167 | 15168 | 15169 | |||||||
Model | ZN5025 | ZN5030/ZN5030B | ZN5032/ZN5032A/ZN5032B | ZN-32 | ZN5035/ZN5035A/ZN5035B | ZN5040A/ZN5040B | ZN5050A/ZN5050B | ||||||
Max.drilling diameter.(steel)and tapping diameter | Φ25/M16 | Φ32/M20 | Φ32/M22 | Φ35/M20 | Φ35/M20 | Φ40/M24 | Φ50/M27 | ||||||
Max.travel of spindle | 110 | 135 | 160 | 150 | 160 | 190 | 200 | ||||||
Max.distance from spindle to generating line of column | 240 | 260 | 320 | 300 | 320 | 340 | 360 | ||||||
Max.distance between spindle end to the worktable surface. | 630 | 670/685 | 630 | 800 | 585 | 665 | 590 | ||||||
Max.distance from spindle end to the surface of base worktable | 1100 | 1150/1165 | 1185 | 1225 | 1140 | 1195 | 1175 | ||||||
Max.travel of spindle box | 250 | 180(ZN5030B) | 285 | 270 | |||||||||
Max.travel of worktable and bracket/Manual(Mechanical) | 450 | 605/500 | 415 | 550 | 545 | 570(450) | 530(410) | ||||||
Swivel angle of worktable | ±45° | ±45° | ±45° | ±45° | ±45° | ||||||||
Spindle taper bore | 3 | 3 | 4 | 4 | 4 | 4 | 4 | ||||||
Spindle speed steps | 6 | 12 | 12 | 12 | 12 | 12 | 12 | ||||||
Spindle speed range | 125~2825 | 125~3030 | 125~3030 | 78~2500 | 125~3030 | 76~2065 | 52~1400 | ||||||
Spindle feed steps | 3 (ZN5030B) | 3 (ZN5032A/ZN5032B) | 3 (ZN5035A/ZN5035B) | 3 | 4 | ||||||||
Spindle feed range | 0.1~0.3 (ZN5030B) | 0.1,0.2,0.3 (ZN5032A/ZN5032B) | 0.1~0.3 (ZN5035A/ZN5035B) | 0.1~0.3 | 0.1~0.4 | ||||||||
Dimension of worktable | 350x400 | 420x350 | 500x420 | 500x420 | 520x440 | 580Xx460 | |||||||
Effective working area of worktable | 310x320 | 335x340 | 400x360 | 365x415 | 400x360 | 405x395 | 445x435 | ||||||
Diameter of column | Φ95 | Φ110 | Φ120 | Φ120 | Φ140 | Φ160 | |||||||
Power of motor | 0.75 | 0.85/1.1 | 1/1.2 | 1/1.3/1.7 | 1/1.2 | 1.5 | 2.2 | ||||||
Machine dimension | 700x500x1900 | 700x460x2250 | 835x500x1960 | 835x510x1730 | 835x510x1730 | 849x545x2290 | 940x680x2405 | ||||||
Packing dimension/Net weight and gress weight | 830x530x1950 300/350 | 870x550x2220 340/380 | 960x580x2080 500/555 | 940x570x2120 430/475 | 940x545x2290 430/475 | 1000x650x2220 565/615 | 1170x680x2300 565/615 | ||||||
