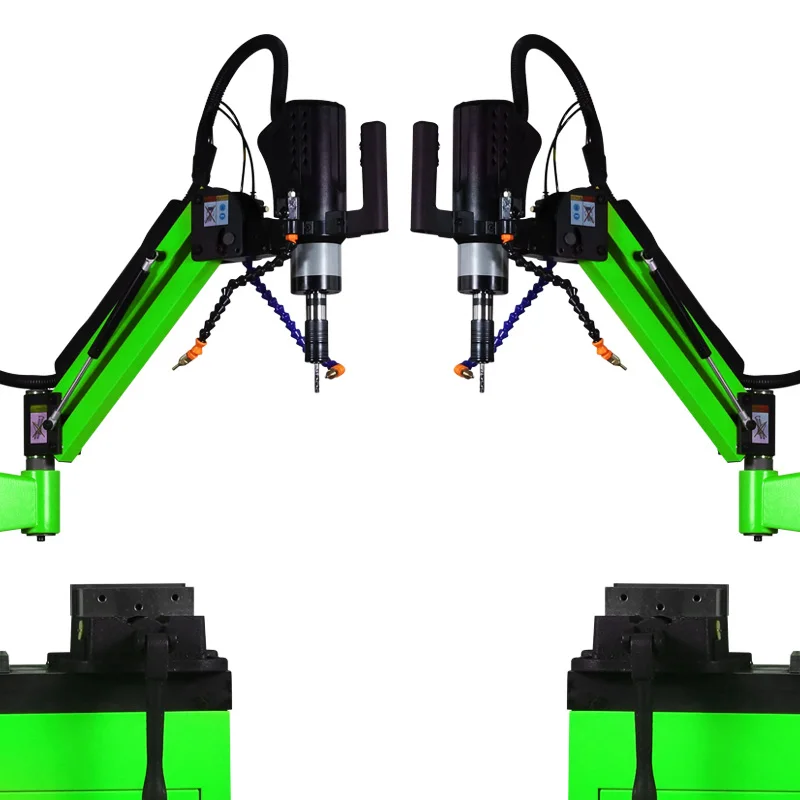

China Factory Drilling And Tapping CNC Machine Tool
US $1500-$32000
Легкая простая Операционная трубка, шкафчик для нарезания горизонтальной резьбы 1100 мм, электрическая нарезательная машина
- Category: Drilling Machines >>>
- Supplier: Dongguan,Insertion,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Futrue

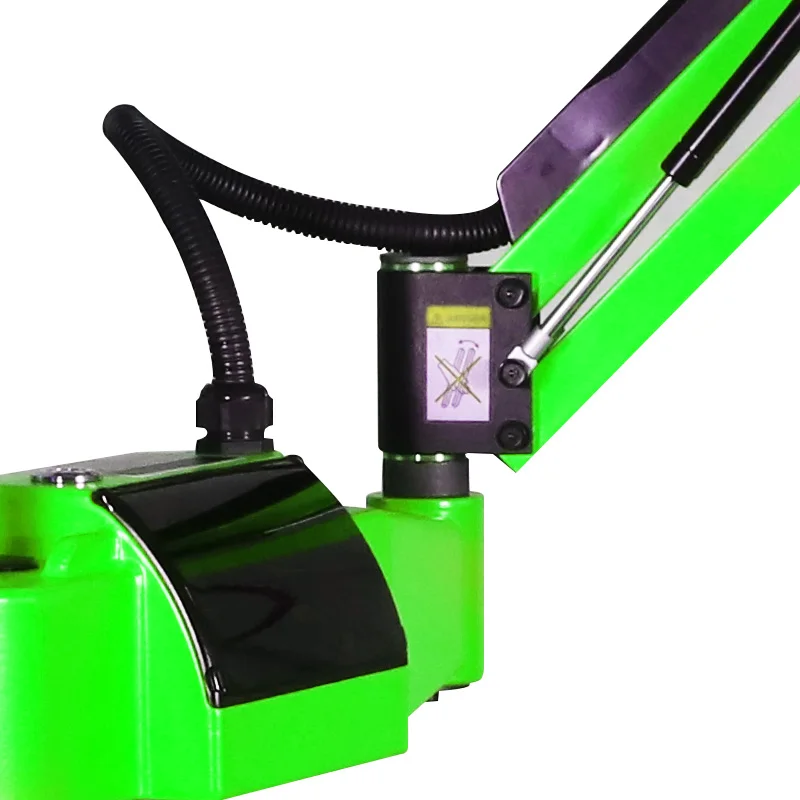

1:The bracket arm of our tapping machine is wider and thicker than ordinary ones, and it is stronger in the practical process.
2:The verticality of the standard tapping machine is 90 degrees, and our machine can reach 89.9 without tilting
3:The screws we use are all grade 12.9 with the highest strength
4:The process of using the universal structure of our machine is also very convenient. You can flexibly loosen the two M8 screw heads and place them down to achieve 180-degree tapping on the side. When the head returns to the card slot, it is 90-degree tapping up and down
5:Our tapping machine has three tapping modes: manual tapping mode, automatic tapping mode, and deep hole processing mode
Product Paramenters
Electric Tapping Machine | ||||||||||||||||||
Model | Voltage | Tapping capacity | Max radius | Highest speed | Heavy volume | Way to work | Tapping chuck | Lubrication time | Mobile workbench | |||||||||
COG-M16 | 220V-600W-50HZ | M3-M16 | 1000 MM | 312 r/min | 25KG | Horizontal/ Vertical | GT12,M3-M16 Standard, Optional | 0.1-25s | 980*680*700 | |||||||||
COG-M24 | 200V-1200W-50HZ | M6-M24 | 1200 MM | 200 r/min | 50KG | Horizontal/ Vertical | GT24,M6-M24 Standard, Optional | 0.1-25s | 980*680*700 | |||||||||
COG-M36 | 220V-1200W-50HZ | M6-M36 | 1200 MM | 150 r/min | 50KG | Horizontal/ Vertical | GT24,M6-M36 Standard,Optional | 0.1-25s | 980*680*700 | |||||||||
COG-M42 | 220V-1200W-50HZ | M16-M24 | 1300 MM | 250 r/min | 110KG | Horizontal/Vertical | GT48,M16-M42 Standard,Optional | / | / | |||||||||
Pneumatic Tapping Machine | ||||||||||||||||||
COG-M12 | Gas pressure 8-10KG | M3-M12 | 900MM | 400 r/min | 20KG | Horizontal/Vertical | GT12,M3-M12 Standard,Optional | / | 900*600*700 | |||||||||
Product Description
Related Products
FAQ
-What materials can the tapping machine tap?
Lead, copper, steel, cast iron, pig iron, 45 steel, die steel, metal materials and other Other metal materials
-Tapping machine composition?
The tapping machine is mainly composed of the upper and lower brackets of the joint boom, a servo motor, a reducer, and a torque chuck. In addition, optional accessories include a universal head, a magnetic base, and a mobile workbench.
-Working principle of electric tapping machine and pneumatic tapping machine?
The electric tapping machine can be driven by plugging in the 220V power supply to make the machine work, and the pneumatic tapping machine is driven by the compressed air of the air compressor to drive the motor to make the machine work.
-What is a universal head?
Universal working head refers to the working head that can be installed on the tapping machine to achieve vertical and horizontal tapping.
-Which chucks come standard with different types of tapping machines?
RS-M12 with chuck M3-M24: M3 M4 M5 M6 M10 M12
RS-M16 with chuck M3-M16: M3 M4 M5 M6 M10 M12 M14 M16
RS-M24 with chuck M6-M24: M6 M10 M12 M14 M16 M18 M22 M24
RS-M36 with chuck M6-M36: M6 M10 M12 M14 M16 M18 M22 M24 M27 M33 M36 M12
-Are the spindle dimensions of different types of tapping machines the same? Can the chucks be shared?
Not the same, the chuck can not be shared, because different types of tapping machine spindle size is different, the corresponding chuck diameter is different
The main shaft size of M12 and M16 tapping machines is 19mm, and the diameter of the standard chuck is 19mm.
The spindle size of M24, M30, M36 tapping machine is 31mm, and the standard chuck diameter is 31mm.
The spindle size of the M48 tapping machine is 48mm, and the diameter of the standard chuck is 48mm.
