50 80 150 200 250 300 315 500 600 630 800 1000 ton industrial CNC metal drawing hydraulic press machine price
- Category: Hydraulic Press >>>
- Supplier: Nantong Pacific CNC Machine Tool Co. Ltd.
Share on (1600233772897):
Product Overview
Description

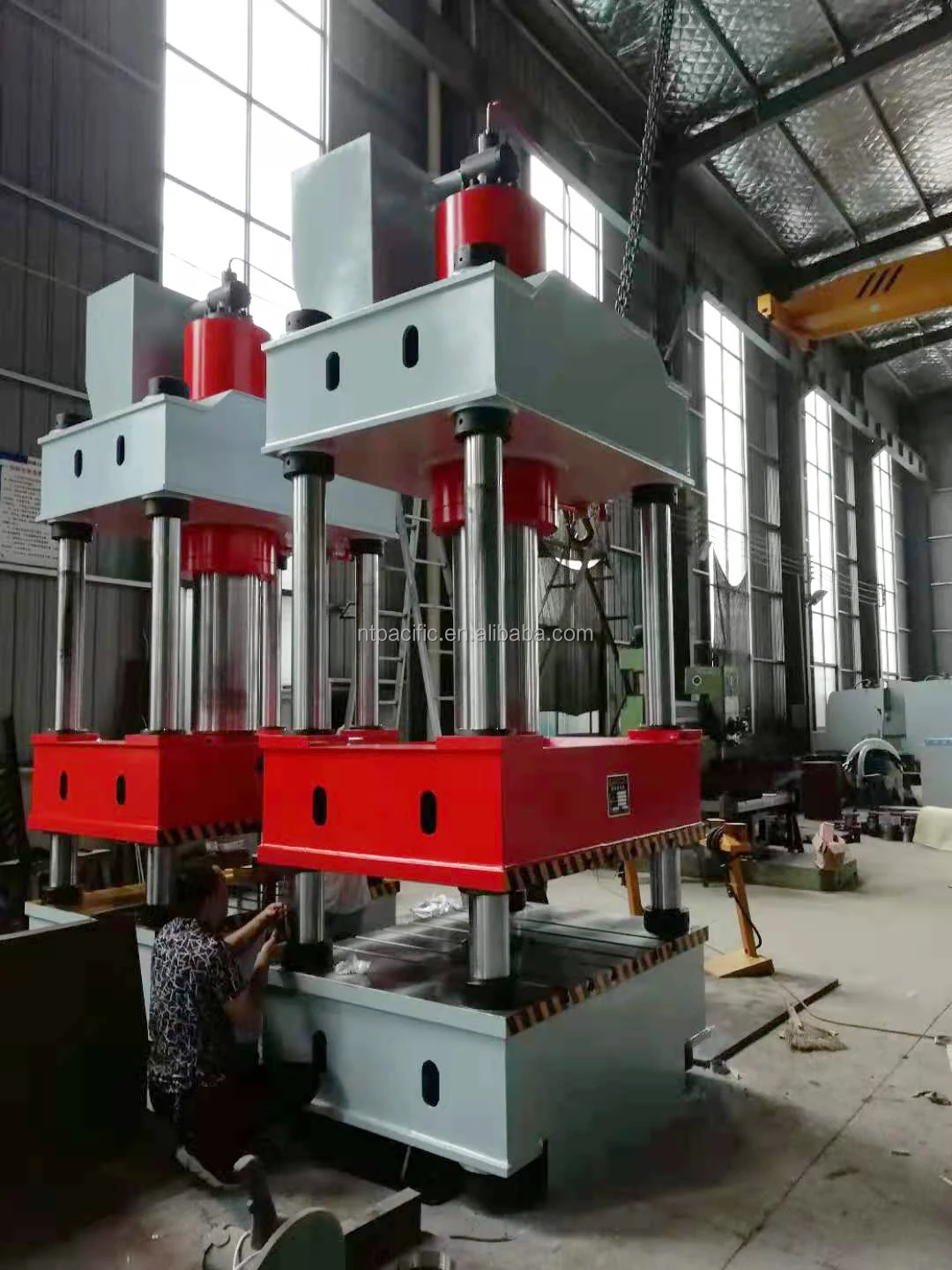

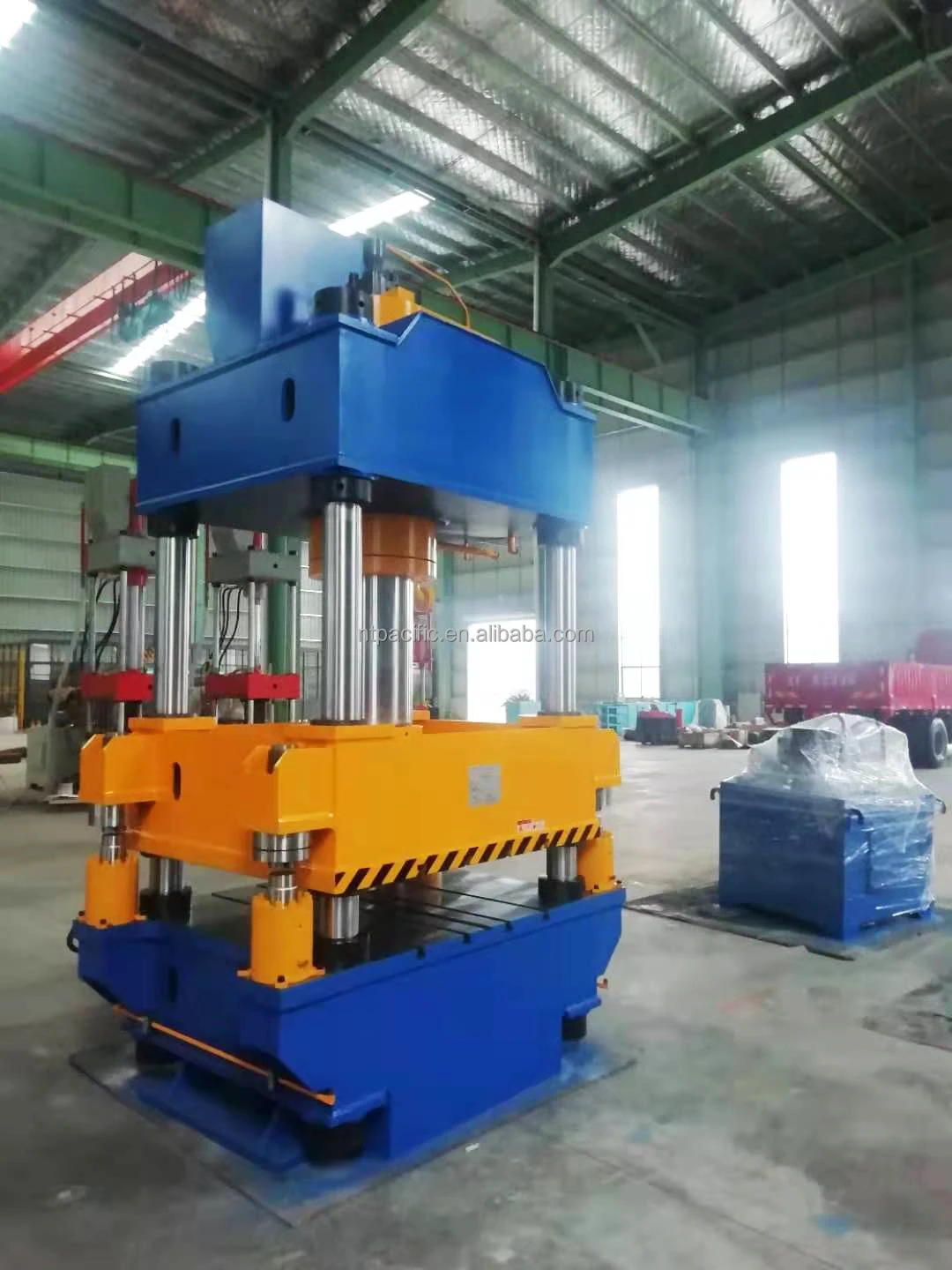

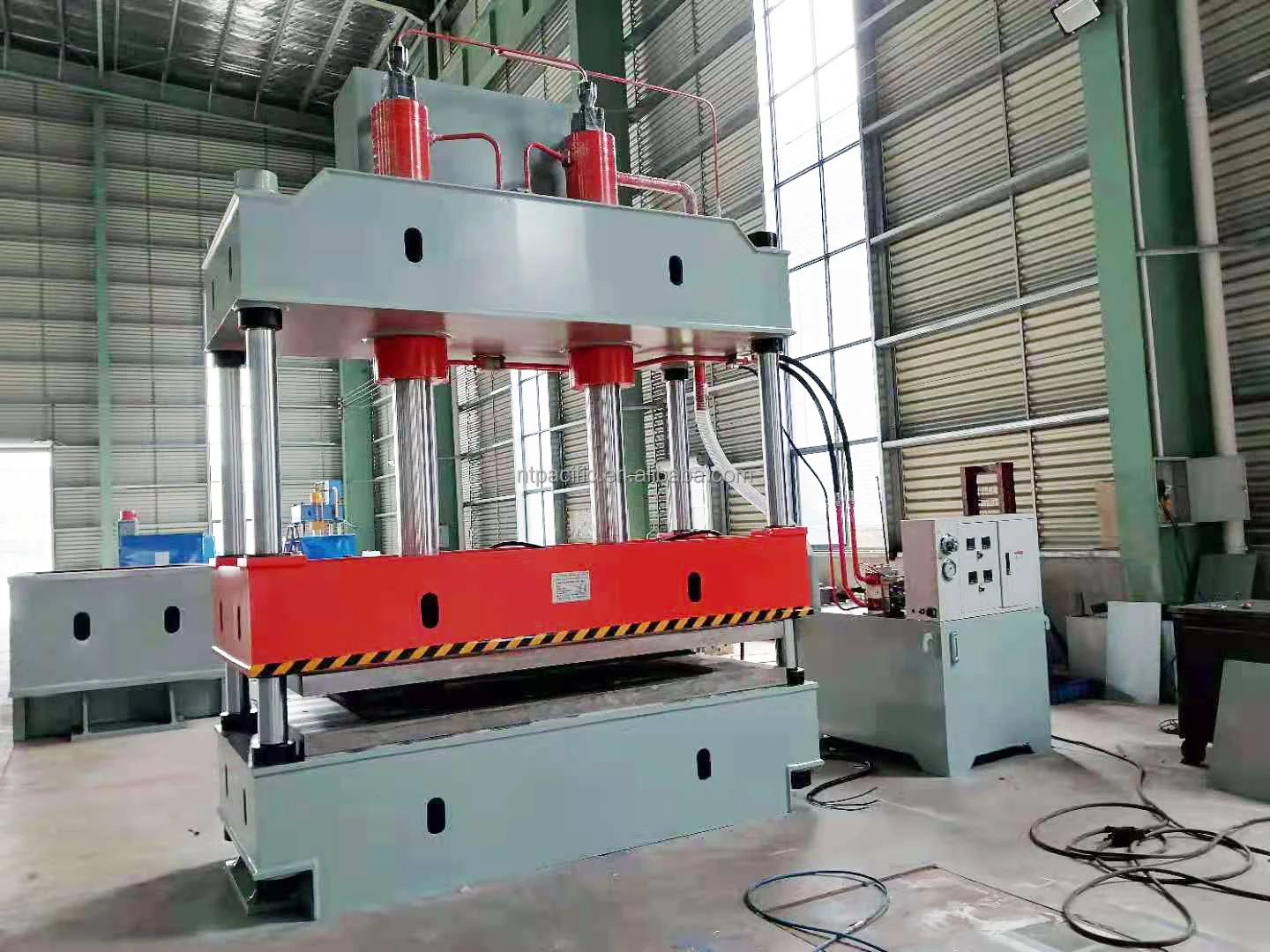

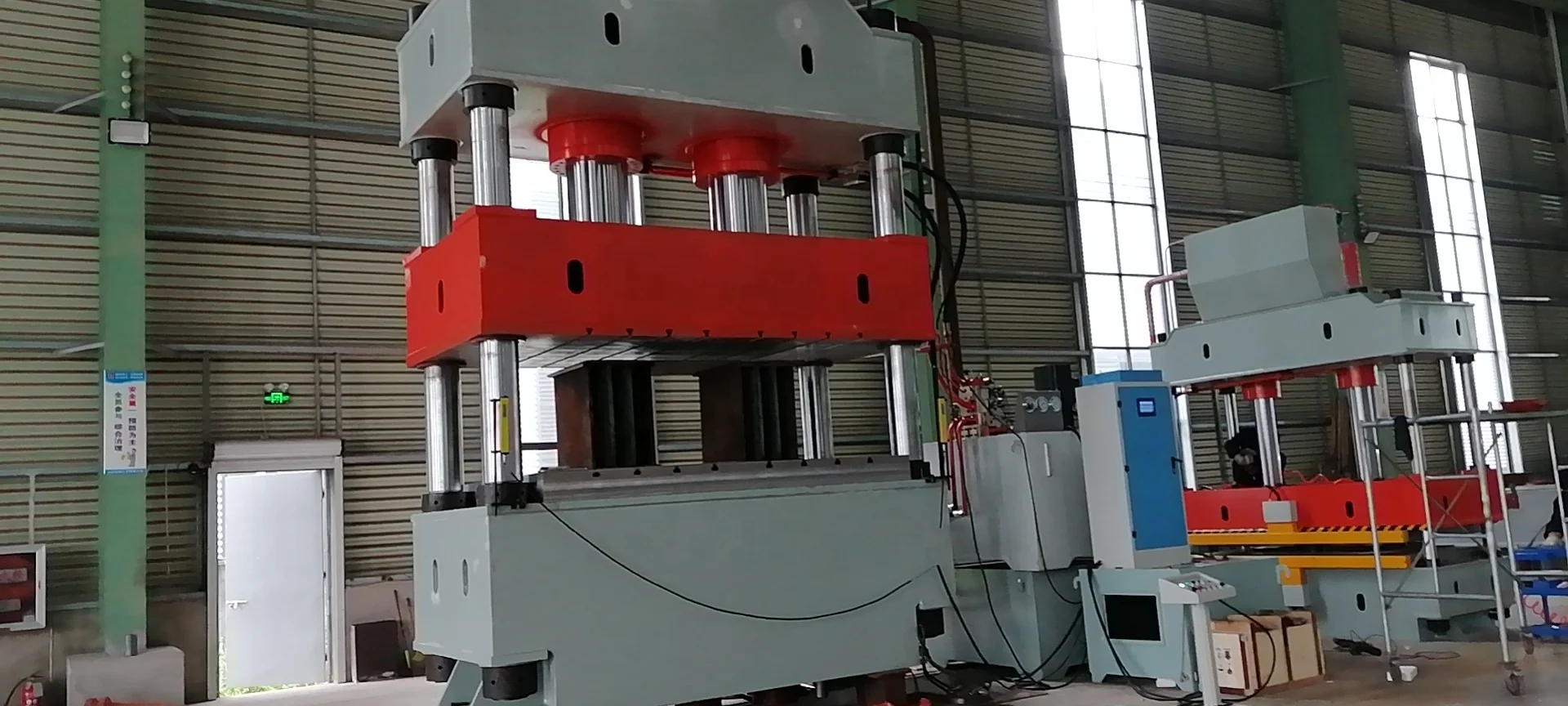

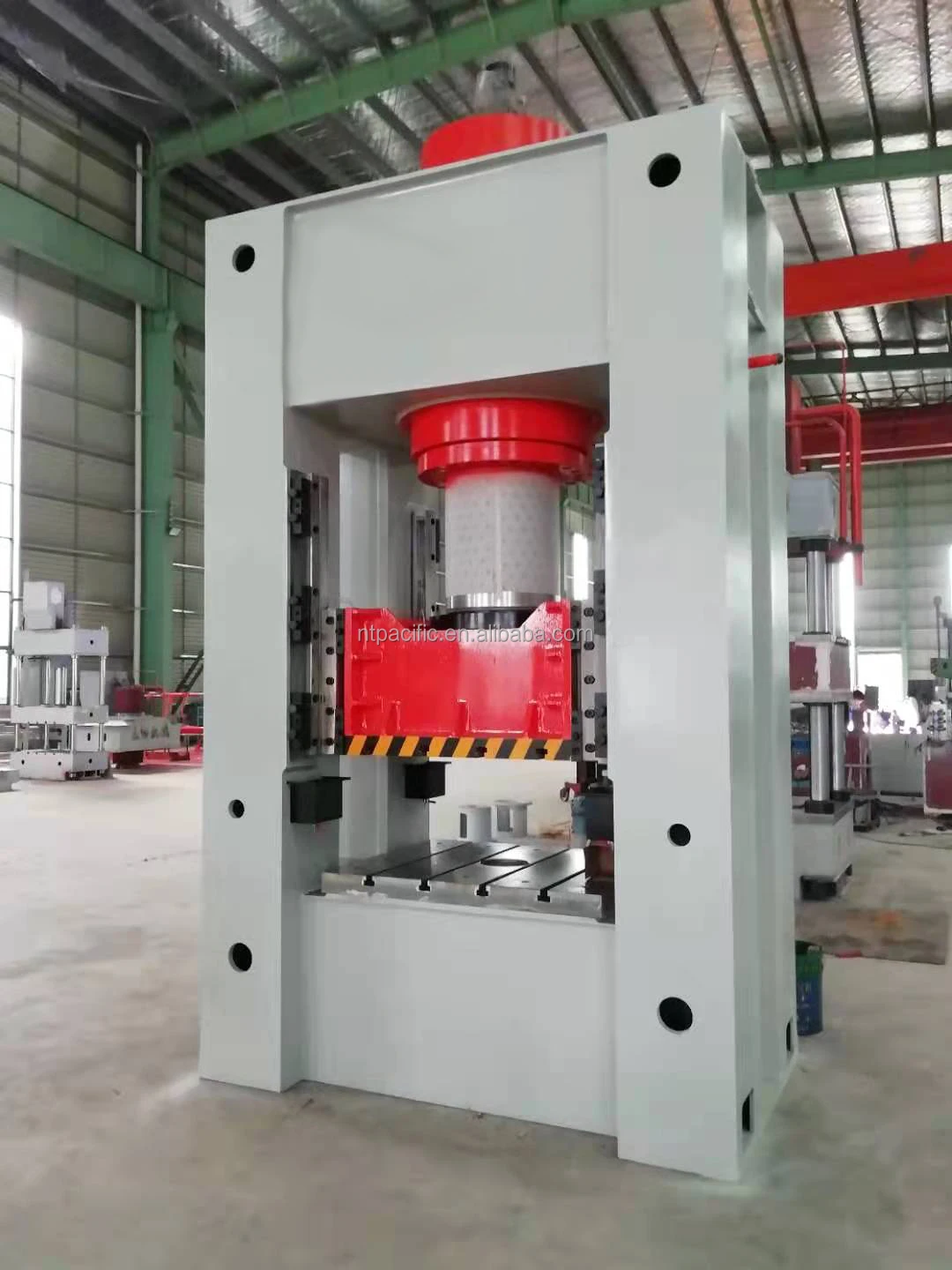

HYDRAULIC PRESS MACHINE
FunctionsProfessional Y27 double acting four column deep drawing hydraulic machine structures,Specially made large worktable
according to customer needs,different tonnage.Hydraulic control adopts to insert set valve integrated system, decrease let out
Point , Movement reliability, durable and long life span ,It is constant pressure to realize with calm in the first place and calm
procedure two develop technology, have to insure press the function of delay time , The route of working pressure may be regulated
in assigned scope ,adopt buttons for centralized control,Can realization manual,Semi-automatic,automatic 3 operate form.
NO. | Project | Unit | YTT27-315 | YTT27-400 | YTT27-500 | ||
1 | Nominal Force | KN | 3150 | 4000 | 5000 | ||
2 | Return force | KN | 420 | 480 | 680 | ||
3 | Ejecting force | KN | 1000 | 1000 | 1600 | ||
4 | Max liquid working pressure | MPa | 25 | 25 | 25 | ||
5 | Ram stroke | mm | 800 | 800 | 900 | ||
6 | Ejecting stroke | mm | 300 | 300 | 350 | ||
7 | Max open high | mm | 1250 | 135 | 1500 | ||
8 | Working table size | LR | mm | 2400 | 2800 | 2800 | |
FB | mm | 1600 | 1600 | 1600 | |||
9 | Dimensions of hydraulic pad | LR | mm | 1700 | 2000 | 2000 | |
FB | mm | 950 | 950 | 950 | |||
10 | Slider speed | No-load working | mm/s | 180-200 | 180-200 | 180-200 | |
pressing | mm/s | 16-24 | 16-24 | 10-18 | |||
return | mm/s | 150-180 | 150-180 | 120-150 | |||
11 | Motor | KW | 18.5X2+7.5 | 22X2+7.5 | 22X2+7.5 | ||

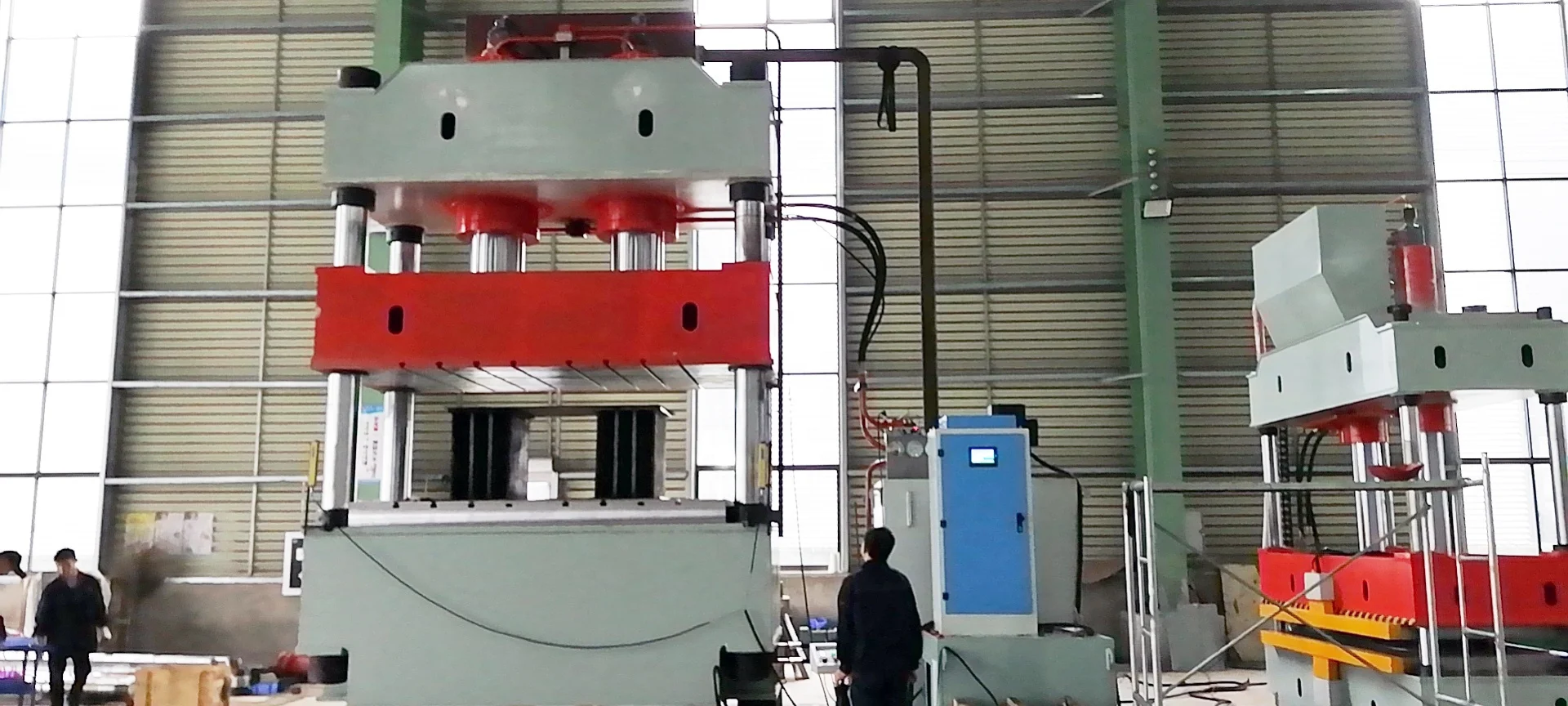

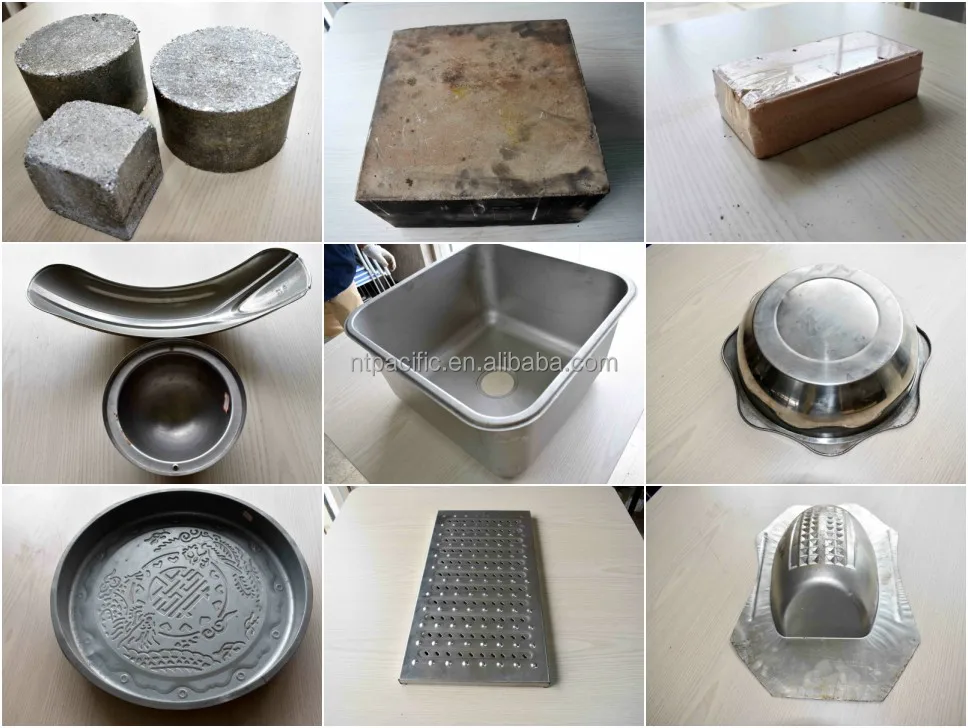

Finished Products
Cylinder
Polished and chromed with high rigidity treatment.
Main Motor
Siemens brand fromGermany.
Hydraulic valve
Cartridge valve equipped for hydraulic control system,reliable,durable and less hydraulic shock,shorter connection pipeline and fewer release points.

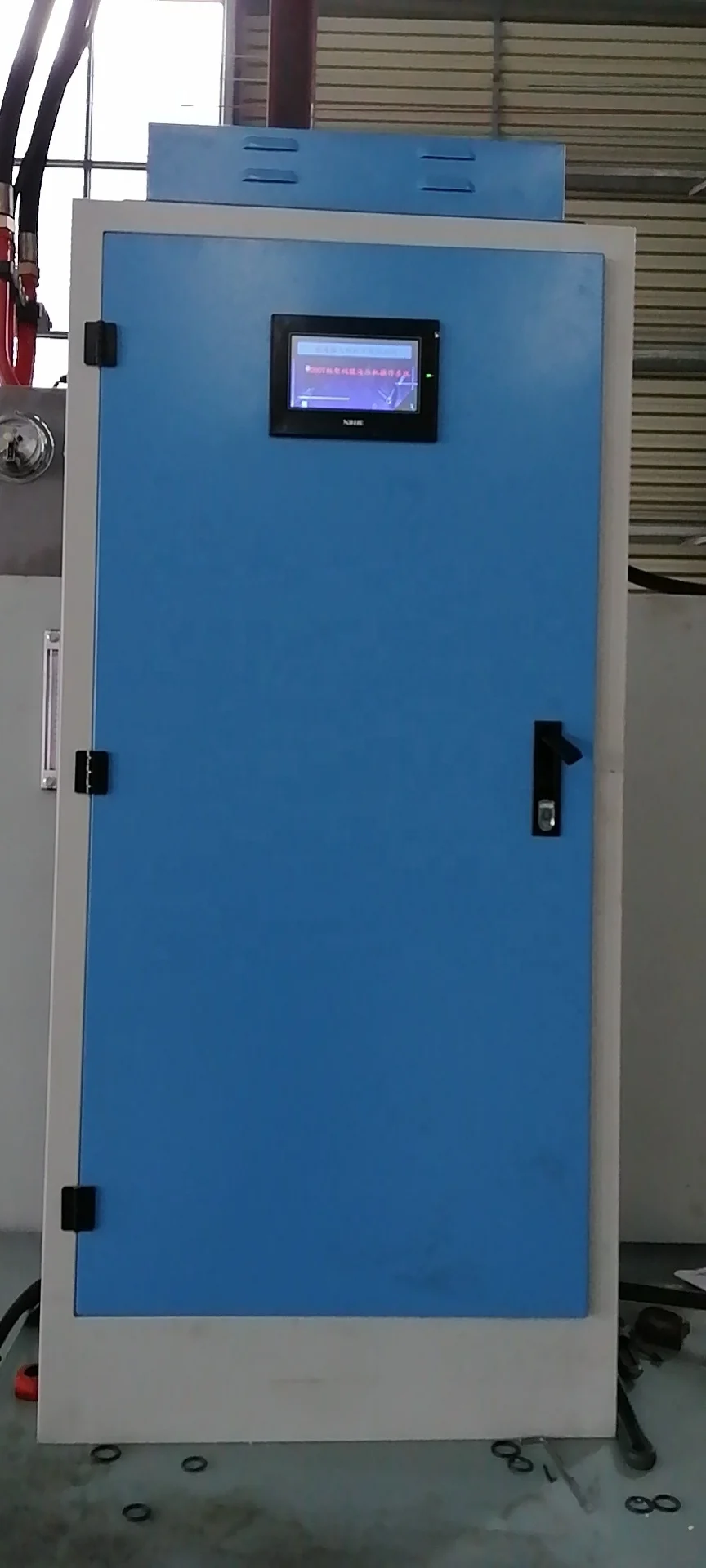

Electric parts
Schneider brand fromFrance.
Workbench
The below platform has equipped with T type slot to make the mold stable.
Pressure gauge
Detect main cylinder and ejection cylinder pressure,adjust system hydraulic pressure
Q1. How about the quality of your machines?
Our company is the key backbone enterprise of the national machinery industry, with a group of experienced professional engineering and technical personnel, production and testing equipment, with 20 years of product manufacturing experience.We are committed to customer satisfaction is our pursuit, quality must make customers satisfied.
Q2. Can you give me a better price for the machine?
1.The quality of the company's products is always good, and we know that the overseas market is more important and difficult than the domestic market.Due to the time cost of after-sales communication, our machines are always of higher quality to ensure that they can work beyond the true warranty period.
2.We will definitely provide quality = price, price = quality, and the matching price is acceptable to the customer.We welcome you to negotiate with us and obtain good satisfaction.
3.As a factory, we have an advantage in price.
Q3. How can we provide you efficient services (metal processing solution)?
There are Three Steps as following:
Our company is the key backbone enterprise of the national machinery industry, with a group of experienced professional engineering and technical personnel, production and testing equipment, with 20 years of product manufacturing experience.We are committed to customer satisfaction is our pursuit, quality must make customers satisfied.
Q2. Can you give me a better price for the machine?
1.The quality of the company's products is always good, and we know that the overseas market is more important and difficult than the domestic market.Due to the time cost of after-sales communication, our machines are always of higher quality to ensure that they can work beyond the true warranty period.
2.We will definitely provide quality = price, price = quality, and the matching price is acceptable to the customer.We welcome you to negotiate with us and obtain good satisfaction.
3.As a factory, we have an advantage in price.
Q3. How can we provide you efficient services (metal processing solution)?
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional
recommendations ;reg. non-standard products, we can offer professional designing.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional
recommendations ;reg. non-standard products, we can offer professional designing.
