Spiral quick freezing machine IQF freezing equipment
US $24000-$26000
Fluidized Quick Freezer Fluidized Bed Quick Freezing Machine IQF Tunnel Freezer for Fruit Vegetable Seafood
- Category: Freezing Equipment >>>
- Supplier: Yantai,Guangwei,Food,Cold-Chain,Technology,Co.,Ltd.
Share on:
Product Overview
Description

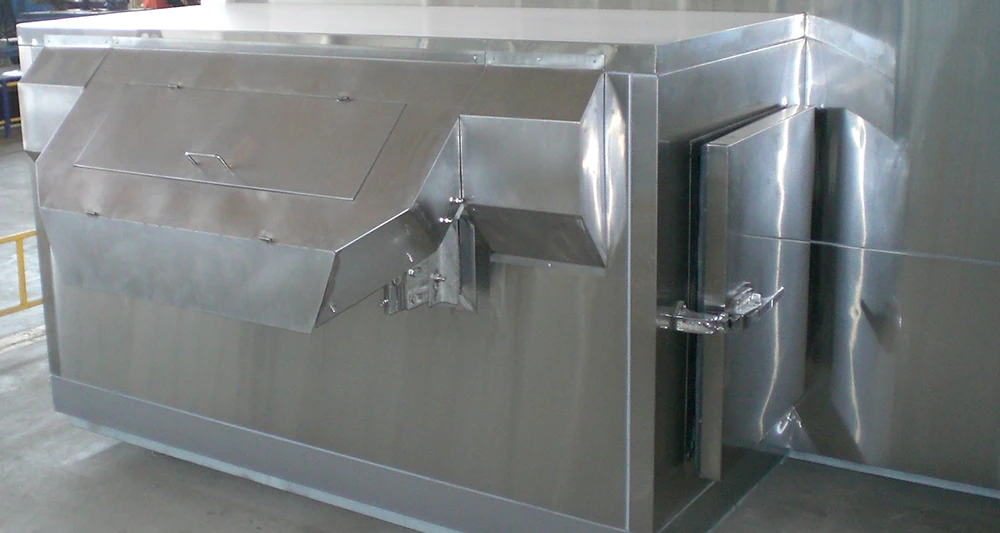

Fluidized tunnel freezer
Compact structure, humanized design, intelligence, high efficiency and energy saving.
The fluidized quick-freezer is a classic two-stage mesh belt freezing equipment. The food is divided into two sections during the freezing process. The first section is the rapid freezing of the surface layer. Under the action of the pulse vibration device, the food particles do not adhere to each other. The second section performs deep and rapid freezing of the food to complete the complete freezing of the food.
The fluidized quick-freezer is a better choice for quick freezing of individual fruit and vegetable foods such as granules, flakes, and strips. Such as: strawberries, french fries, green beans, cowpeas, peas, peppers, cucumbers, chestnuts, corn kernels, carrots, winter bamboo shoots, cauliflower, shiitake mushrooms and so on.
Fresh look Energy efficient
The two-stage design has a better quick-freezing effect for fruit and vegetable single foods, and can maintain the original nutrient content and freshness of the food to a greater extent.
The two-stage design is divided into independent control, each fan is controlled by independent frequency conversion, and the air volume and air pressure can be configured according to different products, which is efficient and energy-saving.
High production
Fluidized quick freezing has fast freezing speed and low dry consumption. The product will maintain its natural volume, shape and color, and can be sold at a premium
Reliable food safety
The user-friendly design makes the equipment easy and convenient to clean, which greatly reduces the risk of cross-contamination between different batches of products.
The fluidized quick-freezer is equipped with high-quality domestic and foreign brand reducers, stepless frequency conversion speed regulation, better speed ratio design, flexible adjustment, and suitable for different product requirements.
The maintenance and insulation warehouse board adopts SUS304 double-sided stainless steel polyurethane warehouse board, and the bottom plate is assembled and welded
It is safe and reliable without any sanitary corners.
It is safe and reliable without any sanitary corners.
The fluidized quick-freezer is designed as an easy-to-operate integrated device with rounded corners and inclined surfaces,
It can be cleaned easily and efficiently, reducing downtime without compromising food safety. Knot
A CIP system can help processors maintain high food safety standards.
It can be cleaned easily and efficiently, reducing downtime without compromising food safety. Knot
A CIP system can help processors maintain high food safety standards.
Model | Dimensions mm L xWxH | Body library length mm | Mesh belt width mm | Input / Output Temperature ℃ |
XFLS1000 | 8160X4300 X3800 | 6960 | 1200 | +15~-18 |
XFLS1500 | 11640X4300 X3800 | 10440 | 1200 | |
XFLS2000 | 13960X4300 X3800 | 12760 | 1200 | |
XFLS2500 | 15700X4300 X3800 | 14500 | 1200 | |
XFLS3000 | 17440X4300 X3800 | 16240 | 1200 |
Freezing temperature ℃ | Currency height mm | Refrigerant working condition | Cold consumption KW | Freezing capacity kg/h | Installed power kw |
-35 | 150 | R507A /R404A R717/R744 +35/-42 ~-45°C | 170 | 1000 | 36 |
230 | 1500 | 59 | |||
290 | 2000 | 77 | |||
360 | 2500 | 96 | |||
430 | 3000 | 111 |

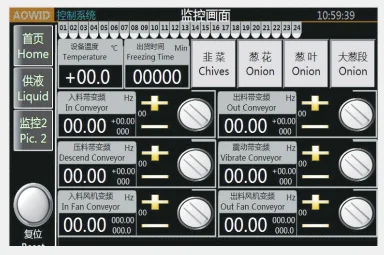

The operating parameters of the man-machine interface are clearly visible, easy to operate, and various freezing formulas can be customized according to customer needs. Can provide remote services and multiple communication options.
Optional PLC control and touch screen operation can be used. If you choose PLC and touch screen control, you can control the operation of the single freezer through the touch screen operation, which can dynamically display the operating status, fault diagnosis, and temperature changes at the corresponding points; you can also set the freezing time in advance to let the single freezer follow the settings Program running.
FAQ
1.What's your advantage?
A: Thte set of heat exchange tube, oval high-frequenay weldaed pipe and thefow af the liquid in the pipe and the pipe outer surlace foma unilarm"wwater film. enhanceci heat tranafer effect Peasonable dicsign all meet the conditions of container transpoert. simple and conwcnient.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to
check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Where are you?
Can I visit you? A: Sure,welcome to you visit our factory at any time.
4.How about the delivery time?
A: Within 60 days after we confirm you requirement.
5.what kind of payment does your company support?
A: T/T, 100% L/C at sight, if you have other payment,please contact me.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to
check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Where are you?
Can I visit you? A: Sure,welcome to you visit our factory at any time.
4.How about the delivery time?
A: Within 60 days after we confirm you requirement.
5.what kind of payment does your company support?
A: T/T, 100% L/C at sight, if you have other payment,please contact me.
