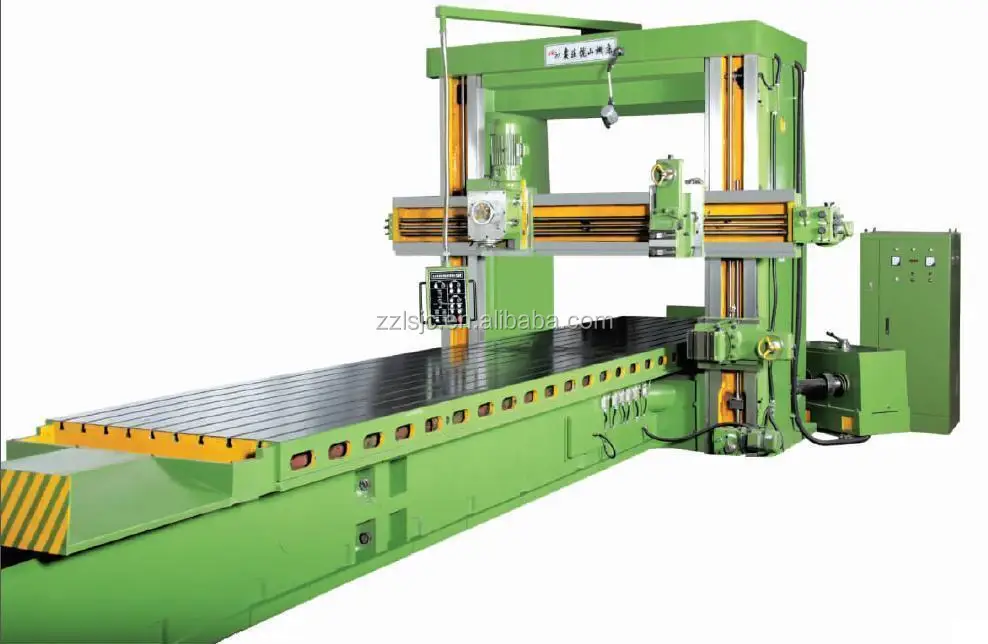

Gantry planer milling machine

Price:RUB 2,311,947.00 - RUB 42,385,695.00

Quantity:

Specifications						BXM20 series Heavy Planer Milling Machine/Double column Planer Milling Machine/Gantry Planer Milling Machine
						BXM220A		BXM220B		BXM220C		BXM220D		BXM220E		BXM225B		BXM225C			BXM225D	BXM230B
Max. work-piece dimensions			Length mm			4000		6000		8000		10000		12000		6000		8000			10000	12000
			Width mm			2000										2500						3000
			Height mm			1500																2000
	Max. load kg					18000	22000		32000		40000		48000		28000		35000		40000			45000
	Motor power kw					30	37		45		55		55		45		55		75			75
Table		Length mm				4000	6000		8000		10000		12000		6000		8000		10000			12000
		Width mm				1600									2200							2600
		Max. allowable pull of rack N				100000
		Feeding speed m/min				0.08-30 Step-less
Distance between columns mm						2020									2520							3020
Vertical tool rest feeding rate					Horizontal mm	0.2-25 Step-less
					Vertical mm	0.2-25 Step-less
Side tool rest feeding rate mm						0.2-12 Step-less
Beam up/down speed mm/min						360
Max. sectional area of planning arbor mm						60 x 60
External dimensions				Length mm		8700	12700		16700		20700		24700		12700		16700			20700		24700
				Width mm		4300	4300		4300		4300		4300		4800		4800			4800		5300
				Height mm		3500	3500		3500		3500		3500		4200		4200			4200		4650
