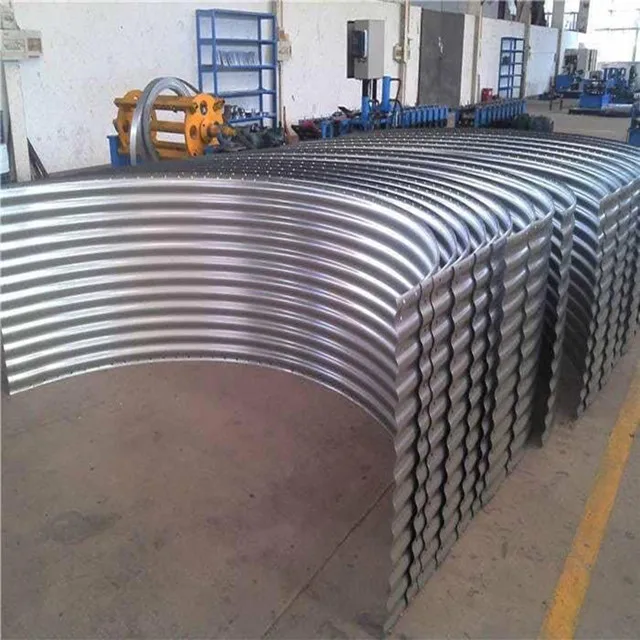

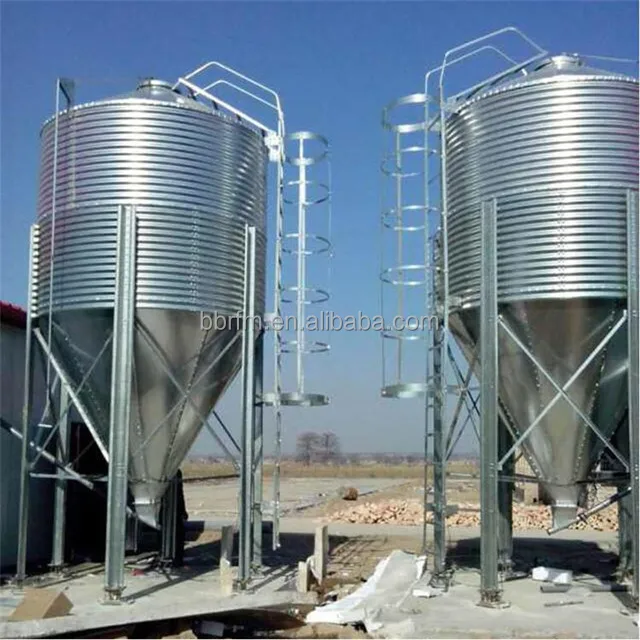

Automatic Metal Galvanized Steel Silo Cold Roll Forming Machinery
- Category: >>>
- Supplier: Dongguang Baibo Tile Machine Co. Ltd.
Share on (1600239089959):
Product Overview
Description
Product Overview
Equipment capacity

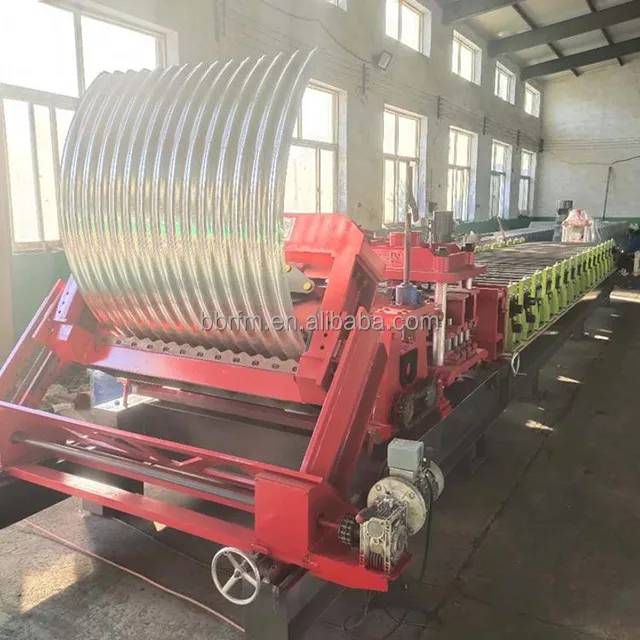

Name: Steel Silo Roll Forming Machine
1, Equipment production capacity:1000mm-1500mm, thickness of steel material: 0.8-4.0mm
1, Equipment production capacity:1000mm-1500mm, thickness of steel material: 0.8-4.0mm
2, Production speed: 8-15m/min
3, Total power: about 21.5kw
3, Total power: about 21.5kw
FEATURES AT A GLANCE
High-temperature quenching and finishing of the rolling die is adopted.

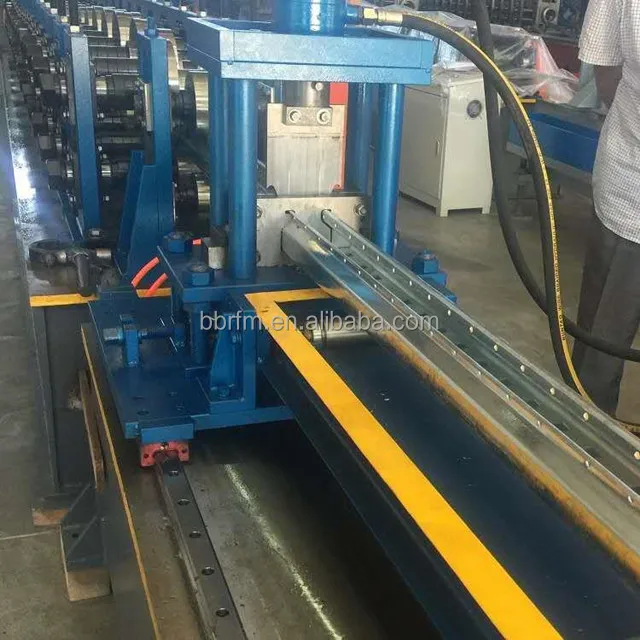

The sliding table of cutting device adopts hydraulic control,
adjustable and reliable

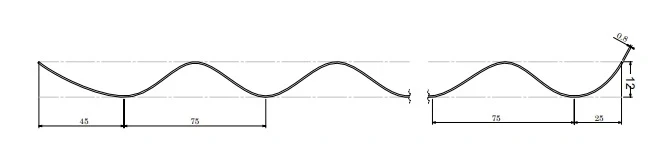

Right elevation
Left elevation
Front elevation
No | Technical Specification & Remark | |
2. Capability: 5 Ton 3. Inter diameter: 470-520mm 4. Maximal out diameter: 1500mm 5. Working speed: 0--20m/min adjustable 6. Main motor power: 5.5KW AC motor 7. Hydraulic power: 4kw 8. Speed controlled by frequency converter 9. Color: blue 10. Quantity: 1 | ||
Main Roll Forming Machine | 2. Roller material: Gcr15 bearing material chrome plated surface with hardness 58-62 degree 3. Shaft diameter: ¢95mm material: SAE1045 with quenching and tempering 4. Transmission: by chain 1.2inch double line | |
3 | Machine structure: | 2. Machine structure: wall panel 3. To avoid accidents, machine drive part has protect cover. |

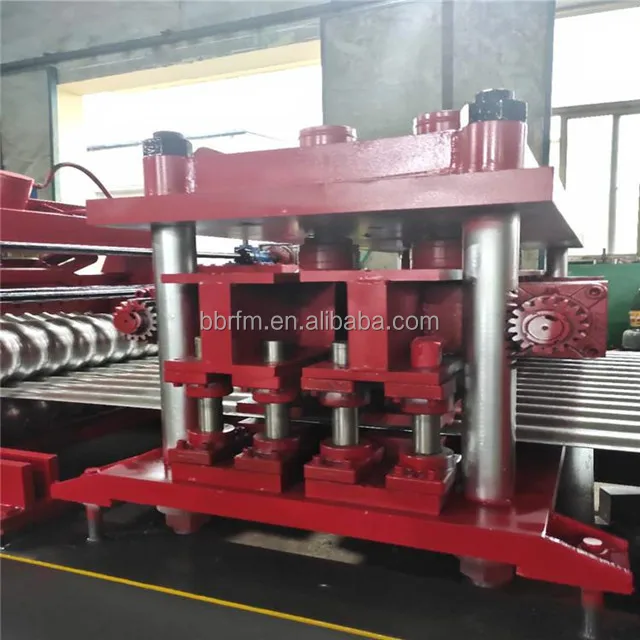

4 | Punching | this machine need adopt two units hydraulic punching system, servo and gear rack drive 1. The punches and dollies will be CR-12, hardness HRC 58-62 and chrome coating. 2. The whole punching operation should be automated and controlled by a program installed in the PC which is located in theoperator's console. 3. Hydraulic power: 11kw 4. Servo motor: 5.5kw |
Hydraulic cutting system | 2. Uses two hydraulic cylinders for operation. 3. Material of blade:Cr12, 58-62 HRC hardness 4. Cutting power by hydraulic,11KW 5. Working pressure: 20Mpa adjustable 6. Length measuring: Automatic encoder length measuring 7. Tolerance of length: +/- 1.5mm for each piece end product | |
2. Max. Diameter: about 3m 3. Maximal feeding width: base on customer drawing 4. Roll speed:0-10m/min 5. Main power:7.5KW 6. Roll station: 3 stations 7. Shaft material:SAE1045 with quenching and tempering 8. Diameter of shaft: 120mm 9. Material of roller: Gcr15 steel, polished and with HRC58-62° 10. Curving mode: horizontal | ||
2. Working pressure: 20Mpa adjustable 3. Solenoid valve: 4 groups 4. Hydraulic oil: 46# hydraulic oil 5. Quantity :1 | ||
1. Programmable setting of profile length and quantity 2. Operating system language: English and Chinese 3. Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase 4. Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved 5. Length inaccuracy can be amended easily. 6. Control panel: Button-type switch and touch screen 7. Unit of length: millimeter 8. PLC brand: Panasonic | ||
2. One out table with one support roller 3. Quantity: 3 units |
Warranty
1. Warranty: 1 year warranty from date of machine begin running in buyer's factory.
2. Guarantee:
3. 1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of machine begin running in
buyer's factory.
Repairs will be made free of charge.
2. Guarantee:
3. 1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of machine begin running in
buyer's factory.
Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3: when machine is in buyer's factory, seller's engineer will be to buyer's factory.Air ticket, transportation cost, hotel, meals
and 100USD per day as salary shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory.
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3: when machine is in buyer's factory, seller's engineer will be to buyer's factory.Air ticket, transportation cost, hotel, meals
and 100USD per day as salary shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory.
1 | Good quality: We have a professional designer and experienced engineer team and the raw material and accessories we use are good. |
2 | Good service: we provide the technical support for whole life of our machines. |
Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts. | |
4 | Easy operation: All machine controlling by PLC computer controlling system. |
5 | Elegant appearance: Protect the machine from rust and the painted color can be customized. |

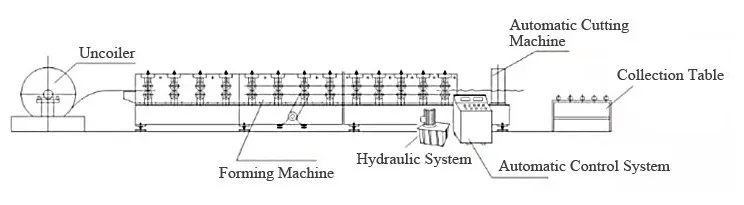

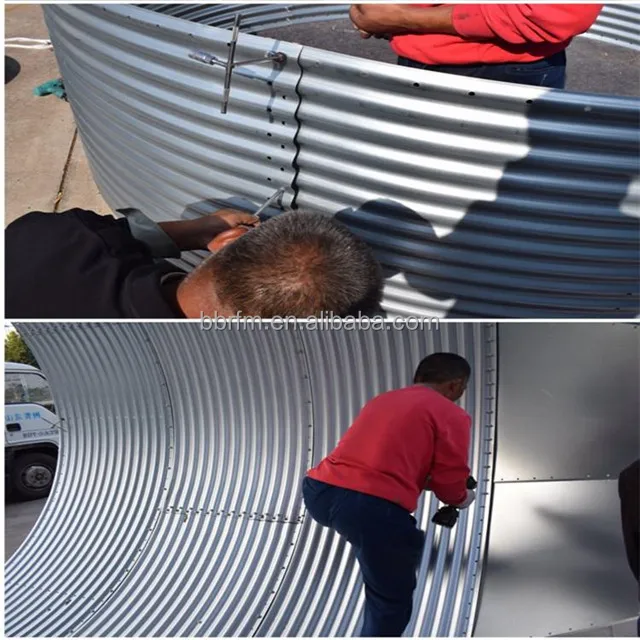

working process

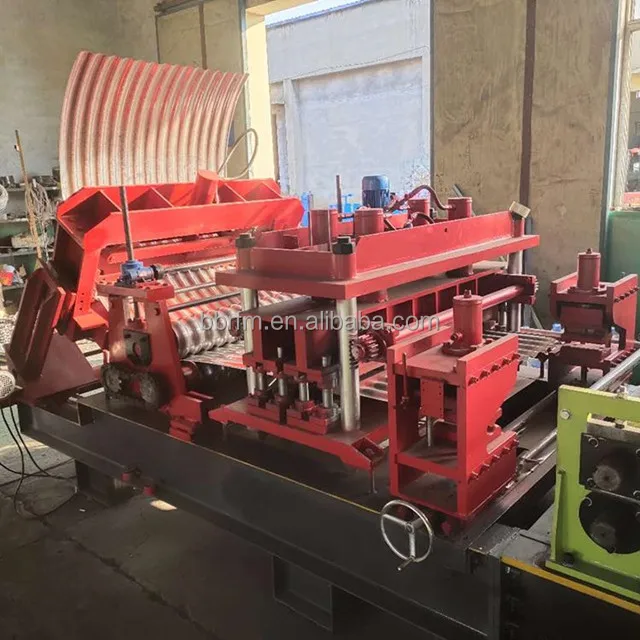

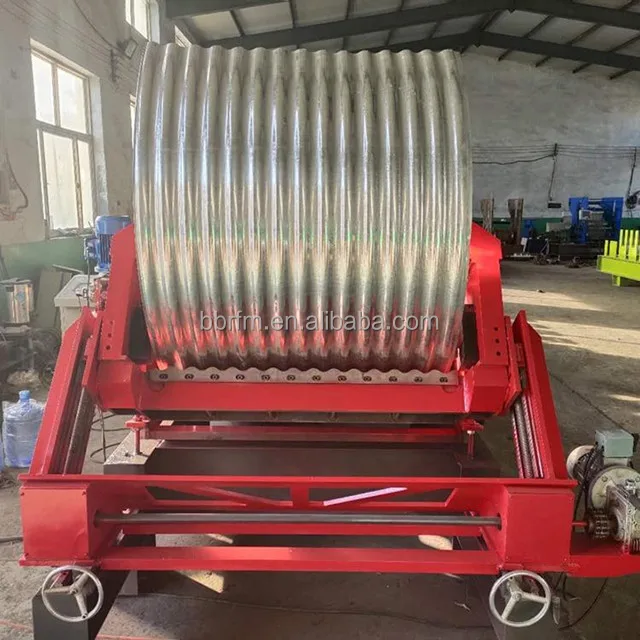

Automatic operation, arc size can be adjusted
Hydraulic automatic feeder
High quality CNC box and hydraulic station
Similar products
company information
Meeting you, growing with you, enjoying with you, supporting you!
certification
Packing&Shipping

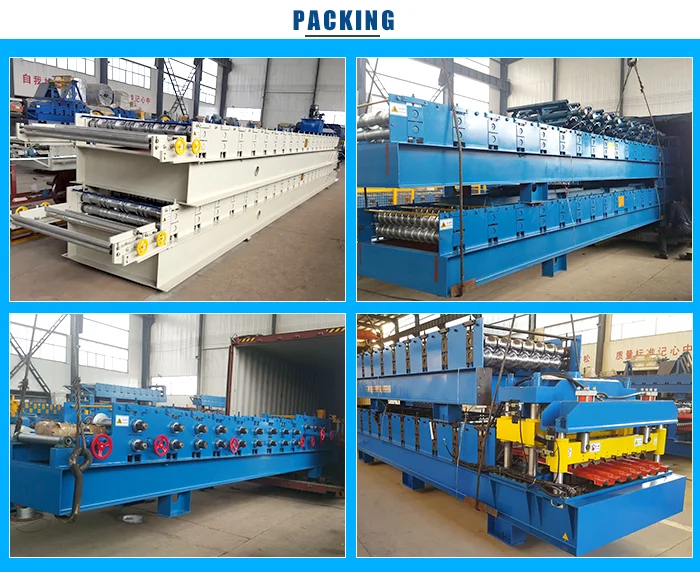

Packing of Tile Roll Forming Machines: Usually because it is very large, so we use wooden package to make it more stable.Or
shipping by containers, which will be more convenient and safty. Shipping of Tile Roll Forming Machines: You can choice use our
agent or your agent all is OK. Just share all your ideas to us, we'll sharing one satisfied planing.
shipping by containers, which will be more convenient and safty. Shipping of Tile Roll Forming Machines: You can choice use our
agent or your agent all is OK. Just share all your ideas to us, we'll sharing one satisfied planing.
FAQ
1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
2. Do you provide training for my workers?
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate before shipping. It only needs 2 hours and you can
operate well.
3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food
Salary of 80 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take
care of his safety.
4. What is included in the machine?
The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand
The whole line includes a manual decoiler, roll forming machine and product stand. when you get the machine in your factory, you
just need to do following 3 things, and then you can start working.
a. Put the machine on the flat level ground.
b. Inject gear oil and hydraulic oil.
c. Connect 3 phase electric wire.
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
2. Do you provide training for my workers?
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate before shipping. It only needs 2 hours and you can
operate well.
3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food
Salary of 80 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take
care of his safety.
4. What is included in the machine?
The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand
The whole line includes a manual decoiler, roll forming machine and product stand. when you get the machine in your factory, you
just need to do following 3 things, and then you can start working.
a. Put the machine on the flat level ground.
b. Inject gear oil and hydraulic oil.
c. Connect 3 phase electric wire.
