Product Overview
Description

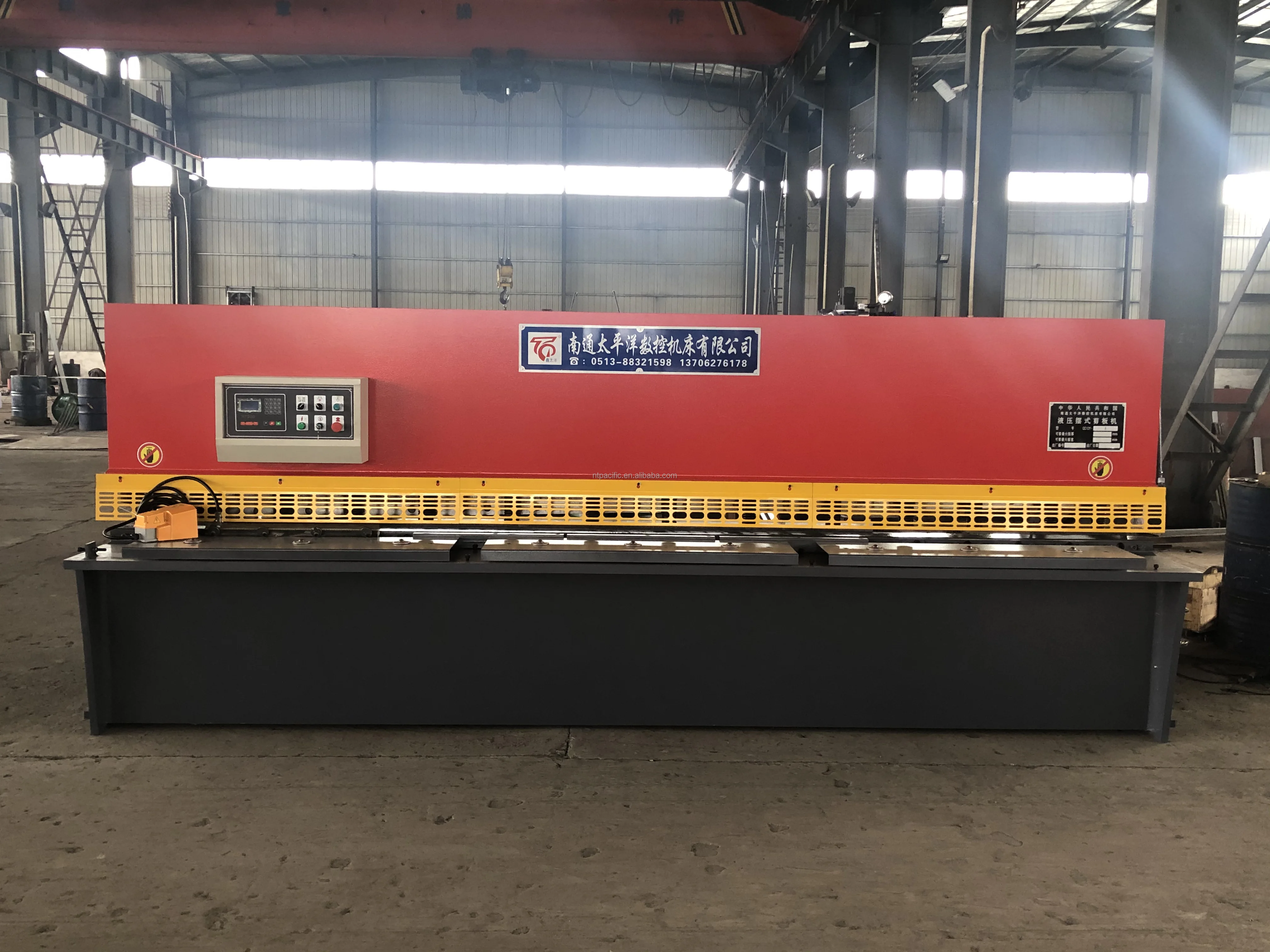

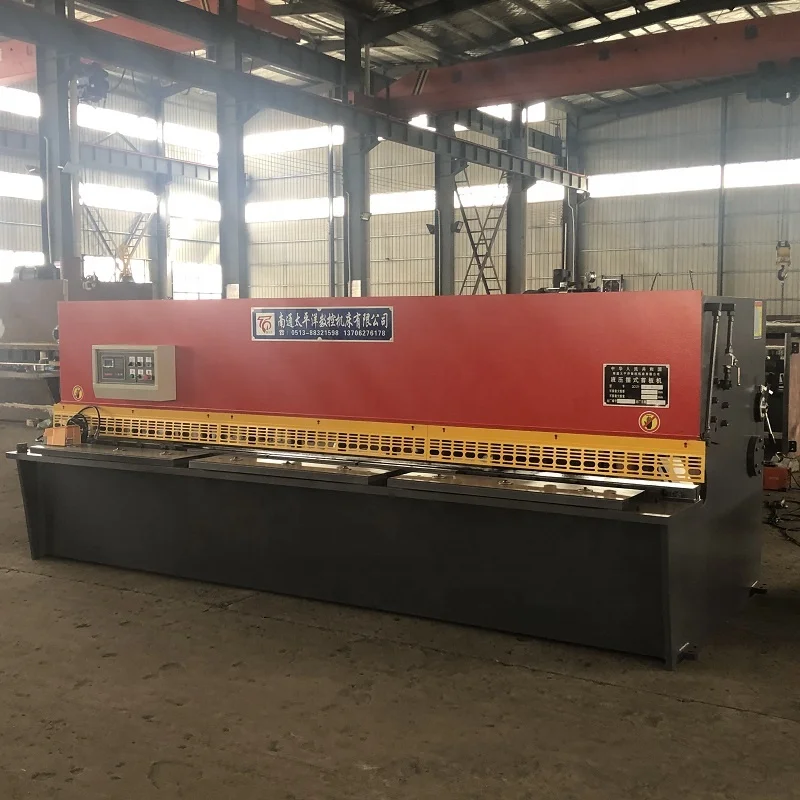

* Swing beam shearing machine
1.Rack,knife vibration to eliminate stress,welding machine,durable
2.Advanced integrated hydraulic system,good reliability
3.Three-point support rolling guide to eliminate the bearing clearance,to ensure the quality of shear
4.Electric blade gap adjustment,quick and accurate
5.On the full use of the blade edge on all sides,the increased use of time
6.Shear angel can be electrically adjusted,reducing the amount of shear deformation plate

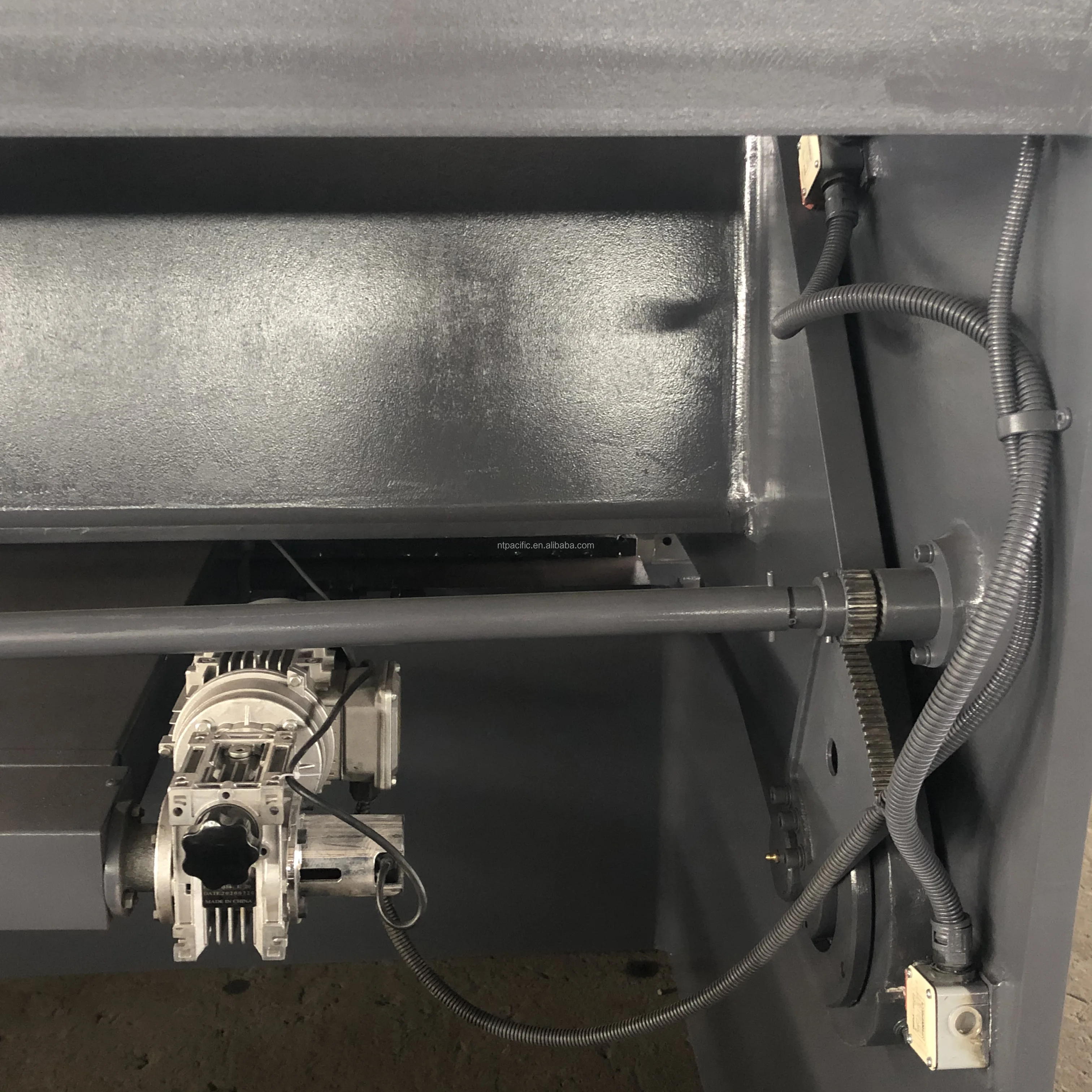

7.After the block,RV reducer electric adjustment,electronic digital display,accurate and reliable
2.Advanced integrated hydraulic system,good reliability
3.Three-point support rolling guide to eliminate the bearing clearance,to ensure the quality of shear
4.Electric blade gap adjustment,quick and accurate
5.On the full use of the blade edge on all sides,the increased use of time
6.Shear angel can be electrically adjusted,reducing the amount of shear deformation plate
7.After the block,RV reducer electric adjustment,electronic digital display,accurate and reliable
Shearing machine main features:
1,German Siemens Motor can be optional
2, France Schneider electric can be optional
3, USA Sunny oil pump is optional
4,Material pressure cylinder, to ensure you the best leakproofness, without oil leak trouble
5, The oil cylinder is with mirror finished, also to reduce oil leak trouble
2, France Schneider electric can be optional
3, USA Sunny oil pump is optional
4,Material pressure cylinder, to ensure you the best leakproofness, without oil leak trouble
5, The oil cylinder is with mirror finished, also to reduce oil leak trouble
Hydraulic system
1)Adopt integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box
2)Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board
3)All seals in cylinder is imported (the most famous brand),good quality and high performance
4)Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
2)Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board
3)All seals in cylinder is imported (the most famous brand),good quality and high performance
4)Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
Blade adjust and cutting precision
1)Adopt hand-wheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting
2)The rectangular mono-block blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality
3)Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal
4)System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.
2)The rectangular mono-block blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality
3)Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal
4)System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.
Built-in Spring Pressure Cylinder
Built-in spring pressure cylinder,its lower end equipped with special material gasket,separately control the pressure,avoiding
aluminium alloy or other softor materials being imprinted
aluminium alloy or other softor materials being imprinted
Workbench

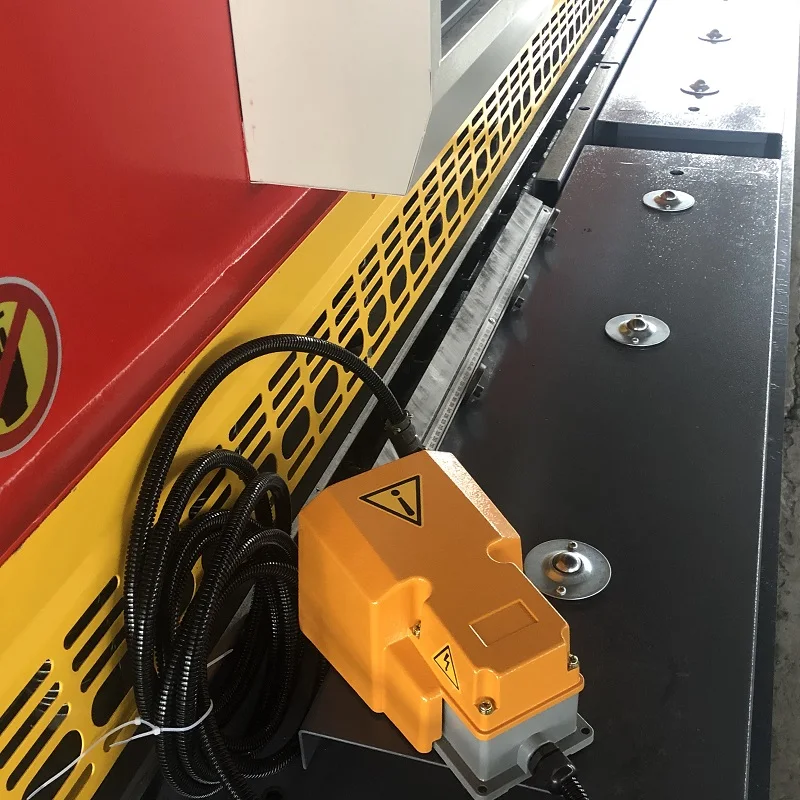

Rolling steel ball of workbench can reduce friction,protect the workpiece urface;delicate desingn is convenienfor cutting petty materials by hand
Hydraulic Valve
Hydraulic transmission with high reliability,integrated dydraulic system can effectivelyalleviate problems caused by leakage of hydraulic fluid,
Electrical system
Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable
safety,long life,good anti-interference ability.
safety,long life,good anti-interference ability.
Controller
E21S controller cantilever device,referrinigto man-machine engineering deign principle,easy CNC system operation
surface,significantly improving the operation precision and comfortability
surface,significantly improving the operation precision and comfortability
Blade Clearance Adjustment
Rapid adjustment mechanism for rearranging blade clearance,easy operation by hand,realizing stepless adjustment of blade clearance

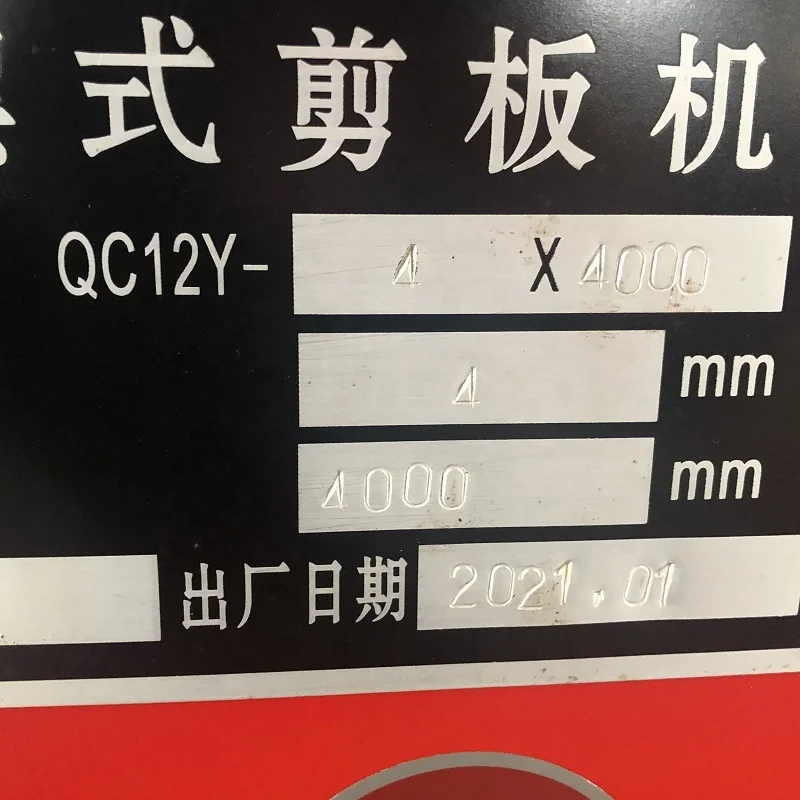

Model (QC12Y Series) | Max cutting thickness (mm) | Max cutting length (mm) | Cutting Angle | Ram strokes (n/min) | Back stop range (mm) | Motor (kw) | Machine size (mm) |
4x2500 | 4 | 2500 | 1.3 | 18 | 20-600 | 4 | 3150x1650x1700 |
4x3200 | 4 | 3200 | 1.3 | 18 | 20-600 | 5.5 | 3840x1675x1600 |
4x4000 | 4 | 4000 | 1.3 | 12 | 20-600 | 5.5 | 4640x1850x1750 |
4x5000 | 4 | 5000 | 1.3 | 10 | 20-600 | 7.5 | 5660x2050x1900 |
4x6000 | 4 | 6000 | 1.3 | 7 | 20-800 | 7.5 | 6730x2250x2500 |
6x2500 | 6 | 2500 | 1.3 | 18 | 20-600 | 7.5 | 3130x1675x1600 |
6x3200 | 6 | 3200 | 1.3 | 14 | 20-600 | 7.5 | 3840x1675x1620 |
6x4000 | 6 | 4000 | 1.3 | 14 | 20-600 | 7.5 | 4630x1850x1700 |
6x5000 | 6 | 5000 | 1.3 | 12 | 20-800 | 11 | 5660x2050x1950 |
6x6000 | 6 | 6000 | 1.3 | 10 | 20-800 | 11 | 6700x2300x2300 |
8x2500 | 8 | 2500 | 1.3 | 12 | 20-600 | 11 | 3130x1530x1600 |
8x3200 | 8 | 3200 | 1.3 | 10 | 20-600 | 11 | 3840x1675x1620 |
8x4000 | 8 | 4000 | 1.3 | 8 | 20-600 | 11 | 4630x1850x1700 |
8x5000 | 8 | 5000 | 1.3 | 7 | 20-800 | 15 | 4630x2050x1950 |
8x6000 | 8 | 6000 | 1.3 | 6 | 20-800 | 15 | 6750x2330x2230 |
10x2500 | 10 | 2500 | 1.3 | 12 | 20-600 | 15 | 3130x1580x1800 |
10x3200 | 10 | 3200 | 1.3 | 10 | 20-600 | 15 | 3840x1725x1850 |
10x4000 | 10 | 4000 | 1.3 | 8 | 20-600 | 15 | 4650x1900x1850 |
10x5000 | 10 | 5000 | 1.3 | 8 | 20-800 | 15 | 5600x2000x1950 |
16x2500 | 16 | 2500 | 1.3 | 10 | 20-600 | 18.5 | 3200x2150x2250 |
16x3200 | 16 | 3200 | 1.3 | 9 | 20-600 | 18.5 | 3900x2150x2250 |
16x4000 | 16 | 4000 | 1.3 | 8 | 20-600 | 22 | 4700x2150x2250 |
16x5000 | 16 | 5000 | 1.3 | 6 | 20-600 | 30 | 5800x2500x2500 |
Q1. How about the quality of your machines?
Our company is the key backbone enterprise of the national machinery industry, with a group of experienced professional engineering and technical personnel, production and testing equipment, with 20 years of product manufacturing experience.We are committed to customer satisfaction is our pursuit, quality must make customers satisfied.
Q2. Can you give me a better price for the machine?
1.The quality of the company's products is always good, and we know that the overseas market is more important and difficult than the domestic market.Due to the time cost of after-sales communication, our machines are always of higher quality to ensure that they can work beyond the true warranty period.
2.We will definitely provide quality = price, price = quality, and the matching price is acceptable to the customer.We welcome you to negotiate with us and obtain good satisfaction.
3.As a factory, we have an advantage in price.
Q3. How can we provide you efficient services (metal processing solution)?
There are Three Steps as following:
Our company is the key backbone enterprise of the national machinery industry, with a group of experienced professional engineering and technical personnel, production and testing equipment, with 20 years of product manufacturing experience.We are committed to customer satisfaction is our pursuit, quality must make customers satisfied.
Q2. Can you give me a better price for the machine?
1.The quality of the company's products is always good, and we know that the overseas market is more important and difficult than the domestic market.Due to the time cost of after-sales communication, our machines are always of higher quality to ensure that they can work beyond the true warranty period.
2.We will definitely provide quality = price, price = quality, and the matching price is acceptable to the customer.We welcome you to negotiate with us and obtain good satisfaction.
3.As a factory, we have an advantage in price.
Q3. How can we provide you efficient services (metal processing solution)?
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional
recommendations ;reg. non-standard products, we can offer professional designing.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional
recommendations ;reg. non-standard products, we can offer professional designing.
