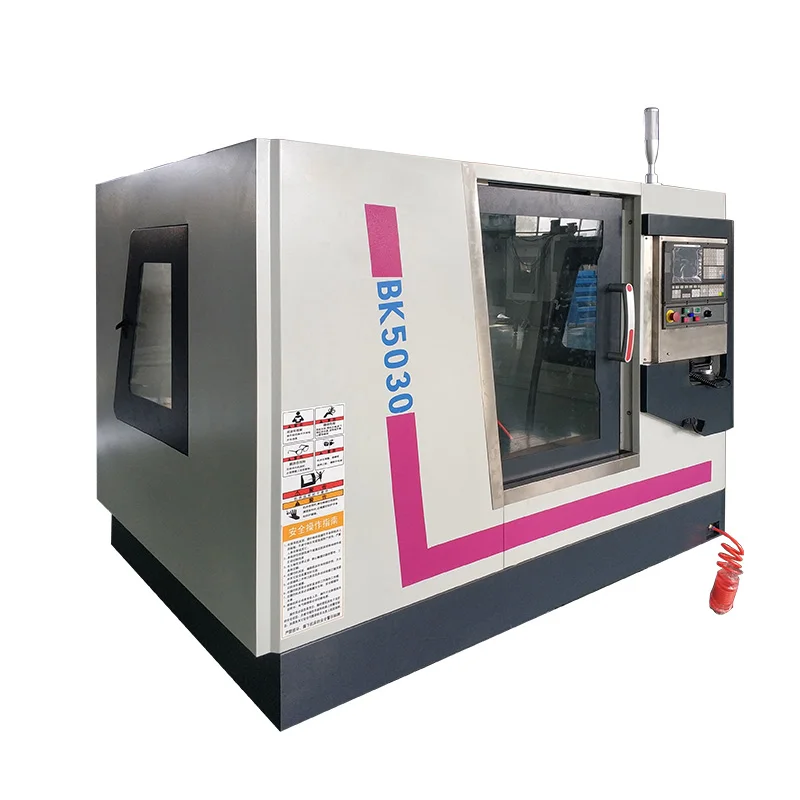

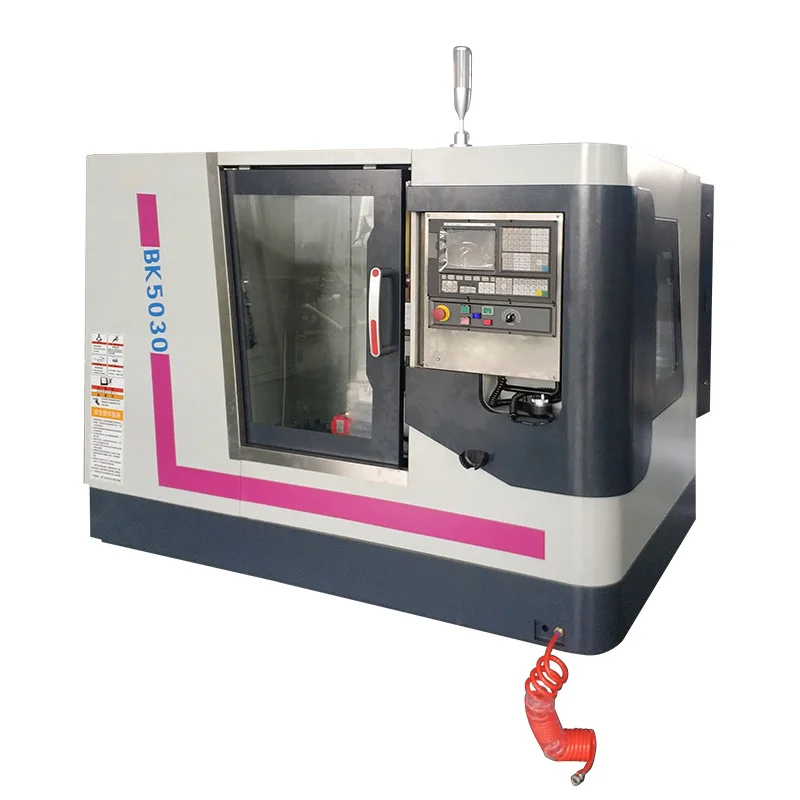

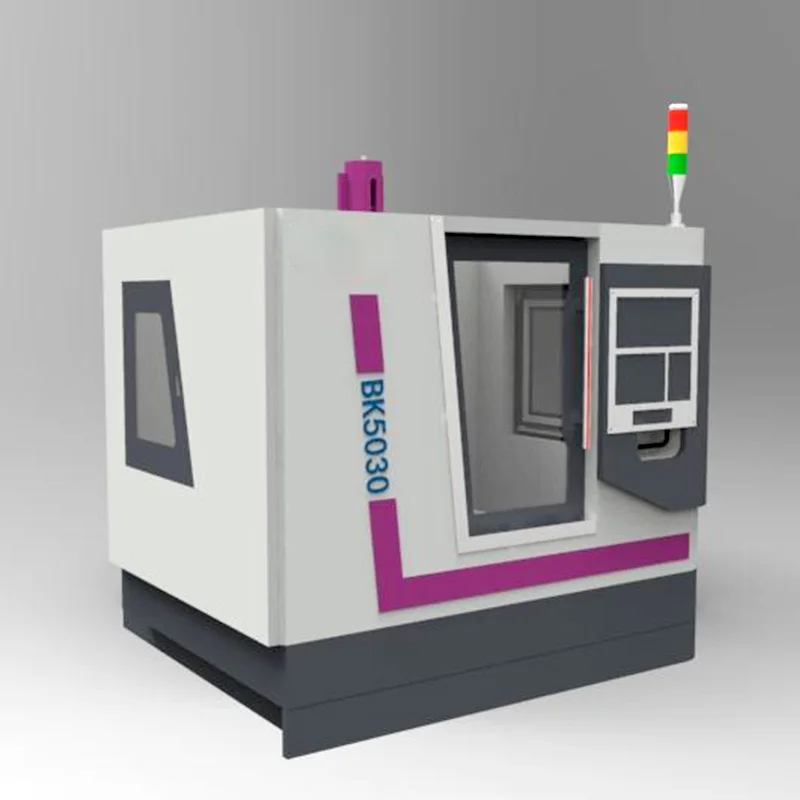

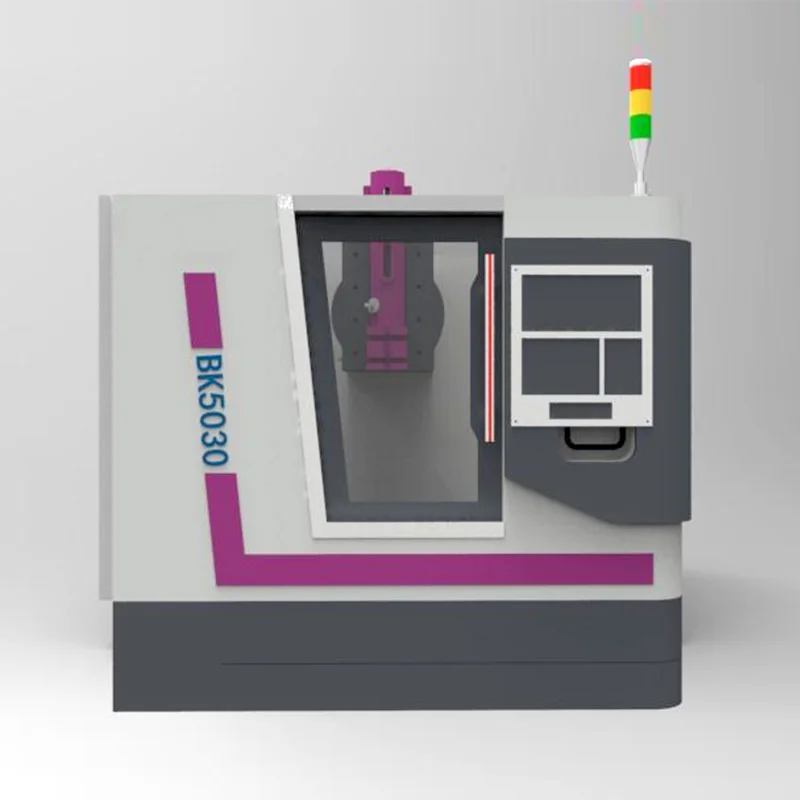

factory direct sell vertical metal slotting machine BK5030 with CE standard
factory direct sell vertical metal slotting machine BK5030 with CE standard
factory direct sell vertical metal slotting machine BK5030 with CE standard
factory direct sell vertical metal slotting machine BK5030 with CE standard
factory direct sell vertical metal slotting machine BK5030 with CE standard
factory direct sell vertical metal slotting machine BK5030 with CE standard
factory direct sell vertical metal slotting machine BK5030 with CE standard

factory direct sell vertical metal slotting machine BK5030 with CE standard

Share on (1600249201117):


Price:

Quantity:


Product Overview

Description

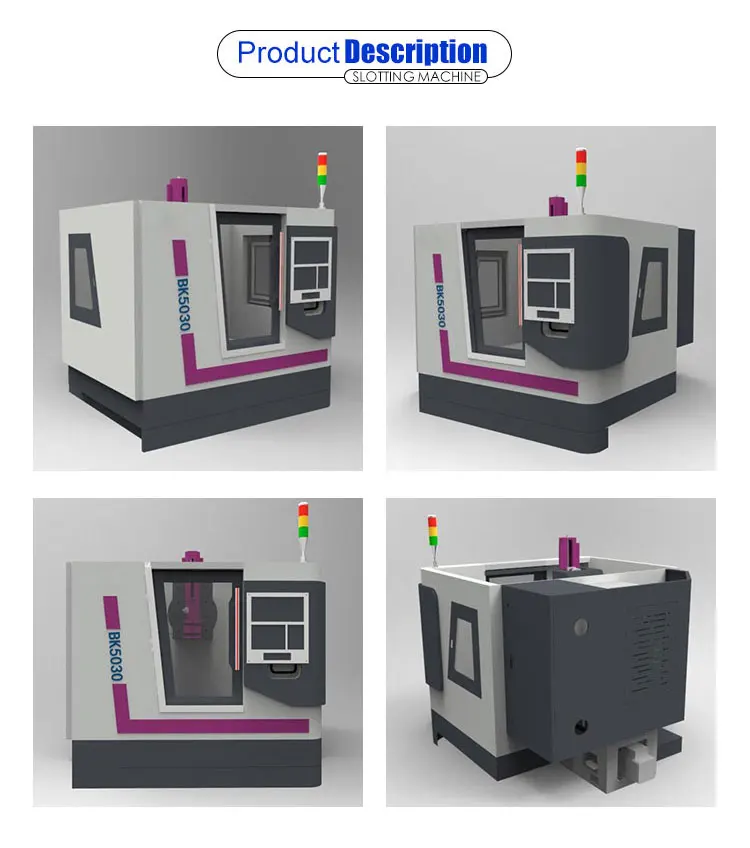

Product Description




Machine features of slotting machine:
1. Full protection.
2. Equipped with external hand wheel.
3. The main motor is the servo motor.
4. Optional TK13250 CNC rotary table is available.
5. The Y-axis screw nut type is preloaded with double nuts.
6. The vertical degree of Z direction and Y axis is no more than 0.02mm.
7. The rotary table is controlled by knd1000m-c numerical control system.
8. The transmission mode is synchronous belt transmission with low noise and high transmission power.


Specification
unit
BK5030
BK5032
Max length of ram
mm
300
320
Ram adjustment stroke
mm
75
315
Number of ram movements
N/min
30-180
20/32/50/80
Worktable size
mm
550x405
600x320
Table travel X/Y
mm
280x330
620x560
The distance between the axis of the tool bearing hole and the forearm of the column
mm
505
600
The distance between the end face of the cutter head support hole and the table
mm
540
590
X direction motor torque
(N.M.)
6
7.7
Y direction motor torque
(N.M.)
6
7.7
Fast moving
X(m/min)
5
5
Y(m/min)
5
5
Ball screw(X)
FFZD3205-3/P4
FFZD3205-3/P4
Ball screw(Y)
FFZD3205-3/P4
FFZD3205-3/P4
Main motor power
kw
3.7
4
Machine weight (approx.) Kg
kg
3500
3700
Packing size
mm
2600/2300/2450
2800/2400/2550

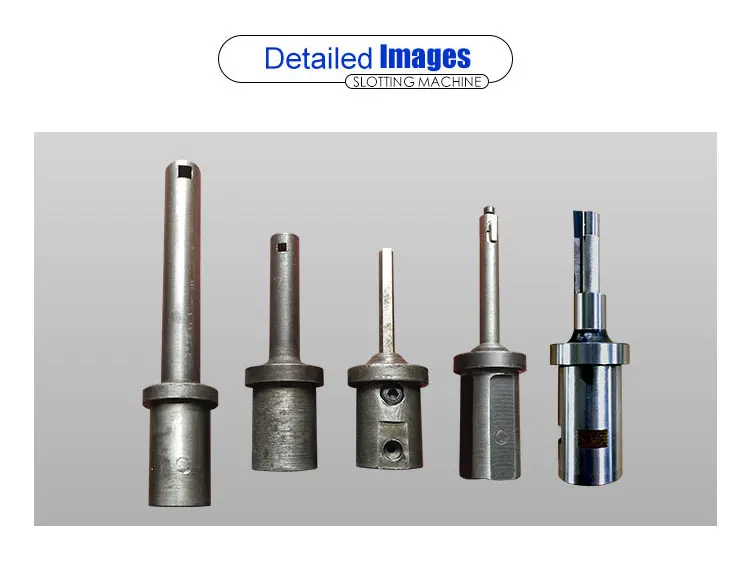

Details Images








Company Profile




FAQ


Q1: How
is the warranty?
A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?
A4:One set only.

Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
