Поставщик дешевый оптовый 48 В центробежный вентилятор с высоким статическим давлением

Поставщик дешевый оптовый 48 В центробежный вентилятор с высоким статическим давлением

Category: Radial Fans >>>
Supplier: Ningbo,Anchor,Drive,Technology,Co.,Ltd.

Price:79,50 $ - 90,50 $

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

Product Model	AB C8018-1	Brand	ANCFLOW
SPEC	AB C8018-12/24/48V-7.5kPa-670LPM	max.Speed	36,300rpm

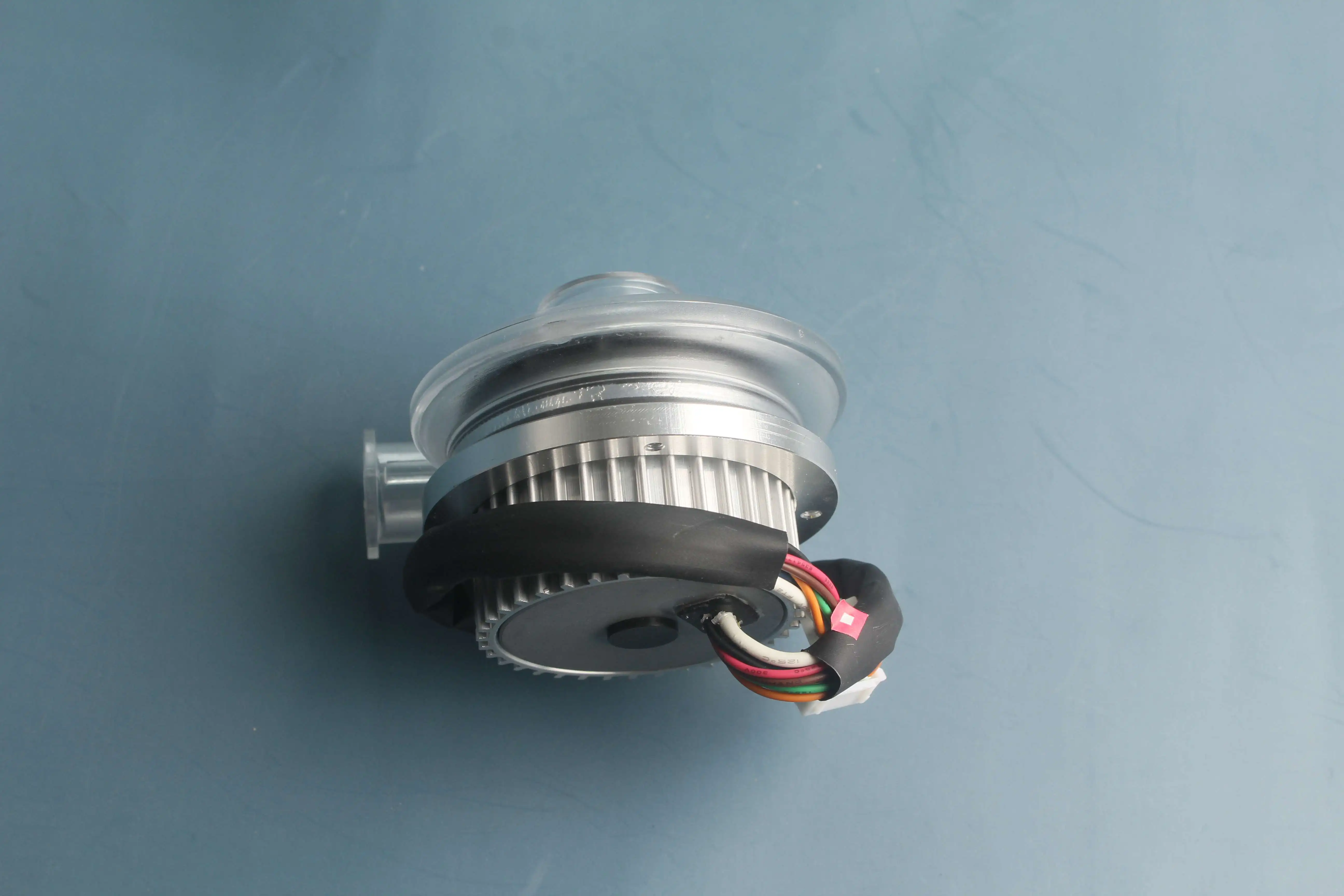

Part Name	Brushless DC Blower	max.Airflow	670LPM(40.2m³/h)
Motor Driver	AC06	max.Static Pressure	7.5kPa
Service Life	20,000h	Rated Speed	30,900rpm
Rated Voltage	12/24/48 VDC	Rated Airflow	328LPM(19.7m³/h)
Voltage Range	12VDC:9-16V 24VDC:14-28V 48VDC:6-60V	Rated Static Pressure	5.4kPa
Peak Power	80W	Environmental Temperature	-20℃~+50℃
Rated Power	60W	Humidity	≤85%RH
Mass	300g	Motor Driver	External
Size	85.3(L)82.2(W)60.9(H)mm	Speed Control	PWM or 0-5V
Volute Material	PC	Impeller Material	PA6
Application Scenarios	medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking,household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator and so on.

More Products

Company Information

Exhibition

mode-ningbomaodian_04

Certifications

mode-ningbomaodian_05

Why Choose Us

mode-ningbomaodian_07

FAQ

1: Are you factory or only company?

We have factory to produce burshless blowers, fans, motors and motor drivers.

2: Why we can choose you?

1) Professional- we always offer system solutions based on your specific application scenarions. 2) Reliable- we have a robust manufacturing and quality assurance system in place, can offer customers with high quality products with competitive price.

3: How abut the shipping cost?

Out price is an ex-work price. We can quote the price based on FOB, CIF&CNF as you like, then you cn choose whether use our forwarder or yours.

4: How about the price? Can you make it cheaper?

The price depends on item your demand(model, quantity). Final quotation according to receiving full descripption of your SOR or SPEC.

5: How about the sample time? What is the payment? According to customer's requirements, if choose a base model, then the sample time is 5-10 days after e-proof confirmed and your payment received.
