Прямая продажа с фабрики AB C9002-24V-1 низкий уровень шума микро-бесшумный вентилятор 24V Мини центробежный воздухонагнетатель широкого спектра применения
- Category: Radial Fans >>>
- Supplier: Ningbo,Anchor,Drive,Technology,Co.,Ltd.
Share on:
Product Overview
Description

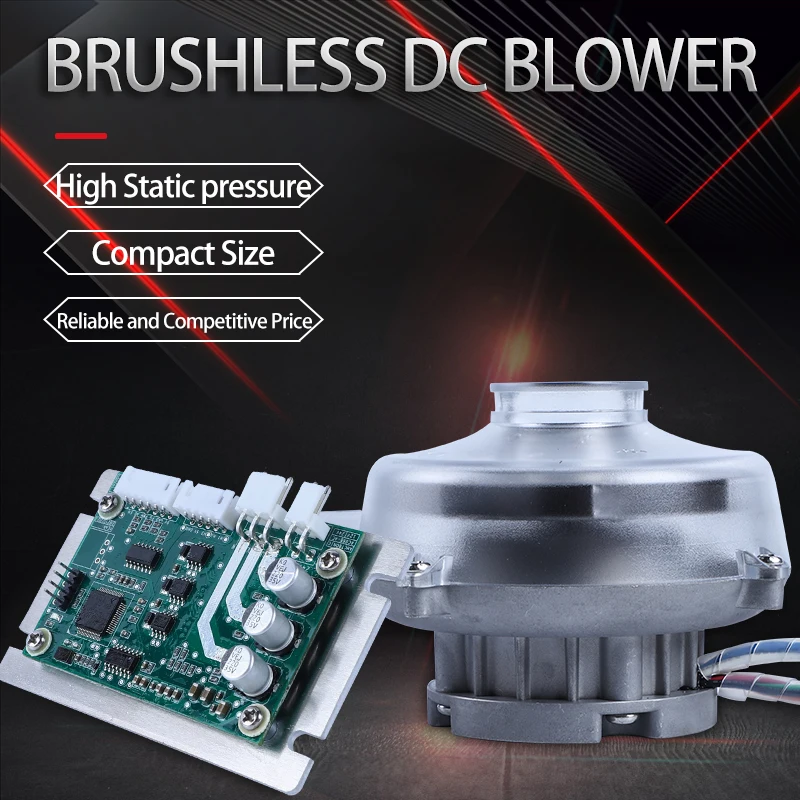

Factory Direct Sale AB C9002-24V-1 Low Noise Micro Silent Fan Blower 24V Mini Centrifugal Blower Fan
Product Parameter
Product Model | AB C9002-24V-1 | Brand | ANCFLOW | ||
Product SPEC | AB C9002-24V-10.5kPa-1160LPM | max.Speed | 33,800rpm | ||
Part Name | Brushless DC Blower | max.Flow-rate | 1,160LPM（69.6m³/h） | ||
Motor Driver | AC06 | max.flow Speed | 85.2m/s | ||
Motor Driver Layout | External | max.Static Pressure | 10.5kPa | ||
Lifetime | 20,000h | Rated Speed | 28,400rpm | ||
Rate Voltage | 24VDC | Rated Airflow | 502LPM（30.1m³/h） | ||
Voltage Range | 14-28V | Rated Static Pressure | 7.4kPa | ||
Peak Power | 175W | Work Temp. | -20℃~+50℃ | ||
Rated Power | 135W | Humidity Range | ≤85%RH | ||
ID of Inlet | 22.7mm | ID of Outlet | 17.0mm | ||
Mass | 320g | Wire Length | 300mm | ||
Size | 102.85(L)*95.35(W)*69.37(H)mm | Bearing | Ball Bearing (NMB) | ||
Housing Material | PC+ Aluminum | Impeller Material | PA6 | ||
Application Scenarios | medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking, household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator, etc. | ||||
Product Details
Company Profile
Certificates And Honors
Payment Shipping
FAQ
1) Are you a factory or only a trading company?
We have a factory to produce brushless DC blowers, fans, motors and motor drivers.
2) Why to choose us?
a. Professional- we always offer system solutions based on your specific application scenarions.
b. Reliable- we have a robust manufacturing and quality assurance system in place, can offer customers with high quality products with competitive price.
3) How abut the shipping cost?
Out price is an ex-work price. We can quote the price based on FOB, CIF&CNF as you like, then you can choose whether to use our forwarder or yours.
4) How about the price? Can you make it cheaper?
The price depends on product model types and its order size. The final quotation will be based on your full description of SOR or SPEC.
5) How about the lead time? What is the payment?
According to customer's specific requirements, if to choose a base model, then it will take 5-10 days after e-proof confirmed and your payment is received.
We have a factory to produce brushless DC blowers, fans, motors and motor drivers.
2) Why to choose us?
a. Professional- we always offer system solutions based on your specific application scenarions.
b. Reliable- we have a robust manufacturing and quality assurance system in place, can offer customers with high quality products with competitive price.
3) How abut the shipping cost?
Out price is an ex-work price. We can quote the price based on FOB, CIF&CNF as you like, then you can choose whether to use our forwarder or yours.
4) How about the price? Can you make it cheaper?
The price depends on product model types and its order size. The final quotation will be based on your full description of SOR or SPEC.
5) How about the lead time? What is the payment?
According to customer's specific requirements, if to choose a base model, then it will take 5-10 days after e-proof confirmed and your payment is received.
