DF6367 hardware fast protection and fault alarm function meter test equipment
- Category: Test Instruments >>>
- Supplier: Yantai Dongfang Wisdom Electric Co. Ltd.
Share on (1600252928232):
Product Overview
Description
Products Description
Overview

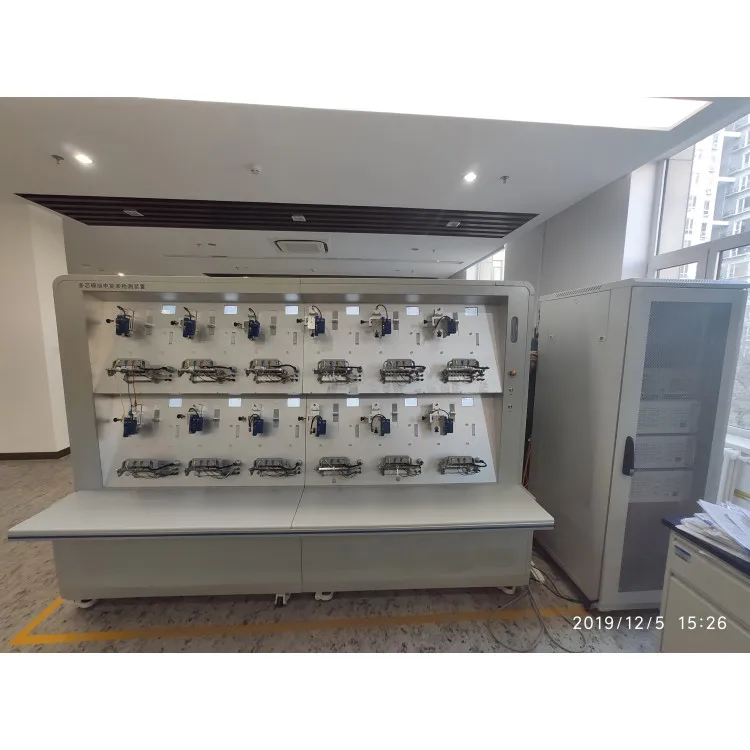

DF6367 new generation of electric meter calibration device is based on the requirements of IEC62052 measuring equipment, IEC 62053 special requirements of electric quantity measuring equipment (AC) and the latest standard developed by OIML R46-1/-2：Edition 2012(E) active power meter, which has multiple functions such as integrated metering calibration, complex waveform output, fast load current change, grounding fault, dynamic error testing and so on to meet the needs of energy enterprises, metering institutions, meter production enterprises and scientific research institutions.MAIN FEATURES
1.Support the output of the 5th harmonic, square top wave, sharp top wave ,90 degree phase trigger, 45 degree waveform, 135 degree waveform, pulse group trigger and other complex waveforms required in the IR46 and the calibration of electric energy.
2.AC current output of the device as low as 1 mA.
3.The experiment of fast changing load current required by OMIL R46 can be realized, and the accuracy calibration of electric energy can be supported. The ton and toff time can be set freely.
4.2~50 harmonic waveform setting and analysis, content and histogram real-time display.
5.Real-time waveform display, including time domain diagram, frequency domain diagram, vector diagram.
6.Hardware fast protection and fault alarm function.
7.Calibration data storage and query function.
8.Linked with electromagnetic compatibility test equipment to automatically output test reports.
9.Positive and negative harmonic energy calibration experiment.
10.Real-time display of electrical parameters such as voltage, current, power, power factor, and frequency.
11.Support basic error, latent motion, starting, running, constant checking and other experiments.
1.Support the output of the 5th harmonic, square top wave, sharp top wave ,90 degree phase trigger, 45 degree waveform, 135 degree waveform, pulse group trigger and other complex waveforms required in the IR46 and the calibration of electric energy.
2.AC current output of the device as low as 1 mA.
3.The experiment of fast changing load current required by OMIL R46 can be realized, and the accuracy calibration of electric energy can be supported. The ton and toff time can be set freely.
4.2~50 harmonic waveform setting and analysis, content and histogram real-time display.
5.Real-time waveform display, including time domain diagram, frequency domain diagram, vector diagram.
6.Hardware fast protection and fault alarm function.
7.Calibration data storage and query function.
8.Linked with electromagnetic compatibility test equipment to automatically output test reports.
9.Positive and negative harmonic energy calibration experiment.
10.Real-time display of electrical parameters such as voltage, current, power, power factor, and frequency.
11.Support basic error, latent motion, starting, running, constant checking and other experiments.
PROJECT | Technical parameters |
Accuracy | Active : 0.02,0.05; Reative:0.2,0.5 |
Power stabilization | ≤0.03%/3 minutes |
Phase parameters | The adjustment range is 0～360°，the measurement accuracy is 0.01° |
Current range | 0.3mA～120A |
Waveform distortion | ≤±0.5% |
Frequency parameter | 45Hz～65Hz，measurement accuracy 0.01Hz |
Voltage output capacity | 400VA |
Current output capacity | 800VA |
Cabinet size | 600*700*800 L*W*H |
Meter frame size | 2634*900*1862 L*W*H |
Measurement of Complex Waveform
Square top wave
Sharp wave waveform
