K power 10kg HV waterproof slim metal case coreless digital rc servo for rc car boat toys robot DHV815
- Category: >>>
- Supplier: Dongguan K-Power Technology Co. Ltd.
Share on (1600255104087):
Product Overview
Description
Product Description

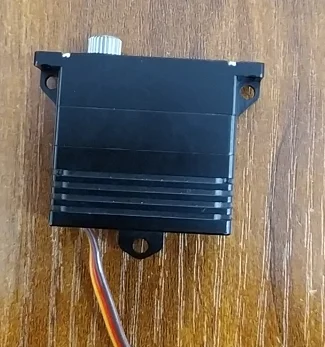

K-power 10kg High voltage slim metal case rc servo for rc robot rc hobby DHV815
--Coreless motor and strong metal gear ensure long life time.
--Voltage range: 4.8V~8.4V
--Full CNC aluminum case keeps good heat dissipation.
Product Parameters
| Item No. | DHV815N | |
| Dimension | 39.4*14.6*29.5mm | |
| Weight | 30g | |
| Voltage Range | DC4.8-8.4V | |
| Rated Voltage | 6.0V | 7.4V |
| Stall Torque | 8kg·cm | 10kg·cm |
| No load Speed | 0.10sec/60° | 0.08sec/60° |
| Motor Type | Coreless | |
| Communication Method | PWM(deadband 1-2μs) | |
| NO.of Wire | 3Pin | |
| Position Sensor | Potentiometer | |
| Case | CNC Aluminium Alloy | |
| Gear | 7075 Aluminium Coated With Titanium | |
Detailed Images
Company Information

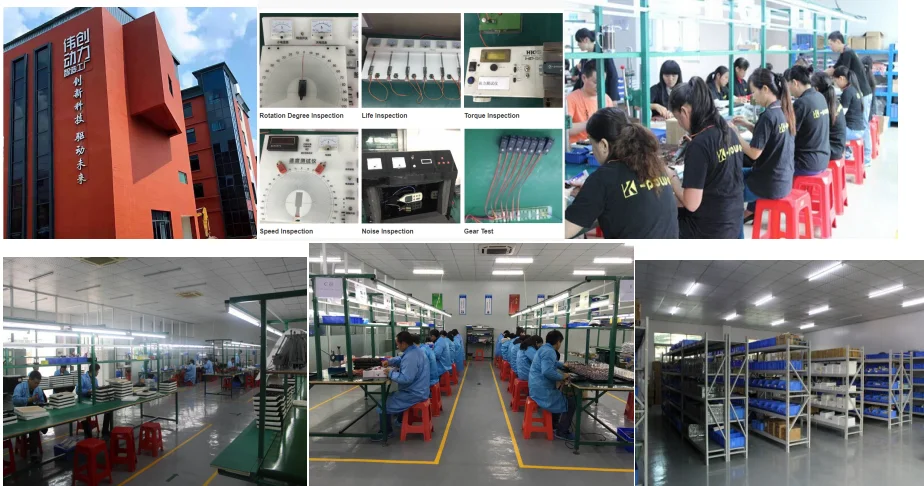

K-power is a professional rc servo manufacturer since 2005 and become the top 3 rc servo manufacturer in China now. We certified ISO9001 in 2015. We are specializing in servos for RC robot, smart home, RC model, RC car, industrial equipment and agricultural machinery. Our servo has CE, FCC, ROHS certifications. We are keeping R&D various types of servos, such as servos for RC robot/Smart Home/RC Plane/RC car/RC boat/educational robot. Customized, OEM & ODM are welcome
Certifications
FAQ
Q: Can I get a free sample?
A: Some servos support free sample. Please contact with us for more detailed information.
Q: What is your servo's rotation angle?
A: The rotation angle can be adjusted according to your requirements, but it is 0~120 degree if no requirement, please do contact with us if you need special rotation angle.
Q: What is your servo's communication?
A: PWM, TTL, RS485 are optional. most of servo are PWM if no requirement, please do contact with us if you need not PWM.
Q: Can I get customized servo?
A: Of course! we have an excellent and Professional R&D Department, providing the supports for both constructional design and software. Perfect customization services are our main business.
We are confident we can make any to suit your application
Q: For a customized servo, how long is the R&D time (Research & Development time)?
A: Normally, 10~50 business days depends on your requirements.
