Explosion proof 4 20mA & Rs 485 factory direct sales H2S Analyser Hydrogen sulfide Gas Leak Detector
- Category: Gas Analyzers >>>
- Supplier: Shenzhen Eyesky Technology Co. Ltd.
Share on (1600258648979):
Product Overview
Description
Company Profile
Products Description
h2s analyzer is second only to a fixed by wall-mounted installation, pipeline installation and circulation type (stack) are
widely used in: petrochemical, industrial production, smelting, forging, electric power, coal mine, tunnel engineering,
environmental monitoring, wastewater treatment, biological, pharmaceutical, household environmental protection, animal husbandry and aquaculture, greenhouse cultivation, warehousing logistics, brewing fermentation, agricultural production, fire, gas, buildingconstruction, municipal enterprises, school laboratory, research center and other industries.
widely used in: petrochemical, industrial production, smelting, forging, electric power, coal mine, tunnel engineering,
environmental monitoring, wastewater treatment, biological, pharmaceutical, household environmental protection, animal husbandry and aquaculture, greenhouse cultivation, warehousing logistics, brewing fermentation, agricultural production, fire, gas, buildingconstruction, municipal enterprises, school laboratory, research center and other industries.

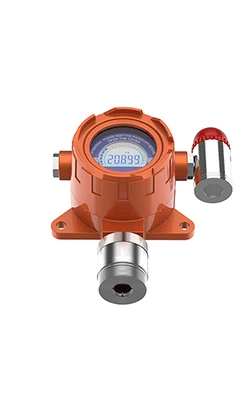

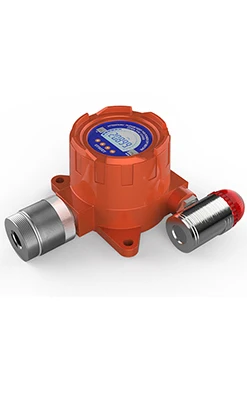

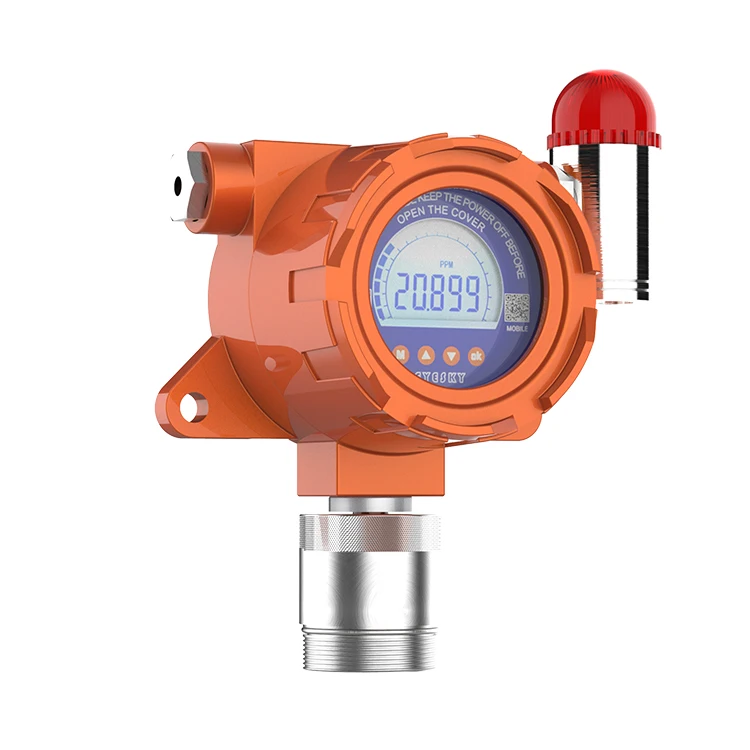

Details Images
Product Paramenters
Detection Gas | customized |
Detecting Range | customized |
Resolution | PPM，%VOL，%LEL，mg/m3 |
Sampling | Diffusion |
Precision | ≤±3%F.S |
Repeatability | ≤±1% |
Zero drift | ≤±1%(F.S/year) |
Sensor Type | electrochemical， infrared ，PID， Catalytic combustion |
Sensor Life | 2~3 years |
Alarming mode | Audible-visual alarm |
Operating Environment | Temperature: -20℃~50℃ (Customized for special demands) |
Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter | |
Pressure: 86kPa~106kPa | |
Working Voltage | 24V DC(16~30VDC) |
Output Signals | (Standard)Three-wire system 4~20mA standard signals output, available for PLC, DCS, etc; |
(Optional) Four-wire system RS485 digital signal output; | |
Installation Means | Wall mounted, Pipe type (Thread:M40*1.5 ) |
Material of Body | Cast aluminum |
Explosion-proof Index | Ex d IIC T6 |
Protection Grade | IP66 |
Electrical Interface | 3/4″NPT(Female Screw),1/2″NPT(Female Screw) |
Transmit Distance | ≤2000m (If more than 2000m, can add the repeater.) |
Dimension | 210 mm×140 mm×92 mm(L×W×H) |
Weight | About 1.5Kg |
Warranty | 12months |
Certifications
Exhibition
Our Advantages
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is1-3 days if the goods are in stock. or it is 3-7working days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample at very reasonable cost, please contact us for details.
Q: What is your terms of payment ?
A: We accept T/T, Paypal, Master card, Visa, Western Union, L/C.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is1-3 days if the goods are in stock. or it is 3-7working days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample at very reasonable cost, please contact us for details.
Q: What is your terms of payment ?
A: We accept T/T, Paypal, Master card, Visa, Western Union, L/C.
