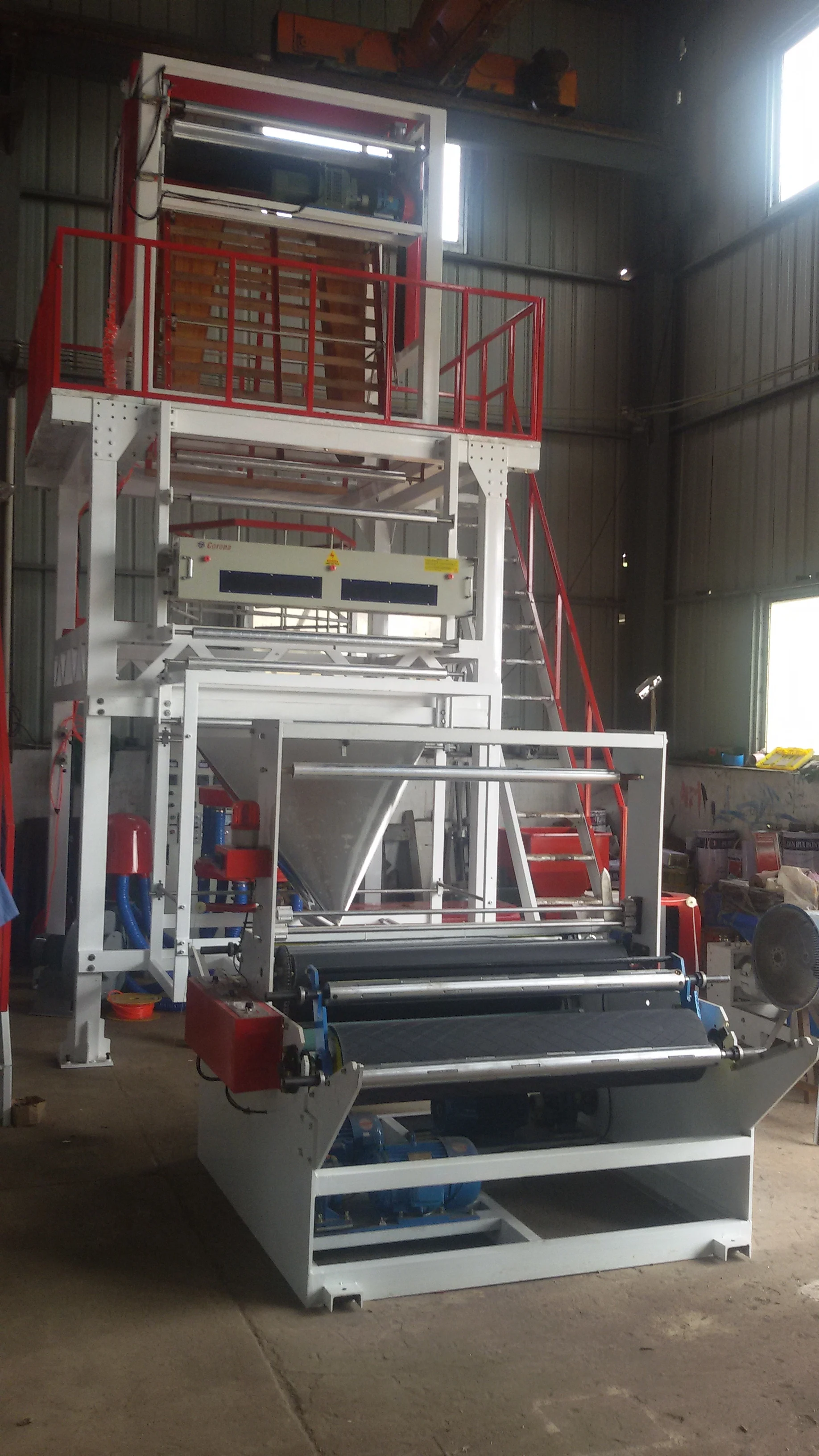

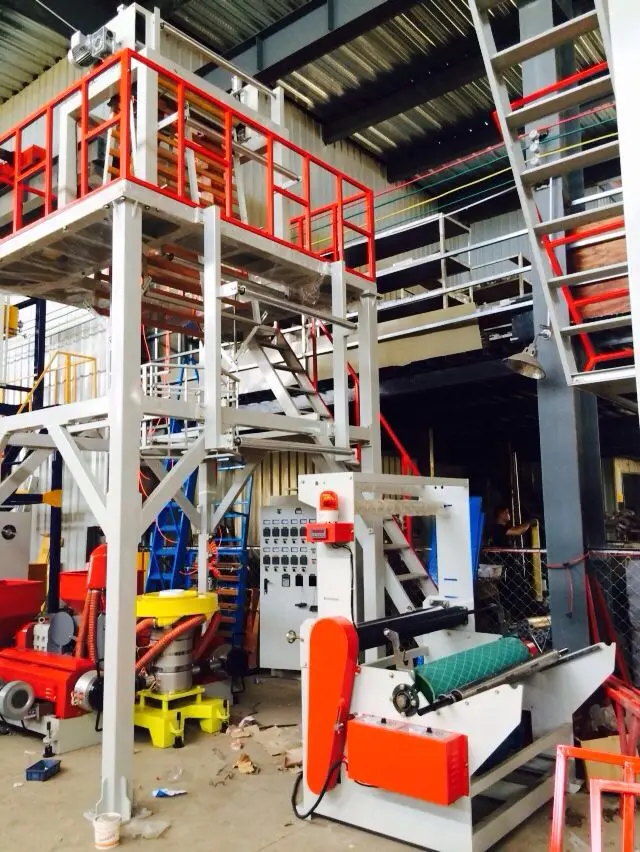

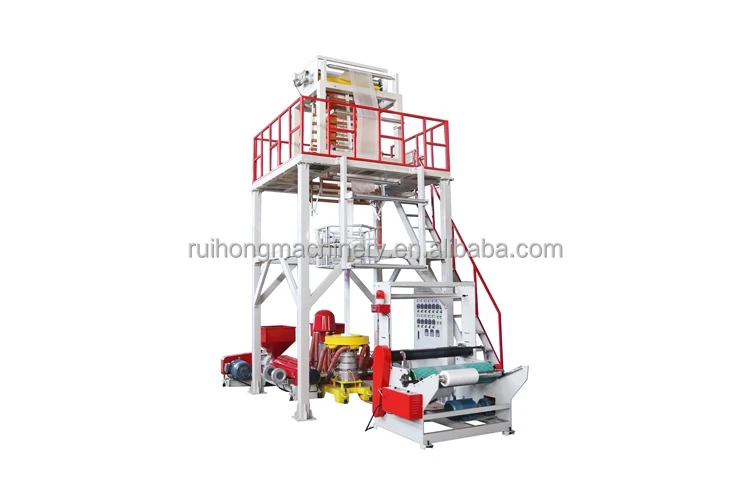

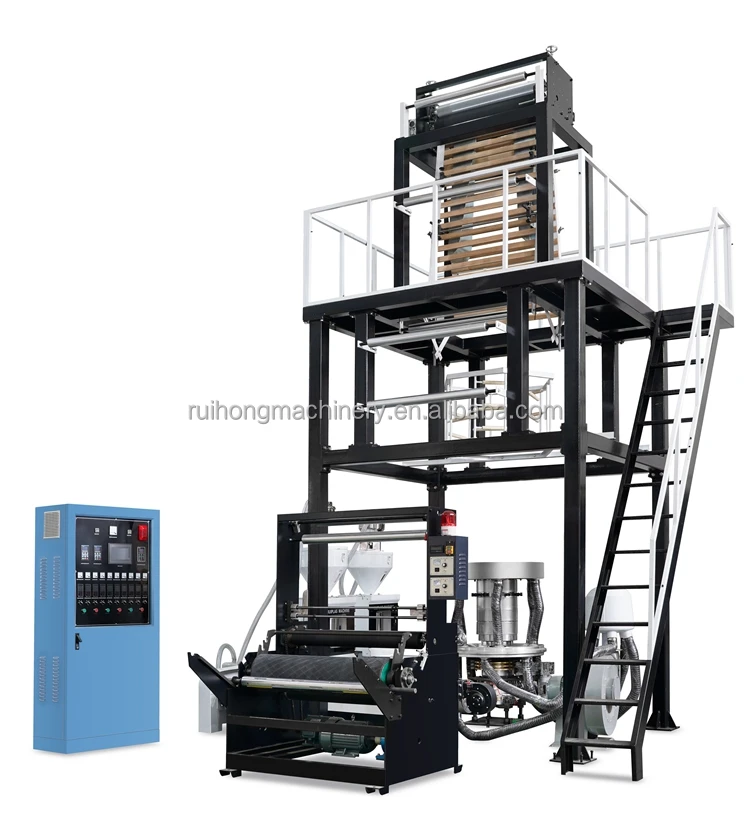

PLASTAR 1500mm Plastic Abc 3-Layer Film Blowing Machine
US $110000-$120000
Прочный с использованием 1,2 метра ABA совместная экструзия HDPE/LDPE / PE машина для выдувания пластиковой пленки цена
- Category: Blown Film Production Line >>>
- Supplier: Wenzhou Ruihong Machinery Co. Ltd.
Share on (1600260805404):
Product Overview
Description
More Products
Product Description
Use: It is used for blowing the plastic laminated film of LDPE and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, printed base material, products for export and industrial products, etc.
Characteristics:
1.Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package.
2.The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3.The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4.Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.
Characteristics:
1.Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package.
2.The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3.The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4.Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.
Specification | ||
Model | RP-ABA1200 | |
Suitable material | HDPE, LDPE , LLDPE | |
Reduced diameter of film(mm) | 300-1200mm | |
Single-face Thickness of film(mm) | HDPE:0.006-0.08mm LDPE:0.01-0.1mm | |
Max. extrusion capacity | 120-140kg/h | |
Outline diameter(L×W×H)(mm) | 6000×5700×6500 | |
Weight(T) | 5T | |

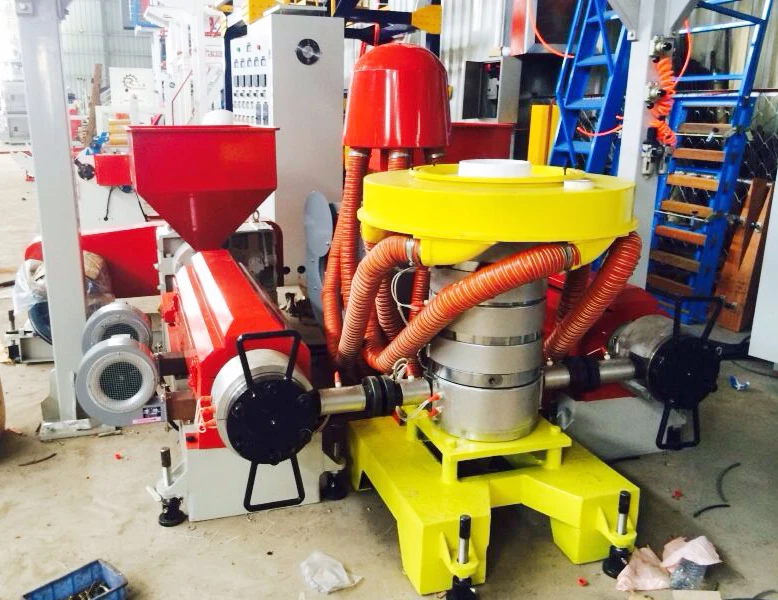

A Extruder | ||
Diameter of screw | 60mm | |
L/D | 30:1 | |
Cylinder material | 38CRMOALA | |
Screw material | 38CRMOALA | |
Screw Temperature control | 3 zone | |
Cooling fan | 250w×2 | |
Main power | 22kw | |
Filter changer heating | 1 zone | |
Filter changer material | NO.45 Aluminum | |
Gearbox | 180 model, oil pump, water cooling type | |
B Extruder | ||
Diameter of screw | 55mm | |
L/D | 30:1 | |
Cylinder material | 38CRMOALA | |
Screw material | 38CRMOALA | |
Screw Temperature control | 3 zone | |
Cooling fan | 250w×2 | |
Main power | 18.5kw | |
Filter changer heating zone | 1 zone | |
Filter changer material | NO.45 Aluminum | |
Gearbox | 173 model, oil pump, water cooling type | |
Die head | ||
Die size | HDPE:Φ120MM | |
Die head material | NO.40 steel | |
Die temperature control | 3×2 | |
Air ring | double vent air ring | |
Heating Power(kw) | 30 | |
Air blower | 4.5kw | |
Take up | ||
Take up roller width | 165×1300mm | |
Effective width | 1200mm | |
Take up speed | 10-100m/min | |
Take up motor | 1.5kw | |
Take up control system | Pneumatic | |
Winder | ||
Winder type | Double manual winder changer | |
Winding motor | 1.5kw | |
Winding speed | 100m/min | |
Winding speed | 100m/min | |

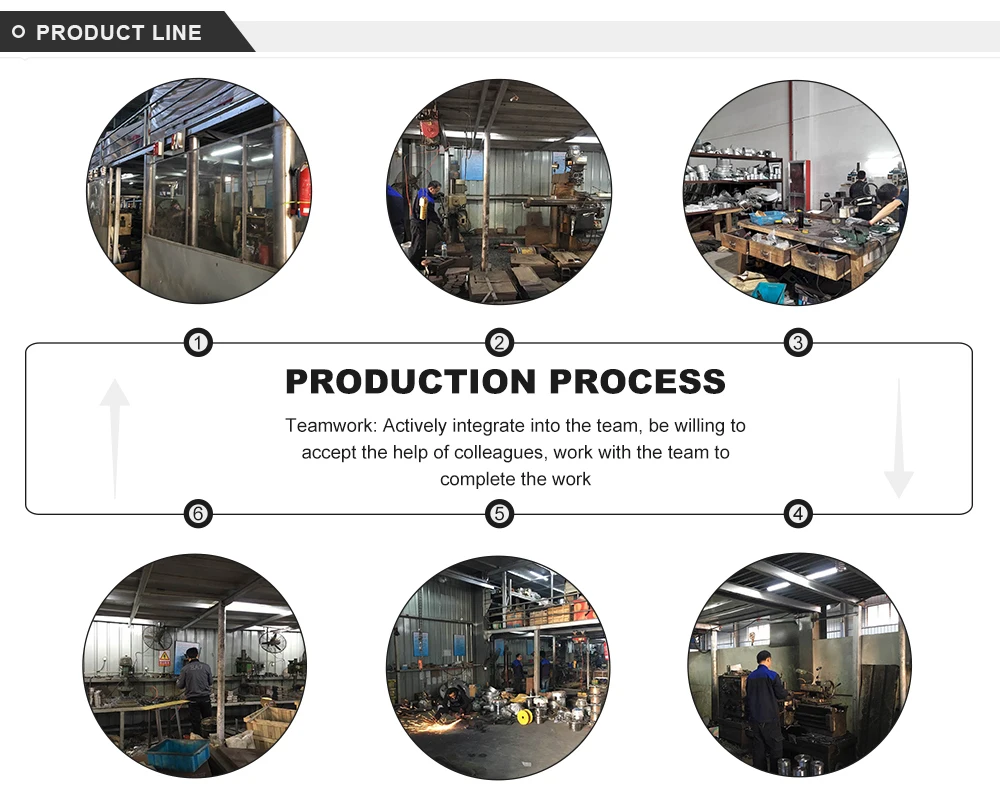

Production Line

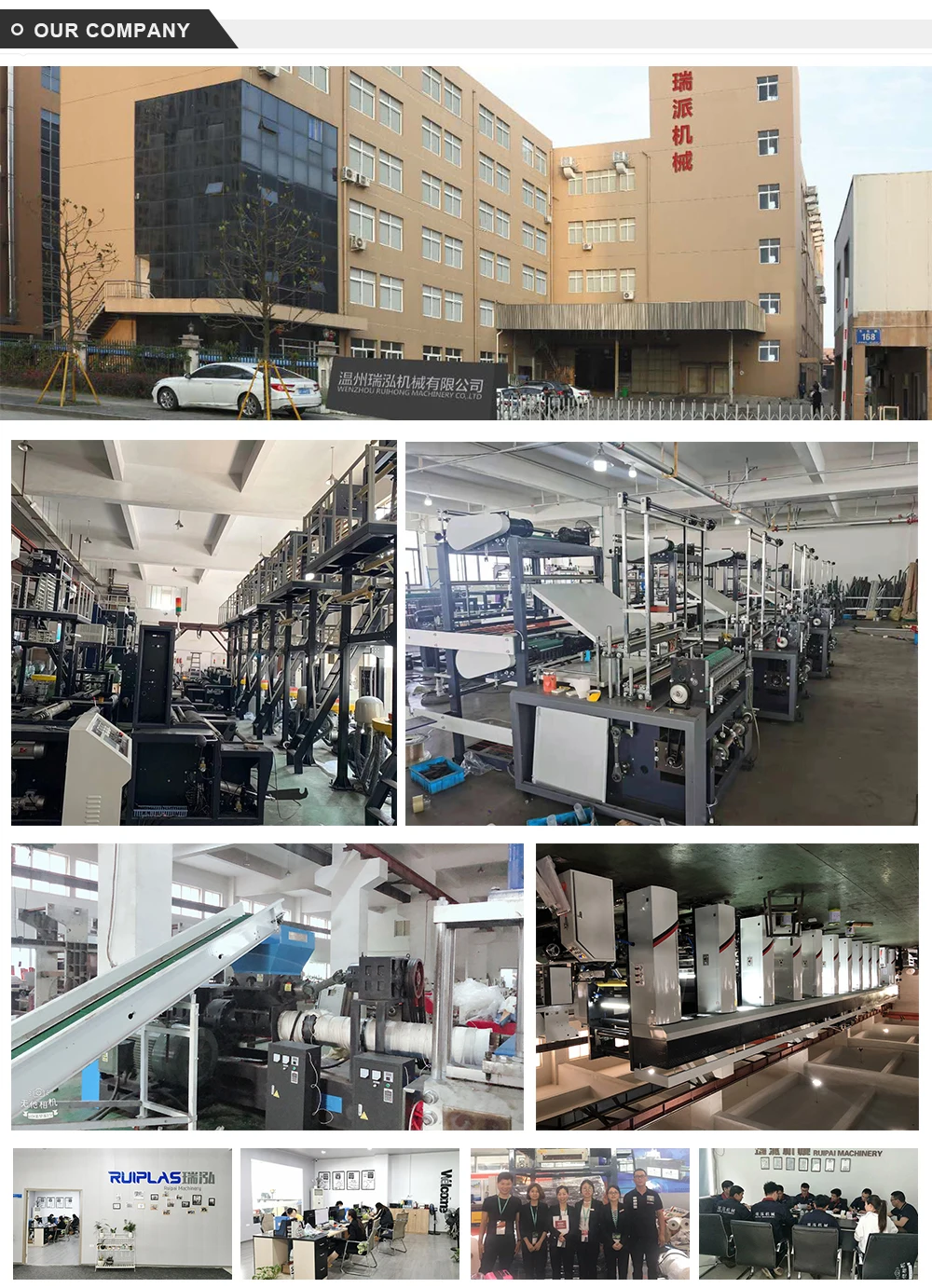

Company Profile
Certifications
Exhibition
Packing & Delivery
FAQ
1. Who are we?
We are based in Zhejiang, China, start from 2018,sell to South America(25.00%),Southeast Asia(15.00%),Africa(10.00%),Mid East(10.00%),Central America(10.00%),South Asia(10.00%),Domestic Market(10.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Blown film extruder,stretch film extrusion machine,air bubble film machine,pelletizing machine,zipper tape extruder
4. Why should you buy from us not from other suppliers?
Ruihong is focus on extrusion machine such as blown film extrusion, stretch film/air bubble film extrusion, pelletizing extrusion etc.
High quality in reasonable price.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
We are based in Zhejiang, China, start from 2018,sell to South America(25.00%),Southeast Asia(15.00%),Africa(10.00%),Mid East(10.00%),Central America(10.00%),South Asia(10.00%),Domestic Market(10.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Blown film extruder,stretch film extrusion machine,air bubble film machine,pelletizing machine,zipper tape extruder
4. Why should you buy from us not from other suppliers?
Ruihong is focus on extrusion machine such as blown film extrusion, stretch film/air bubble film extrusion, pelletizing extrusion etc.
High quality in reasonable price.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
