WGP220/350/50DPI-D TBM bentonite cement slurry grout mixing plant
WGP220/350/50DPI-D TBM bentonite cement slurry grout mixing plant for tunnel lining is an updated machine, based on our existing grouting station, as well as, is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

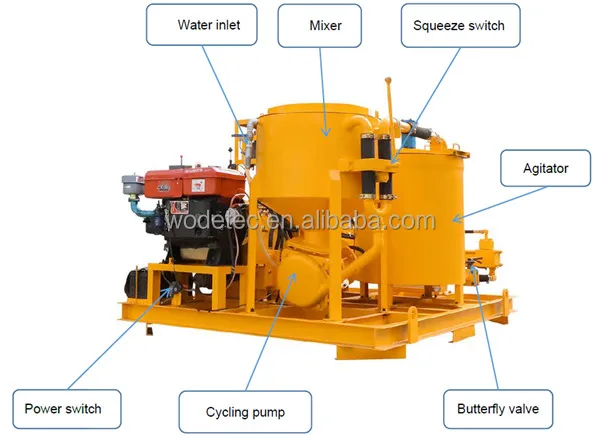

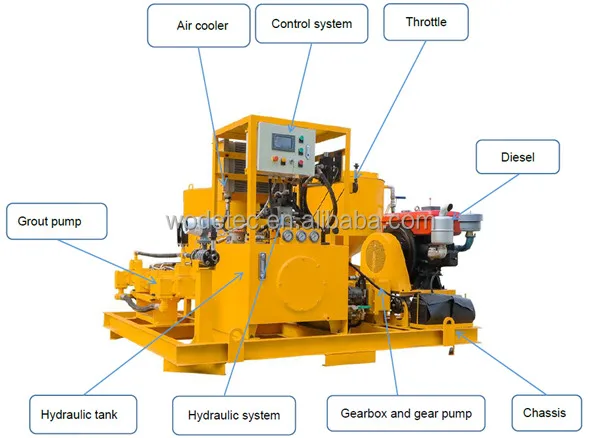

Structure of WGP220/350/50DPI-D TBM bentonite cement slurry grout mixing plant
Technical Data
1. Double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compared with the double acting piston pump.
2. Grouting pressure and displacement is adjustable.
3. The function switch between mixer and Agitator is realized by using squeeze switch.

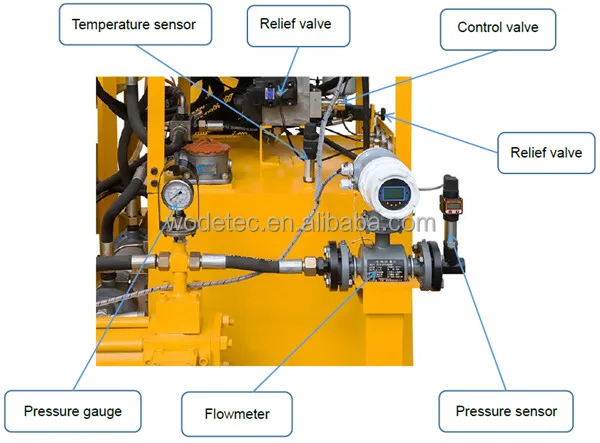

4. With pressure, hydraulic oil temperature and flow sensors, over hydraulic oil temperature protection.
5. Diesel and full hydraulic driven.
6. PLC and HMI control WGP220/350/50DPI-D cement slurry grout mixing plant .
7. Solid state relay.
8. Up to 5 mm particle size.
9. Air cooling and water cooling for the hydraulic.

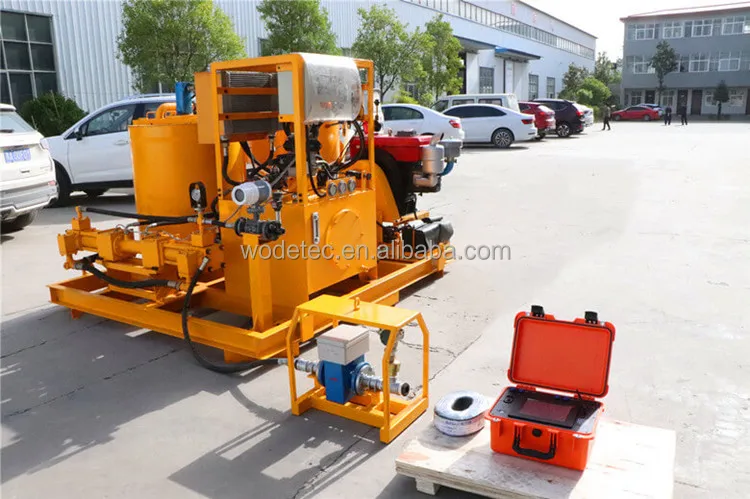

10. The grouting/ injection recorder with computer is optional.
2. Grouting pressure and displacement is adjustable.
3. The function switch between mixer and Agitator is realized by using squeeze switch.
4. With pressure, hydraulic oil temperature and flow sensors, over hydraulic oil temperature protection.
5. Diesel and full hydraulic driven.
6. PLC and HMI control WGP220/350/50DPI-D cement slurry grout mixing plant .
7. Solid state relay.
8. Up to 5 mm particle size.
9. Air cooling and water cooling for the hydraulic.
10. The grouting/ injection recorder with computer is optional.
WGP220/350/50DPI-D TBM bentonite cement slurry grout mixing plant: | ||||
Name | Grout mixing plant | |||
Type | WGP220/350/50DPI-D | |||
Dimension | 2400×2000×1620mm | |||
Weight | 1550kg | |||
Mixer | Volume | 220L | ||
Speed | 1500rpm | |||
Agitator | Volume | 350L | ||
Speed | 36rpm | |||
Grouting pump | Pump pressure | 0-30bar | ||
Pump output | 0-50L/min | |||

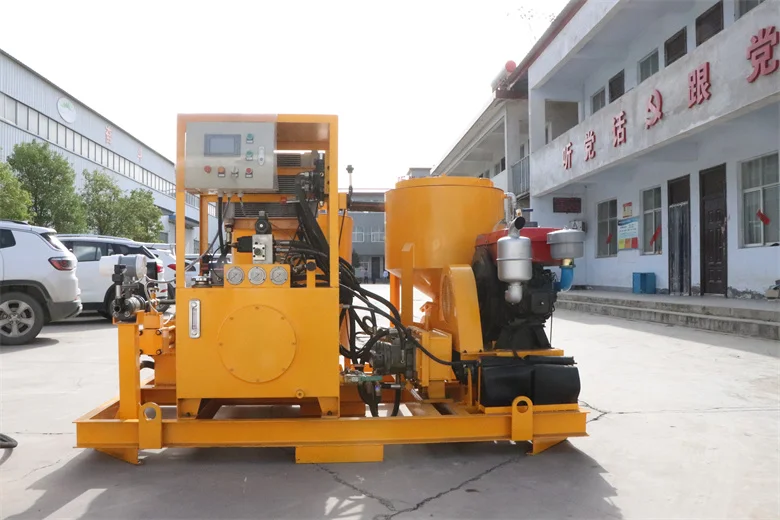

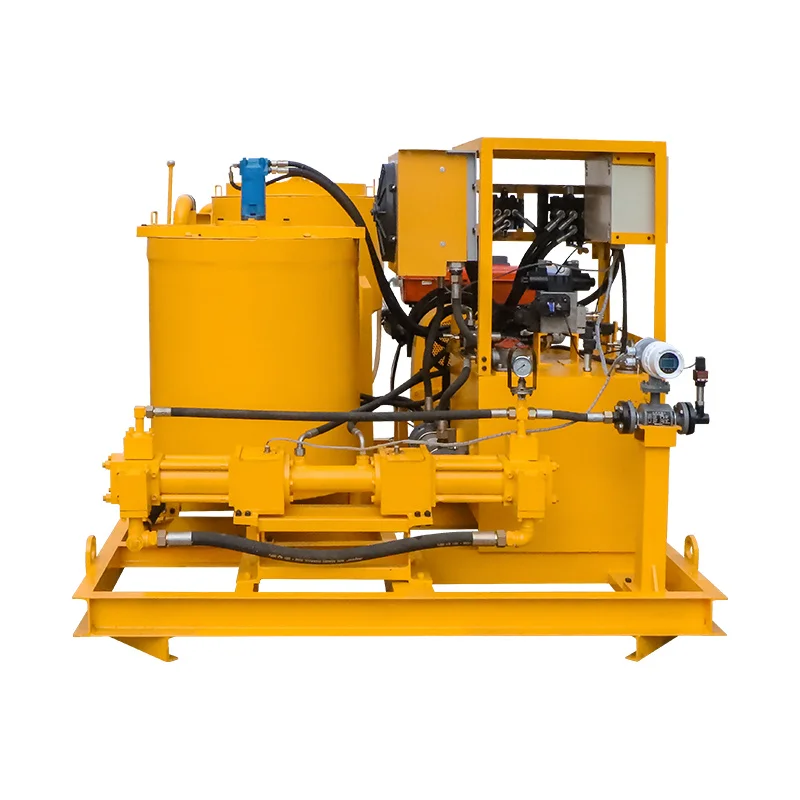

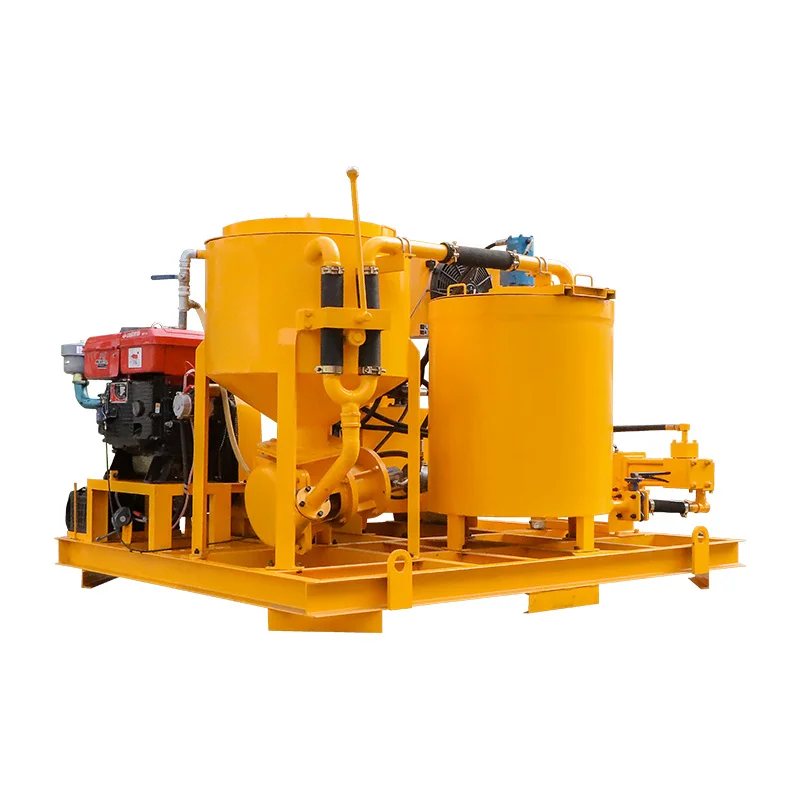

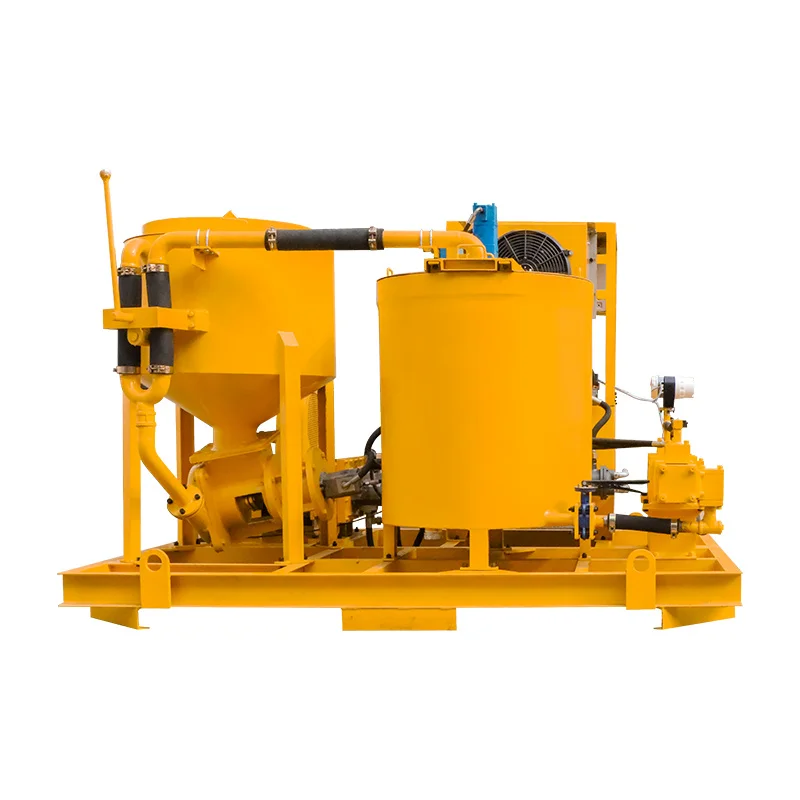

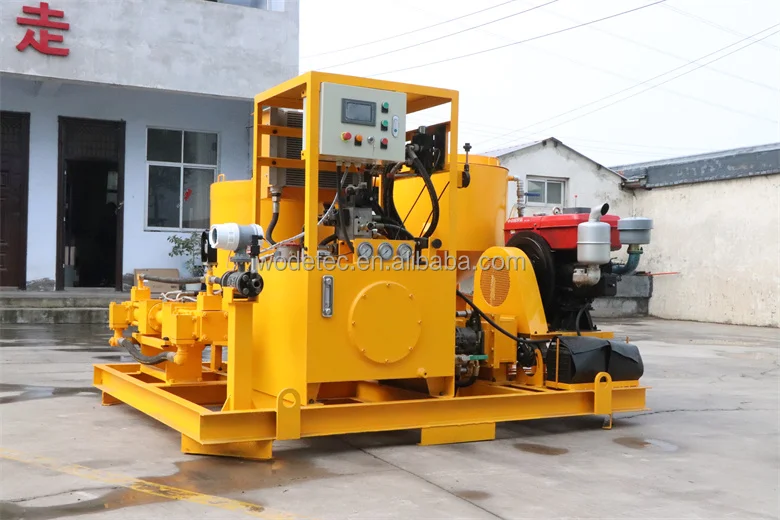

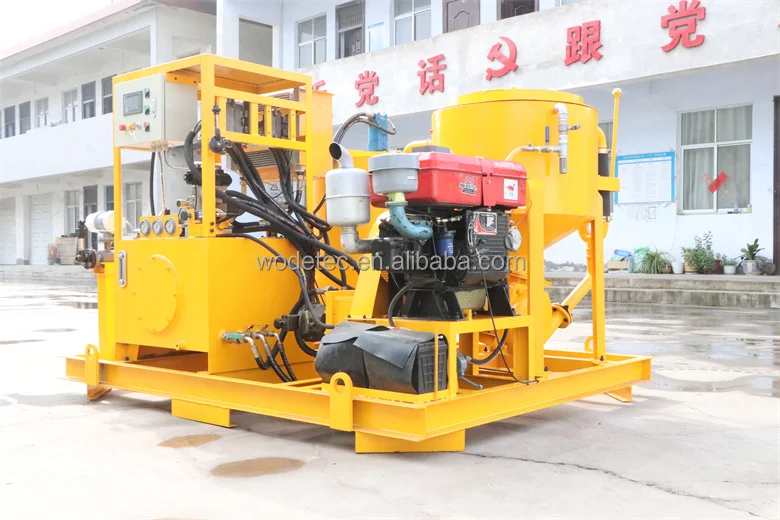

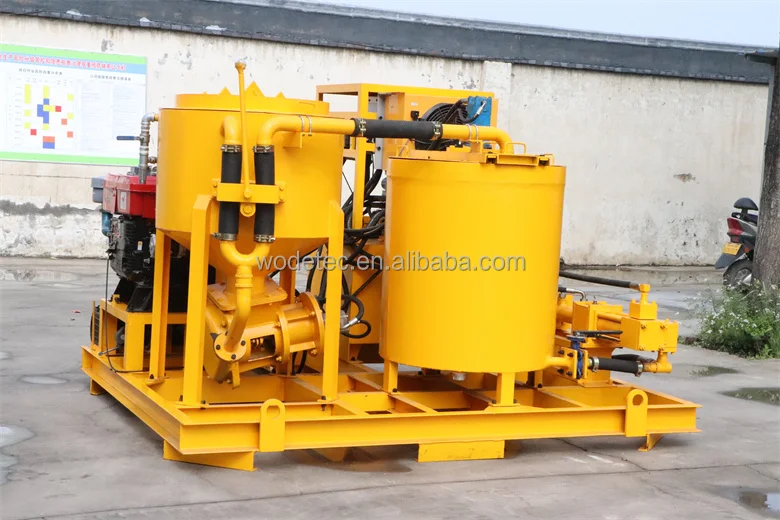

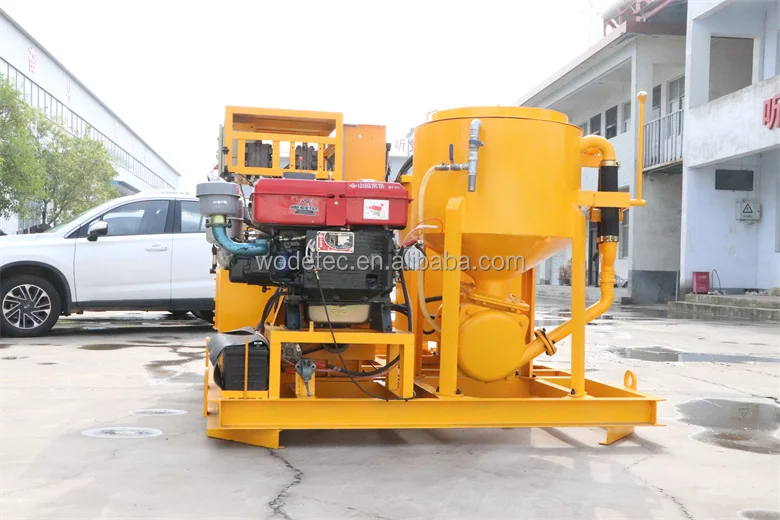

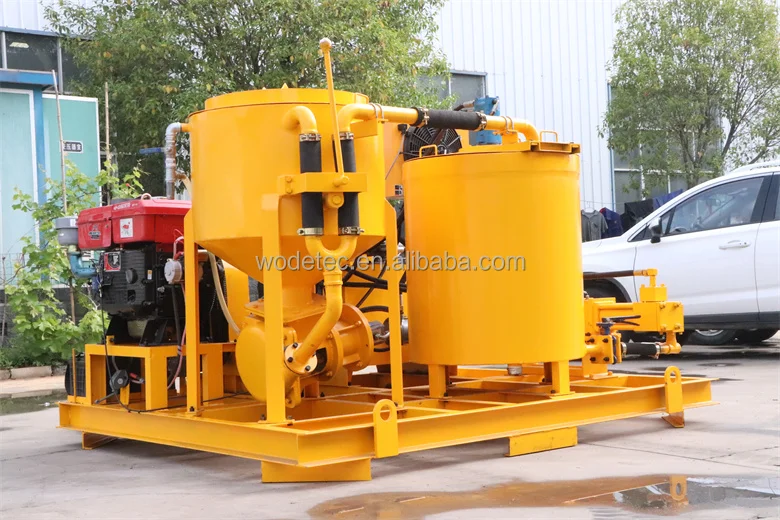

Multi-angle Display

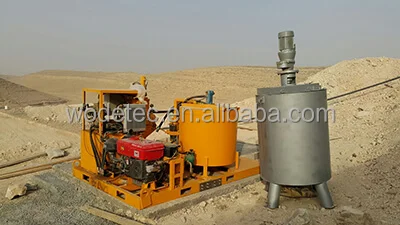

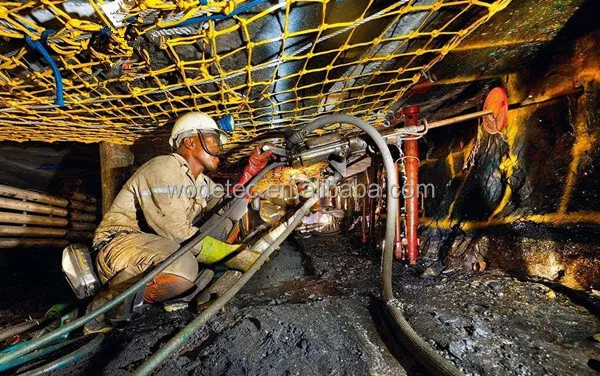

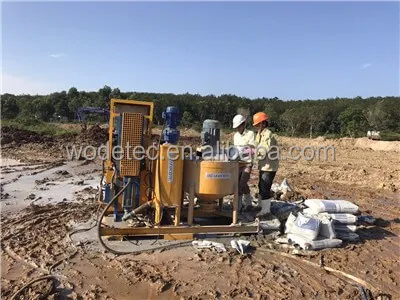

Application
WGP220/350/50DPI-D bentonite cement slurry grout mixing plant is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.
Product Details
Hydraulic system
Grout pump
Cycling pump
Control system
Control system
control system
Recommend Products
Contact Us
If you have any questions about TBM bentonite cement slurry grout mixing plant, please contact us and we will provide you with the corresponding product parameters and quotations. We are cement grout mixing plant factory, supplier and manaufacturer, we also can customize according to your requirements.
Contact us for product price
In order to suitable model, please let us know the follow questions:
1. How about the flow and pressure of the pump you want, please?
2. How about the water and cement ratio, does any sand in?
3. About the power: electric (voltage and frequency) or diesel?
1. How about the flow and pressure of the pump you want, please?
2. How about the water and cement ratio, does any sand in?
3. About the power: electric (voltage and frequency) or diesel?
