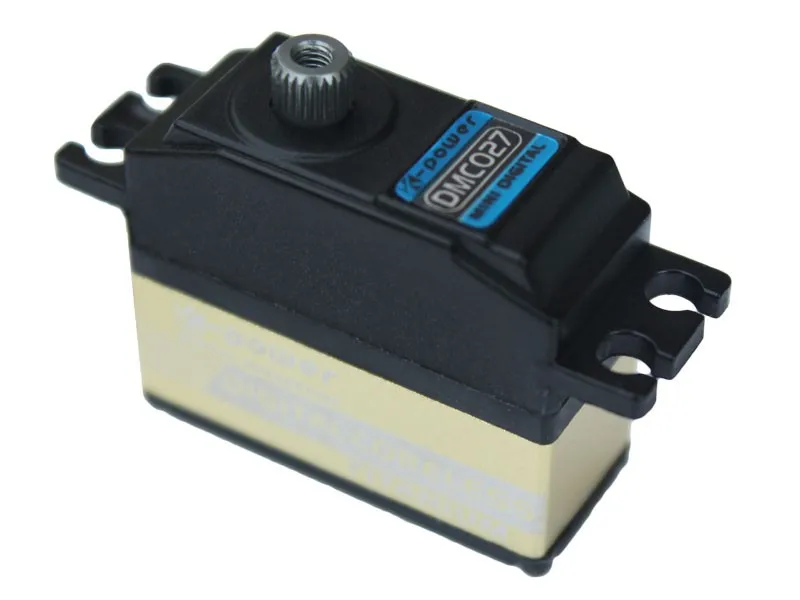

K-power 3kg middle metal case metal gear coreless RC servo for rc car robot hobby accessories DMC027
1. 3kg.cm 0.06sec/60°/4.8V; 0.05sec/60°/6.0V high speed middle metal case servo
2. Coreless motor Coreless motor provides high speed, incredible efficiency and low power consumption, strong titanium gears make sure long life time
3. Middle aluminum case keeps good heat dissipation
4. Ideal for rc car airplane 400~500H tail rc robot
Product Parameter
Model Type: | Digital Servo DMC027 |
Motor Type: | Coreless |
Case material: | Aluminum Mid Case |
Gear material: | Titanium |
Bearing Type: | 2BB |
Weight: | 28g / 1.0oz |

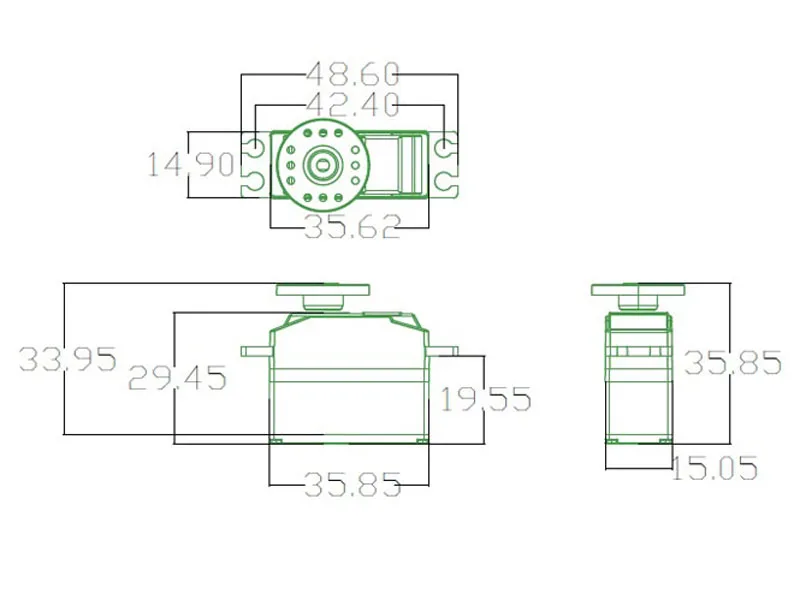

Dimension: | 36*15*29mm³ / 1.4*0.6*1.1in³ |
Operation Voltage: | 4.8-6V |
Torque: | 2.8kg-cm/4.8V; 3.6kg-cm/6.0V |
39oz-in/4.8V; 50oz-in/6.0V | |
Speed: | 0.06sec/60°/4.8V; 0.05sec/60°/6.0V |
Pulse Width: | 1000-1500 |
Dead band width: | 2μs |
Interface Type: | JR / FT / JST1.5 / JST2.0 / Other |
Operating Temperature: | -20 to 60 centigrade |
Splining: | 25T |
Wire Length: | Based on your requirement |
Waterproof: | Yes |
Certification: | CE & FCC |
Application: | RC Airplane, Heli, Car and Boat |
Ideal for: | 450-500 class Heli Tail/Rudder |
Service: | Lifetime Warranty. Customized and OEM are available. |

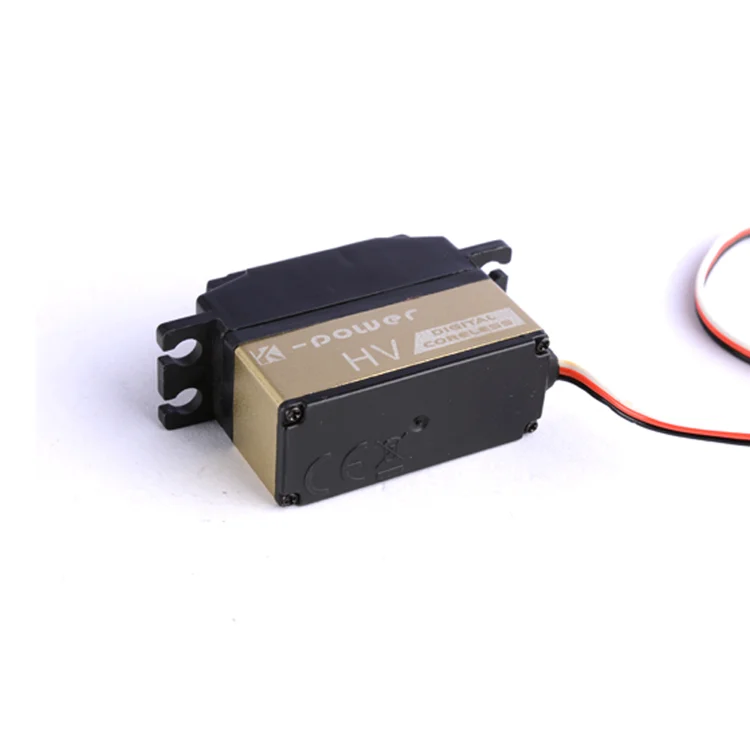

Detailed Images
Company Profile
Exhibition
Servo Certificate

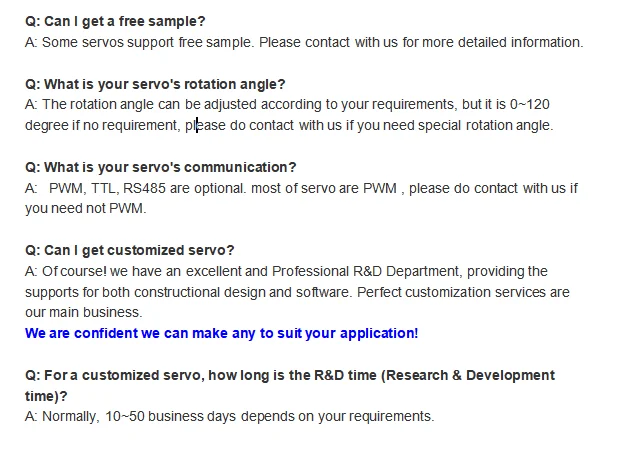

FAQ
