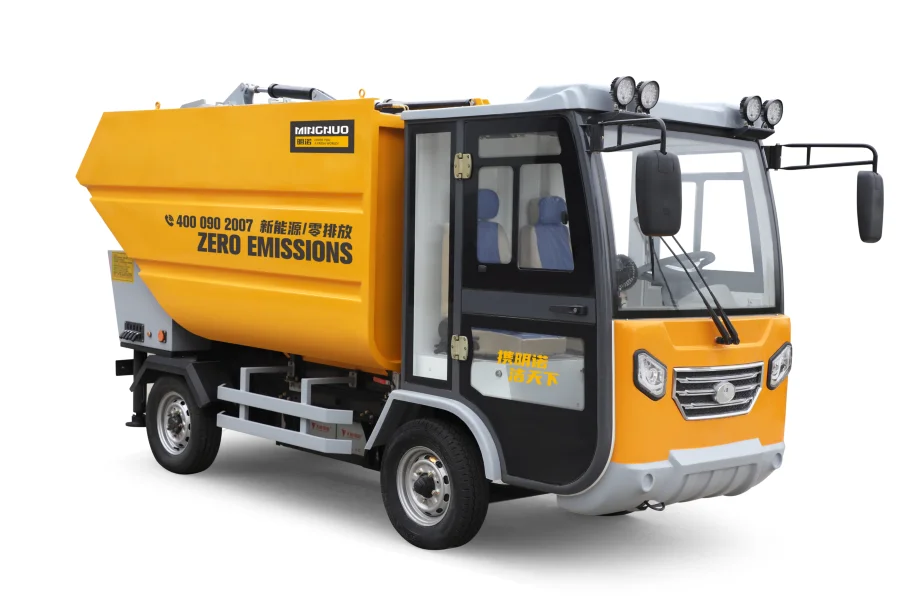

Electric side loading garbage truck
MN-H90 is a pure electric side loading garbage truck, which integrates dustbin lifting device and garbage dump, and is suitable for
garbage transportation in environmental sanitation and cleaning departments.
garbage transportation in environmental sanitation and cleaning departments.
FEATURES AT A GLANCE
FEATURE
SIDE LOADING DESIGN
WINDOW DESIGN
PANORAMIC DRIVING DESIGN
HIGH EFFICIENCY
FLEXIBILITY OPERATION
STEEL MATERIAL

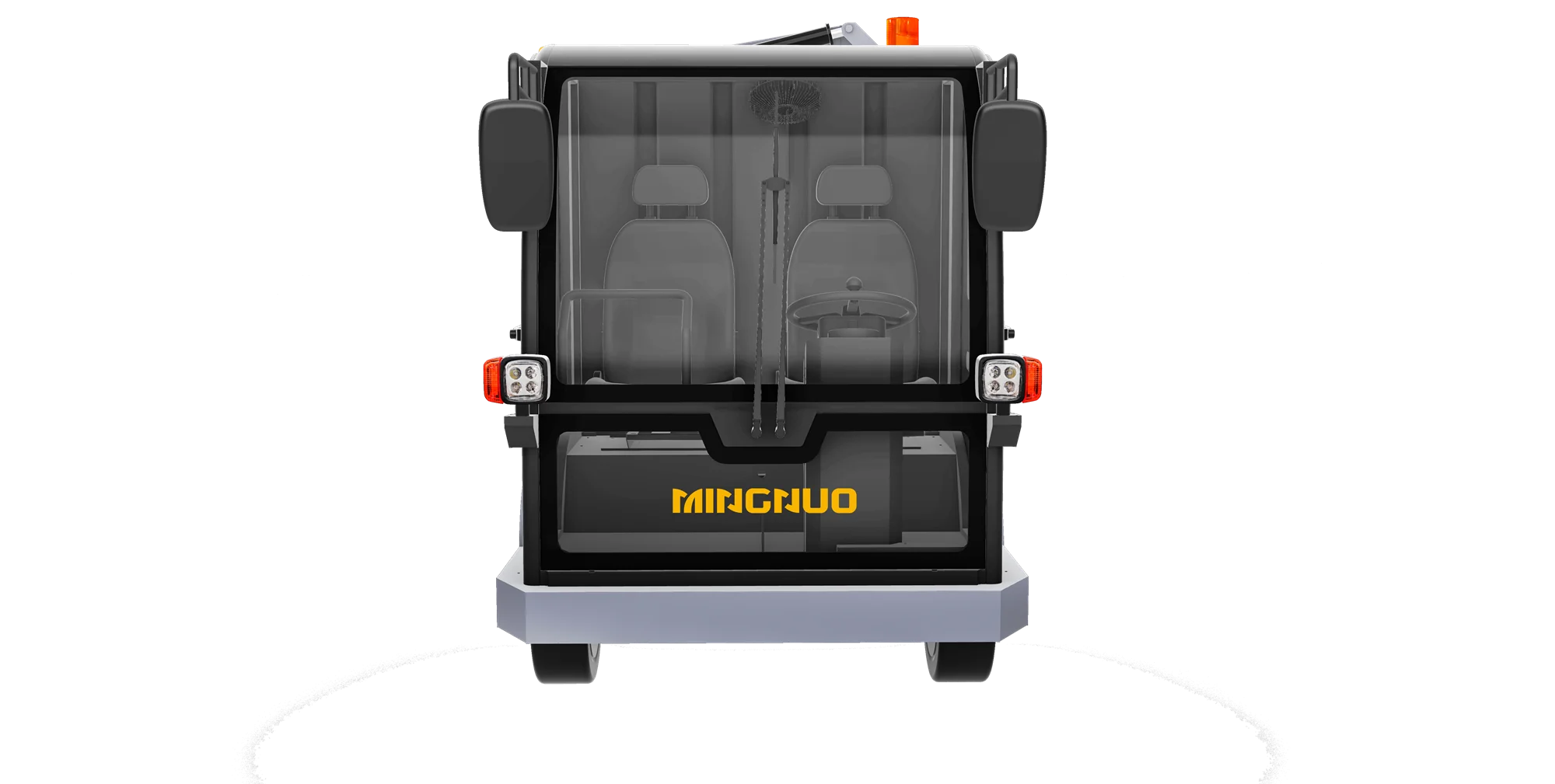

FRONT DESIGN

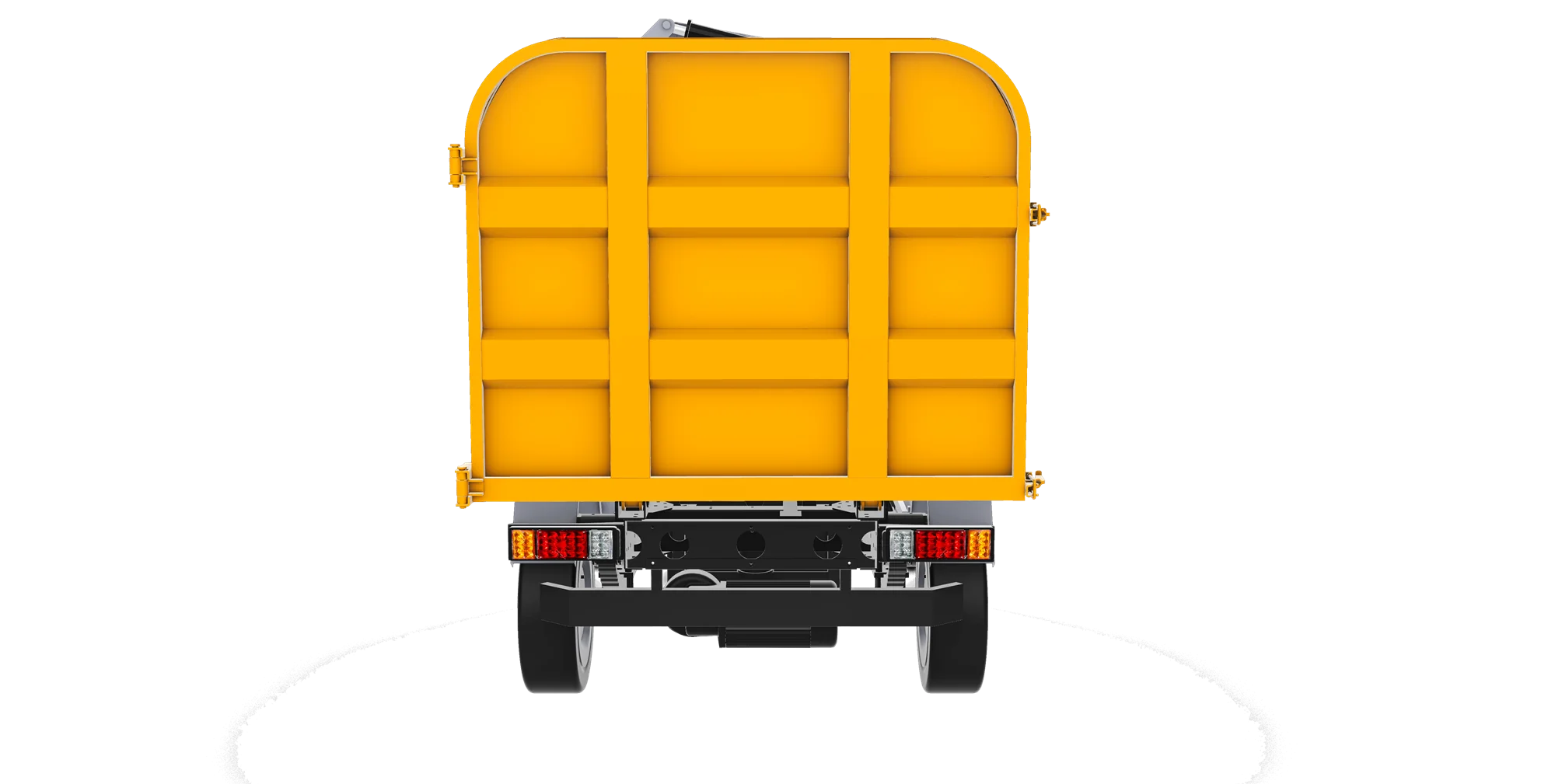

REAR DESIGN

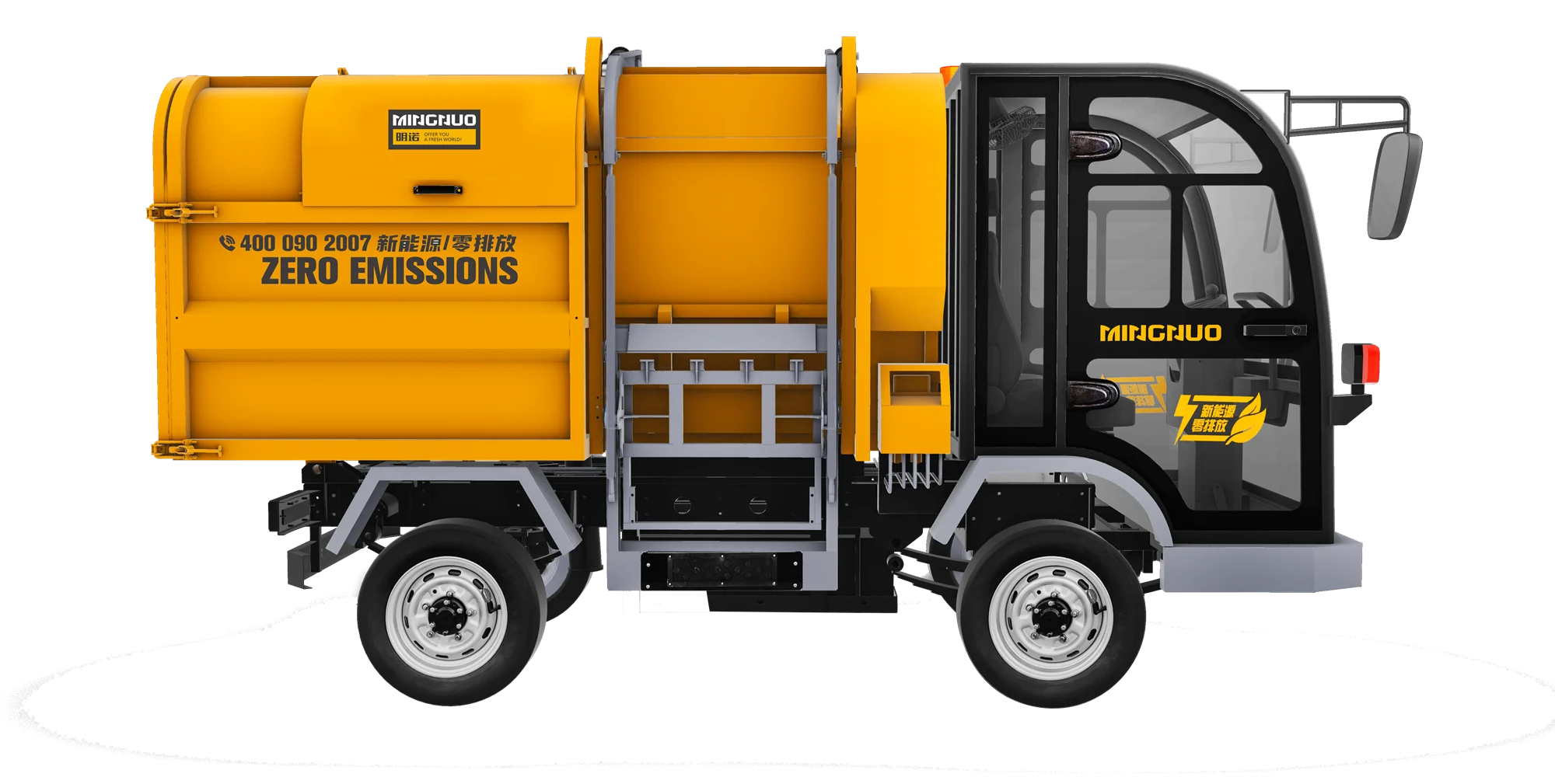

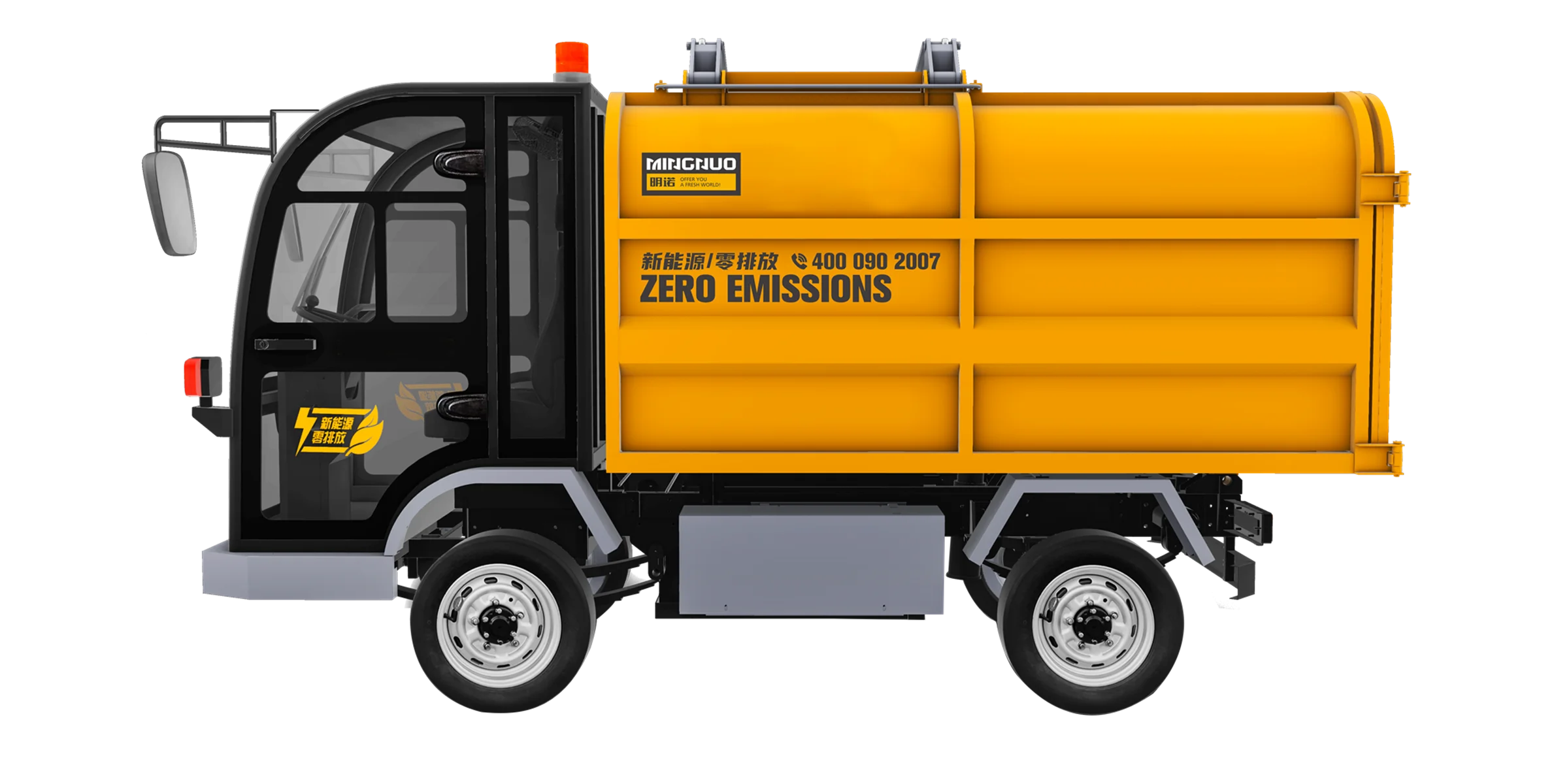

SIDE DESIGN
PRODUCT SPECIFICATIONS
No | Item | Data | |||
1 | dimension | 3660*1500*2100mm | 9 | driving motor power | 7.5kw |
2 | staff | 2 | 10 | oilpump motor | 0.8kw |
3 | max speed | 25km/h | 11 | power supply | 72V |
4 | turning radius | 4m | 12 | min ground clearance | 200mm |
5 | endurance mileage | 60-80km | 13 | min brake distance | 4m |
6 | wheelbase | 1800mm | 14 | dustbin capacity | 2.7m3 |
7 | wheel tread | 1200mm | 15 | machine net weight | 1590kg |
8 | gradeability | 20% | 16 | rated load | 1000kg |
PRODUCT CONFIGURATION

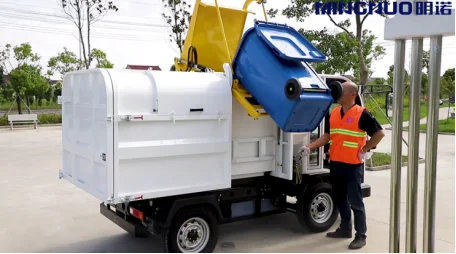

loading device

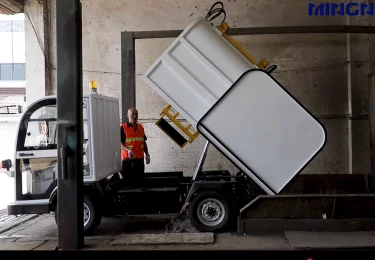

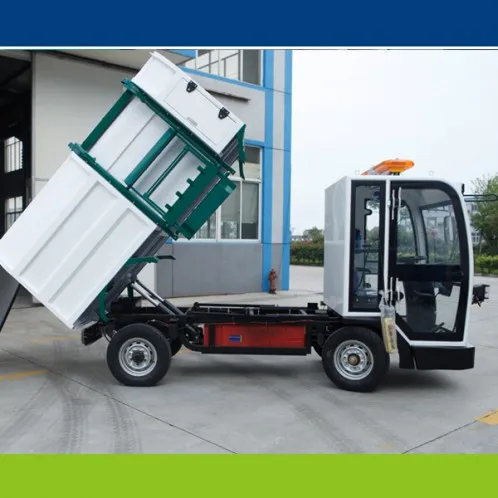

dumping device
reversing camera and LED screen
SALES AND SERVICE NETWORK
Successful Project
municipal council
street
industrial park
