New 290HP Sinotruk Howo 15cbm refuse collector waste garbage truck for sale Kenya
- Category: Garbage Truck >>>
- Supplier: Hubei Yaohong Automobile Sales Co. Ltd.
Share on (1600787312028):
Product Overview
Description
New 290HP Sinotruk Howo 15cbm refuse collector waste garbage truck for sale Kenya
New 290HP Sinotruk Howo 15cbm refuse collector waste garbage truck for sale Kenya (also called solid waste compactor truck, trash compactor truck, refuse collection truck, compactor rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
We customize the production of 3-25m3 garbage trucks.

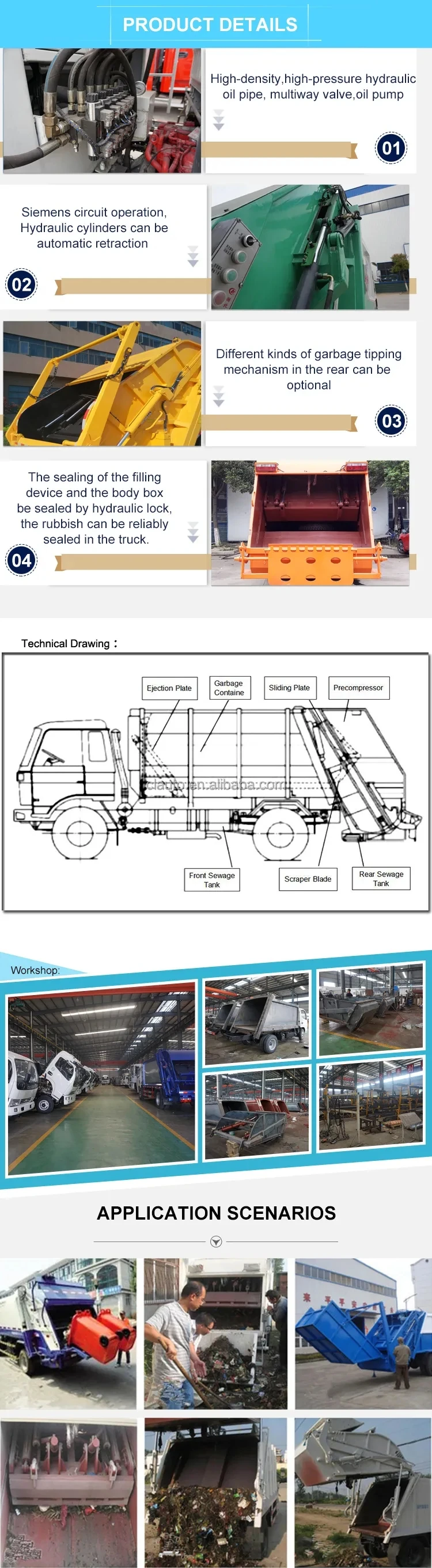

Products Description
New 290HP Sinotruk Howo 15cbm refuse collector waste garbage truck for sale Kenya
Product Name\t\t | New 290HP Sinotruk Howo 15cbm refuse collector waste garbage truck |
Model\t\t\t | CLW5071ZYSB6\t |
Chassis No.\t | ZZ1040 |
Driving Type\t\t | 4*2\t\t |
Gross Weight | 18000kg\t\t\t |
Related Loading Mass | 10000kg\t\t\t |
Curb Weight\t | 8900kg\t\t |
Dimension\t | 9700*2500*3200mm\t\t |
Wheelbase\t\t\t | 4500（mm）\t\t |
Front Axle Loading Capacity\t | 7000kg\t\t\t |
Rear Axle Loading Capacity\t | 16000kg\t\t |
Approach angle\t\t | 20°\t\t |
Departure angle\t | 13°\t\t |
Front Suspension\t\t | 1130mm\t\t |
Rear Suspension\t | 2140mm\t |
Tire\t\t | 12.00R16,6+1 PCS |
Max Speed | 90 (Km/h）\t\t |
Waste compactor garbage truck Engine parameters:\t\t\t | |
Model\t\t | WD412 |
Horse Power | 266hp\t\t |
Displacement | 9772cc\t |
Emission Standard\t | Euro 3\t |
Type\t\t\t | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling)\t |
Gear Box | |
Gear Box\t\t | 10 forward and 2 reverse |
Superstructure Parameter：\t | |
Tank Volume | 12CBM\t\t |
Tank Shape\t | Arc-shape\t\t |
Tank Material thickness | Bottom:5mm Side:4mm |
| Tank Material | T420（Special Steel） |
Compression Ratio | ≥2.5\t\t |
The effective volume of the bucket | ≥0.8m³ |
Loading cycle time | ≤40 s |
unload garbage time | ≤45s |
control method | Automatic、Manual |
Maximum pressure of hydraulic system | 20MPa |
Control System | Siemens PLC |
Engine power control | Fully automatic control |
Tumbler mechanism | 240L Garbage bin（Others Optional） |

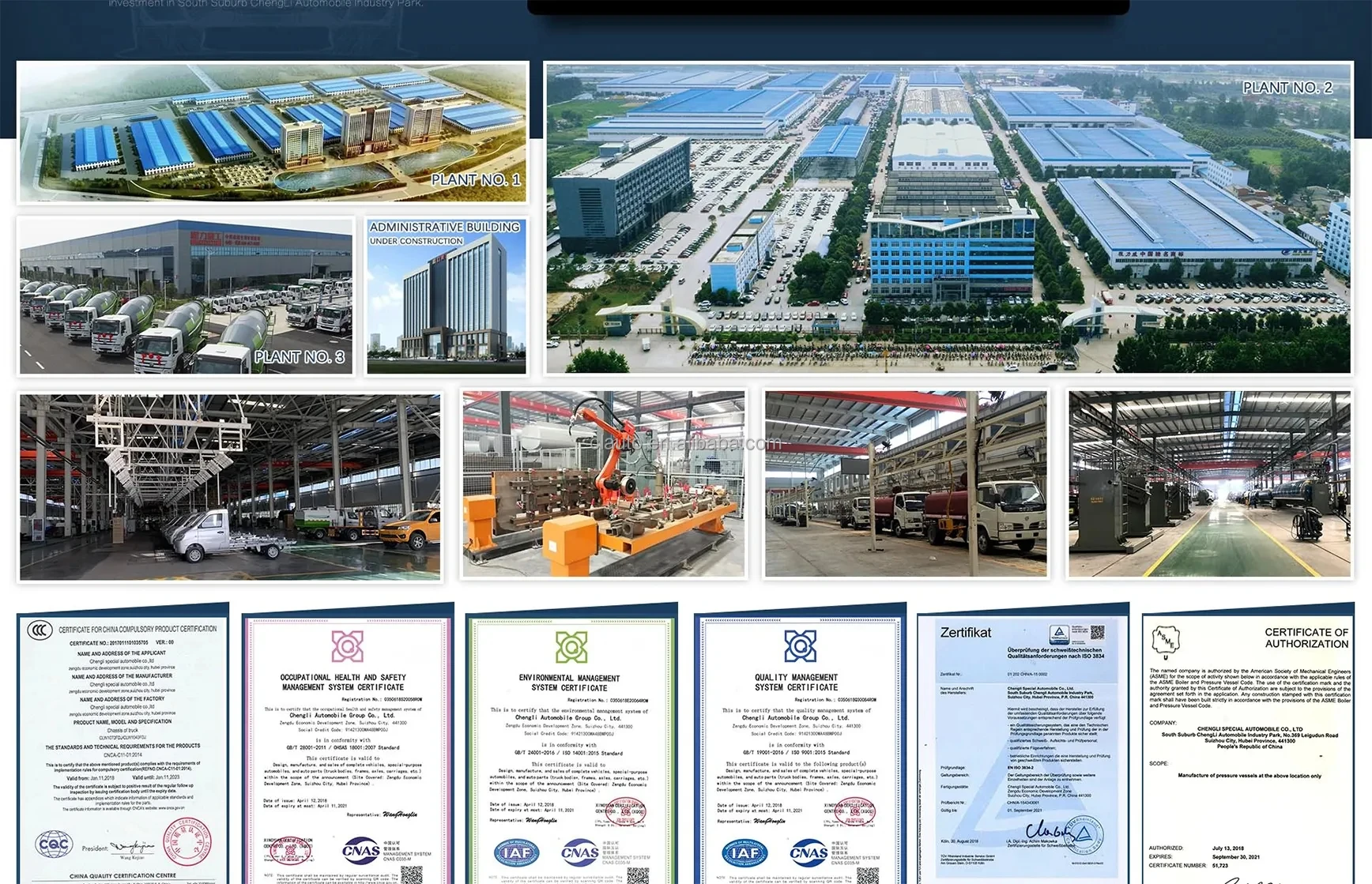

Certifications

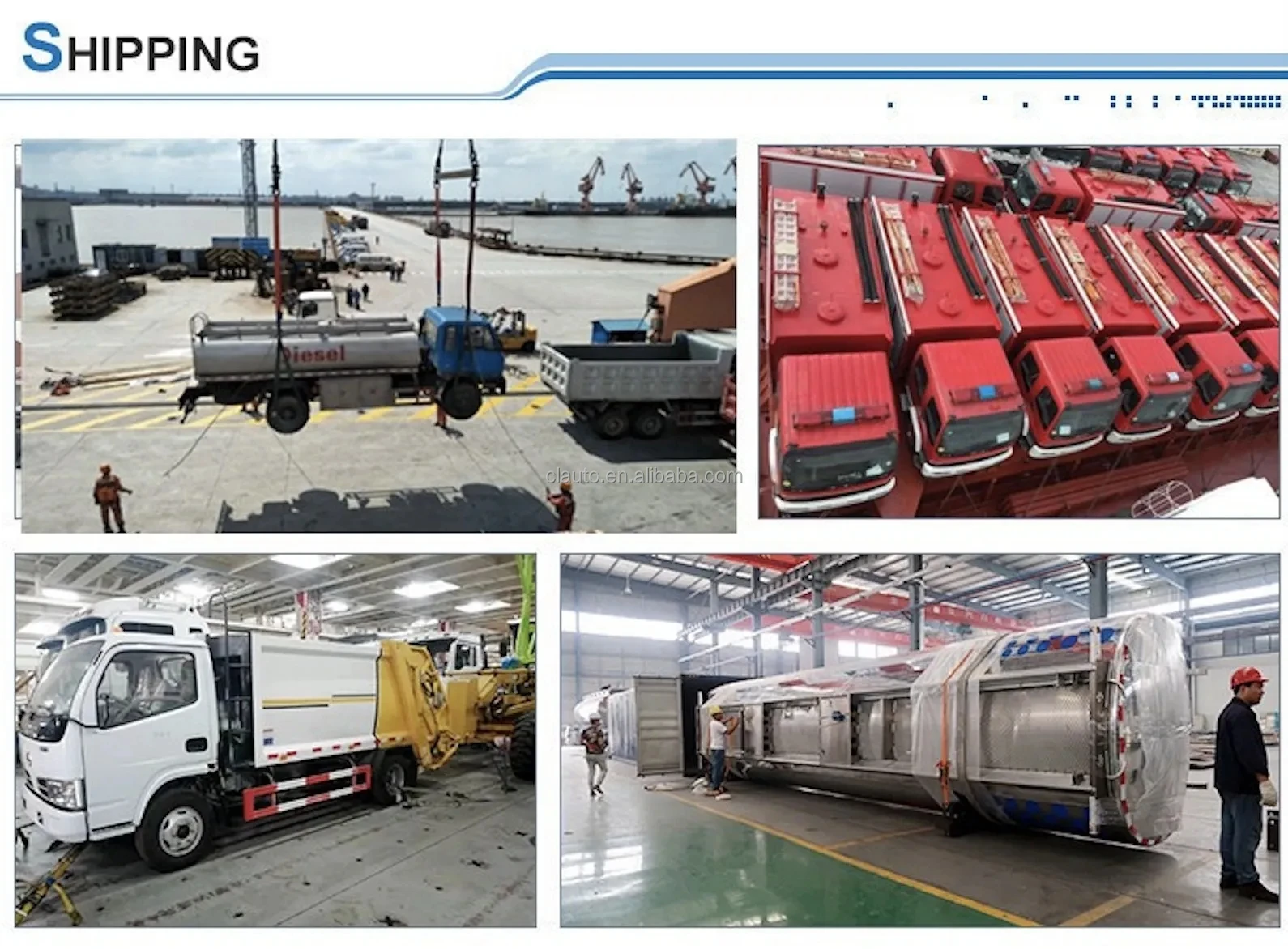

Product packaging

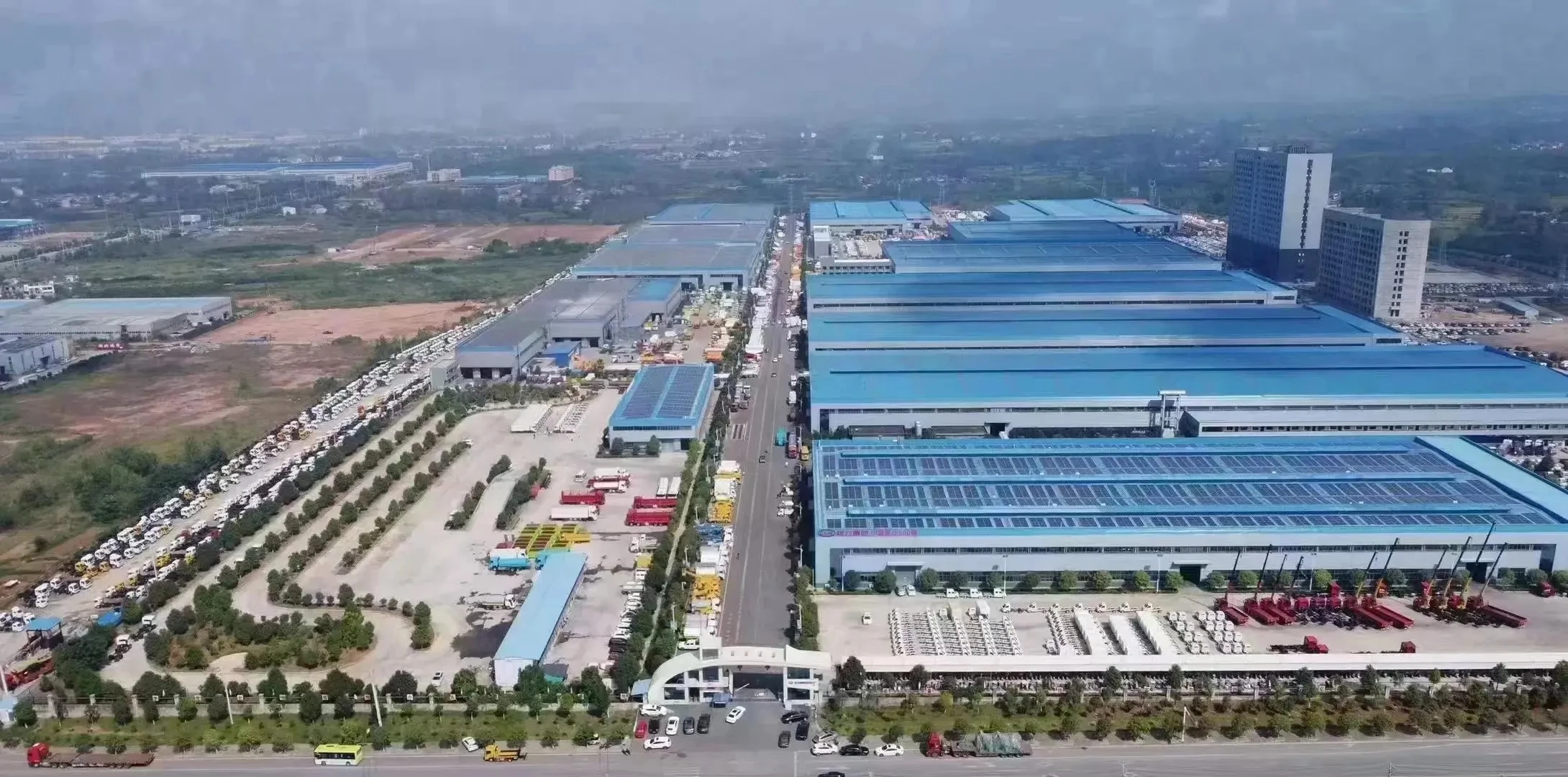

Company Profile

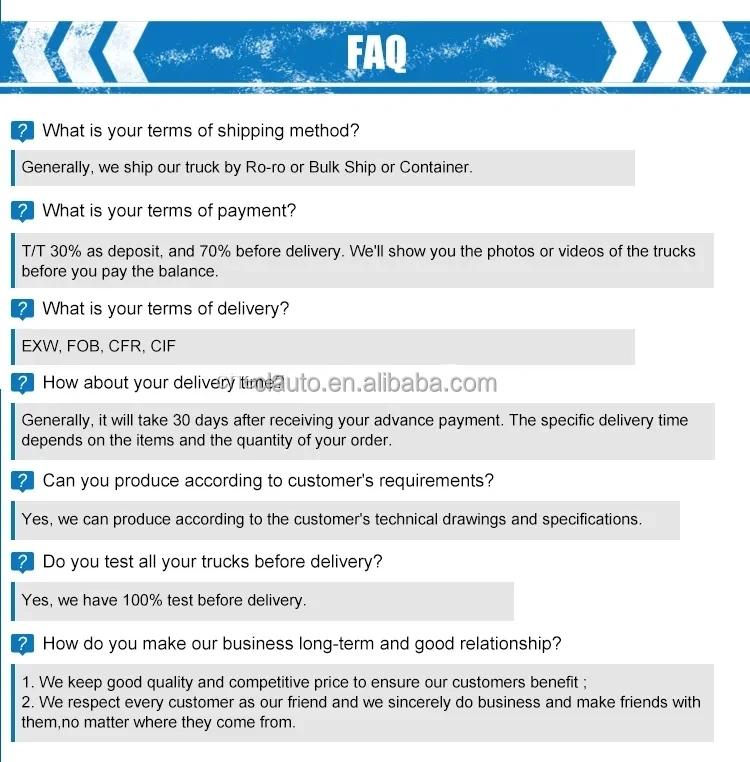

FAQ
New 290HP Sinotruk Howo 15cbm refuse collector waste garbage truck:
① The collection method is simple and convenient: the structure of hanging bucket turning and floor bucket turning can be adopted, and the garbage can be turned directly into the filling bucket, which changes the dirty and old appearance of garbage cans all over the streets in cities and prevents secondary pollution.
②New 290HP Sinotruk Howo 15cbm refuse collector waste garbage truck has a high compression ratio and a large loading capacity: the crushing pressure can reach 12 tons, the compaction density can reach 0.8 tons/m3, and the loading capacity is 2.5 times that of non-compressed waste of the same ton level.
③ Fully automatic operation: Imported Siemens PLC computer control system is adopted, and only one driver is required to operate all the loading and unloading operations, which reduces the labor intensity of sanitation workers and greatly improves the working environment.
④New 290HP Sinotruk Howo 15cbm refuse collector waste garbage truck Good economy: When the special equipment is working, the computer control system automatically controls the throttle.
⑤ Dual systems: The operating system has dual functions of computer control and manual operation, ensuring safety and improving vehicle utilization.
⑥ Turning mechanism: A turning mechanism with a garbage can (or bucket) is optional.
②New 290HP Sinotruk Howo 15cbm refuse collector waste garbage truck has a high compression ratio and a large loading capacity: the crushing pressure can reach 12 tons, the compaction density can reach 0.8 tons/m3, and the loading capacity is 2.5 times that of non-compressed waste of the same ton level.
③ Fully automatic operation: Imported Siemens PLC computer control system is adopted, and only one driver is required to operate all the loading and unloading operations, which reduces the labor intensity of sanitation workers and greatly improves the working environment.
④New 290HP Sinotruk Howo 15cbm refuse collector waste garbage truck Good economy: When the special equipment is working, the computer control system automatically controls the throttle.
⑤ Dual systems: The operating system has dual functions of computer control and manual operation, ensuring safety and improving vehicle utilization.
⑥ Turning mechanism: A turning mechanism with a garbage can (or bucket) is optional.
New 290HP Sinotruk Howo 15cbm refuse collector waste garbage truck maintenance and maintenance
1. The maintenance and repair of the chassis shall be carried out according to the requirements of the chassis instruction manual.
2. The maintenance of the power take-off, oil change and maintenance of the chassis gearbox are carried out at the same time.
3. Regularly check the position of the liquid level of the hydraulic oil tank of the working mechanism on the garbage truck, and check the hydraulic system for leakage and whether the system is operating normally. Regularly check and replace line oil filter and hydraulic oil.
4. Frequently inspect the connecting parts of the vehicle to keep the connecting parts fast and reliable.
5. Check each rotating part, add lubricating oil, and keep it well lubricated.
6. Frequently check the oil leakage of the hydraulic system, and repair and replace the oil seal in time. maintenance
2. The maintenance of the power take-off, oil change and maintenance of the chassis gearbox are carried out at the same time.
3. Regularly check the position of the liquid level of the hydraulic oil tank of the working mechanism on the garbage truck, and check the hydraulic system for leakage and whether the system is operating normally. Regularly check and replace line oil filter and hydraulic oil.
4. Frequently inspect the connecting parts of the vehicle to keep the connecting parts fast and reliable.
5. Check each rotating part, add lubricating oil, and keep it well lubricated.
6. Frequently check the oil leakage of the hydraulic system, and repair and replace the oil seal in time. maintenance
