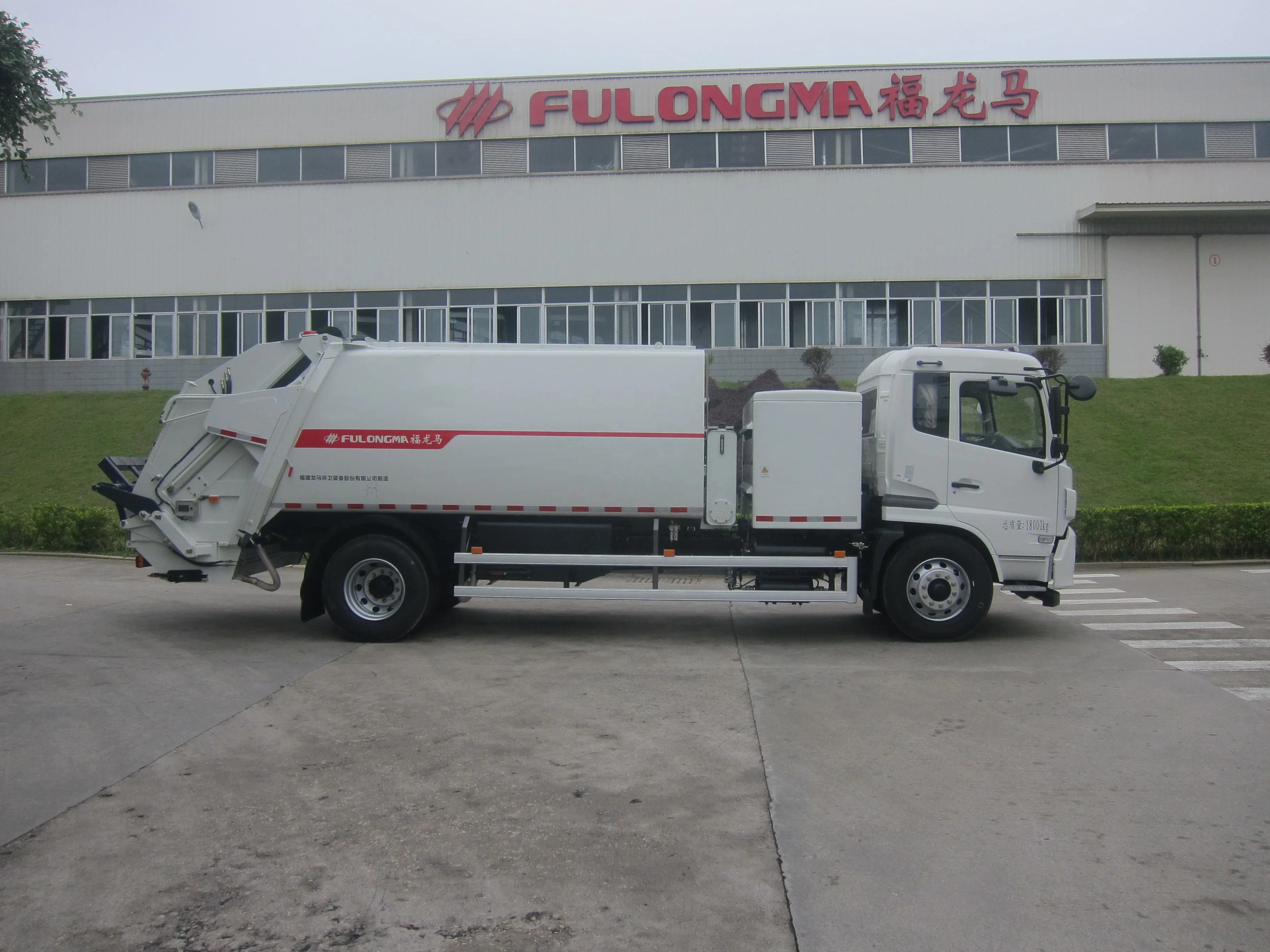

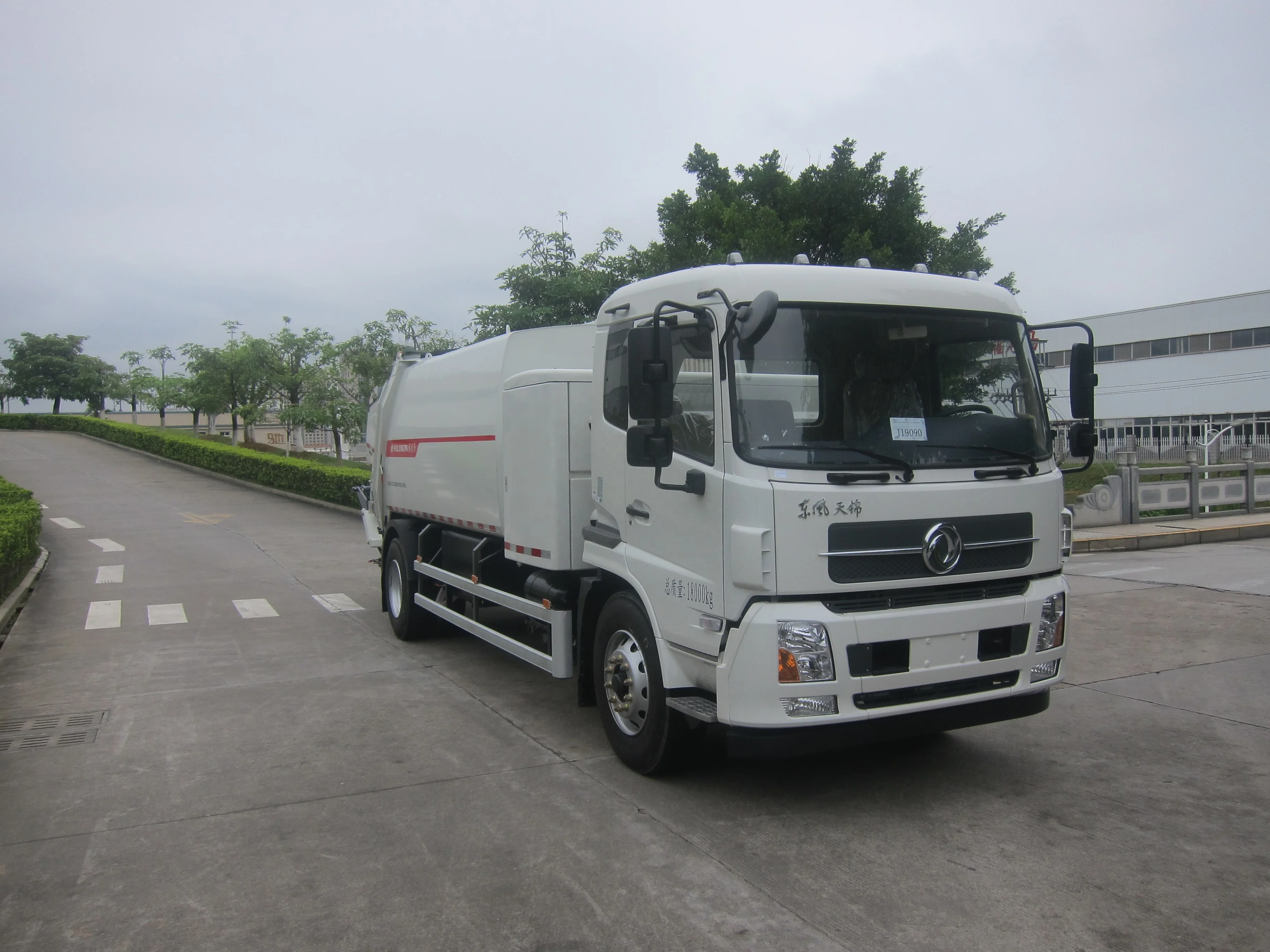

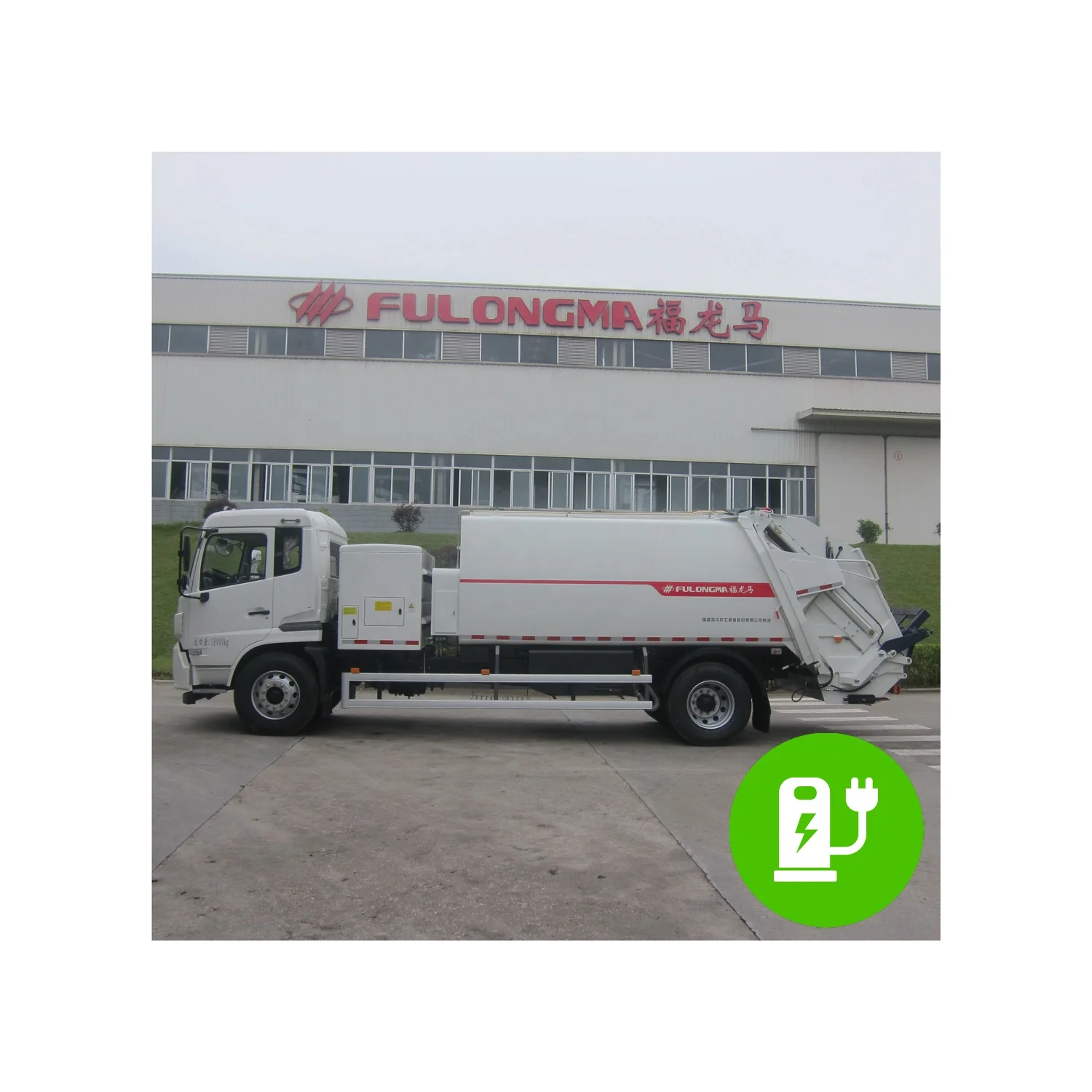

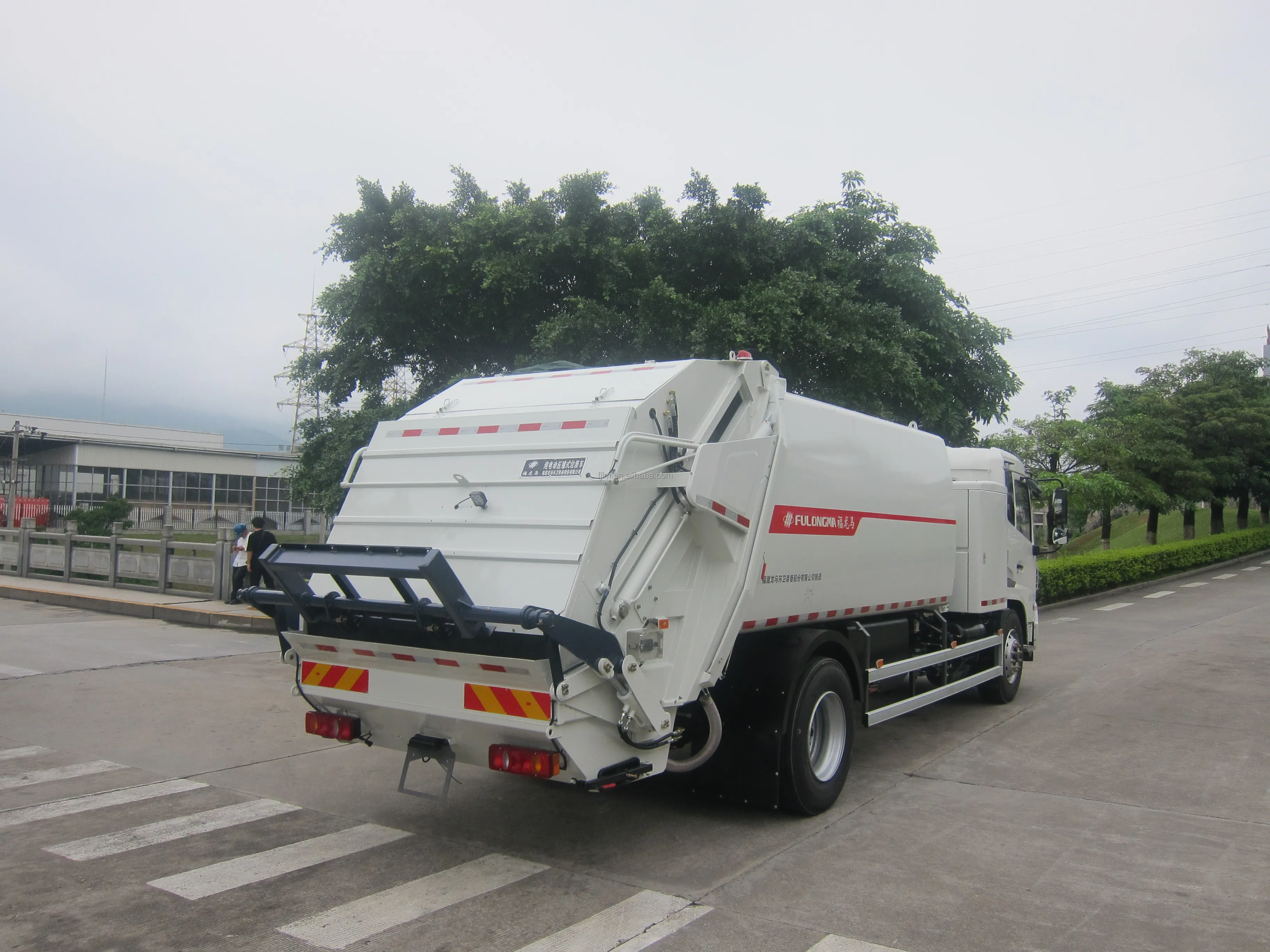

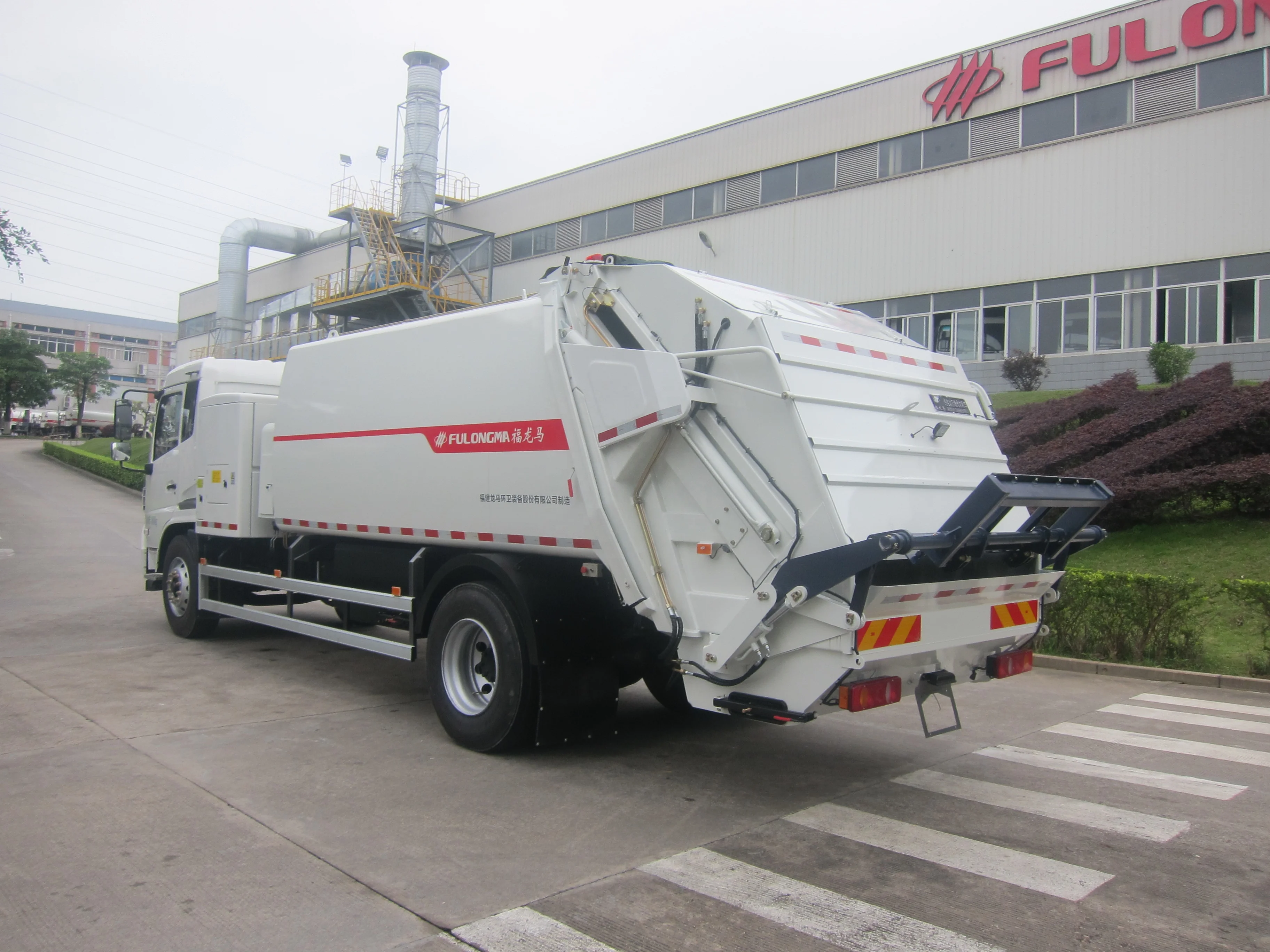

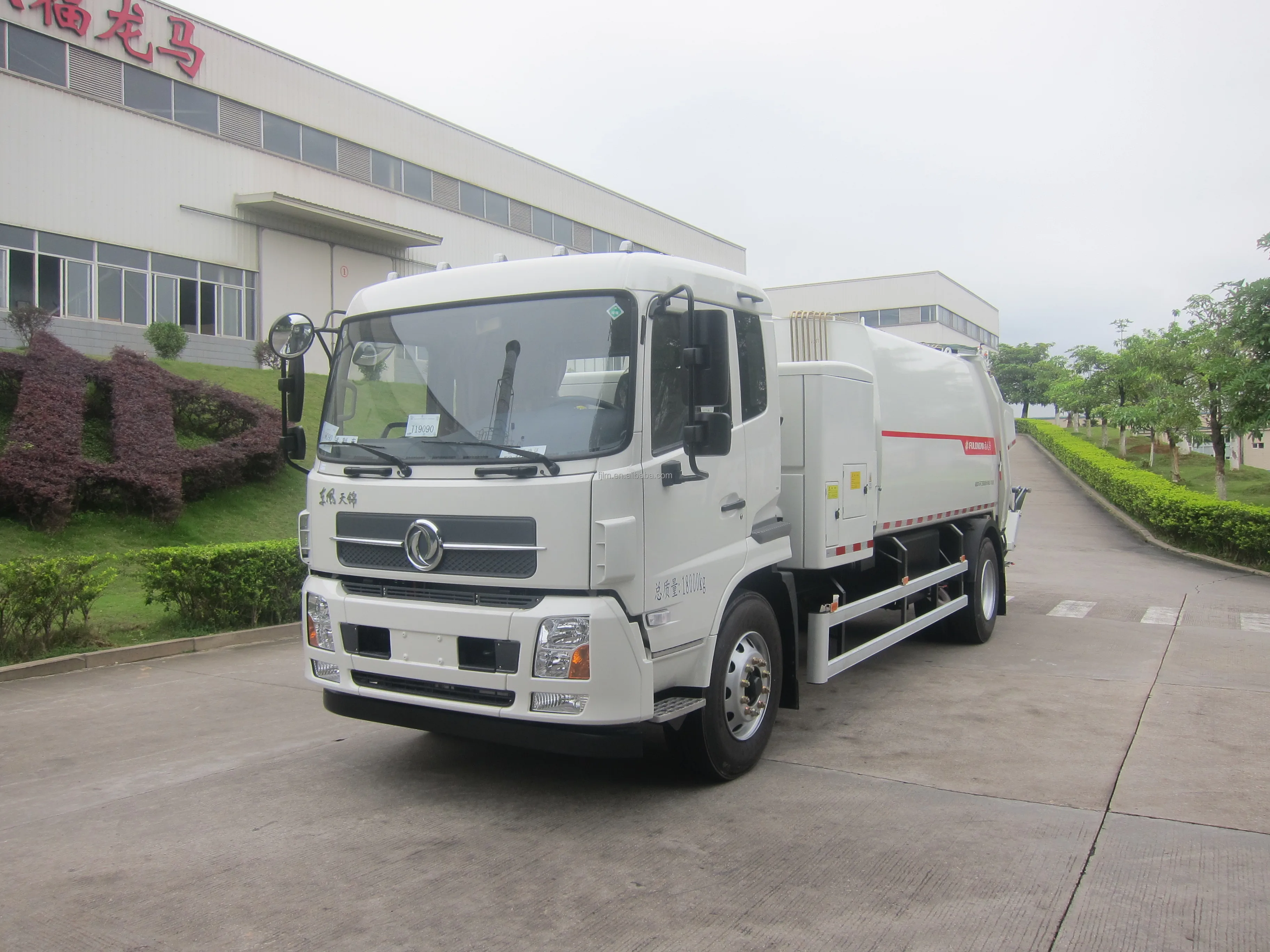

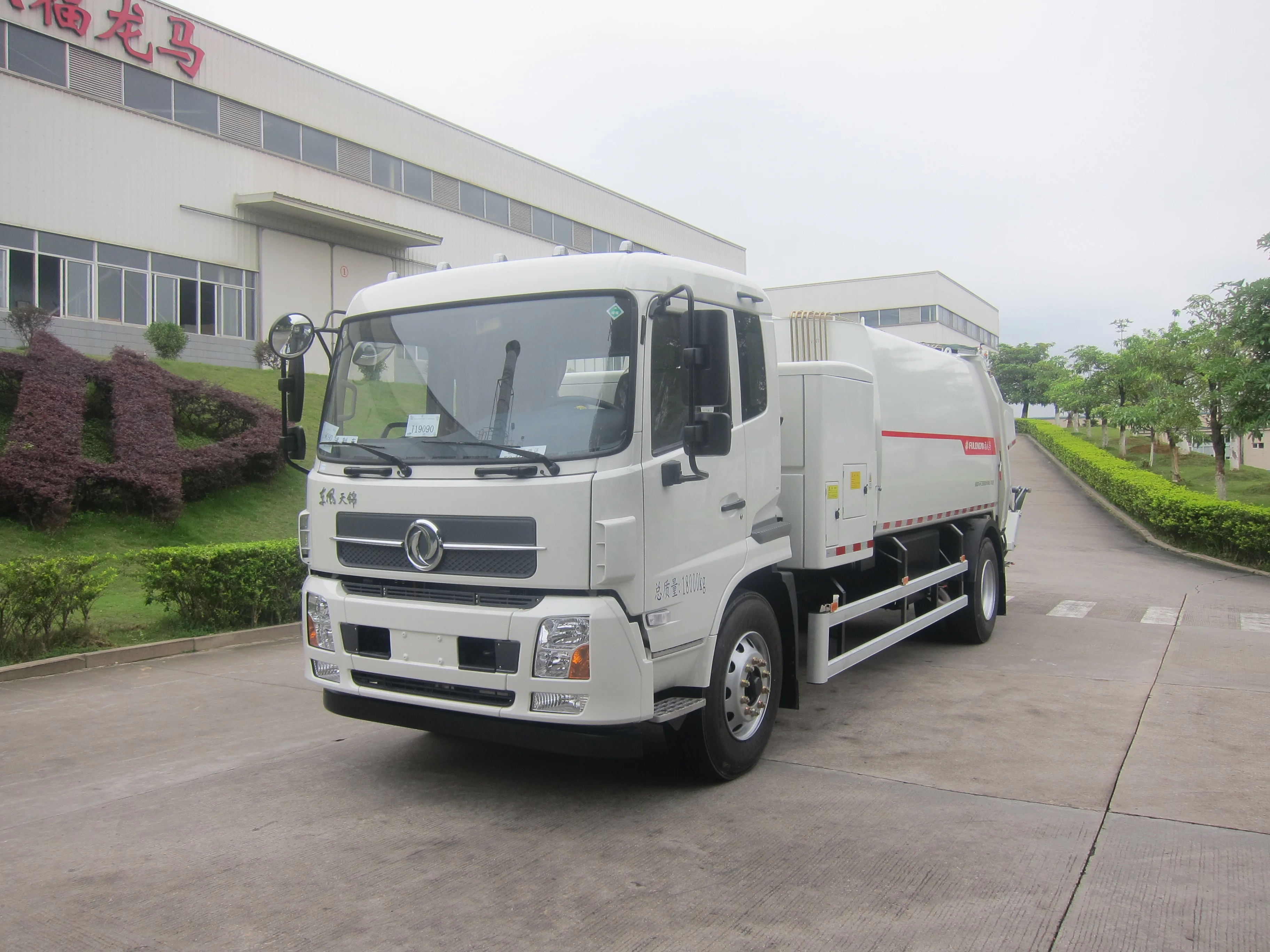

FULONGMA electric power medical waste management truck
- Category: Garbage Truck >>>
- Supplier: Fulongma Group Co. Ltd.
Share on (1600318564847):
Product Overview
Description
Company Profile

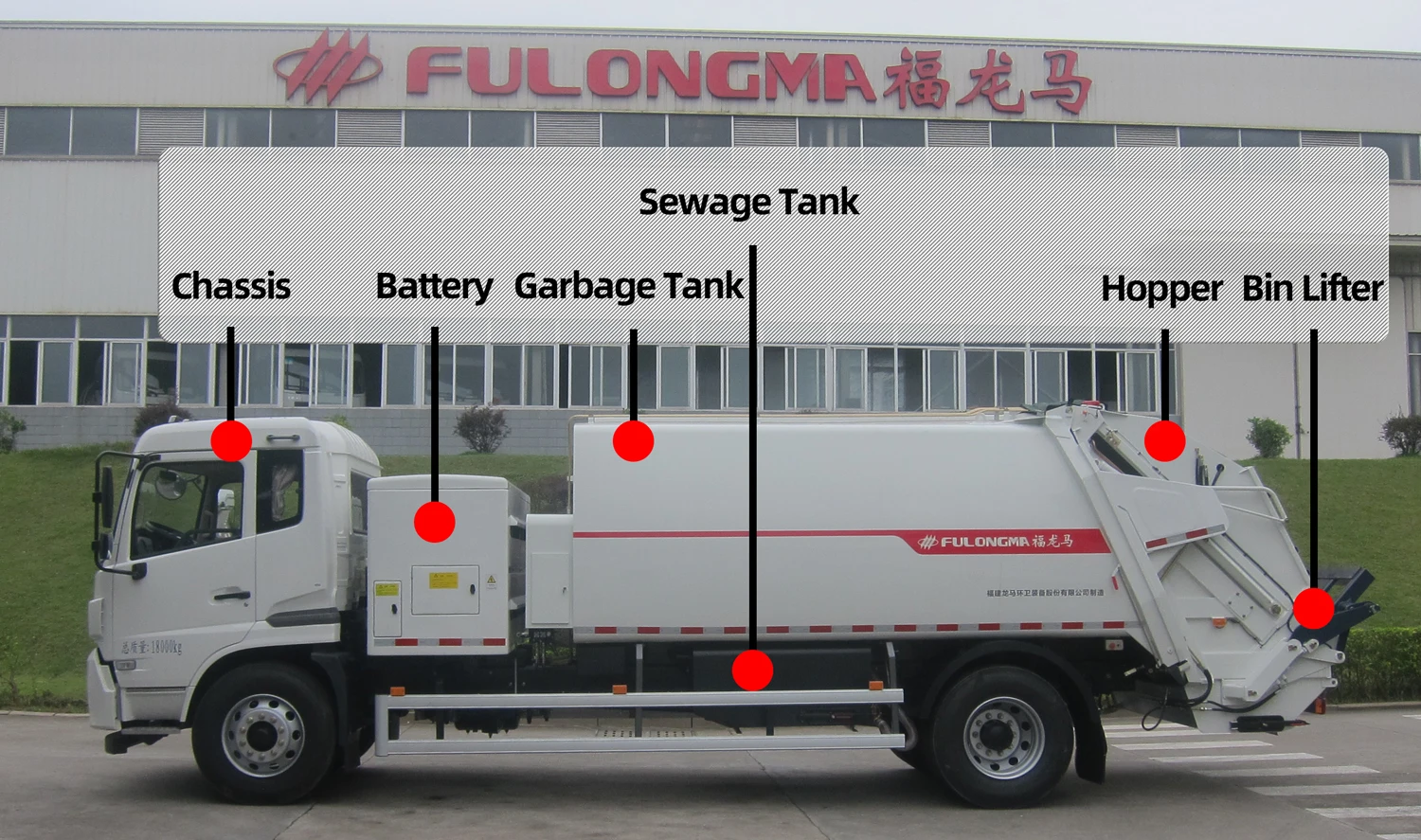

Product Overview
Electric Garbage Compactor Truck
1. The high-strength U-shaped integrally formed channel steel is used as the movable guide rail of the garbage ejector, which has strong pressure resistance and good deformation resistance.
2. The main components such as the trash can are made of Q345B high-strength steel plate, and the frame plate design is adopted, which is simple and beautiful, large effective volume, outstanding overall structural performance, and strong impact resistance.
3. The vehicle is equipped with a large-capacity sewage tank, combined with a diversion-type sewage collection device, which can divert the sewage that leaks between the hopper and the garbage tank body due to the failure of the sealing strip to the special sewage collection tank.
4. The joint between the hopper and the tank body adopts adjustable hydraulic locking and full sealing technology, which has a good sealing performance.
5. The sliding block of the ejector is made of high wear resistance alloy material with long service life.
6. There are multiple safety protection measures such as the sliding board upward, the scraper rotating button, the emergency stop button, the interlock switch to prevent the hopper from falling, the safety brace, and the self-locking function of the hopper lifting cylinder to ensure the safety of personnel.
7. The intelligent control system of the controller is adopted, which can be controlled centrally in the cab. Equipped with automatic and manual dual control modes, it can control the operation of garbage trucks in the driver's cab, middle compartment, rear compartment, etc., which is convenient and efficient.
8. Equipped with night work lights to facilitate night work for sanitation workers.
9. Equipped with a two-way compression function, high compression efficiency, and large garbage loading capacity. When unloading, after the hopper is lifted into place, the scraper and slide plate automatically realize a cycle to remove the garbage remaining in the hopper.
10. According to user needs, various garbage lifting devices are equipped. The well-designed lifting support makes it possible to configure a variety of lifting devices.
11. A sealing cover is set at the opening of the hopper. The opening and closing of the cover are pneumatically controlled, which is easy to operate and can effectively prevent secondary pollution of garbage and odor.
12. According to user needs, two side guards of different materials can be installed.
2. The main components such as the trash can are made of Q345B high-strength steel plate, and the frame plate design is adopted, which is simple and beautiful, large effective volume, outstanding overall structural performance, and strong impact resistance.
3. The vehicle is equipped with a large-capacity sewage tank, combined with a diversion-type sewage collection device, which can divert the sewage that leaks between the hopper and the garbage tank body due to the failure of the sealing strip to the special sewage collection tank.
4. The joint between the hopper and the tank body adopts adjustable hydraulic locking and full sealing technology, which has a good sealing performance.
5. The sliding block of the ejector is made of high wear resistance alloy material with long service life.
6. There are multiple safety protection measures such as the sliding board upward, the scraper rotating button, the emergency stop button, the interlock switch to prevent the hopper from falling, the safety brace, and the self-locking function of the hopper lifting cylinder to ensure the safety of personnel.
7. The intelligent control system of the controller is adopted, which can be controlled centrally in the cab. Equipped with automatic and manual dual control modes, it can control the operation of garbage trucks in the driver's cab, middle compartment, rear compartment, etc., which is convenient and efficient.
8. Equipped with night work lights to facilitate night work for sanitation workers.
9. Equipped with a two-way compression function, high compression efficiency, and large garbage loading capacity. When unloading, after the hopper is lifted into place, the scraper and slide plate automatically realize a cycle to remove the garbage remaining in the hopper.
10. According to user needs, various garbage lifting devices are equipped. The well-designed lifting support makes it possible to configure a variety of lifting devices.
11. A sealing cover is set at the opening of the hopper. The opening and closing of the cover are pneumatically controlled, which is easy to operate and can effectively prevent secondary pollution of garbage and odor.
12. According to user needs, two side guards of different materials can be installed.
PRODUCT SPECIFICATIONS
No. | Item | Data |
1 | Chassis Model | EQ1180GEVJ5 |
2 | Motor Model | TZ370XS-LKM1103 |
3 | Motor Peak Power (kW) | 160 |
4 | Total Mass (kg) | 18000 |
5 | External Dimension(mm) | 9935×2510×3020 (Bin Lifter) 9450×2510×3020 (No Lifter) 9745×2510×3020 (Bucket Lifter) |
8 | Wheelbase (mm) | 5300 |
9 | Hopper Volume (m³) | 1.1 |
10 | Garbage Tank Volume (m³) | 12.5 |
11 | Sewage Tank Volume (L) | 1030 |
12 | Ejection Force (kN) | 162 |
13 | Compression Cycle Time (s) | ≤17 |
14 | Unloading Cycle Time (s) | ≤55 |
15 | Lifting Cycle Time (s) | ≤11 |
High-efficiency hopper
Working cycle time: ≤17s
Maximum crushing compression force: 162kN
Lifting operation and pressure filling operation can be carried out at the same time to improve work efficiency.
Maximum crushing compression force: 162kN
Lifting operation and pressure filling operation can be carried out at the same time to improve work efficiency.
Safety Devices
It is equipped with multiple safety protection measures such as emergency stop button, interlock switch to prevent the hopper from falling, safety struts, and self-locking function of the hopper lifting cylinder to ensure the safety.
Ejector
Unloading cycle time: ≤55s
The high-strength U-shaped integrally formed channel steel is used as the movable guide rail of the ejector, which has strong pressure resistance and deformation resistance.
The high-strength U-shaped integrally formed channel steel is used as the movable guide rail of the ejector, which has strong pressure resistance and deformation resistance.
Sewage Collection
The sewage that leaks between the hopper and the garbage tank body due to the failure of the sealing strip can be drained to the sewage tank.

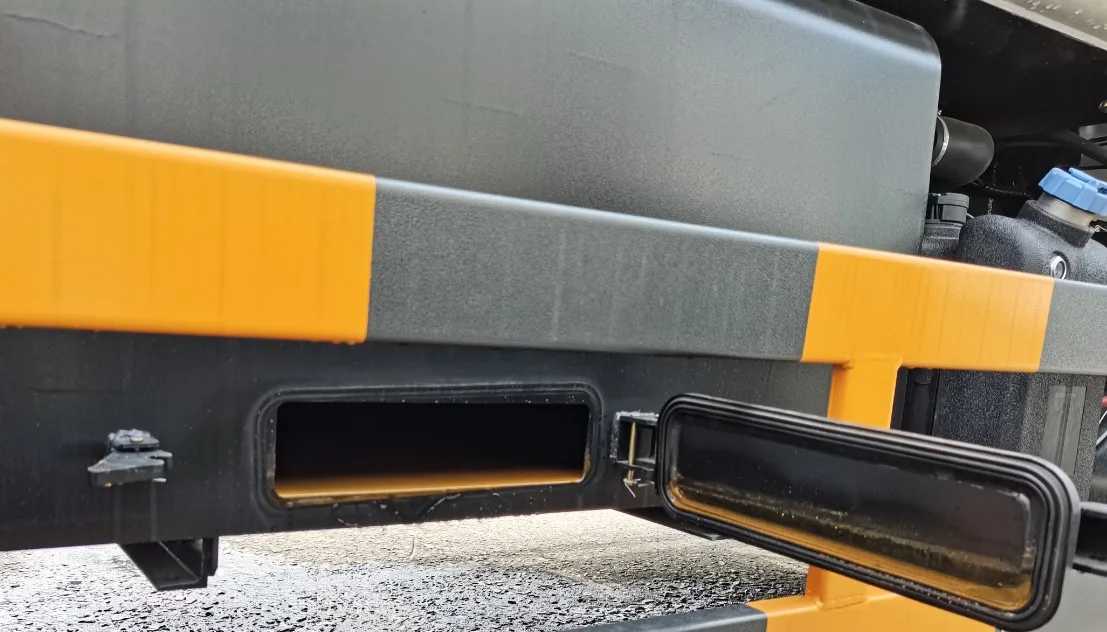

Sewage Tank Maintenance Lid
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.

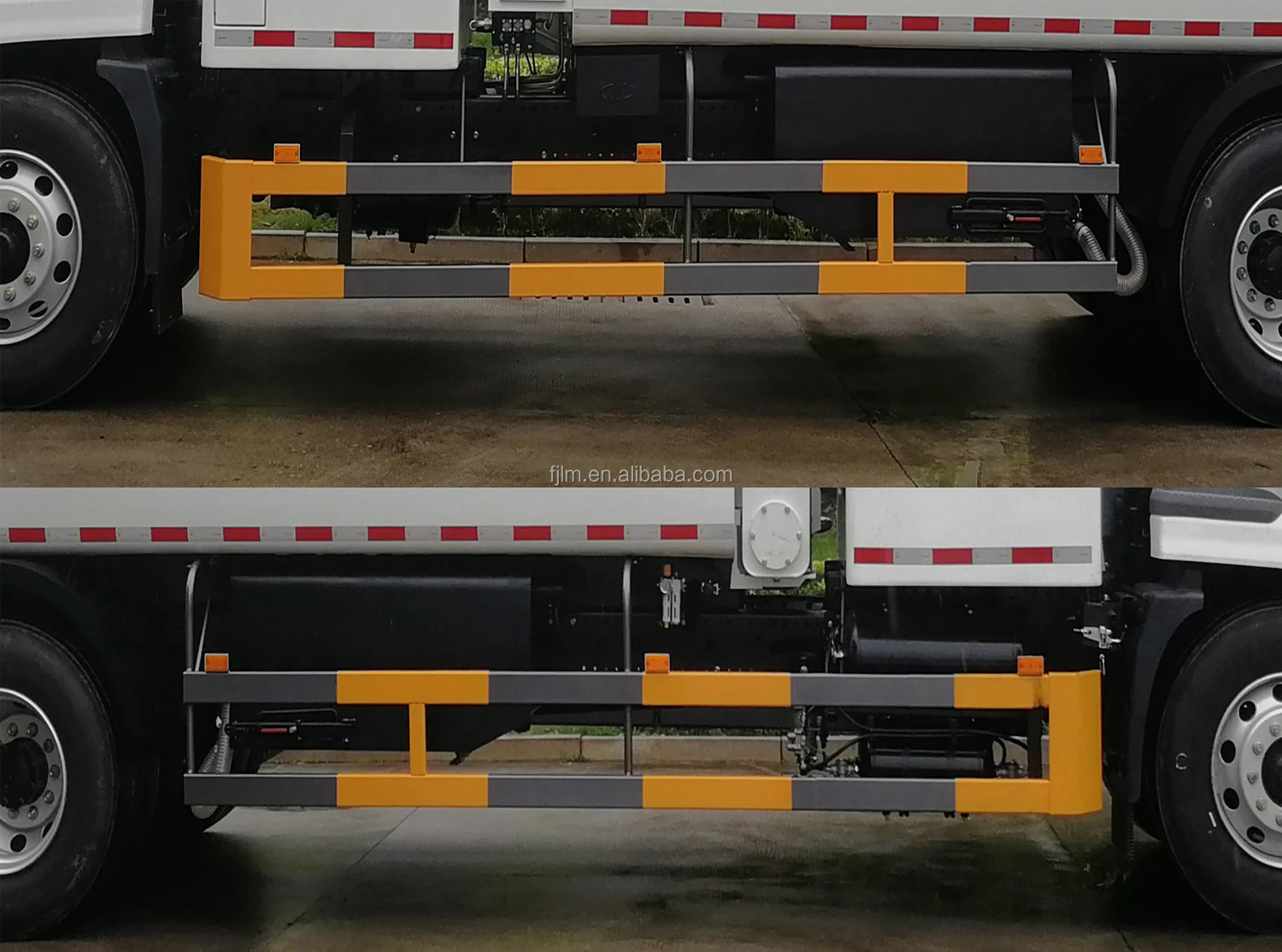

Aluminum Side Guard
It is used to protect the side of the car body to prevent people and objects from getting into the bottom of the truck.
Optional Lifting Device
Lifter for 240L with weighing system
It is easy to disassemble and assemble, and accurately record the weight of garbage, which is convenient for monitoring and statistics.
Lifter for 240L, 330L, 660L
Equipped with extendable hook plate and support arm. By replacing the hook plate and support arm, it can be adapted to 330L dustbins and 660L dustbins of different sizes everywhere.
Lifter for 240L and 660L
Equipped with an extendable support arm. By replacing the support arm, it can adapt to different sizes of 660L trash cans everywhere.
Lifter for 330L
The hook plate can be replaced, which is convenient to adapt to different sizes of dustbins everywhere.
Gantry
It can be adjusted to be applied to the local dumpster, and the collection capacity is large.
Gantry with bin lifter
It can be adjusted to be applied to the local dumpster, and the collection capacity is large. At the same time, it can be equipped with a 240 standard bin lifter or a round iron bin lifter.
Bin lifter with dumpster lifter
It has a wide range of applications, which can be used for feeding garbage bins and bulk garbage.
Flat dumpster lifter
The garbage is not easy to spill, the parts are universal, and it is easy to exchange with other lifting mechanisms, and it is convenient for the unloading of the flatbed truck.
Sealed dumpster lifter
The garbage is not easy to spill, and the lifting force is large.
