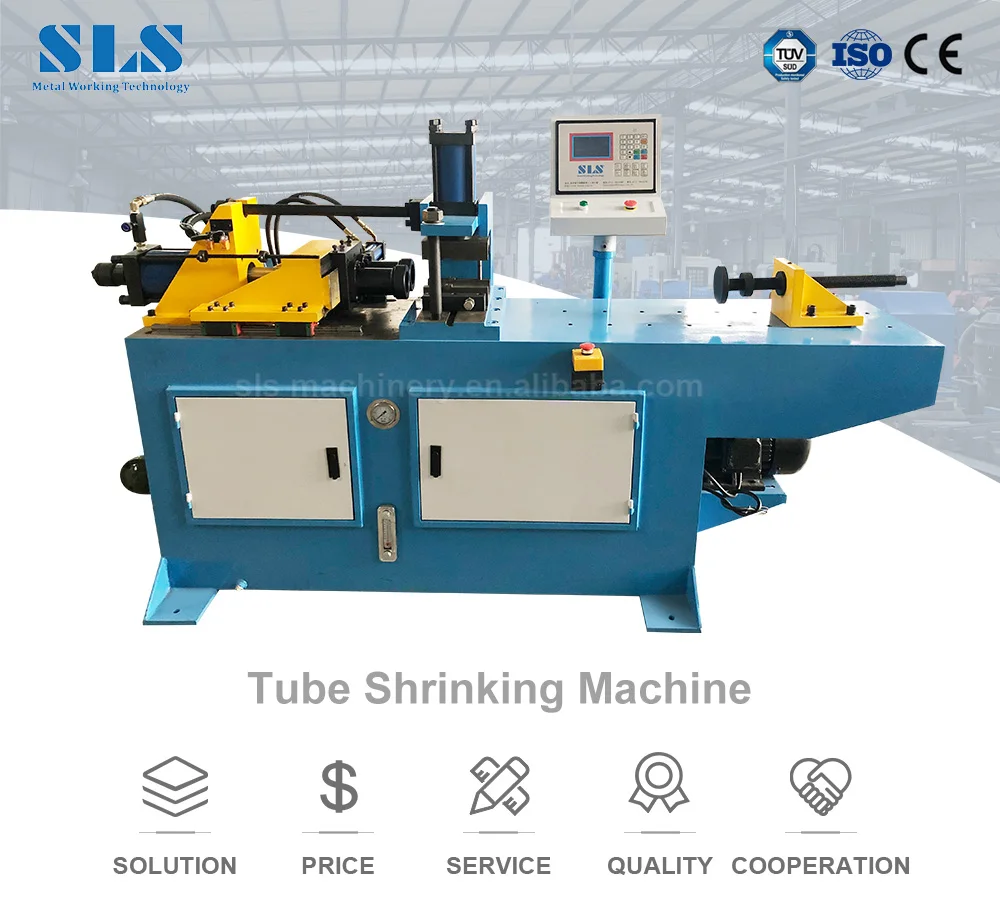

Copper Aluminium Stainless Steel Metal Pipe Tip Shrink Former Machine / Automatic Shrinking Tube End Forming Machines

Product Overview

Description

Copper Aluminium Stainless Steel Metal Pipe Tip Shrink Former Machine / Automatic Shrinking Tube End Forming Machines

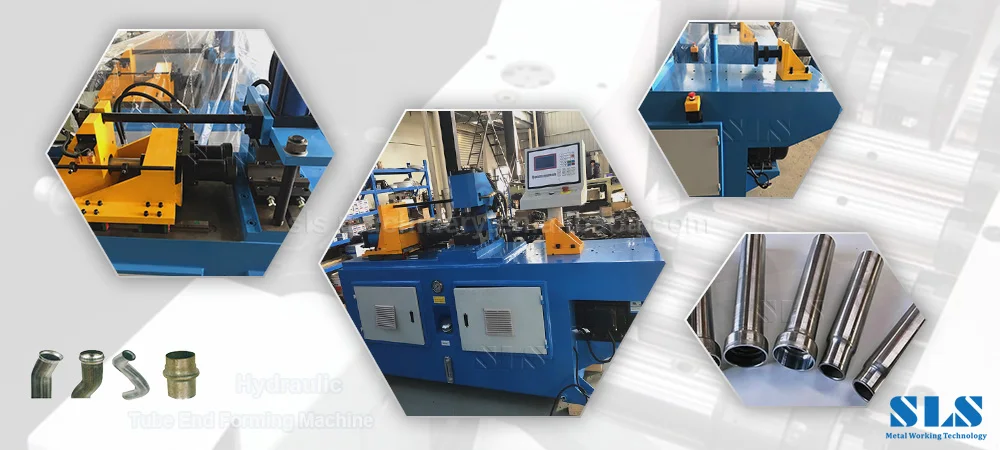

Brief Introduction on Tube End Forming Machine



SZ-SLS Tube End Forming Machine is a kind of high efficiency automatic machine. It can be do different types of end forming as reduction, expansion, beads, flare and thickening.Each of these categories has special requirements and is used in a variety of applications. It is controlled by hydraulic and electricity at the same time.It combines easy-to-use operation with high end forming accuracy and cost effectiveness.

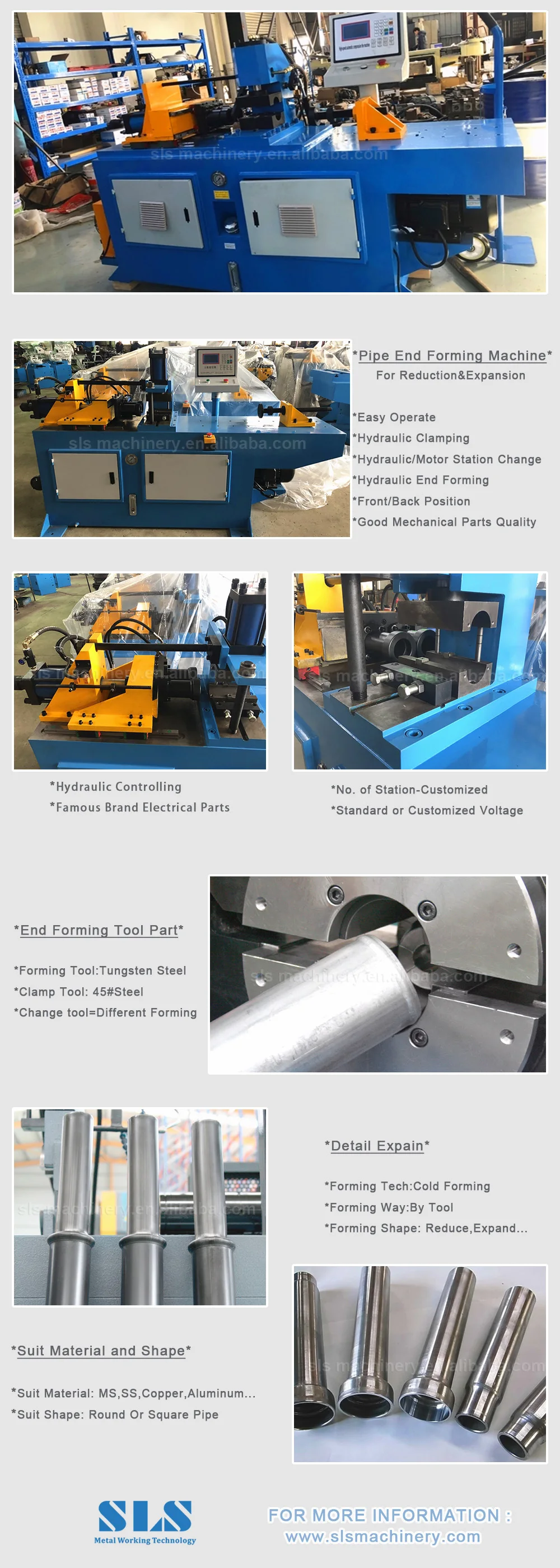

Features on Tube End Forming Machine



 * Human Interface offers easy access to auto and manual operating modes.
 * All the parts are made under very strict quality control, so the quality of machine is in high level and the



Model	TM-40	TM-60	TM-80	TM-100	TM-115	TM-115
Max Capacity	40x2mm	60x2mm	80x3mm	100x3.5mm	115x4mm	150x5mm
Max Stroke	100mm	150mm	150mm	150mm	150mm	150mm
Pressure	12Mpa	14Mpa	16Mpa	16Mpa	16Mpa	16Mpa
Motor Power	4 KW	5.5 KW	7.5 KW	11 KW	15 KW	22 KW
