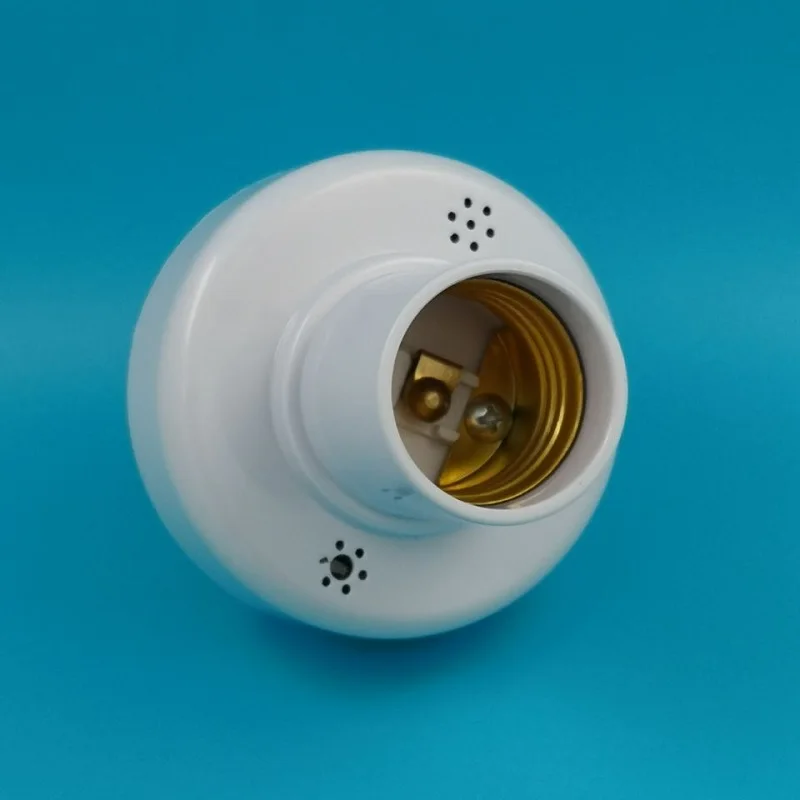

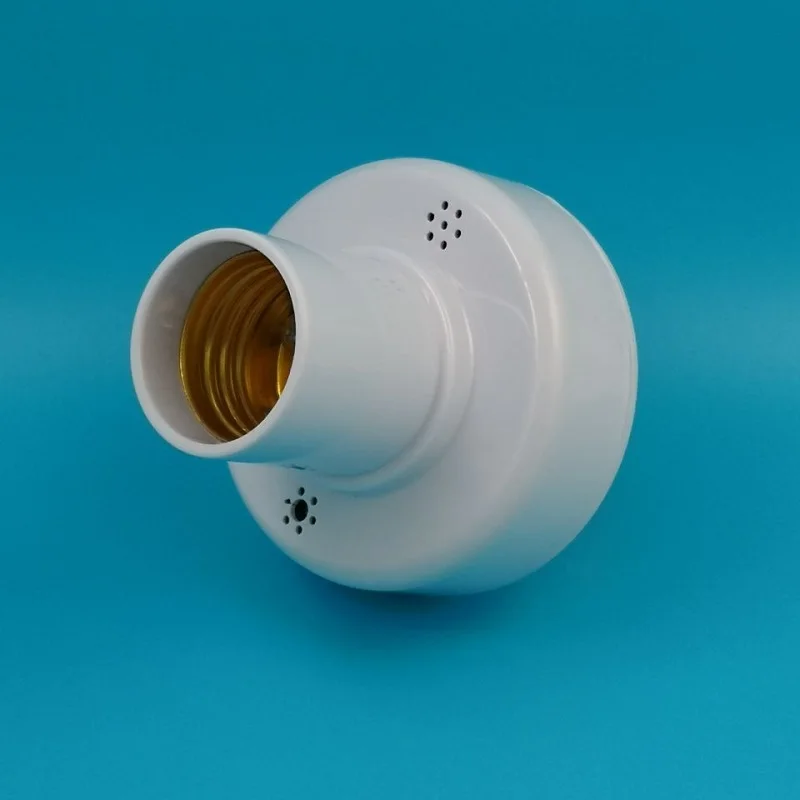

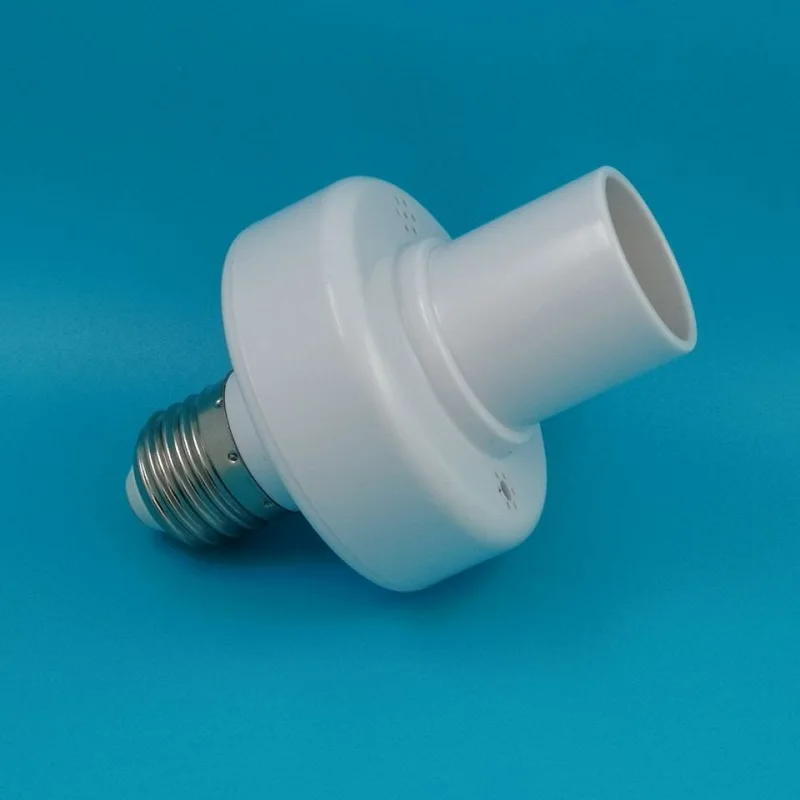

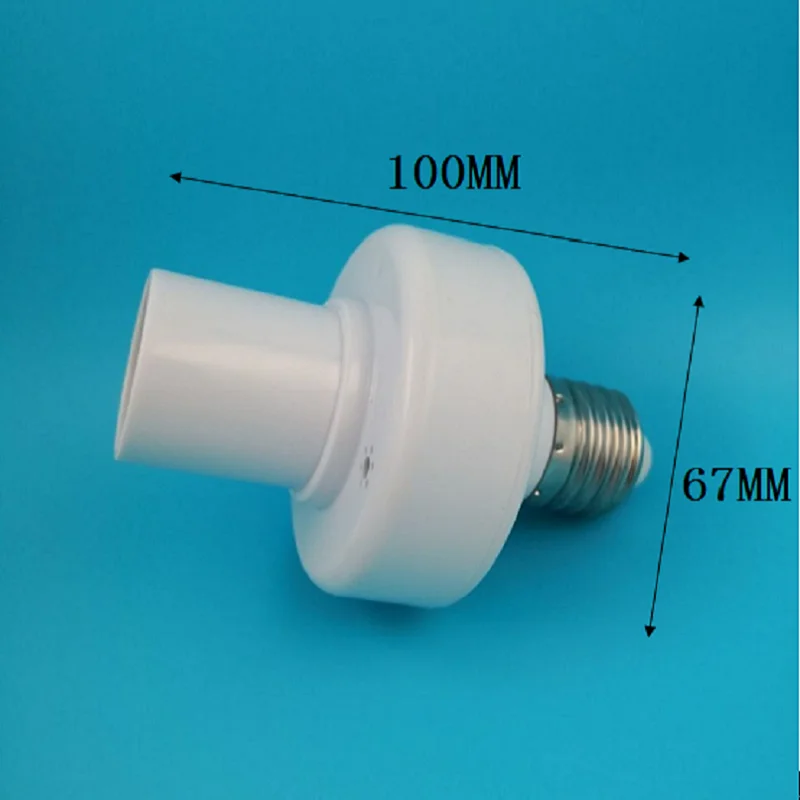

Microwave (radar) induction lamp holder E27 Motion Sensors Intelligent timing corridor switch lamp base

Product Overview

Description

Microwave (radar) induction lamp holder specification

Model: JL-111C



Welcome to use our products. The company's products are all through strict test and aging test, the circuit is stable and reliable in quality.

When there is a moving object into the induction range, the switch on. If the objects in induction range and delay period activity the switch will continue to delay and the lamp will not put out. Keep stationary state or away induction range turn off the light after a delay cycle. Built-in ambient light detection, the default lights in night.

Can penetrate some nonmetallic material induction, such as glass, gypsum board, wood, plastic, etc, are low In the 15 cm wall may pass through induction.

Specification:

Working power:AC110V~220V.

Method of induction: Active.

Static power consumption: 0.1W.

Output: SCR.

Delay time: about 20-30second.

Illumination:5LUX.

Induction distance:5~8M, not affected by ambient temperature.

Sensor angle:360 degree.

Load range: all the lamp.

Load power: Incandescent≤100W,Energy saving lamp≤80W,LED≤30W.

Working temperature: - 20 ℃ ~ 50 ℃.

Attention

1.To turn off power when installation, must be installed by professional.

2.Do not overload to use.

3.Please do not to volatile objects as the installed base. In the induction area, do not have an impact on the switch Detect obstacles or motion of object, don't have other equipment of the electromagnetic interference, such as high pressure Such as electricity, etc.

4.When it is powered on for the first time, it will enter normal working state after one minute.

5.Being active induction, induction switch will emit electromagnetic waves, so on without stop, two micro Wave induction switch or the distance between the microwave induction lamp it's better to keep more than 5 meters, too close will interfere with each other.

Special tips:

Radar inductive switch distance problem, affected by the actual installation environment, distance is in commonly 3 to 9 m, The smaller space more narrow scope of local induction, such as corridor, corridor and so on; Space is empty The sensing range, the greater the like the garage. This is not a switch quality problem, is one of the characteristics of microwave, in the little space because the reflected wave and transmitted wave normal offset each other.
